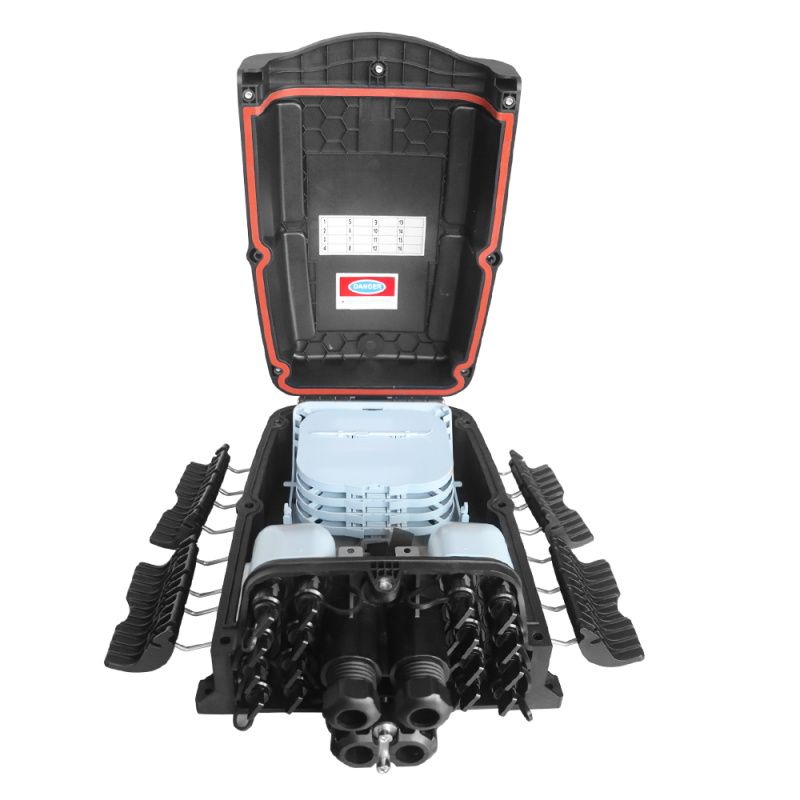

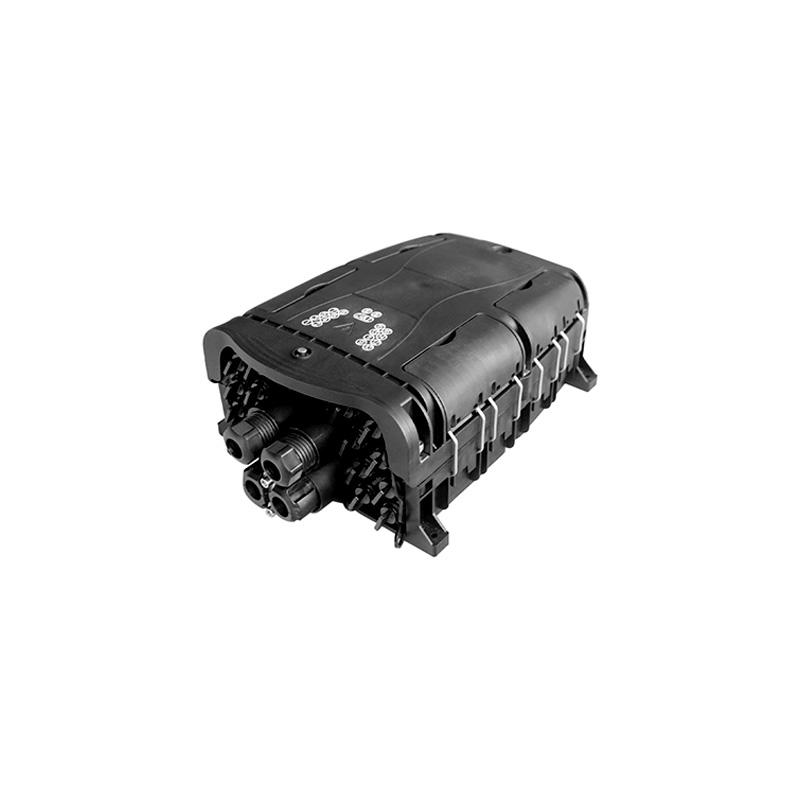

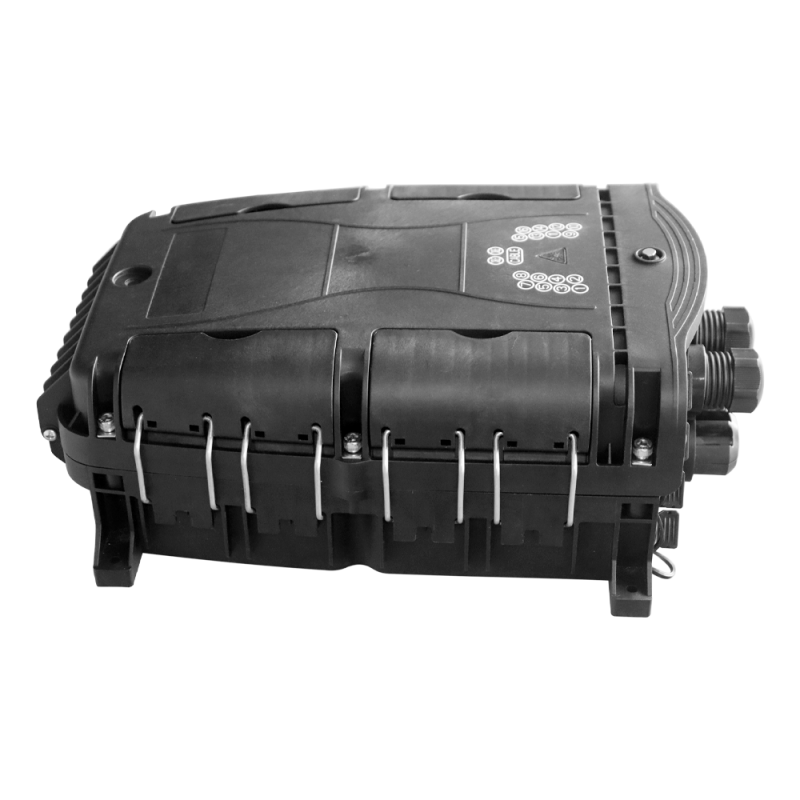

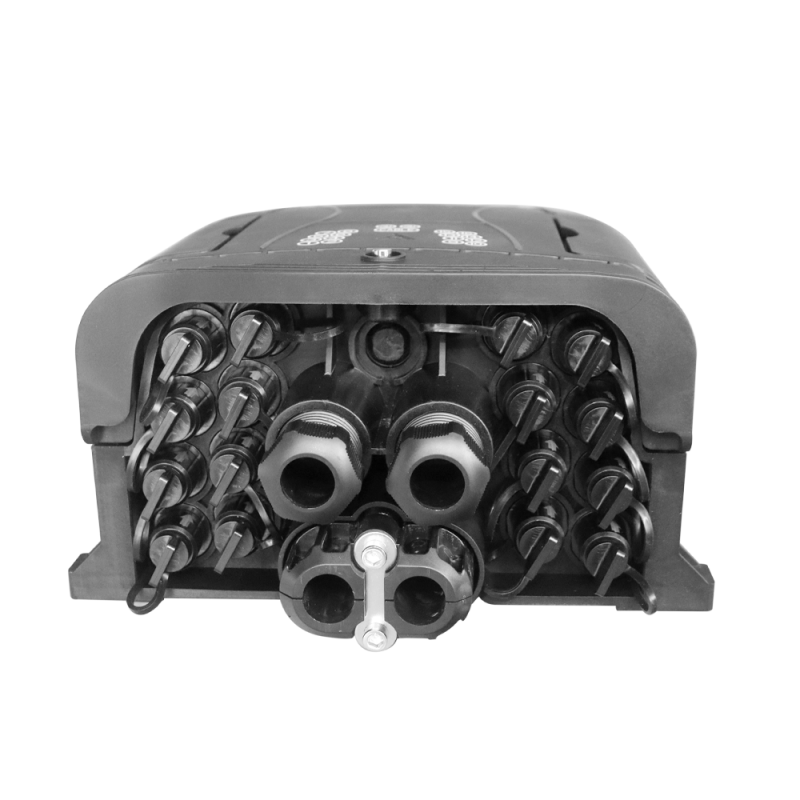

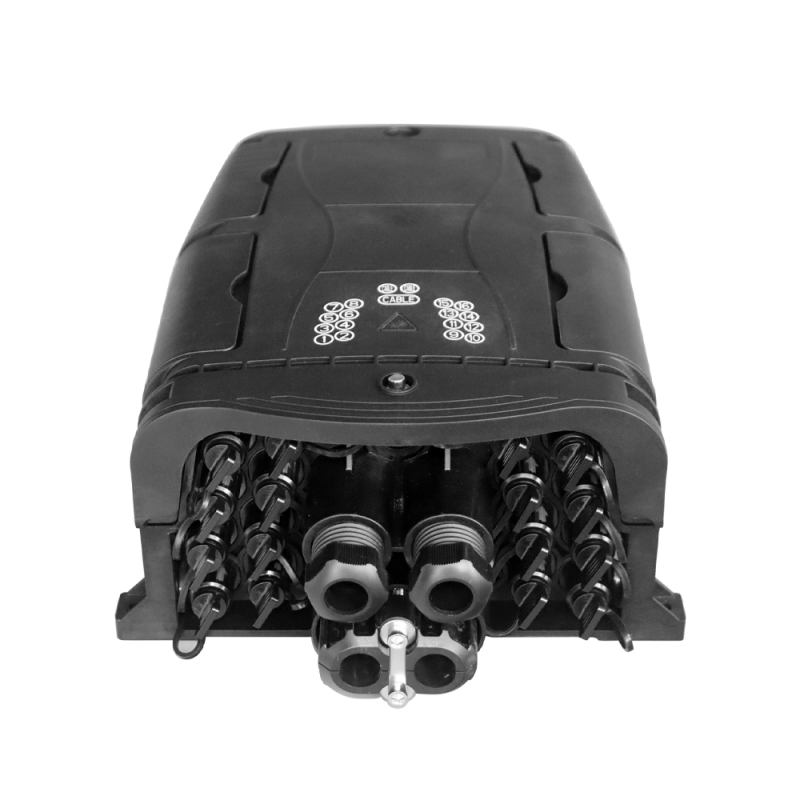

16F Fiber Optical Distribution Box with Mini Type Waterproof Adapter
This type of fiber access termination box（FDB） can hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It
integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.
16F Fiber Optical Distribution Box with Mini Type Waterproof Adapter Features:
1. Material: PP or PC+ABS, Moisture-proof, waterproof,dust-proof,anti-aging.
2. Oval optical cable entry,2 branch optical cable entries, and 8 pre-connected adapters.
3. Advanced structure design, easy operation, and reasonable routing. Internal multi-wiring can be independent or in combination with different types of demultiplexer.
4. Adapters are available in black, red, blue, or other colors for easy identification.
5. Can be equipped with a drop cable storage tray to meet the storage of 50 meters of 5mm round wire.
6. Optional splice trays.
7. Installation method: On pole, aerial, on wall.
8. Excellent sealing performance, Waterproof to IP68.
16F Fiber Optical Distribution Box with Mini Type Waterproof Adapter Applications :
1. FTTH Application;
2. Fiber optic communications in harsh outdoor environments;
3. Outdoor communication equipment connection;
4. Waterproof fiber equipment SC port;
5. Remote wireless base station;
6. FTTx FTTA wiring project.

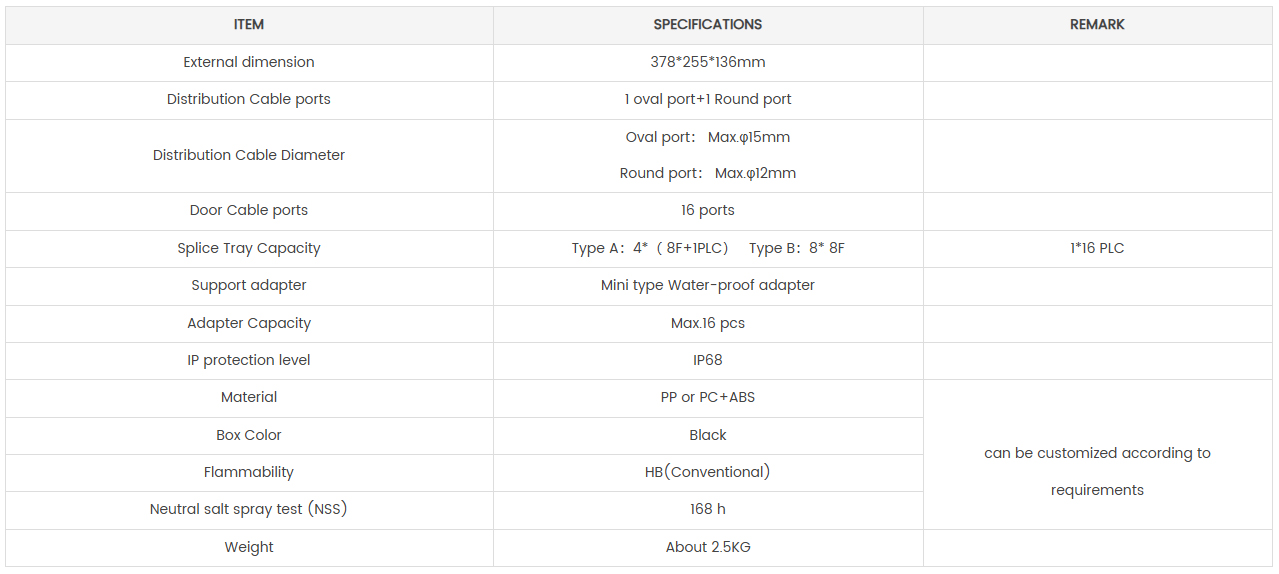

16F Fiber Optical Distribution Box with Mini Type Waterproof Adapter Configuration:
