OptiTap Fiber Optical Distribution Box 5 Cores With SC Connector
This is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splitting and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
OptiTap Fiber Optical Distribution Box 5 Cores With SC Connector Features:
1. Apply to wall-mounted、Pole pole-mounted and Overhead-mounted installation.
2. Metal or plastic units for optical cable storage are available.
3. High-strength material with good weather adaptability and UV resistance.
4. Port into the end and leakage design, no need to open the box, easy construction.
5. Internal multi-wiring can be independent or in combination with different types of demultiplexer.
6. Adapters are available in black, red, blue, or other colors for easy identification.
7. Ultrasonic welding, excellent sealing performance, Waterproof to IP68.
OptiTap Fiber Optical Distribution Box 5 Cores With SC Connector Applications :
1. FTTH Application;
2. Fiber optic communications in harsh outdoor environments;
3. Outdoor communication equipment connection;
4. Waterproof fiber equipment SC port;
5. Remote wireless base station;
6. FTTx FTTA wiring project.

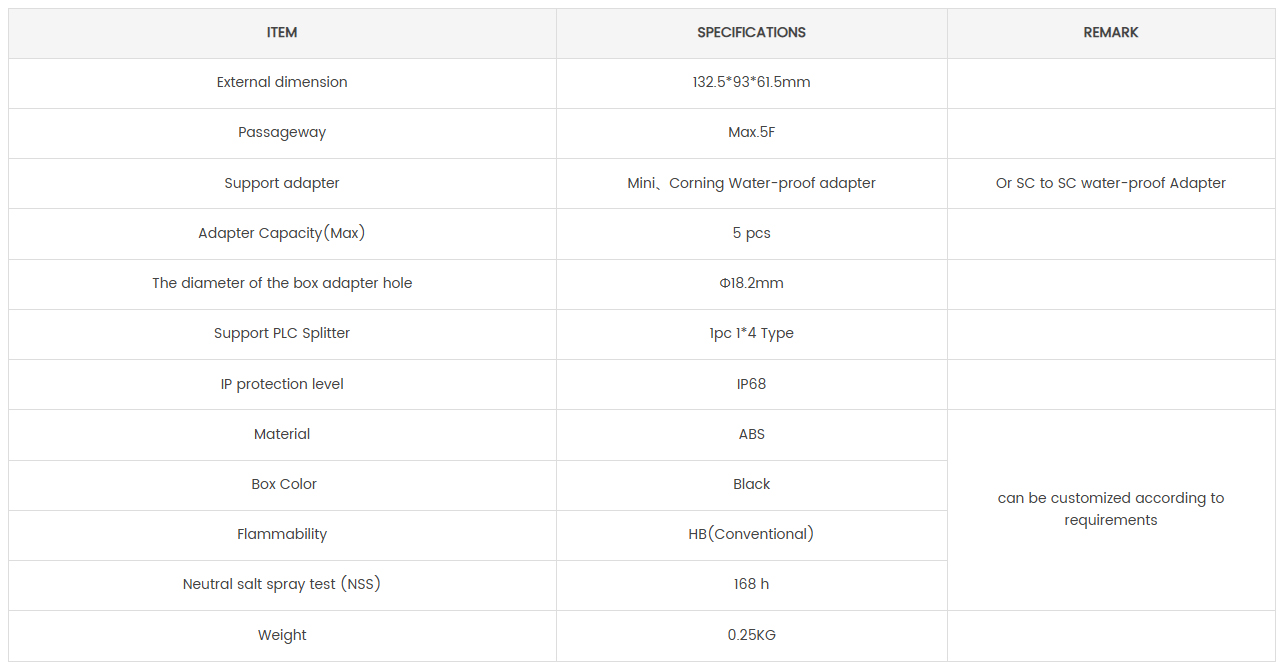

OptiTap Fiber Optical Distribution Box 5 Cores With SC Connector Configuration:
