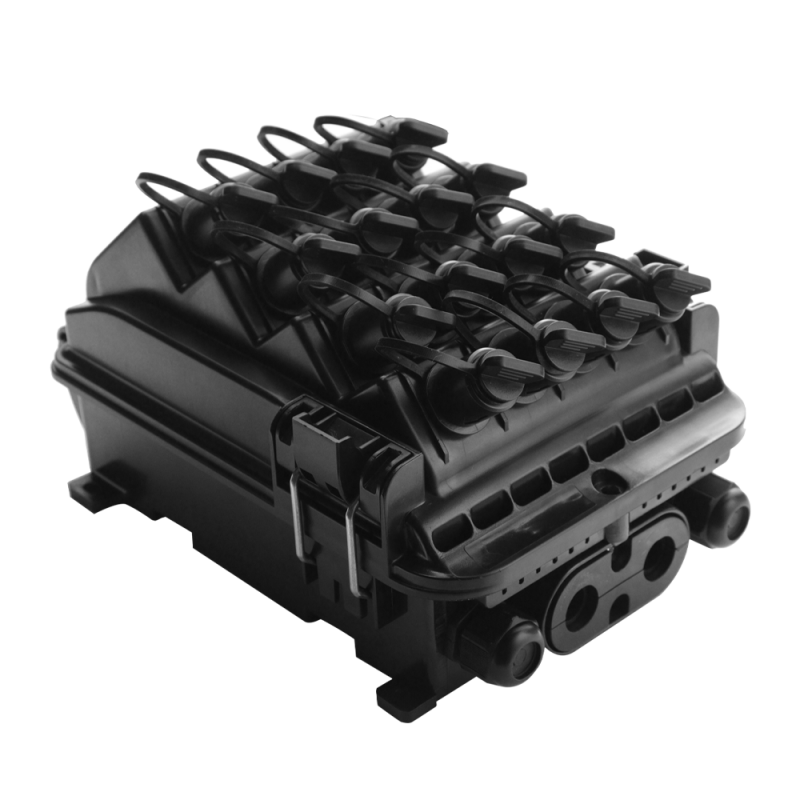

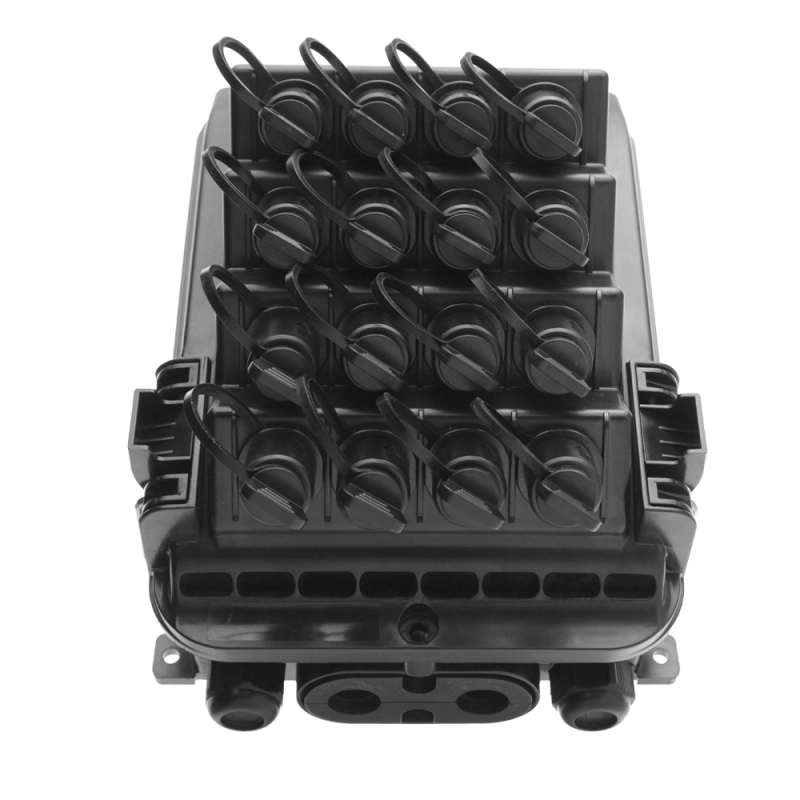

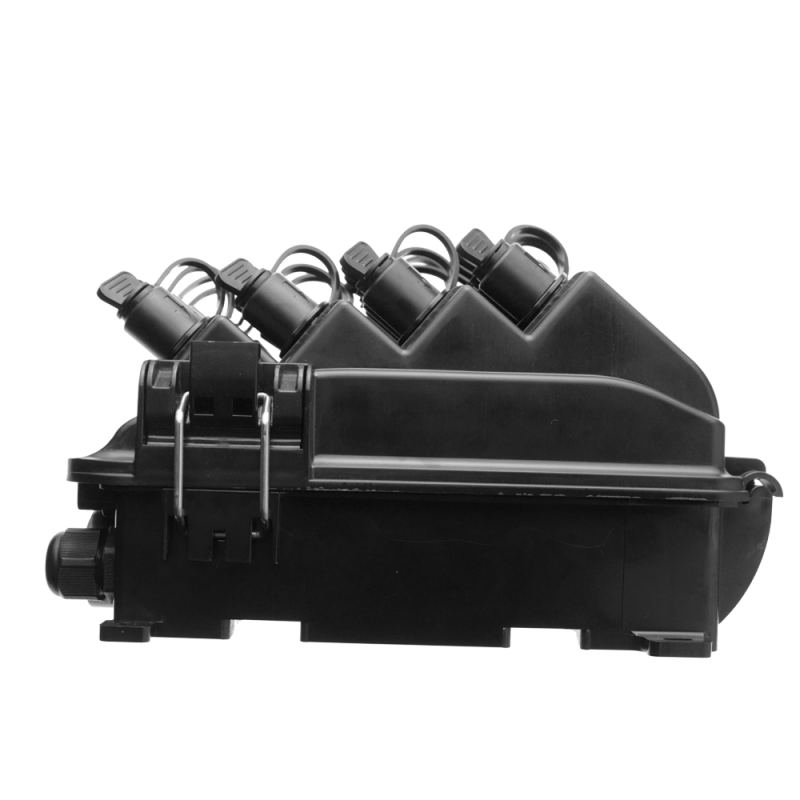

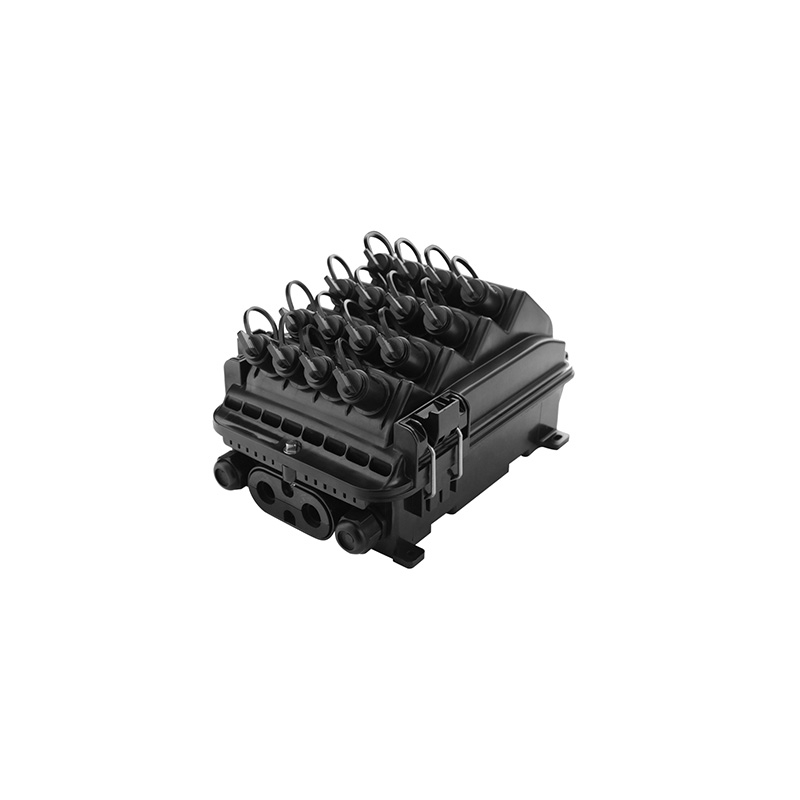

ABS Material 16 Ports Fiber Optic Distribution Box Durable And Long-Lasting Performance

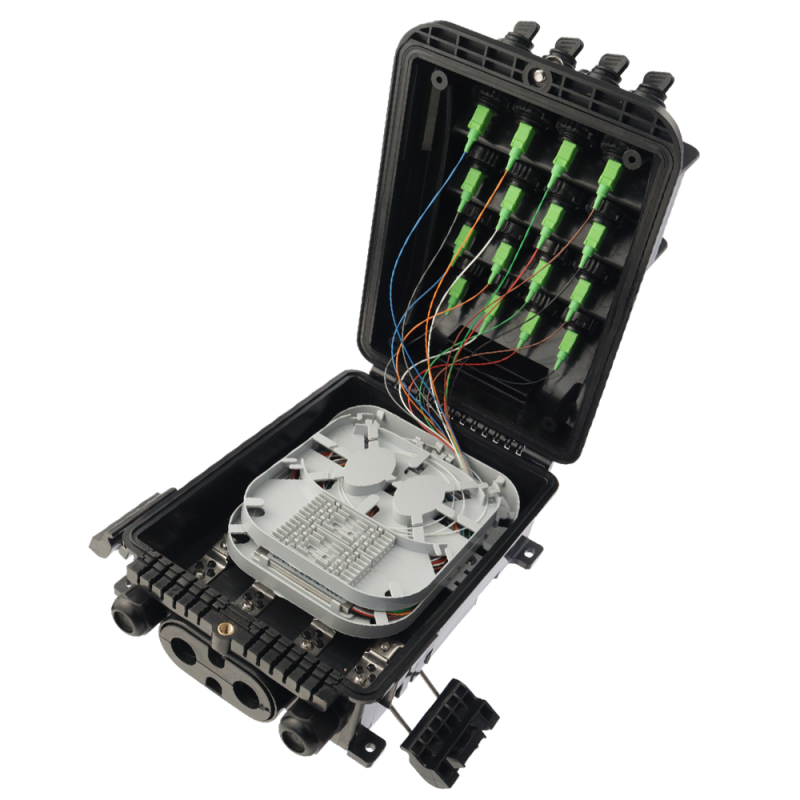

The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
This Fiber Optic Distribution Box is designed with wide compatibility for fiber optic cables, including SC, LC, ST, and MPO connector types. It is built with a rugged IP68-rated protection level and can be easily installed wall-mounted. Besides, this termination box is available in white color.
ABS Material 16 Ports Fiber Optic Distribution Box Durable And Long-Lasting Performance Features:
1. The box is small and lightweight, but it has complete functions and is easy to operate.
2. Plug and play, pre-connected household cable instead of fusion, no need to open the box.
3. Fast insertion can fix and seal the optical cable outside the connector box for quick installation.
4. Support a variety of installation methods, including holding poles, hanging walls, and hanging cables.
5. Unique design front 45-degree angle fiber output.
6. The drop leaf can be installed in 1 pcs of 1:16 PLC or 2 pcs of 1:8 PLC.
7. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
ABS Material 16 Ports Fiber Optic Distribution Box Durable And Long-Lasting Performance Applications :
1. FTTH Application;
2. Fiber optic communications in harsh outdoor environments;
3. Outdoor communication equipment connection;
4. Waterproof fiber equipment SC port;
5. Remote wireless base station;
6. FTTx FTTA wiring project.
ABS Material 16 Ports Fiber Optic Distribution Box Durable And Long-Lasting Performance Configuration:
