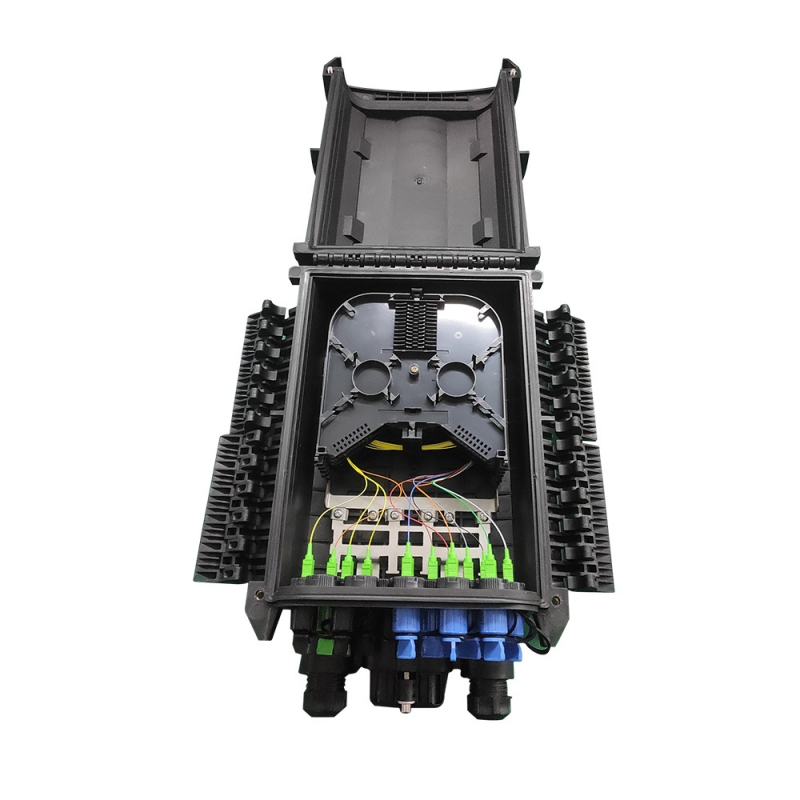

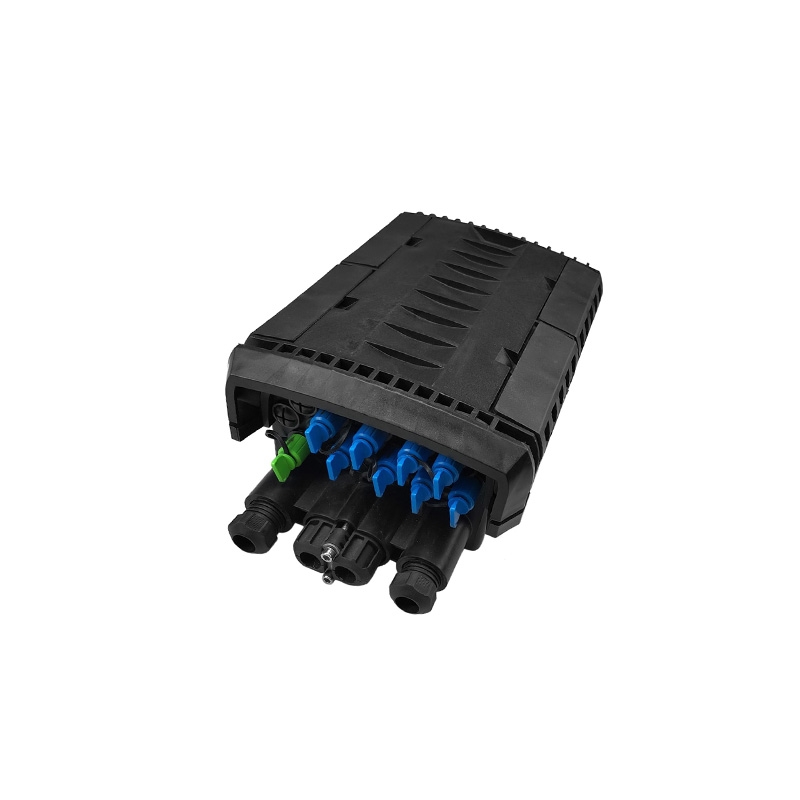

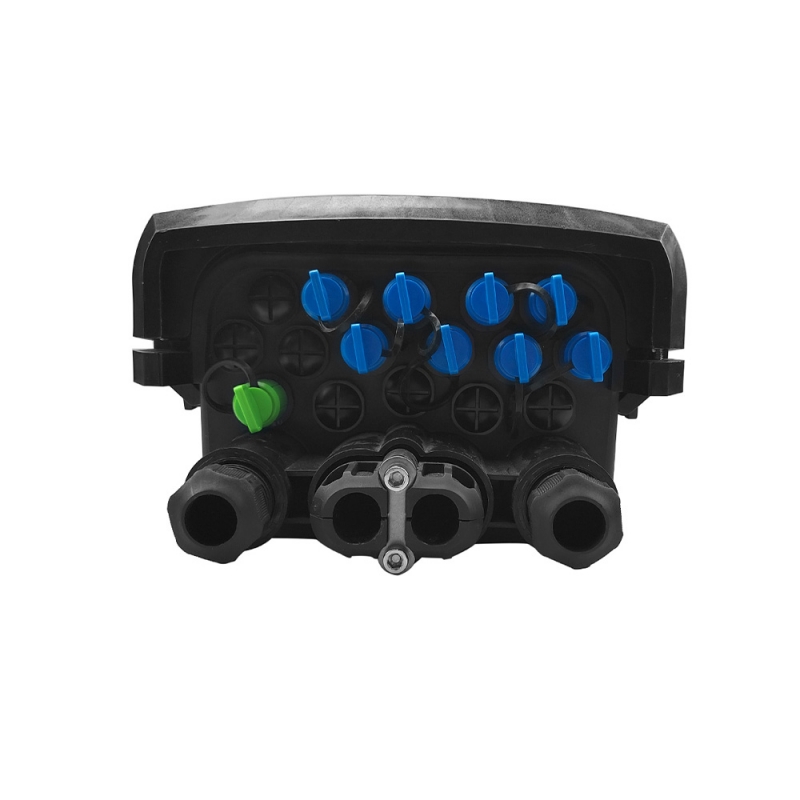

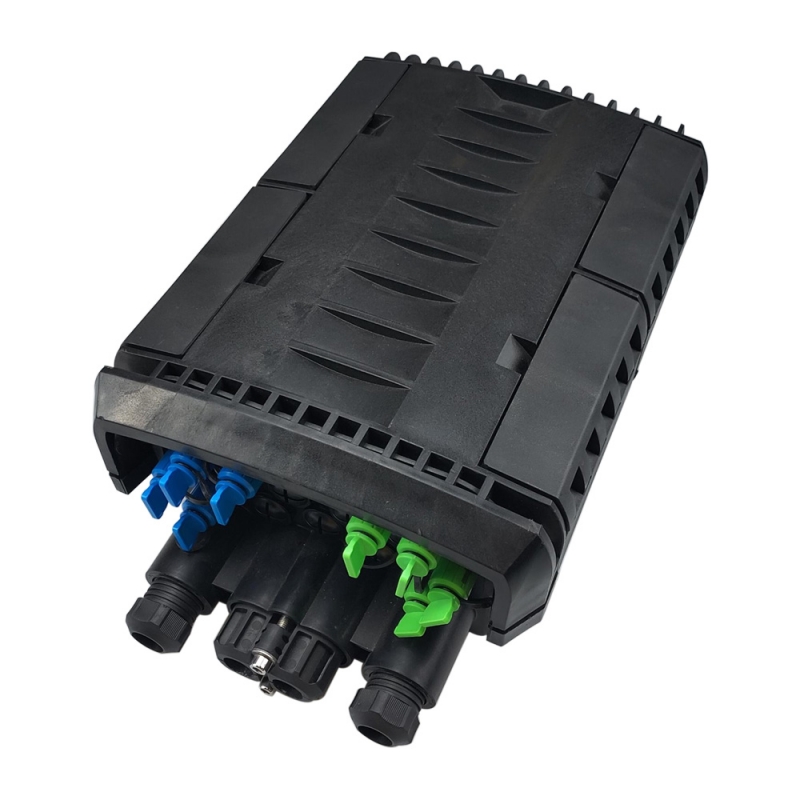

Optical Fiber sub-Box 16-core Outdoor 1 sub-16 Optical Cable Distribution Box with Waterproof Adapter
Fiber access termination closure is able to hold up to 16 subscribers and 60 splicing points as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connections in one solid protection box.
Optical Fiber sub-Box 16-core Outdoor 1 sub-16 Optical Cable Distribution Box with Waterproof Adapter Features:
1. Material: PP,wet-proof、water-proof、dust-proof、anti-aging.
2. Impact test: IK10, Pull Force:100N, Full rugged design.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc.
4. Cable, pigtails, and patch cords run through their paths without disturbing each other, Micro-type PLC splitter installation, is easy maintenance.
5. The distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6. 16 ports cable entrance for drop cable and Max.24 adaptors for drop cable patching.
7. 2 pcs of 1*8 Splitter can be installed as an option.
8. Installation method: pole-mounted, aerial-mounted, wall-mounted.
9. Protection level up to IP68.
Optical Fiber sub-Box 16-core Outdoor 1 sub-16 Optical Cable Distribution Box with Waterproof Adapter Applications :
1. FTTH Application;
2. Fiber optic communications in harsh outdoor environments;
3. Outdoor communication equipment connection;
4. Waterproof fiber equipment SC port;
5. Remote wireless base station;
6. FTTx FTTA wiring project.

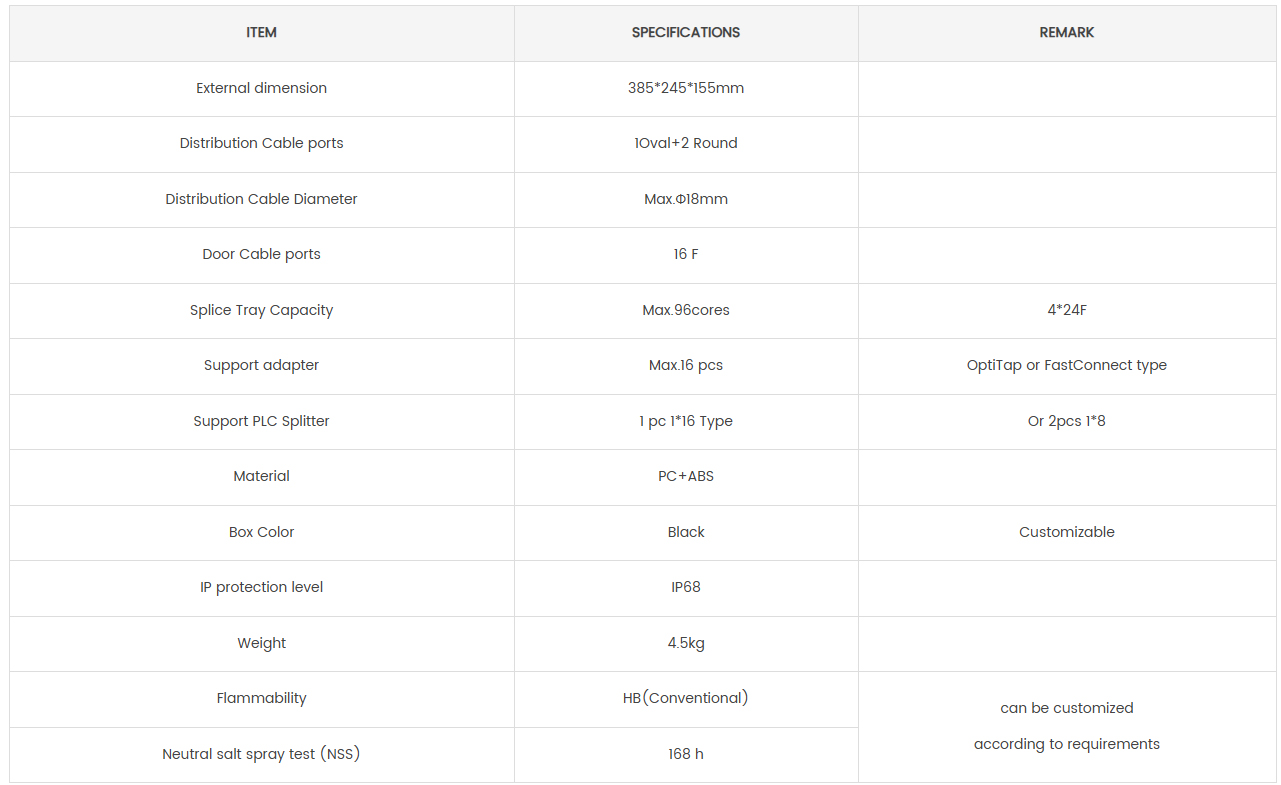

Optical Fiber sub-Box 16-core Outdoor 1 sub-16 Optical Cable Distribution Box with Waterproof Adapter Configuration:
