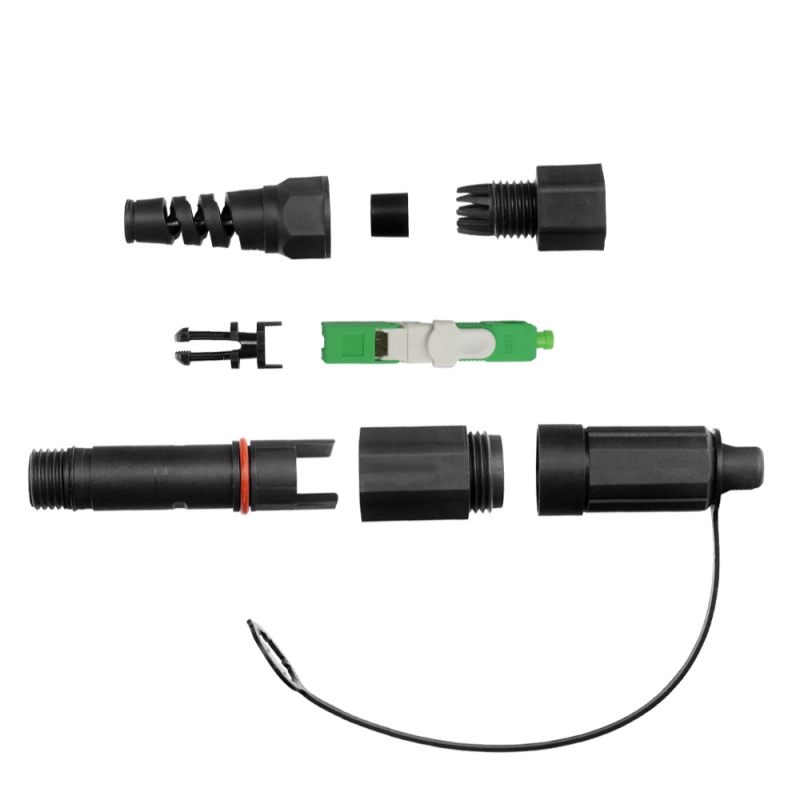

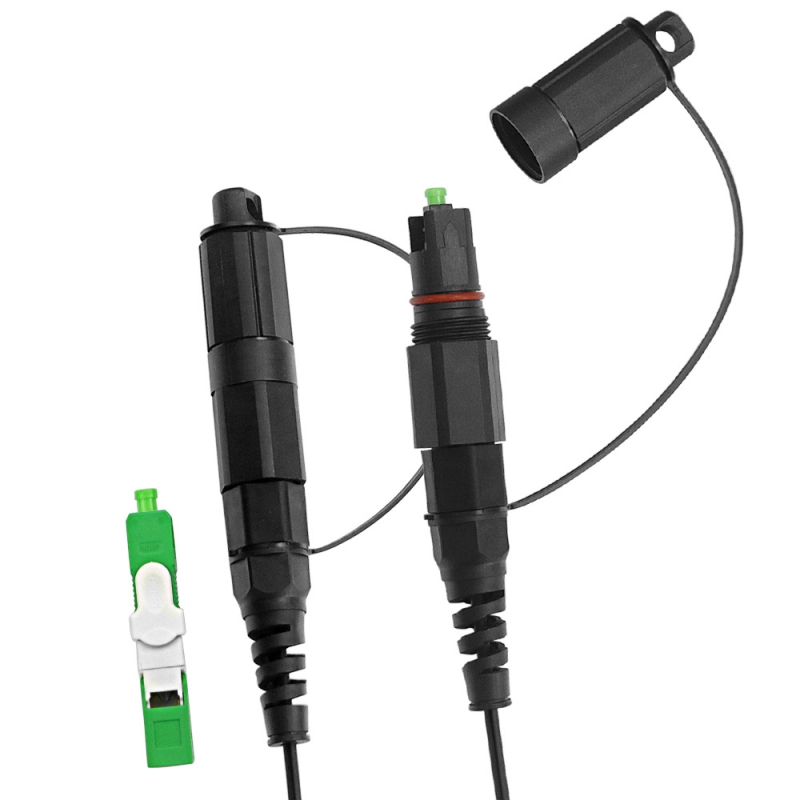

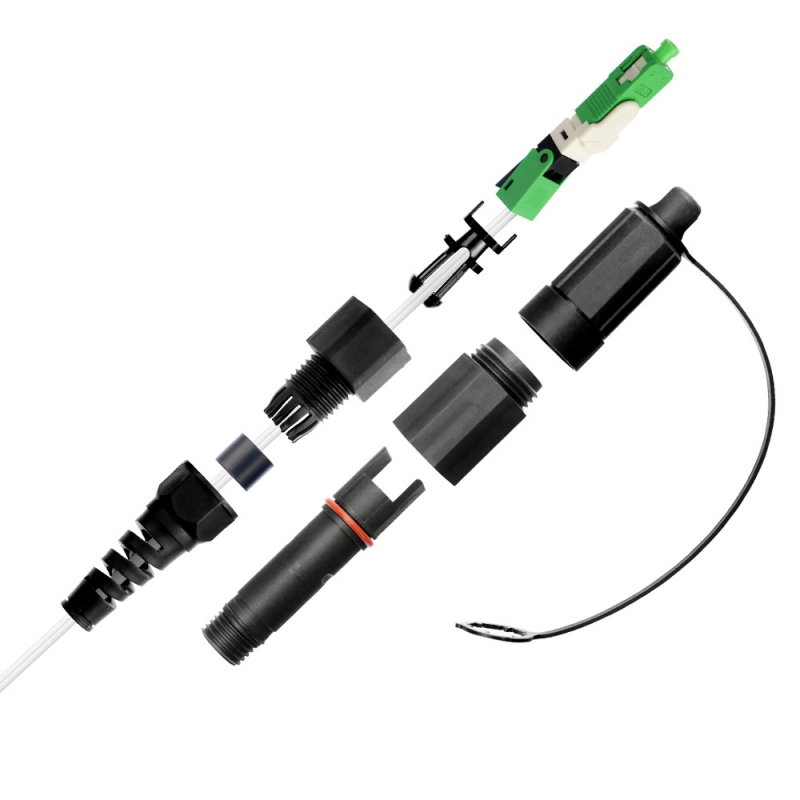

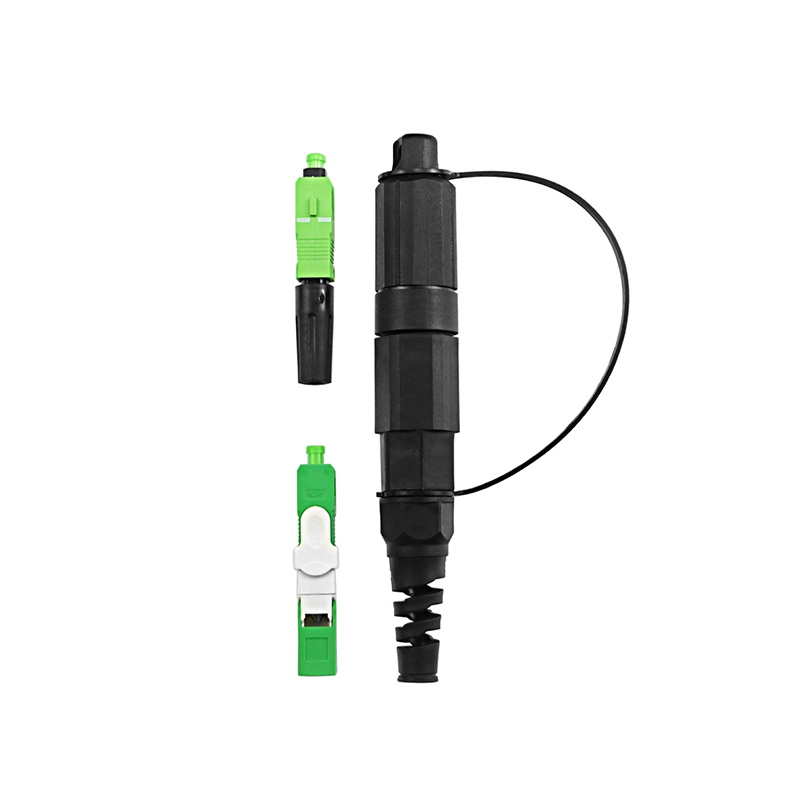

OptiTap/SC APC Field Installable Reinforced connector for 2 X 3 mm Flat cable
The OptiTap Pre-connected type waterproof connector is a compact and highly waterproof connector designed to be compatible with Corning‘s field waterproof connectors. It is an economical, efficient, and convenient outdoor connector with sealing and mechanical protection capabilities. The overall size of the connector is small, and it can also provide a wall-through-tube traction application solution. Replace the wall-through cap to switch between wall-through and connection scenarios easily. The connector is made of special plastic material resistant to high and low temperatures, acid and alkali corrosion, and UV radiation. It is equipped with a waterproof sealant pad, the protection performance can reach the IP67 level. The connector features blind mating functionality, offering a quick installation solution.

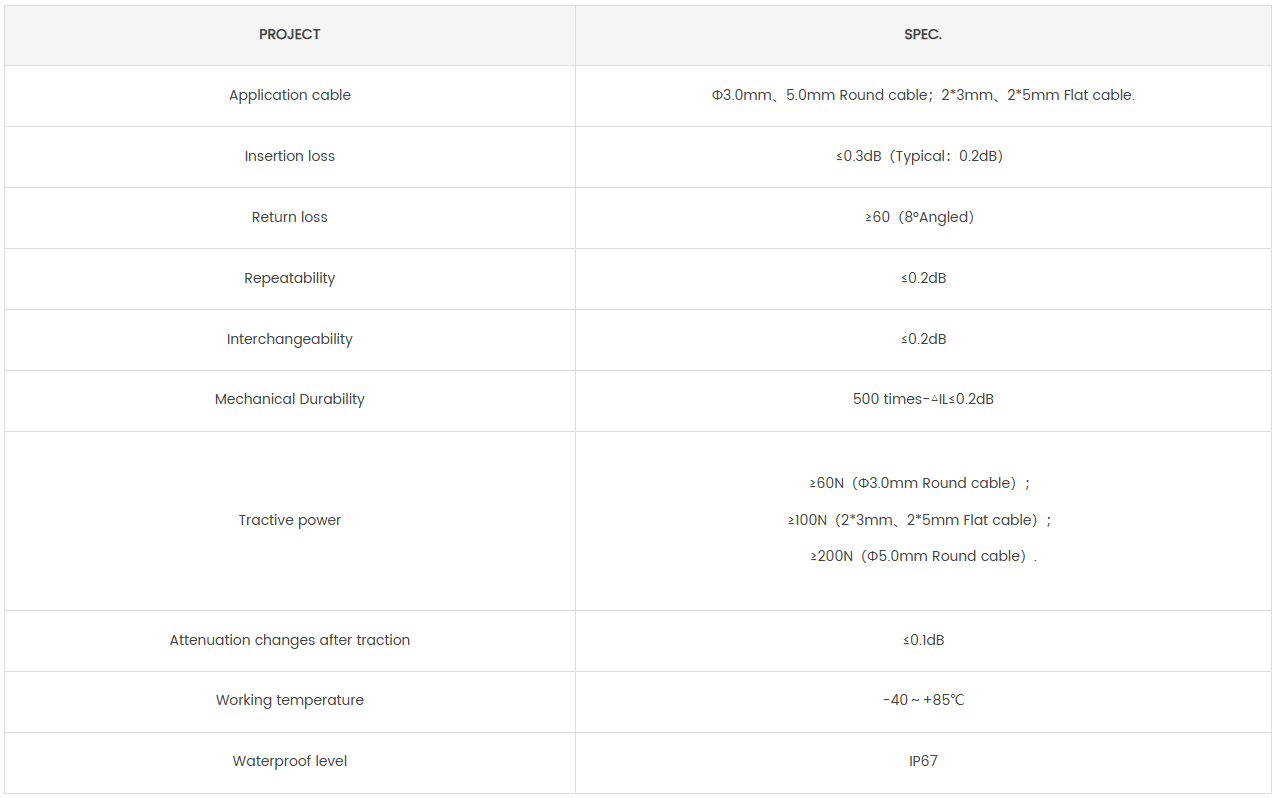

OptiTap/SC APC Field Installable Reinforced connector for 2 X 3 mm Flat Specification:
OptiTap/SC APC Field Installable Reinforced connector for 2 X 3 mm Flat cable Features:
1. It provides superior weather resistance for FTTA and other outdoor applications.
2. It allows flexibility to use factory-terminated assemblies or pre-terminated or field-installed assemblies.
3. It‘s suitable for FTTA and outdoor temperature extremes Ensure functionality, in harsh weather environments.
4. It can be installed without special tooling.
5. It provides bend protection for installation and long-term use.
6. Threaded style coupling.
OptiTap/SC APC Field Installable Reinforced connector for 2 X 3 mm Flat Cable Application Scenarios:
1. Fiber-optic communication
2. Data transmission Networks
3. Compatible with SC Connector
