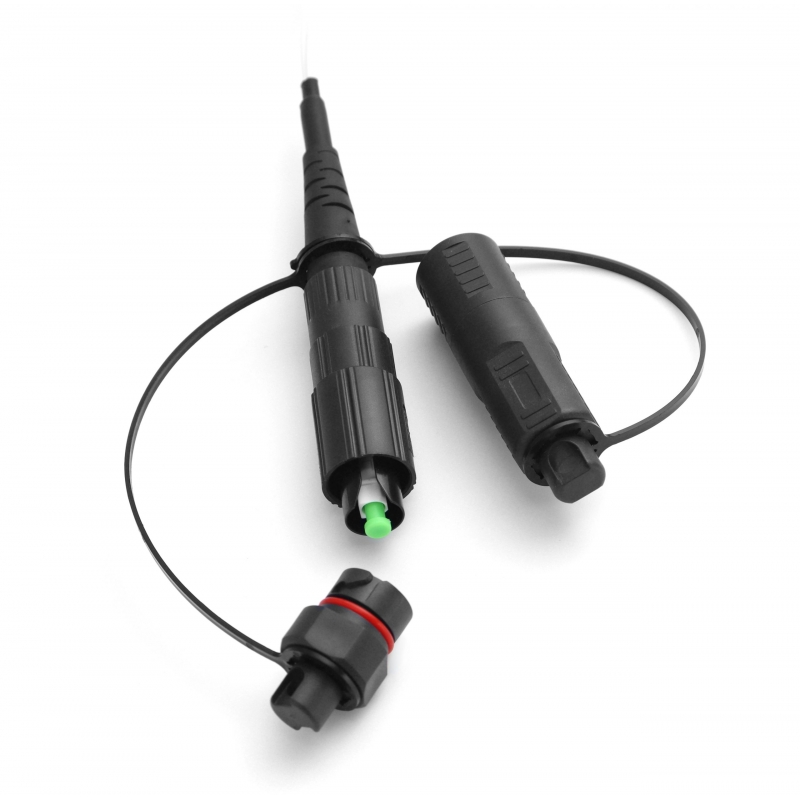

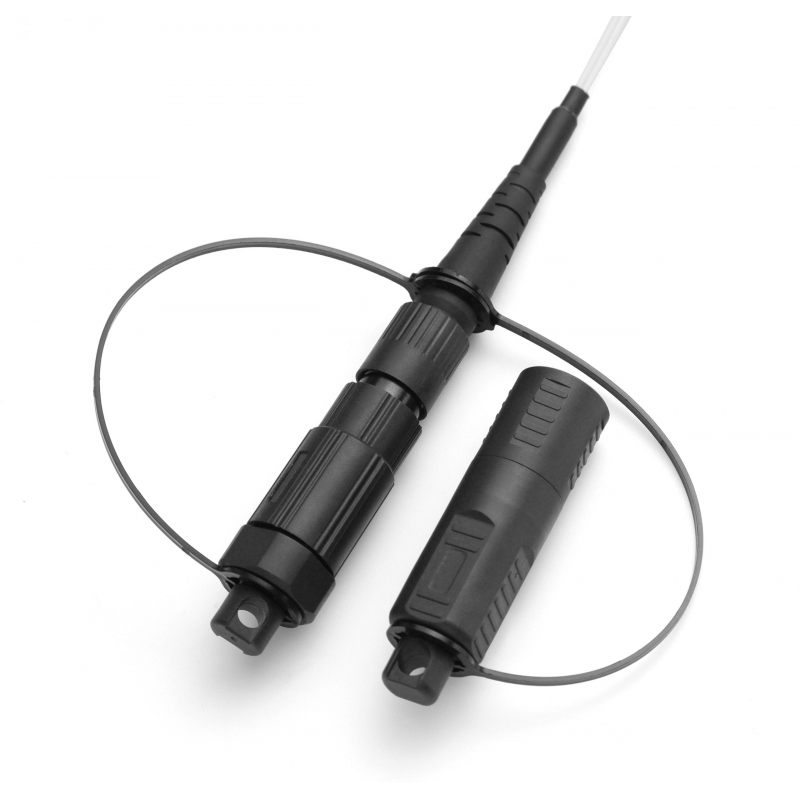

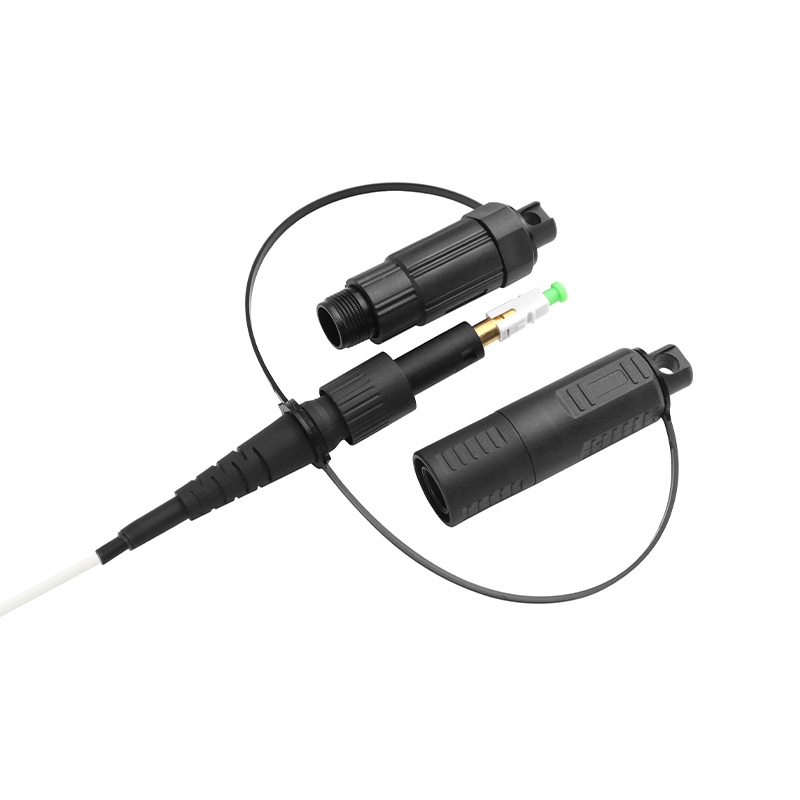

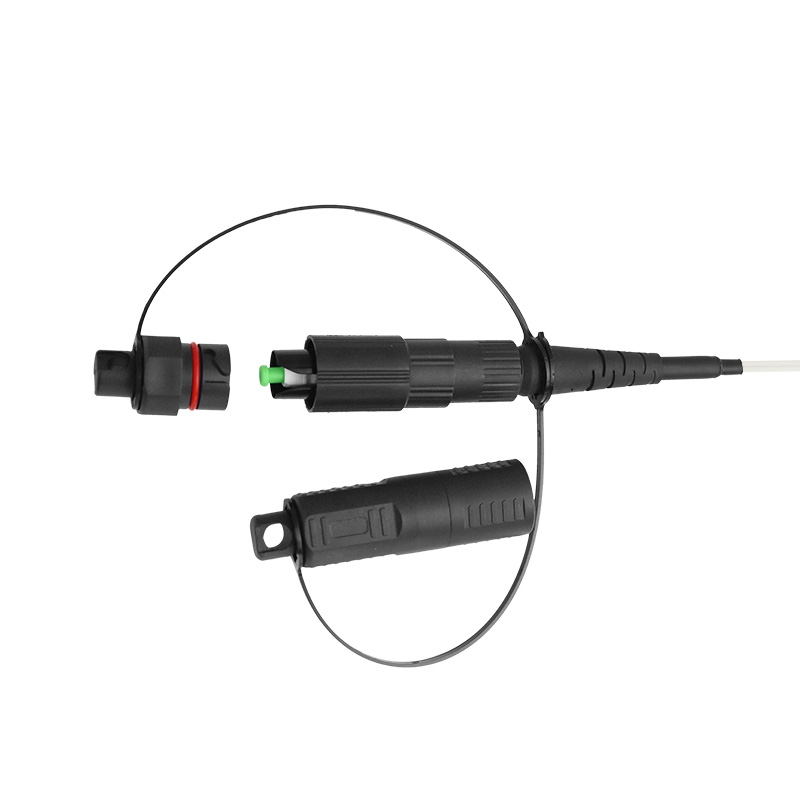

2 IN 1 IP68 Waterproof Pre-connected Fiber Optic Connector compatible with Mini SC and Optitap
2 in 1 Pre-connected type waterproof connector is a compact and highly waterproof connector designed to be compatible with OptiTap and Mini SC‘s waterproof connectors. It is an economical, efficient, and convenient outdoor connector with sealing and mechanical protection capabilities. The overall size of the connector is small, and it can also provide a wall-through-tube traction application solution. Replace the wall-through cap to switch between wall-through and connection scenarios easily. The connector is made of special plastic material resistant to high and low temperatures, acid and alkali corrosion, and UV radiation. It is equipped with a waterproof sealant pad, the protection performance can reach the IP67 level. The connector features blind mating functionality, offering a quick installation solution.

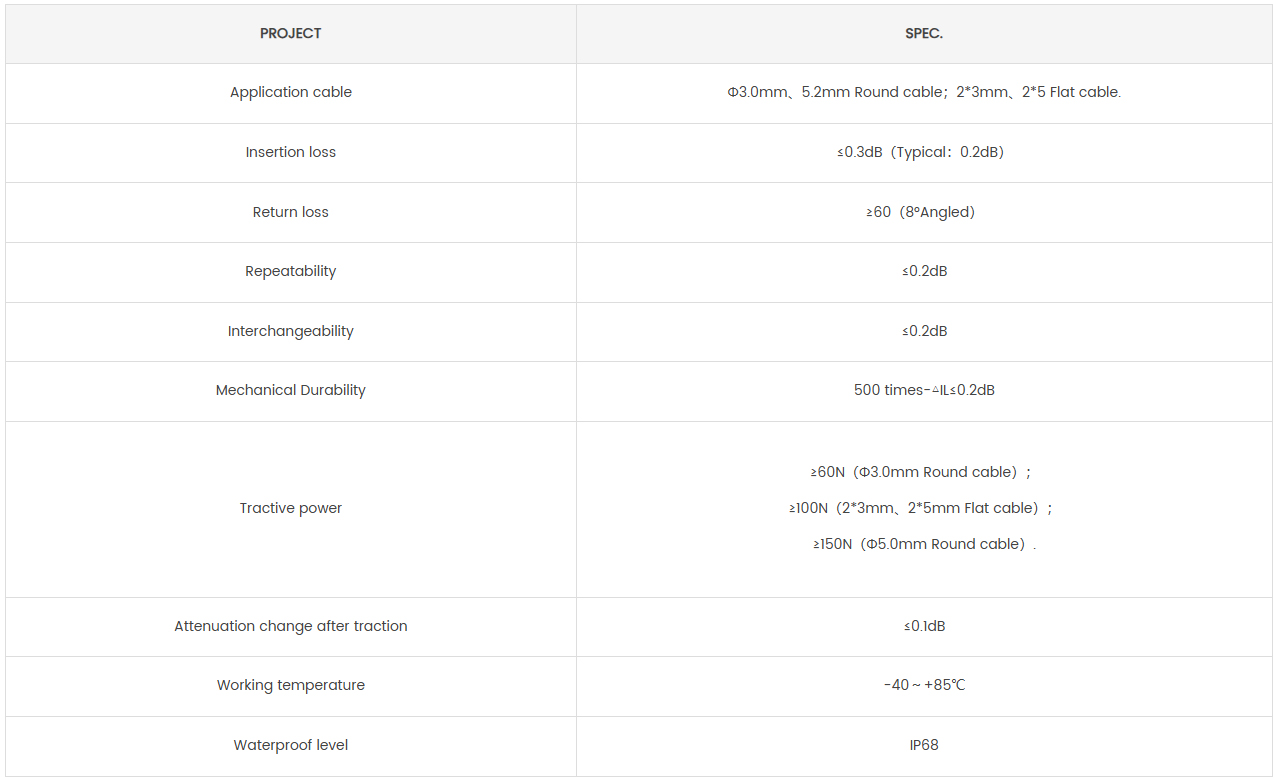

2 IN 1 IP68 Waterproof Pre-connected Fiber Optic Connector compatible with Mini SC and Optitap Specification:
2 IN 1 IP68 Waterproof Pre-connected Fiber Optic Connector compatible with Mini SC and Optitap Features:
1. Provides moisture and dust protection for use in harsh industrial environments.IP68 protection, salt-mist proof, humidity proof, dust proof.
2. The product consists of the main connector and the adapters, which are suitable for connecting the Mini SC FAST adapter and OptiTap OPT adapter.
3. Utilize traditional field installation techniques for aerial, below-ground, and duct applications.
4. Connector inner low-loss parts conform to the SC-APC standard of IEC61754-4.
5. Suitable for outdoor installation, with the functions of waterproof, dustproof, and corrosion resistance.
6. A broad temperature range (-40 to +85 °C) is ideal for indoor or outdoor applications.
I2 IN 1 IP68 Waterproof Pre-connected Fiber Optic Connector compatible with Mini SC and Optitap Application Scenarios:
Mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is an OptiTap and Mini SC Type adapter, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple and easy to install, and no special tools are required.
