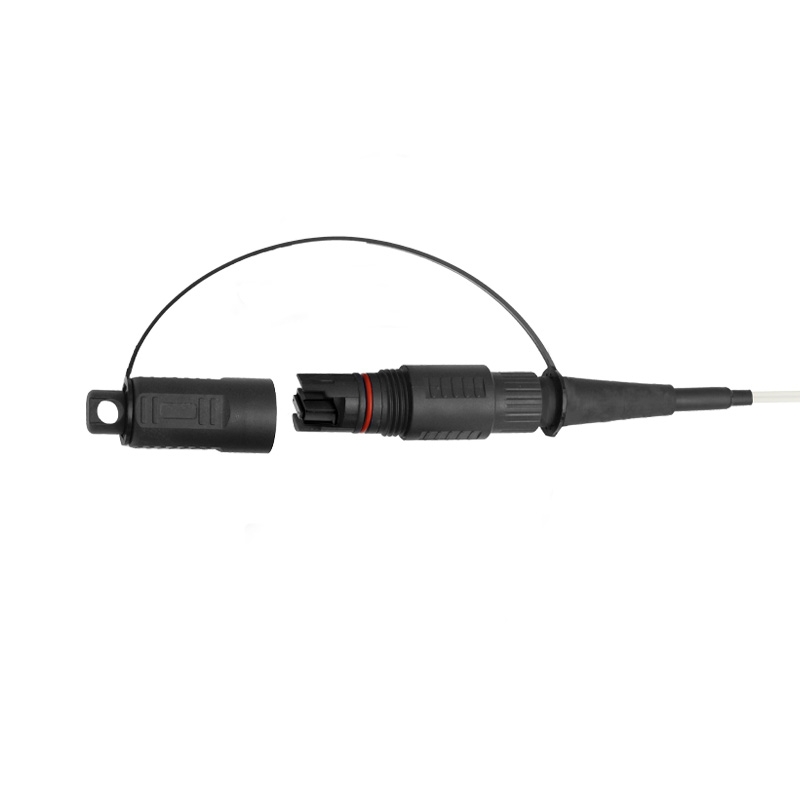

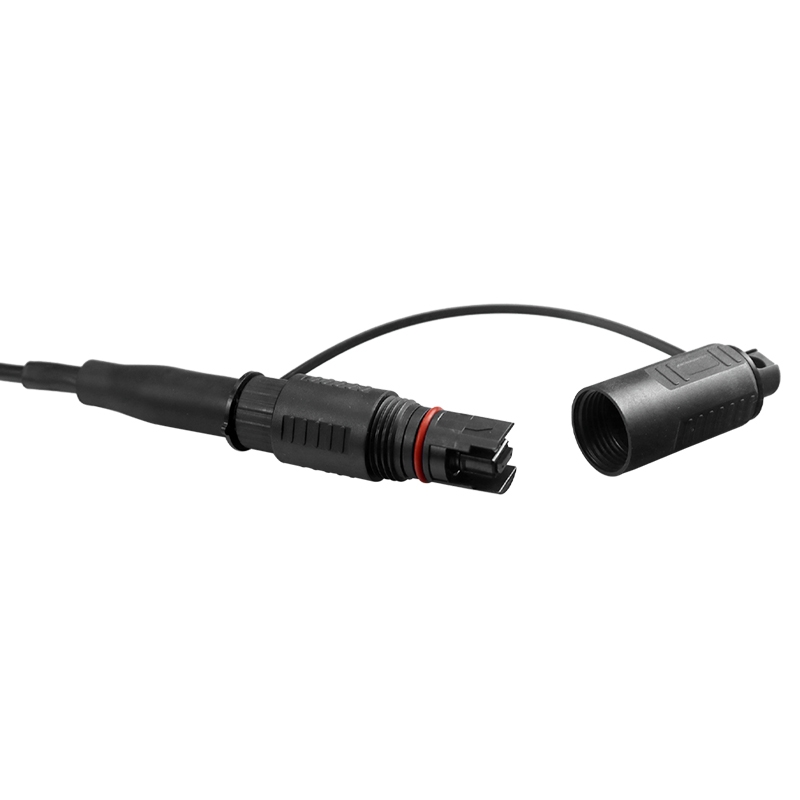

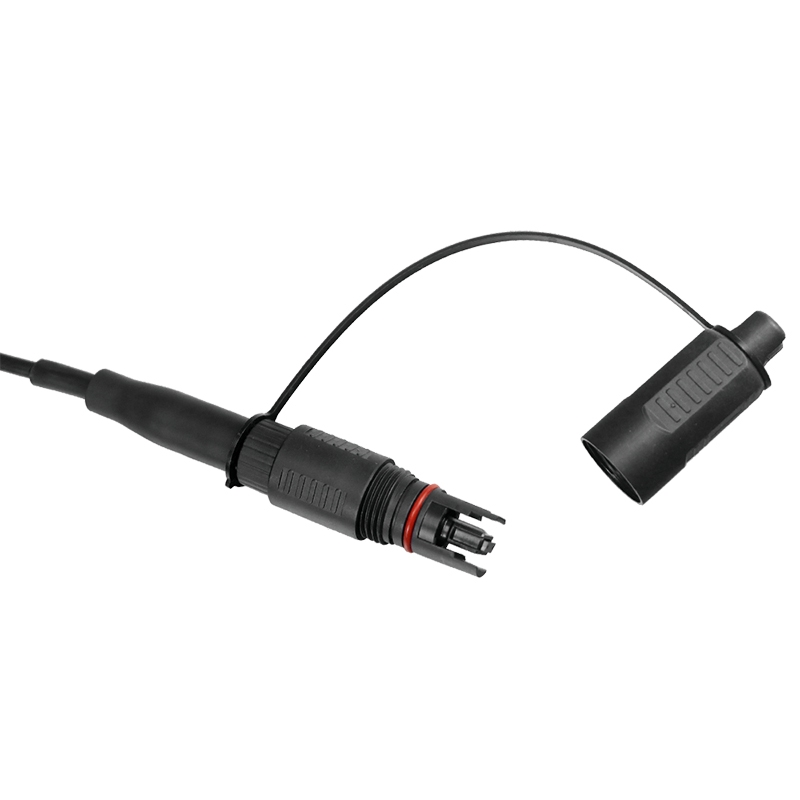

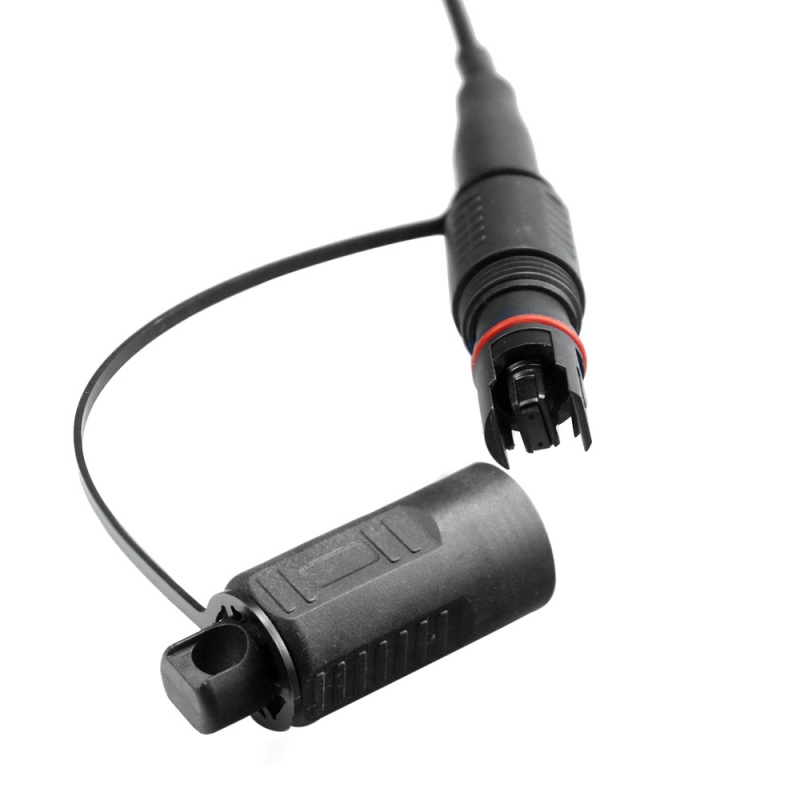

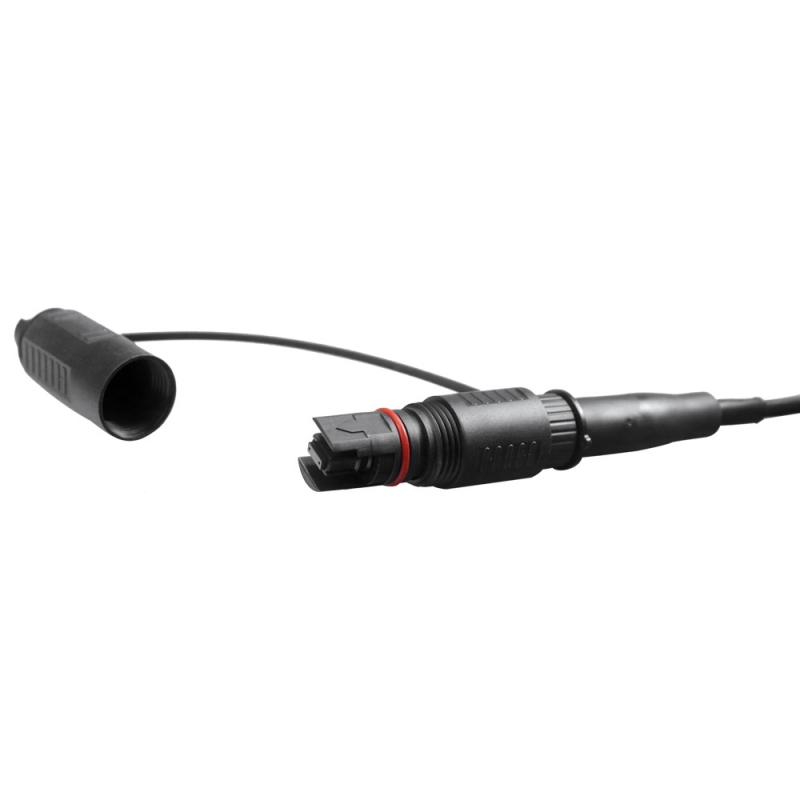

IP68 MPO OptiTap Type Fiber Optic Connector FTTH Pre-connected Fiber Optic Connector
The OptiTap Pre-connected type waterproof connector is a compact and highly waterproof connector designed to be compatible with Corning‘s field waterproof connectors. It is an economical, efficient, and convenient outdoor connector with sealing and mechanical protection capabilities. The overall size of the connector is small, and it can also provide a wall-through-tube traction application solution. Replace the wall-through cap to switch between wall-through and connection scenarios easily. The connector is made of special plastic material resistant to high and low temperatures, acid and alkali corrosion, and UV radiation. It is equipped with a waterproof sealant pad, the protection performance can reach the IP67 level. The connector features blind mating functionality, offering a quick installation solution.

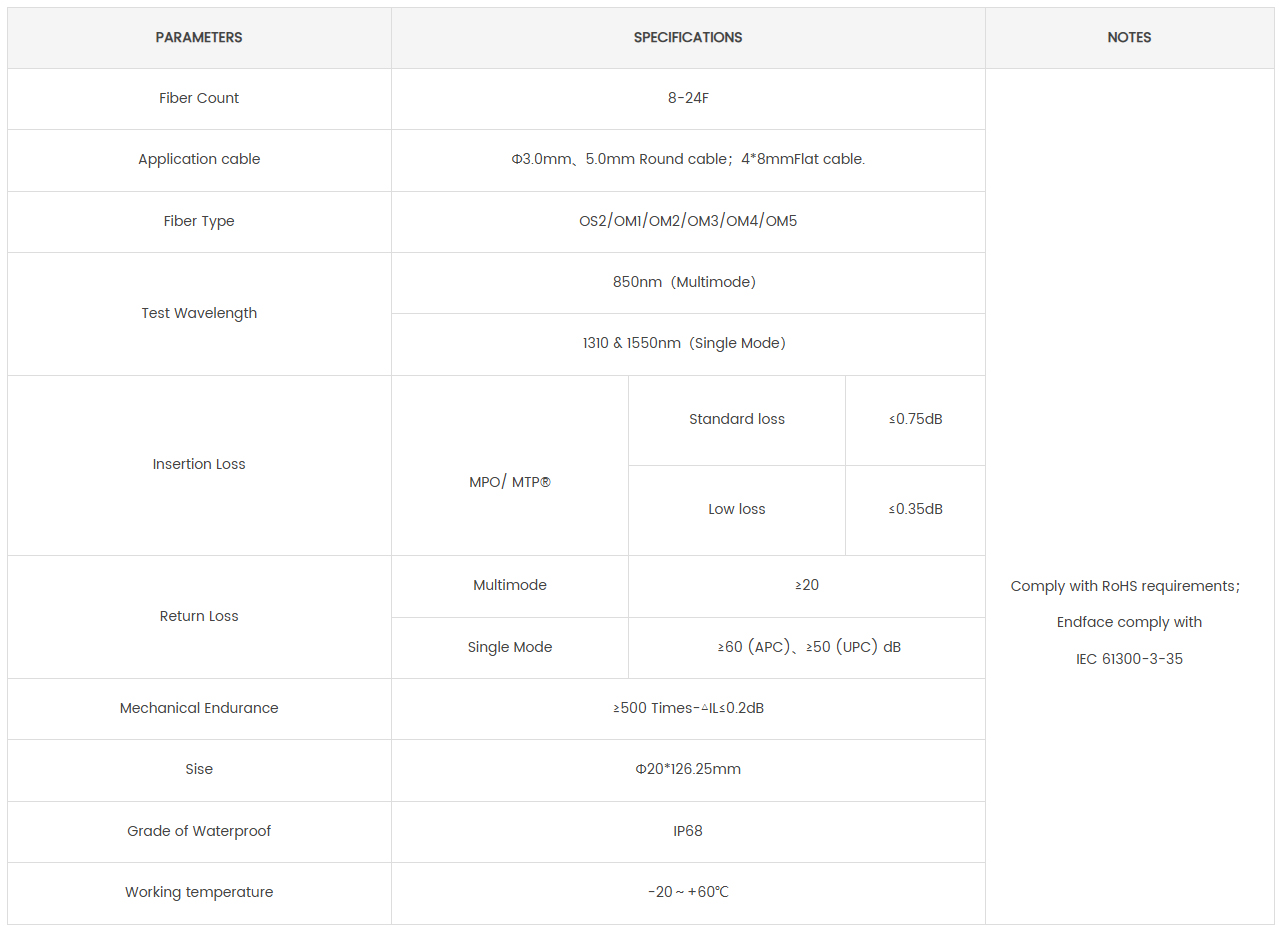

IP68 MPO OptiTap Type Fiber Optic Connector FTTH Pre-connected Fiber Optic Connector Specification:
IP68 MPO OptiTap Type Fiber Optic Connector FTTH Pre-connected Fiber Optic Connector Features:
1. IP68 protection, salt-mist proof, humidity proof, dust proof.
2. Suitable for outdoor installation, with the functions of waterproof, dustproof, and corrosion resistance.
3. This product is applicable to the processing of factory optical cable connectors
4. This product has low insertion loss, good stability, and high interchangeability.
5. Utilize traditional field installation techniques for aerial, below-ground, and duct applications.
6. Connector inner low-loss parts conform to the standard of IEC61300-3-5.
7. A broad temperature range (-40 to +85 °C) is ideal for indoor or outdoor applications.
IP68 MPO OptiTap Type Fiber Optic Connector FTTH Pre-connected Fiber Optic Connector Application Scenarios:
Mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is an OptiTap Type adapter, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter . On-site operation is simple, and easy to install, and no special tools are required.
