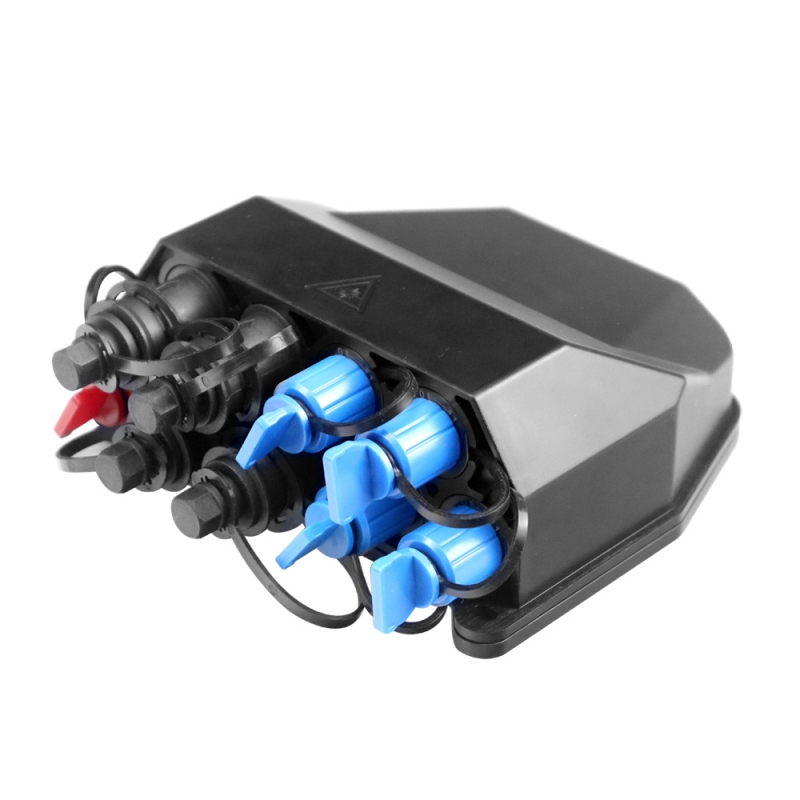

9 core Pre-connected Fiber Distribution Box of FTTx Network System
This fiber access termination box(FDB) type can hold up to 9 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connections in one solid protection box.

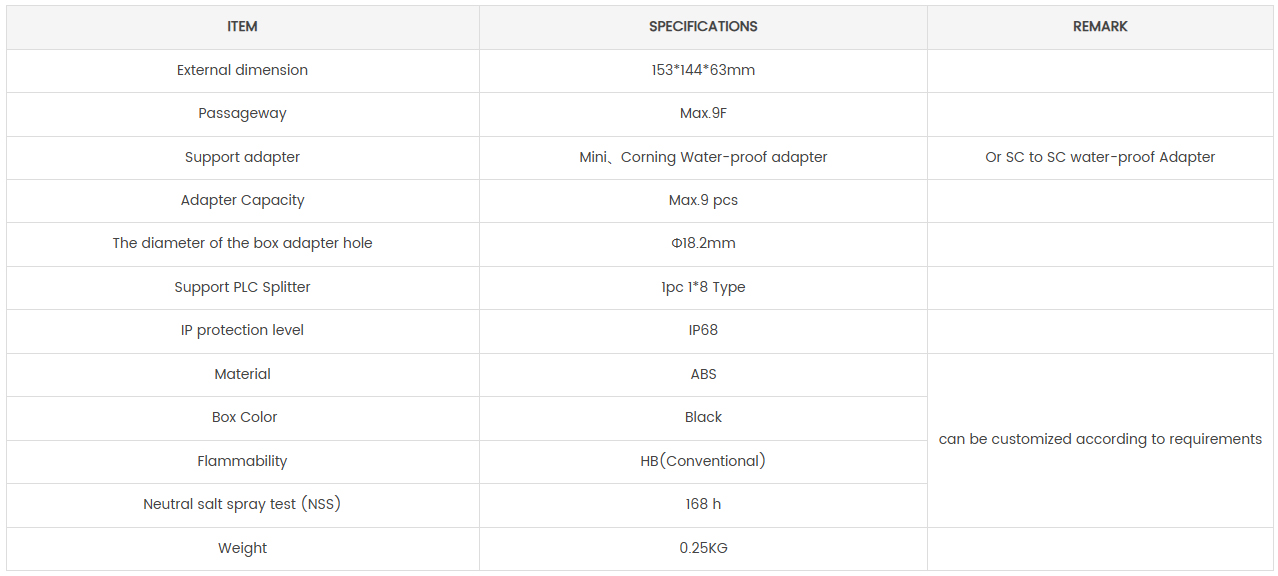

9 core Pre-connected Fiber Distribution Box of FTTx Network System Specification:
9 core Pre-connected Fiber Distribution Box of FTTx Network System Features:
1. Apply to wall-mounted Hold-up and pole-type installation
2. High-strength material with good weather adaptability and UV resistance.
3. Port into the end and leakage design, no need to open the box, easy construction.
4. Internal multi-wiring, can be independent or combination with different types of PLC Splitter.
5. Mini SC, OptiTap, Slim type waterproof adapters can be installed, And different colors can distinguish these adapters
6. Ultrasonic welding, excellent sealing performance, Waterproof to IP68.
9 core Pre-connected Fiber Distribution Box of FTTx Network System Application Scenarios:
Mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is Corning OPT adapter or Huawei Fast connector, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple and easy to install, and no special tools are required.
