Single sheath ADSS optical cable 100m span layer-twisted loose tube 48 core

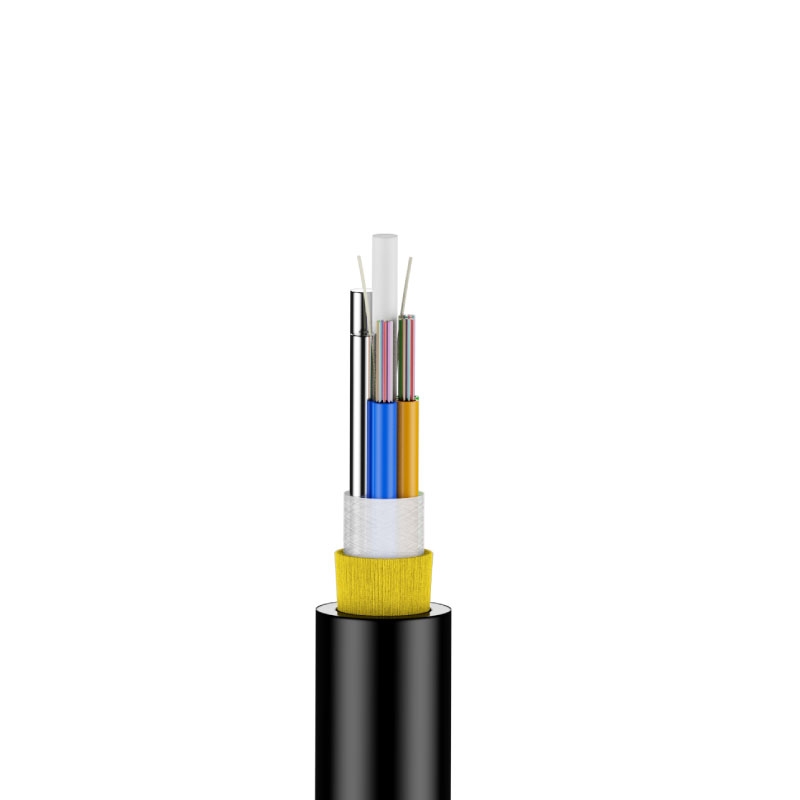

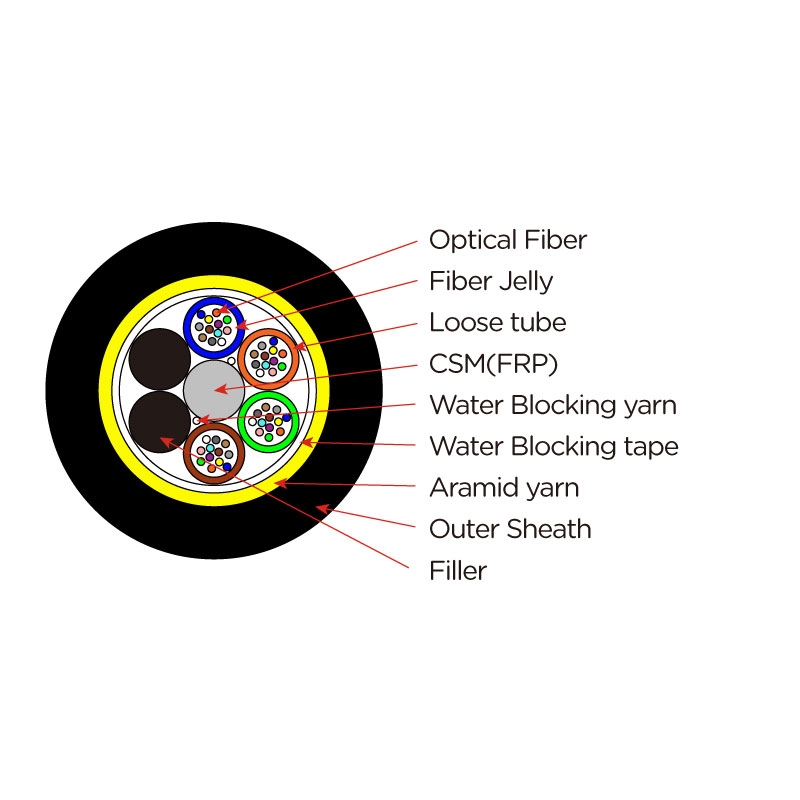

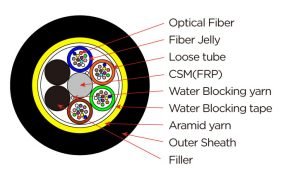

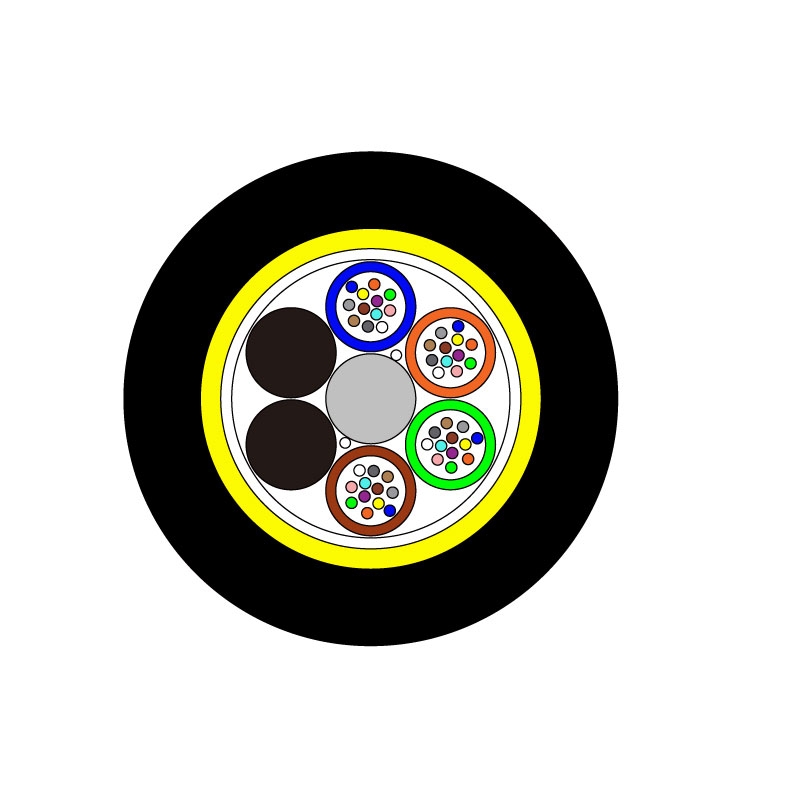

ADSS optical cable can be 5 loose tubes or 6 loose tubes. The optical fiber loose tube is twisted on the central strength member (usually FRP) for SZ type and then extruded into the inner sheath (can be omitted in the case of small tension and small span), and then wrapped according to the tensile strength required by the aramid yarn and then extruded into polyethylene or sheath. The optical fiber of the ADSS optical cable is filled with paste. The layer-twisted structure of ADSS optical cable makes it easy to obtain a safe excess length of optical fiber, although the diameter and weight are relatively large, which is more advantageous in medium and large-span applications.

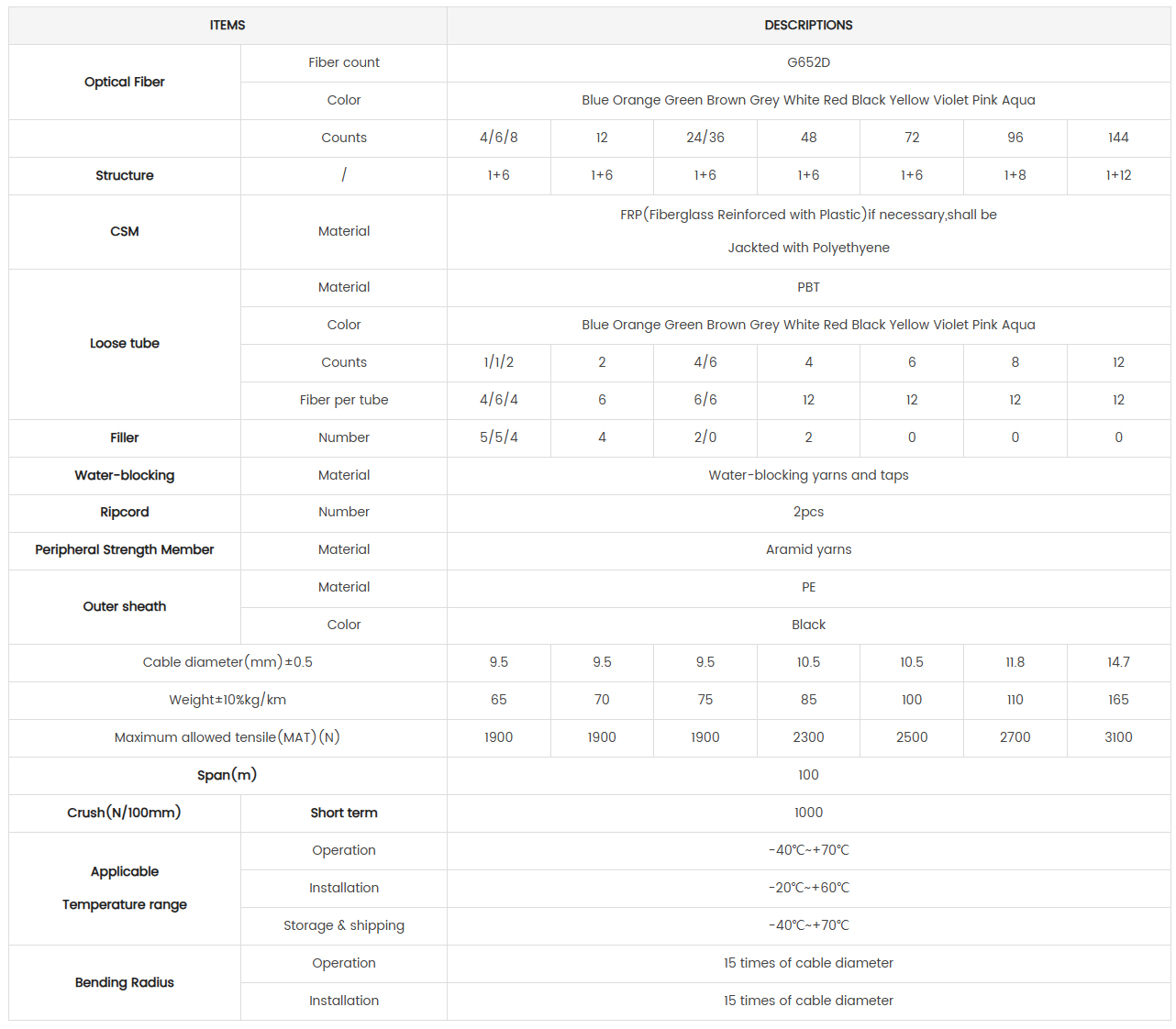

Single sheath ADSS optical cable 100m span layer-twisted loose tube 48 core Dimensions and Constructions:
Single sheath ADSS optical cable 100m span layer-twisted loose tube 48 core Features:
1. It can be installed without a power outage.
2. A Protective cover, and superior corrosion resistance.
3. Lightweight, small cable diameter, reduces the impact of ice, wind power, and load on the tower, support.
4. The precision control or aramid armor technology greatly improves the cable‘s tensile ability.
5. The precision control of the fiber length and the cable‘s twisted pitch ensure that the fiber cable has excellent tensile performance and temperature characteristics.
Single sheath ADSS optical cable 100m span layer-twisted loose tube 48 core Applications :
1. Backbones and Access.
2. Installed in ducts, Aerial/lashed.

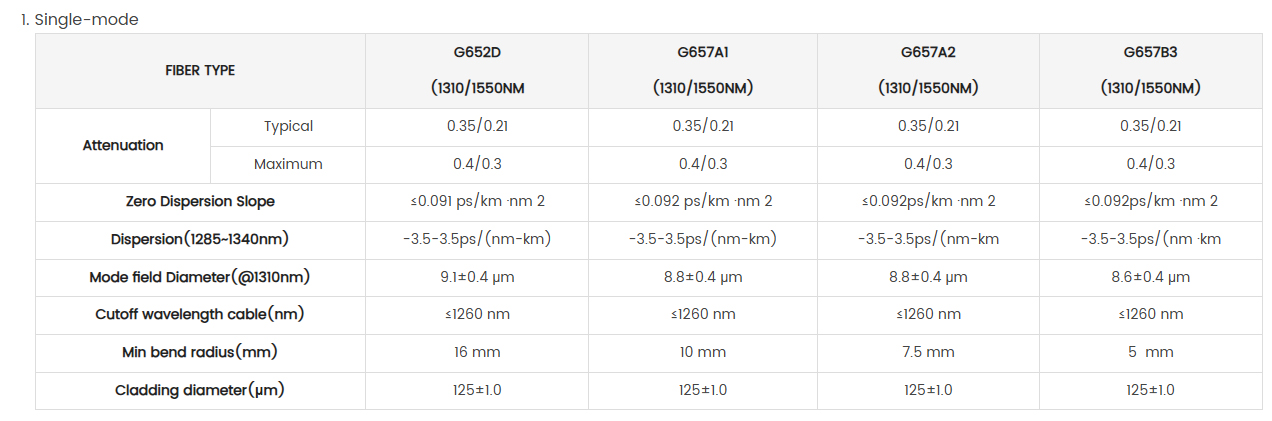

Single sheath ADSS optical cable 100m span layer-twisted loose tube 48 core Fiber Attenuation:
