Product Variation
Features

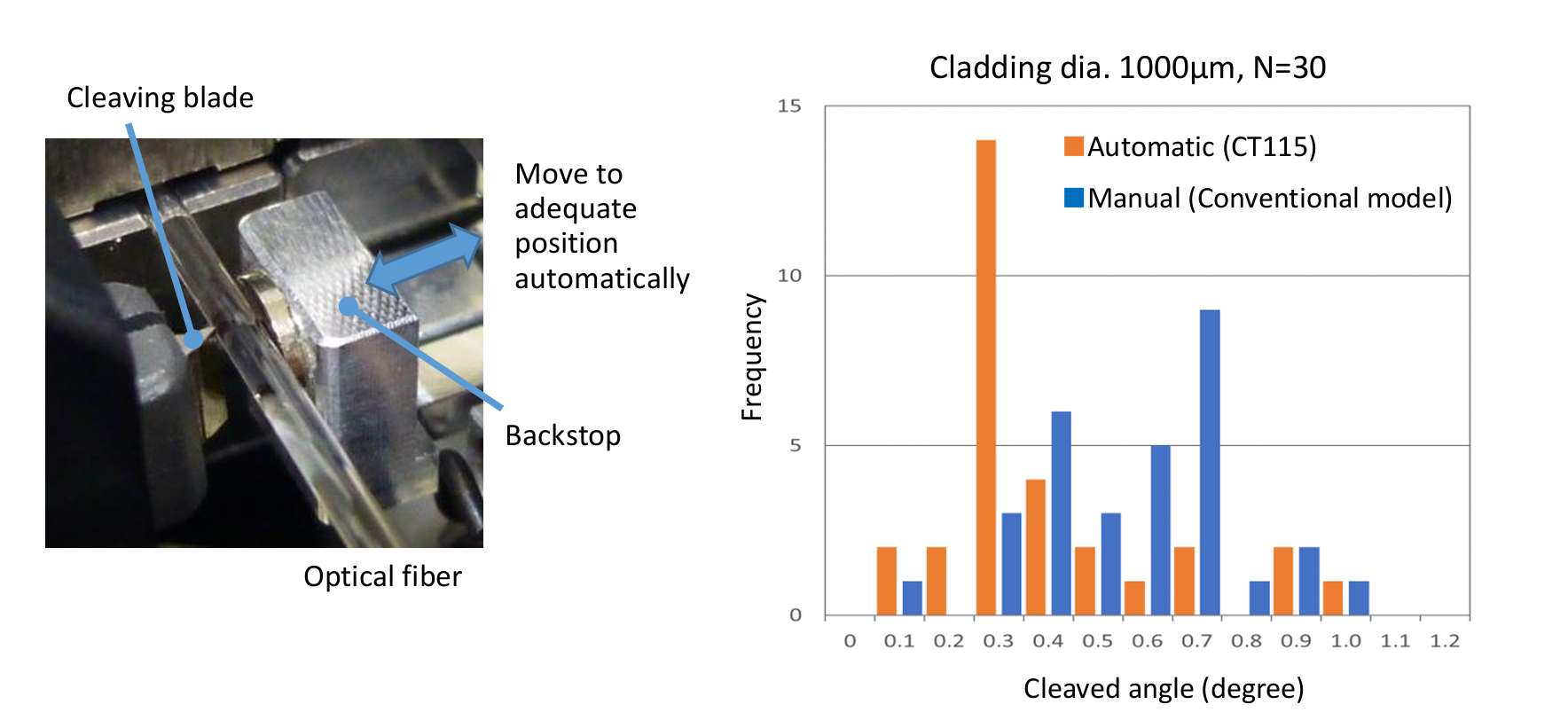

Auto Backstop （for CT115/CT116）
The Backstop helps to provides better cleave quality especially for large-diameter fibers and for sub-critical tension fibers.
Micron order positioning is necessary to obtain stable cleaving. The previous model positioned the micrometer by hand, usually with the aid of a microscope.
The CT115 and CT116 are equipped with the auto backstop function. It detects the backstop position and moves to the correct position automatically.
It provides both stable cleaving and shortenes the cleaving operation time.

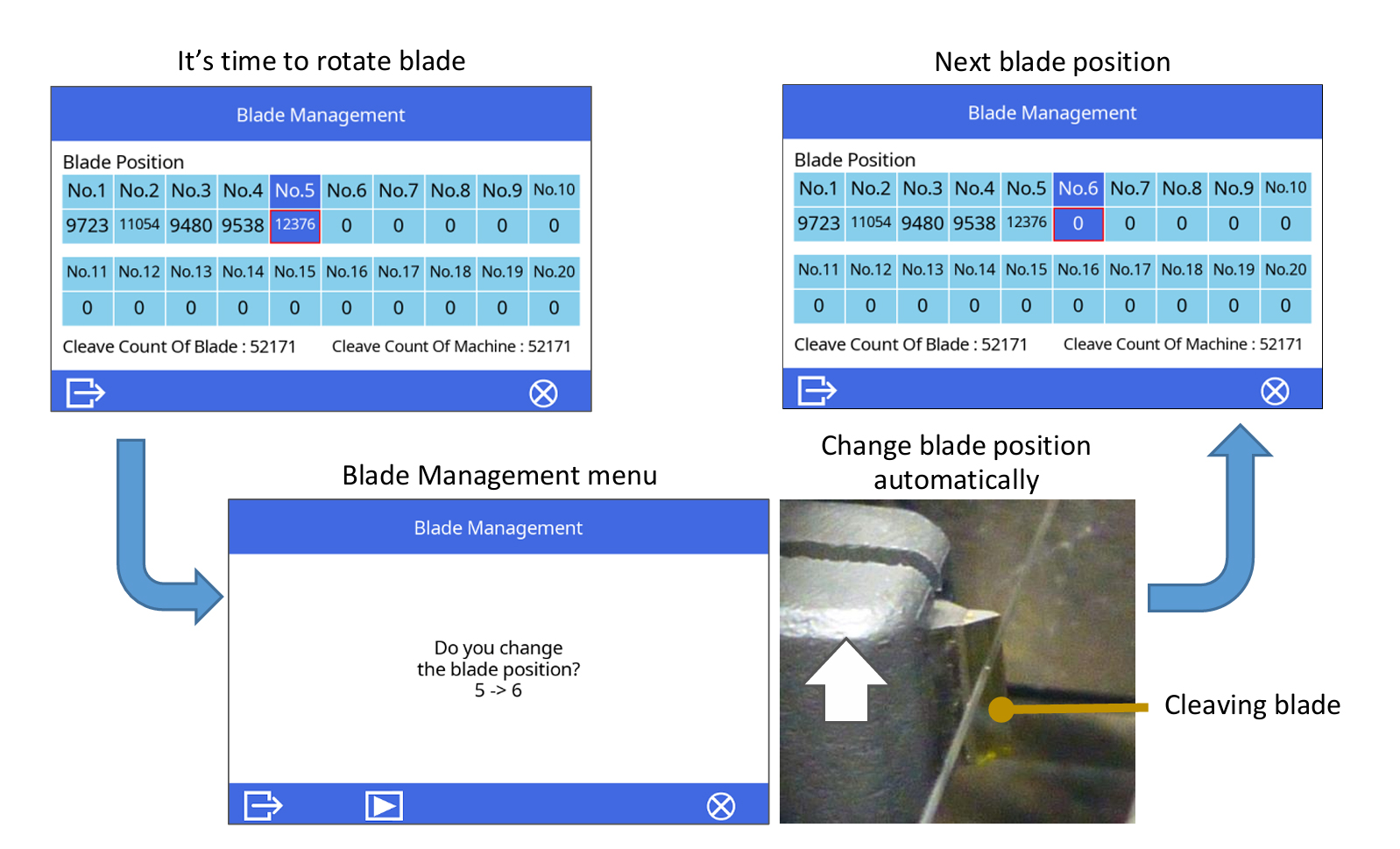

Blade Management
The automatic cleaving blade position always keep using good quality blade and it provides stable cleaving quality.
Since you do not need to worry about blade condition anymore.

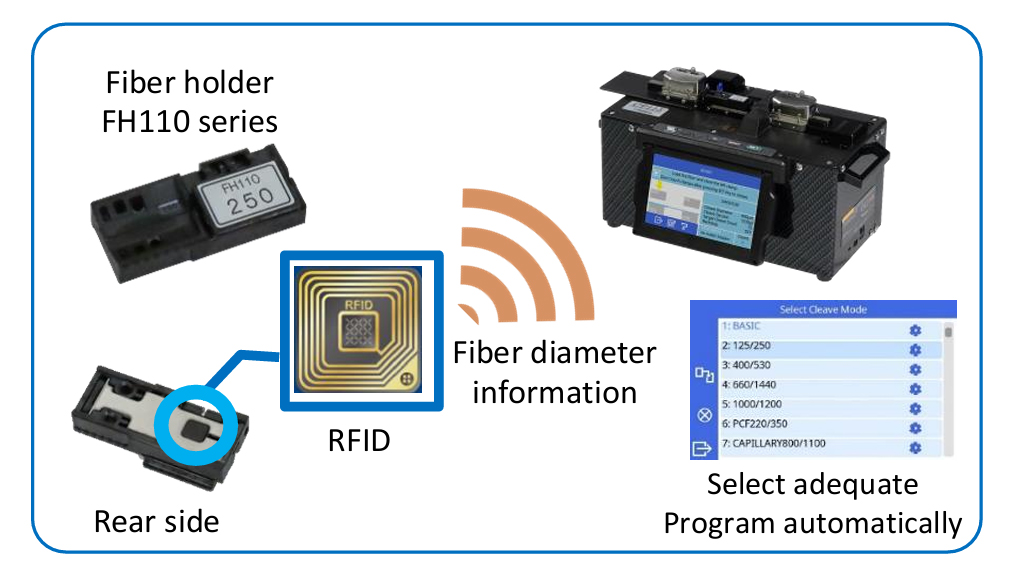

Wireless communication function
CT115 series is equipped with an RFID wireless communication function to newly designed FH110 series fiber holders.
The FH110 RFID includes the holder size information. The CT115 series reads it and selects a pre-assigned program.
It prevents selecting the wrong cleaving program.

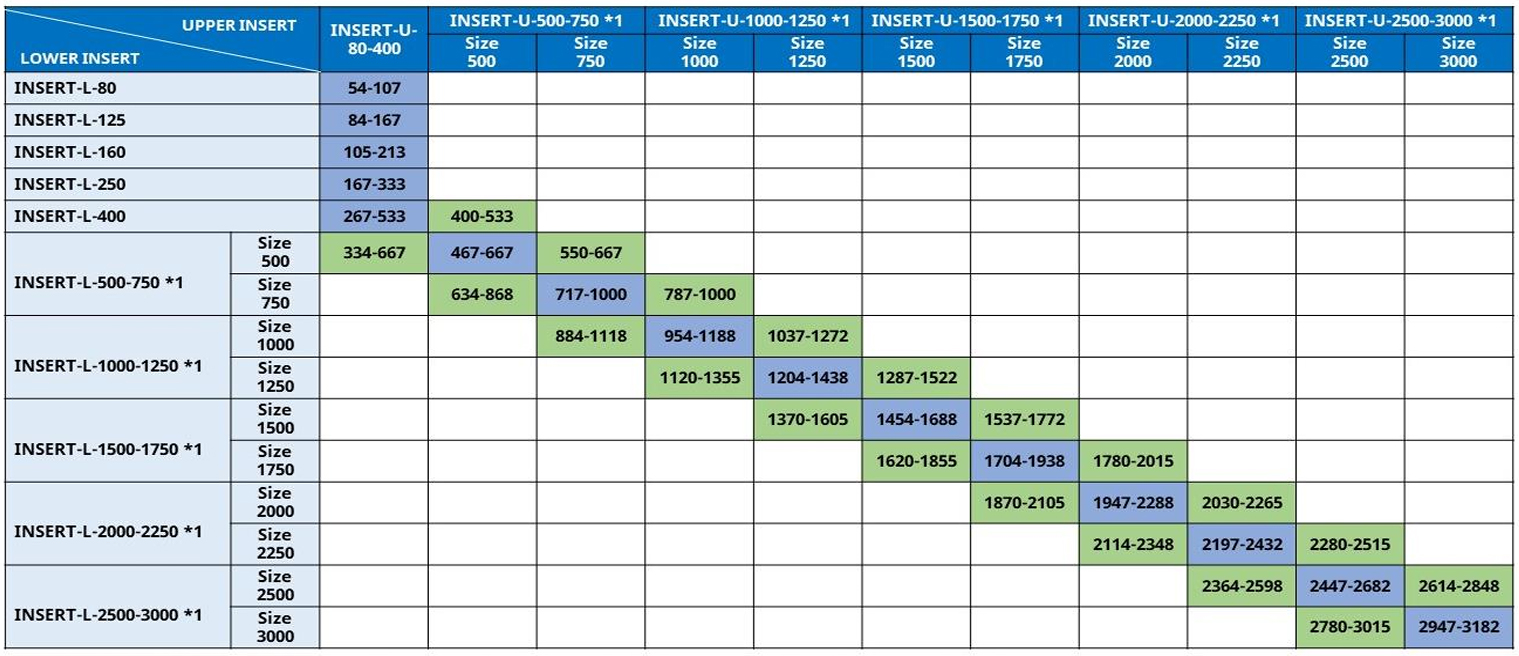

Insert Option Guide
Inserts are selected according to fiber coating diameter and cladding diameter.
Therefore, the standard configuration does not include inserts. Please refer to the below table and purchase inserts separately.
*1: Each side of this insert is equipped with a groove that is marked with the size of the fiber diameter on the table.

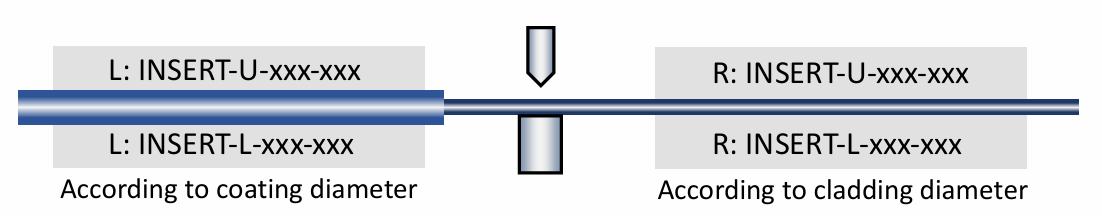

Case 1: To cleave stripped fiber
→Both 1 pair of inserts, according to coating and cladding diameter, are necessary.

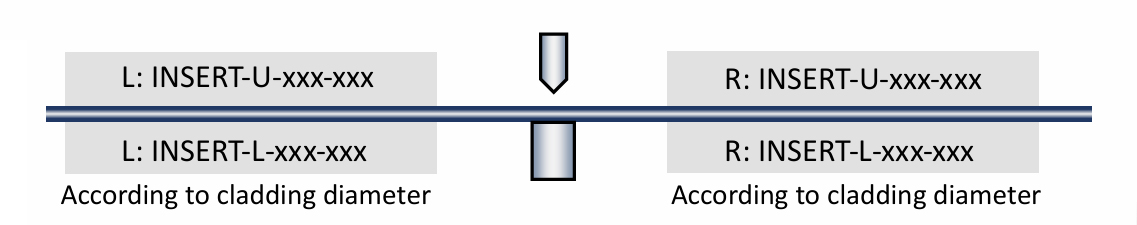

Case2: To cleave glass rod
→2 pairs of inserts, according to cladding diameter, are necessary.
