Features
Feature 01

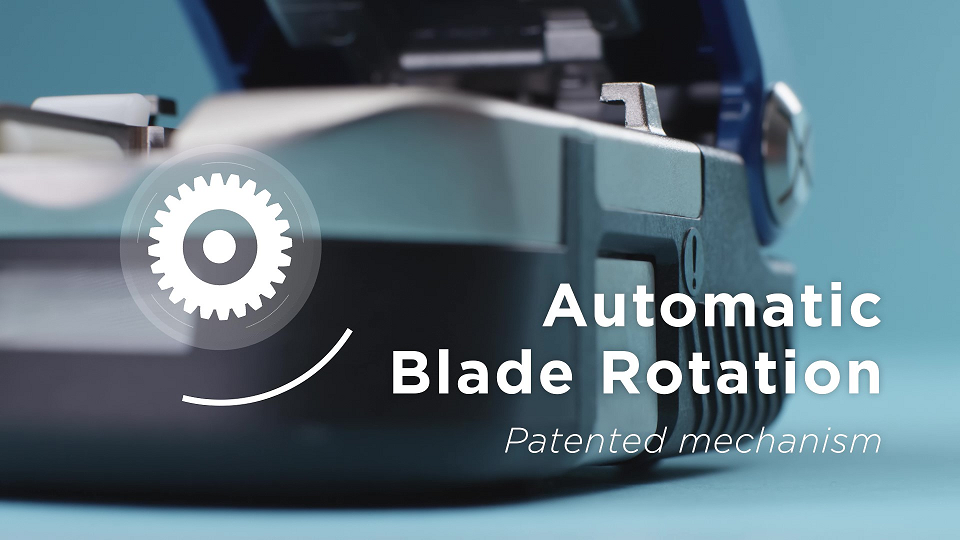

Automatic blade rotation
Patented mechanism,
repeatable quality cleaves
without blade adjustment
Feature 02

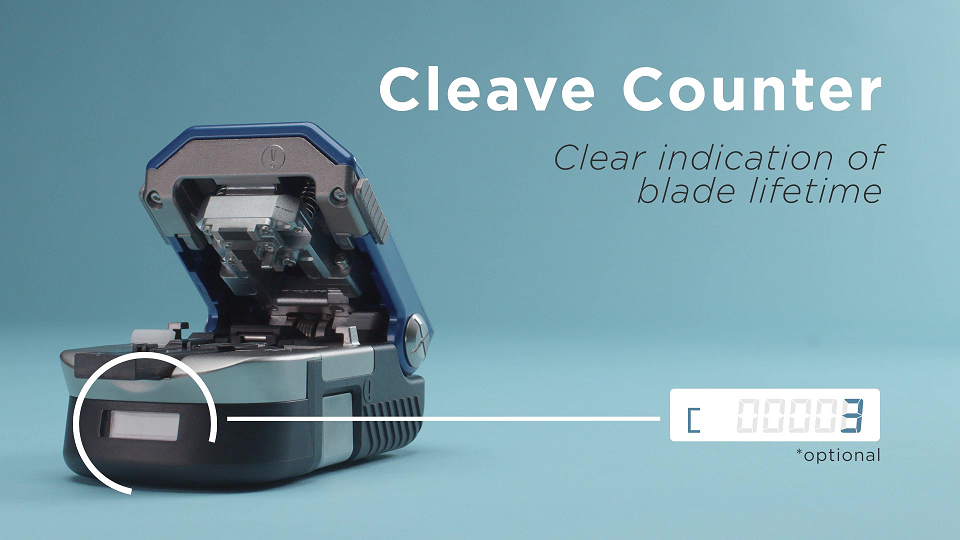

Cleave counter
Automatic counter cleaving time
(FC-8R-FC only)
Feature 03

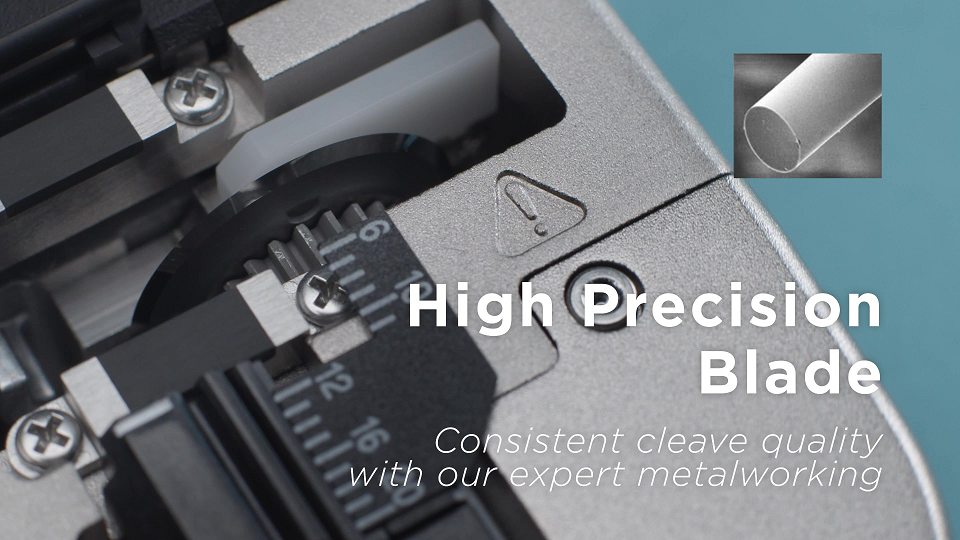

High precision, durable blade
Our expert metal working delivers consistent quality for over 60,000 fibers.
Feature 04
User friendly functions
Improve your field efficiency by

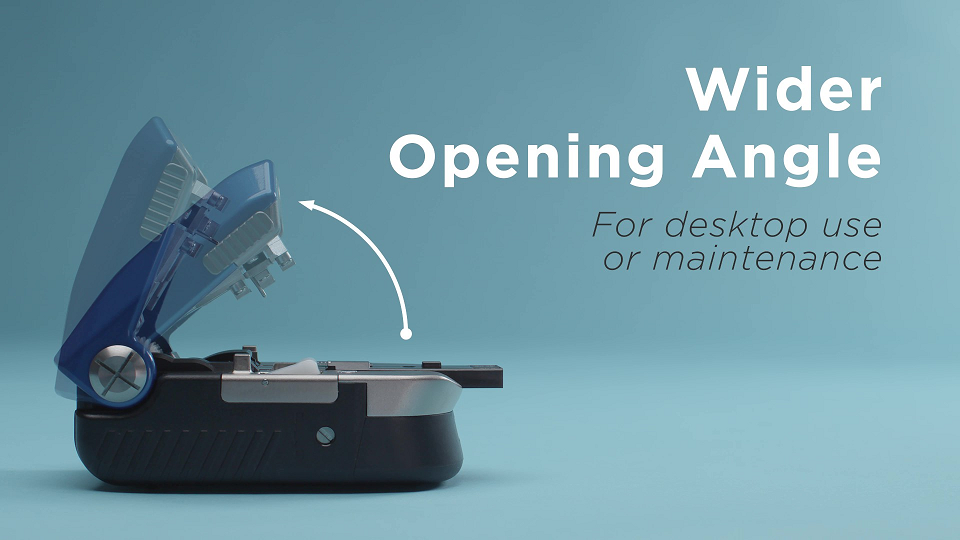

- Selectable lid opening angle
- Large capacity off-cut collector
- Both for splicing and field connector use
- Compatible with both single and ribbon fibers

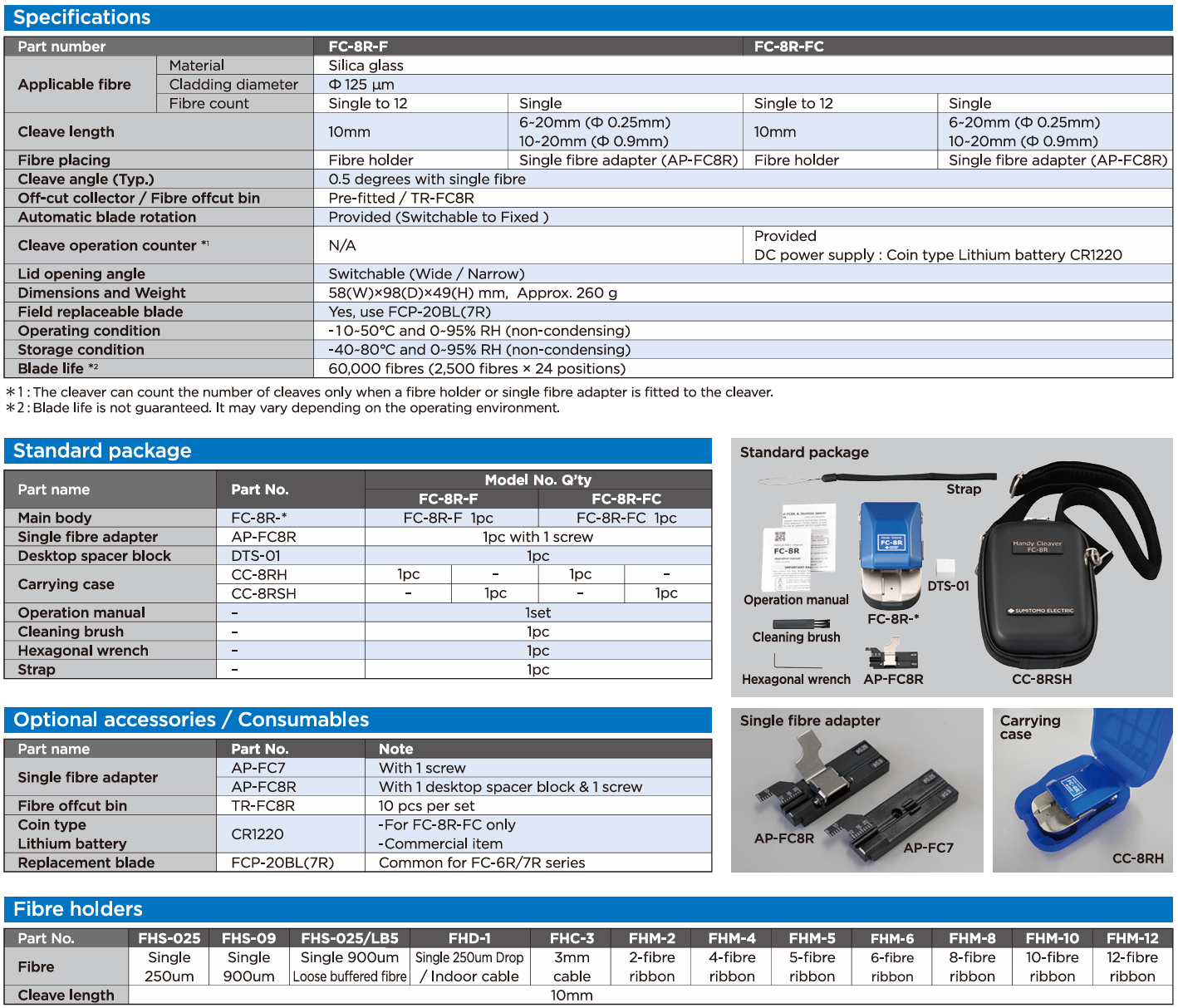

Specs
Basic Cleave Performance
125um, silica glass fiber; Single to 12 fiber ribbons
Cleave length; 6-12mm (250um fiber), 10-20mm (900um fiber), 10mm (Ribbon fiber)
Typical Cleave angle; 0.5 degrees
Blade life; 60,000 fibers
Functions
Automatic blade rotation; Available (switchable to fixed)
Cleave counter; FC-8R-FC; Available, FC-8R-F; N/A
Lid open angle; Switchable (Wide/Narrow)
Other Specifications
Dimensions and weight; 58 x 98 x 47 mm, 260g
Operating condition; -10~50 degree C, 0~95% RH (non-condensing)
Storage condition; -10~50 degree C, 0~95% RH (non-condensing)
Optional parts
AP-FC7; Standard fiber adapter
AP-FC8R; fiber adapter with lid
TR-FC8R; Off-cut collector
FCP-20BL(7R); Replacement blade
etc. ...
