New Technology
Fast. Precise. Robust.
The perfect tool for your cleaving needs

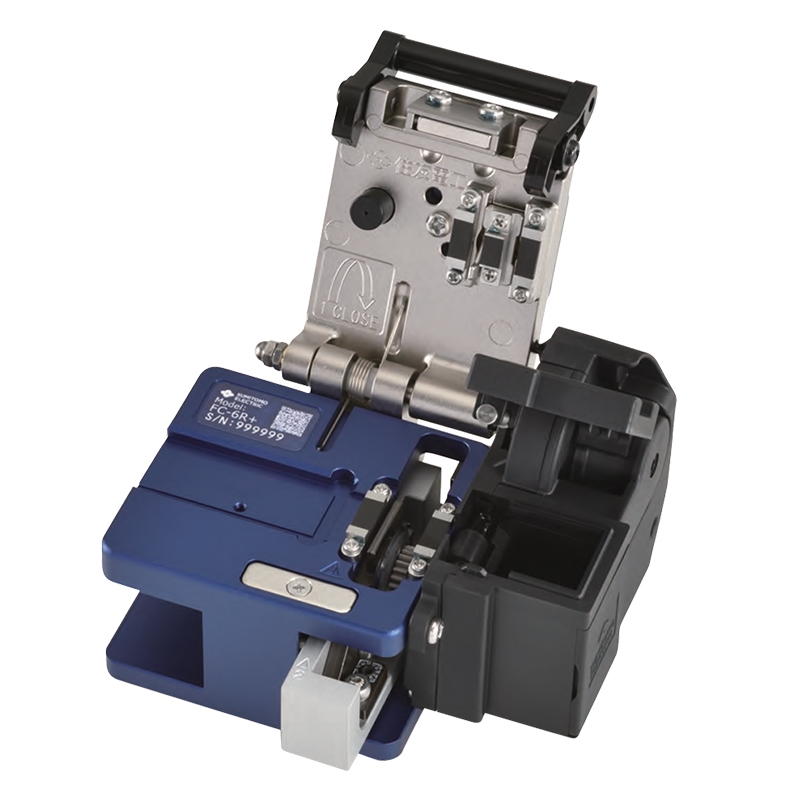

One-action cleaver
for seamless operation

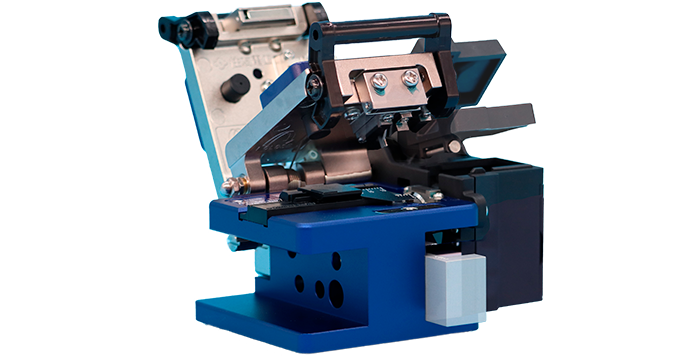

FC-6S+ series are high precision cleaving tools with an automatic blade return system for quick and simple operation.
Auto-rotating blade
for stable cleaving

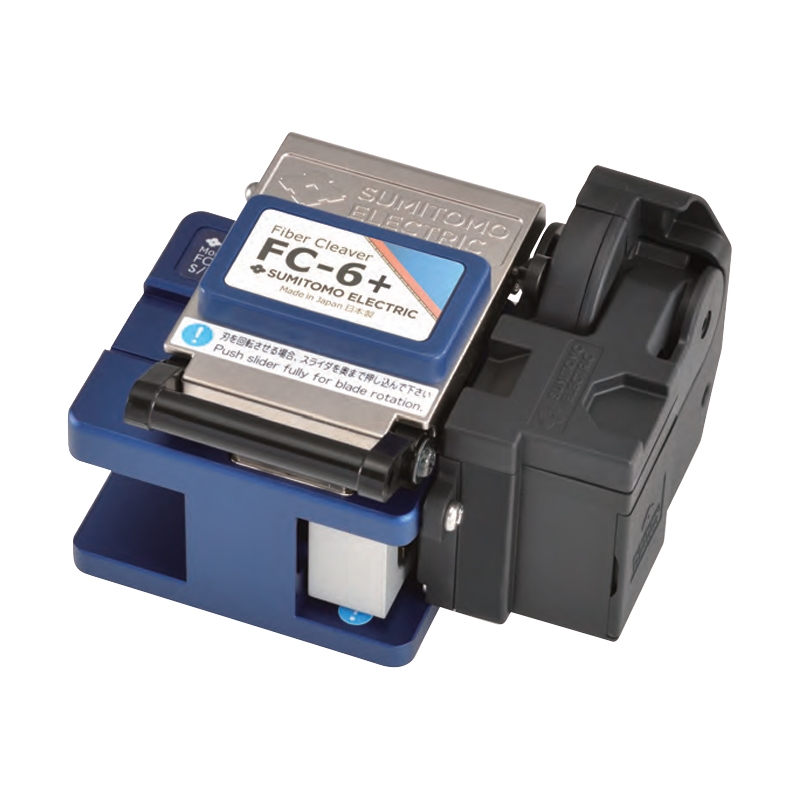

FC-6+ series are long life cleaving tools with an auto rotating blade to remove the need to regularly stop work to adjust the tool.
Features
Feature 01
Blade Auto Return
Seamless operation, maximize work efficiency
Feature 02
Fine Cleaving
High quality blade ensures high quality cleaves
Feature 03

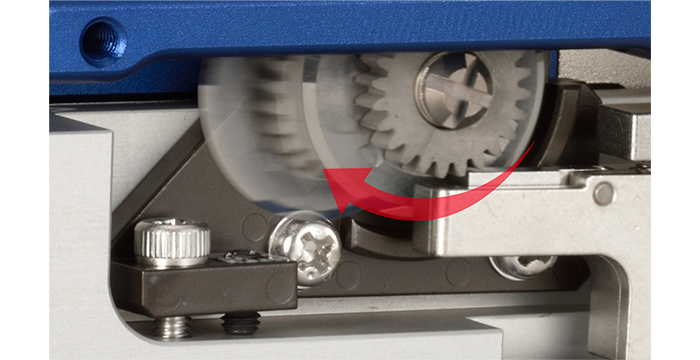

Auto Rotating Blade
Patented mechanism,
repeatable quality cleaves
without blade adjustment
Feature 04
Blade Life
Our expert metal working
realize the consistent quality
over 60,000 fibers

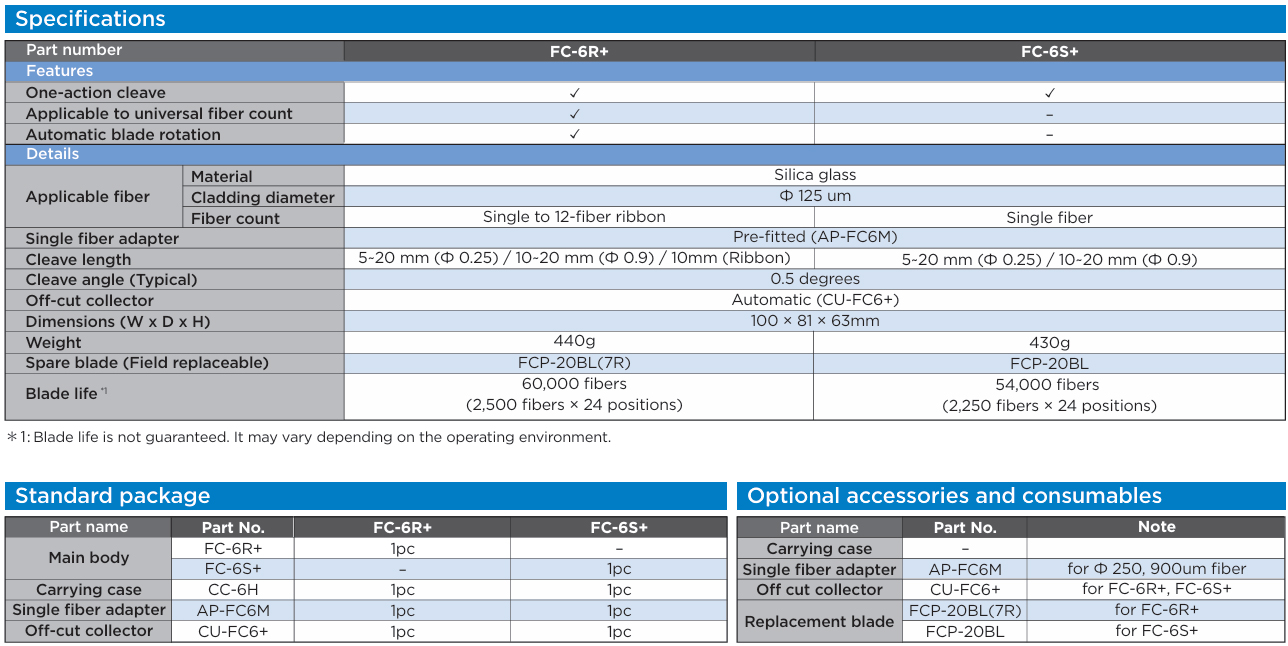

Specs
Basic Cleave Performance
125um, silica glass fiber; Single to 12 fiber ribbon
Cleave length; 6-12mm (250um fiber), 10-20mm (900um fiber), 10mm (Ribbon fiber)
Typical Cleave angle; 0.5 degrees
Blade life; 60,000 fibers
Functions
Automatic blade rotation; Available (switchable to fixed, and one time)
One action cleave
Automatic off-cut collection
Other Specifications
Dimensions and weight; 100 x 81 x 63mm, 420g
Operating condition; -10~50 degree C, 0~95% RH (non-condensing)
Storage condition; -10~50 degree C, 0~95% RH (non-condensing)
Optional parts
AP-FC6M; Standard fiber adapter
AP-FC6SA; Drop cable adapter
CU-FC6+; Off-cut collector
FCP-20BL(7R); Replacement blade
etc. ...
