New Technology
Proven stable performance.
The perfect tool for your cleaving needs
Features
Feature 01
Fine Cleaving
High quality blade ensures high quality cleaves
Feature 02
Long Life
Our expert metal working
realize the consistent quality
over 54,000 fibers
Specs
Basic Cleave Performance
125um, silica glass fiber; Single to 12 fiber ribbon
Cleave length; 6-12mm (250um fiber), 10-20mm (900um fiber), 10mm (Ribbon fiber)
Typical Cleave angle; 0.5 degrees
Blade life; 54,000 fibers
Functions
Automatic off-cut collection
Other Specifications
Dimensions and weight; 100 x 81 x 63mm, 420g
Operating condition; -10~50 degree C, 0~95% RH (non-condensing)
Storage condition; -10~50 degree C, 0~95% RH (non-condensing)
Optional parts
AP-FC6M; Standard fiber adapter
AP-FC6SA; Drop cable adapter
CU-FC6; Off-cut collector
FCP-20BL; Replacement blade
etc. ...
1. General

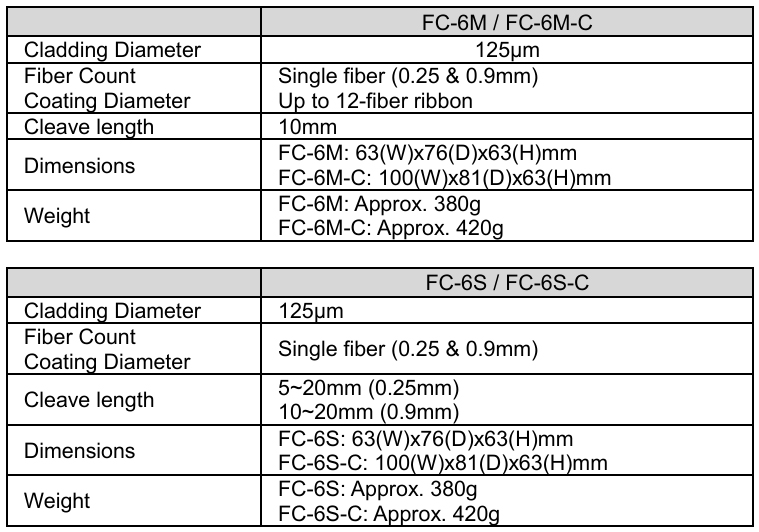

Specification

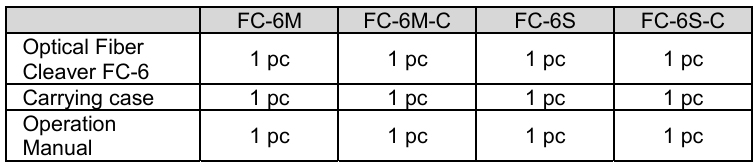

Standard package

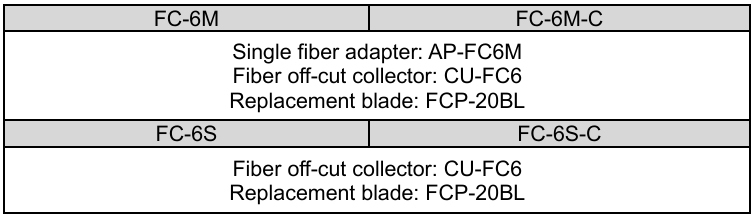

Optional accessories / Consumables

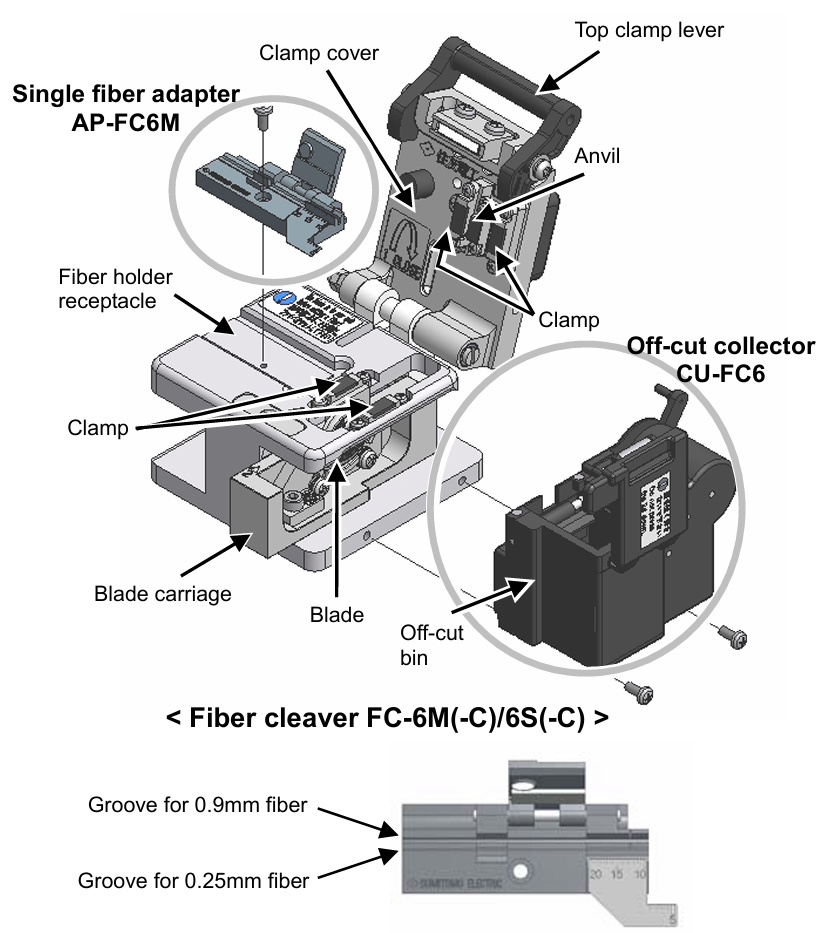

2. Structure
