New Technology

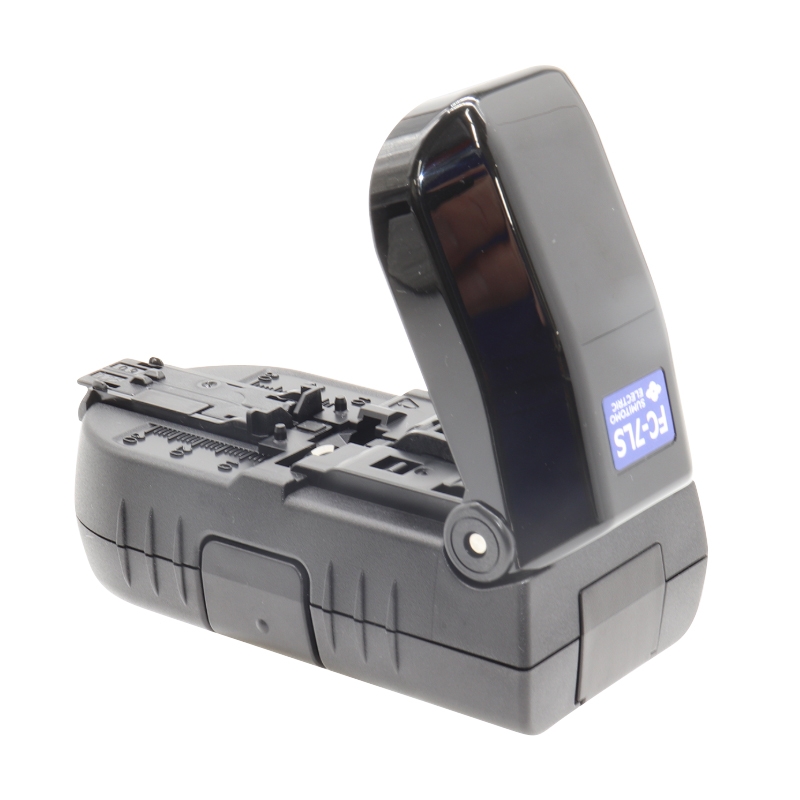

Easy one-hand opration Fiber Cleaver FC-7LS.
The perfect tool for your cleaving needs

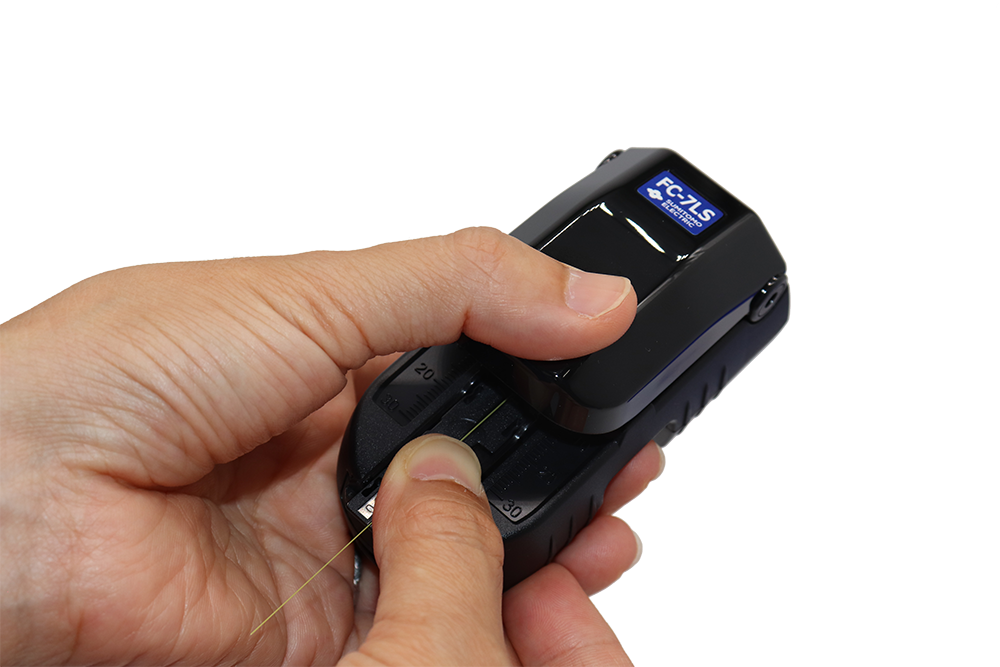

Easy one-hand operation
Light welght
Handy to use In hlgh and narrow spaceHlgh quallty blade for over 48,000 cleaves
Features
Feature 01
Long Life
Our expert metal working
realize the consistent quality
over 48,000 fibers
Feature 02
Specs
Basic Cleave Performance
125um, silica glass fiber; Single fiber
Cleave length; 10-20mm
Blade life; 48,000 fibers
Functions
One action cleave
Other Specifications
Dimensions and weight; 51 x 106 x 83mm, 124g
Operating condition; -10~50 degree C, 0~95% RH (non-condensing)
Storage condition; -40~80 degree C, 0~95% RH (non-condensing)
Optional parts

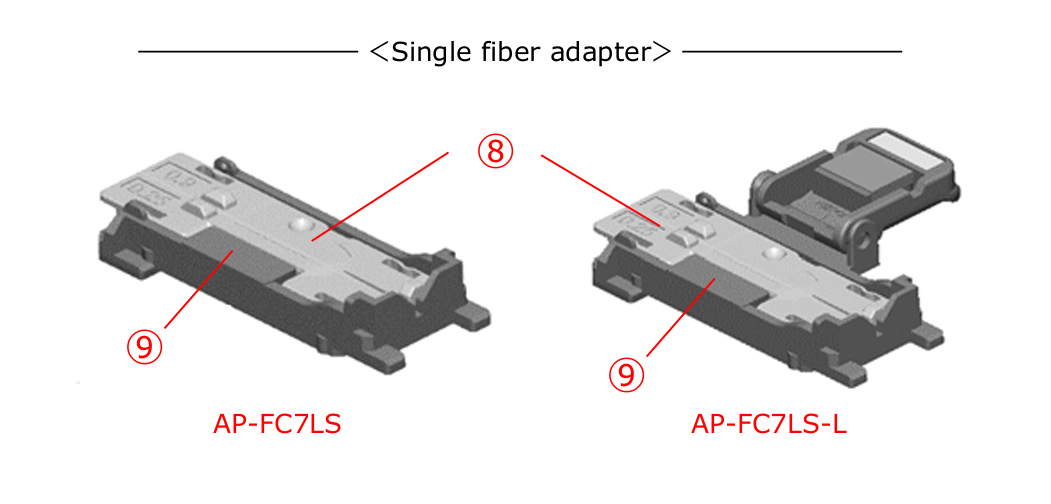

AP-FC7LS; Single fiber adapter
TR-FC7LS; Fiber offcut bin
FCP-20BL; Replacement blade

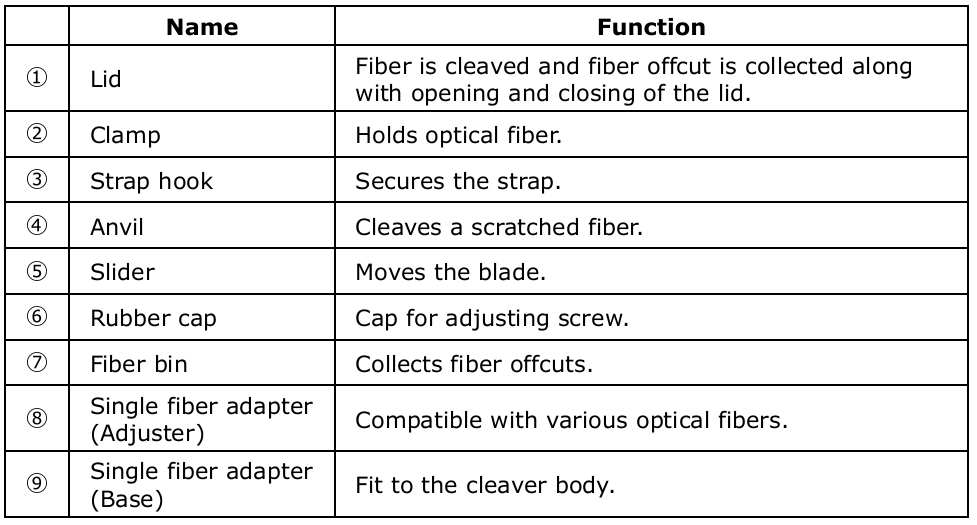

1. General

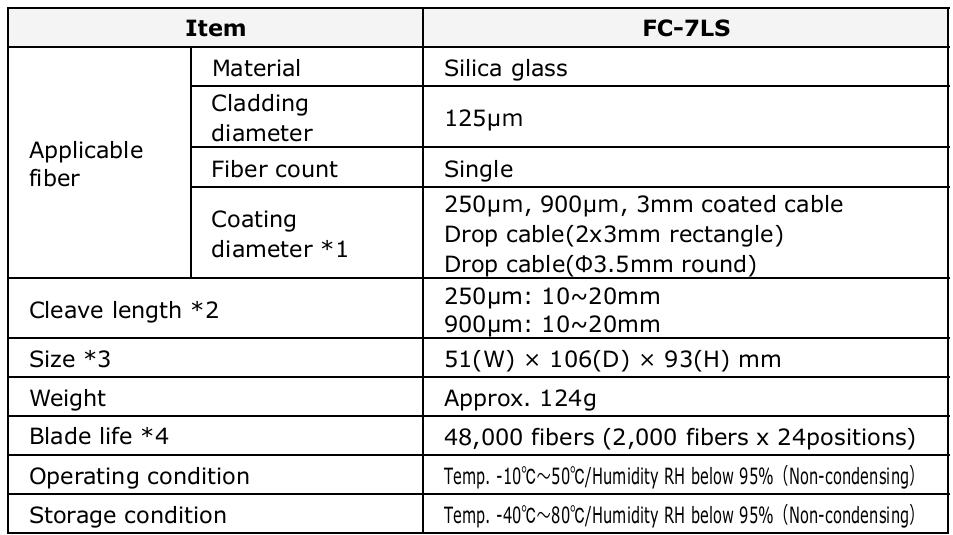

Specification
*1 Fiber holders that correspond to the coating diameter are required.
The single fiber adapter is included as a standard package item.
*2 With use of the single fiber adapter.
*3 A projection region is excluded.
*4 Blade life is not guaranteed. It may vary depending on the operational
environment.

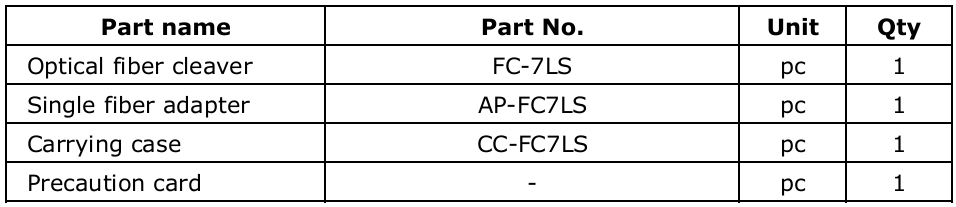

Standard package

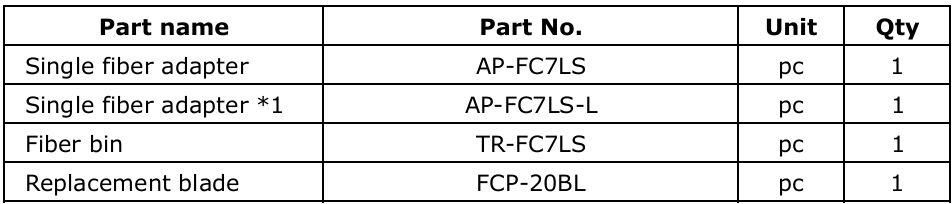

Optional accessories / Consumables
*1 With lid type.
