Fiber Optic Distribtuion Frame

12 to 48 Cores LC/APC 19Inch Optical Panel Box Rack Mounted ODF Gray or Black Color

Model Name: Optical Distribution Fram(CFO-ODF-01A)
Application: Data Processing Centers
Applicable cable types: optical cable, pigtail
Material: Cold-rolled Steel Plate
Color: Greyish
Capacity: 12 to 48 cores
Fit For: 19 Inch Rack
Suitable For: SC;LC;FC;ST Connectors
Plugging times:300
Operating Temperature: -25~ +60(℃)
  • Description
  • Make an inquiry

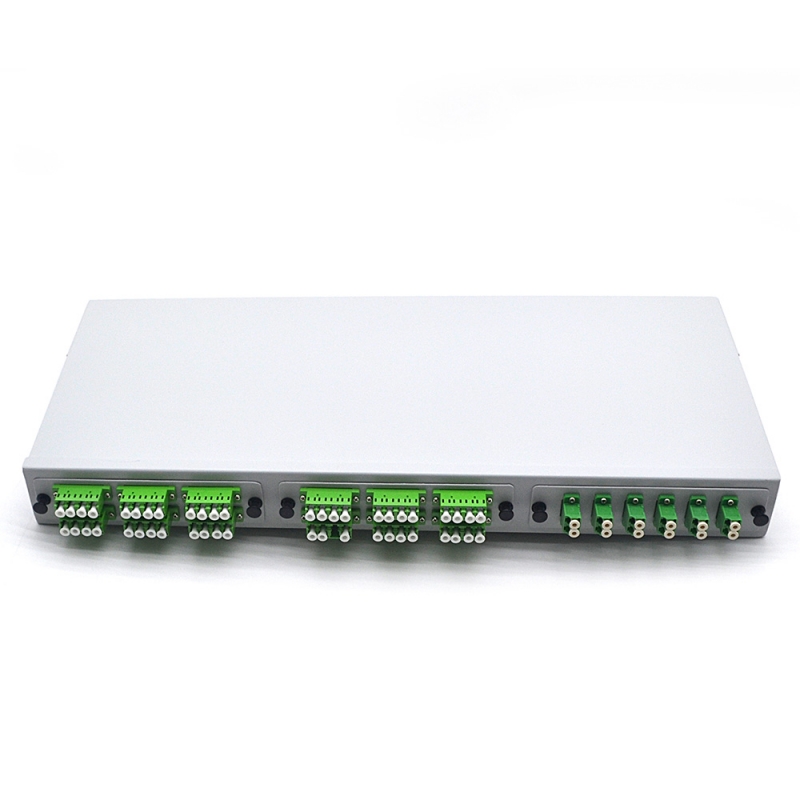

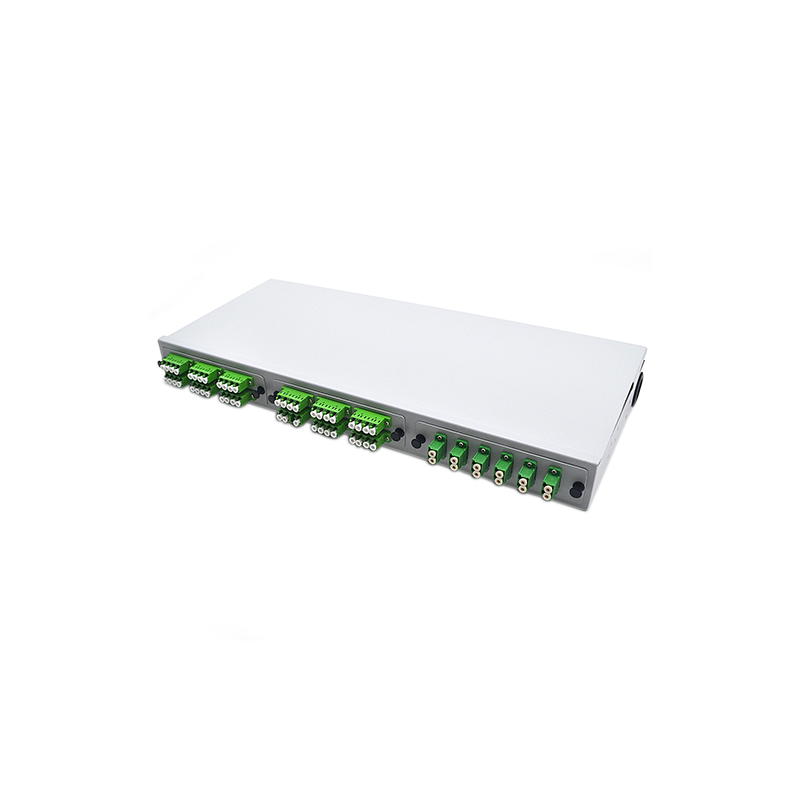

    12 to 48 Cores LC/APC 19Inch Optical Panel Box Rack Mounted ODF Gray or Black Color

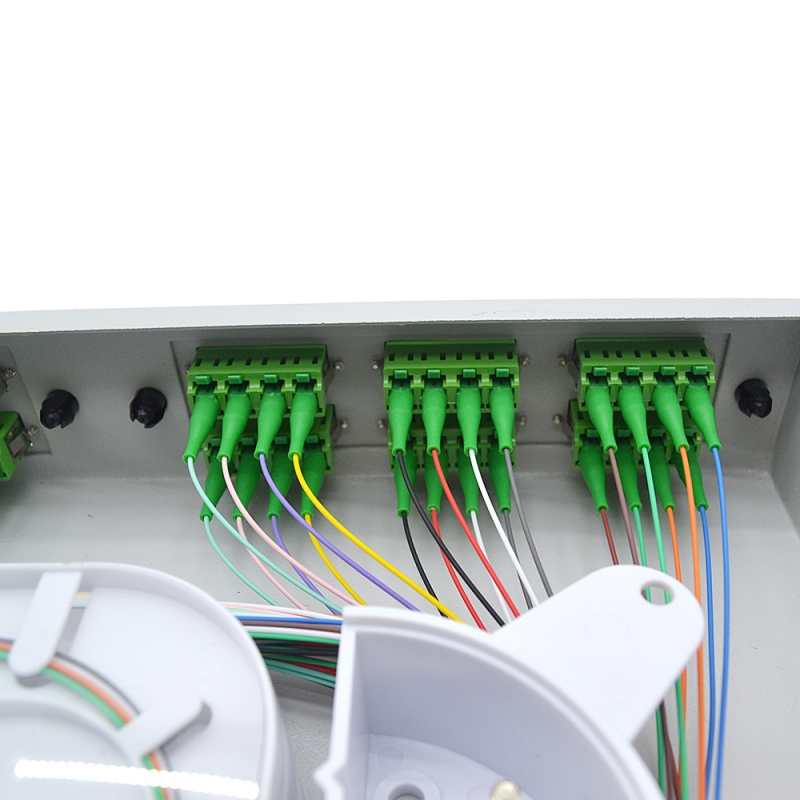

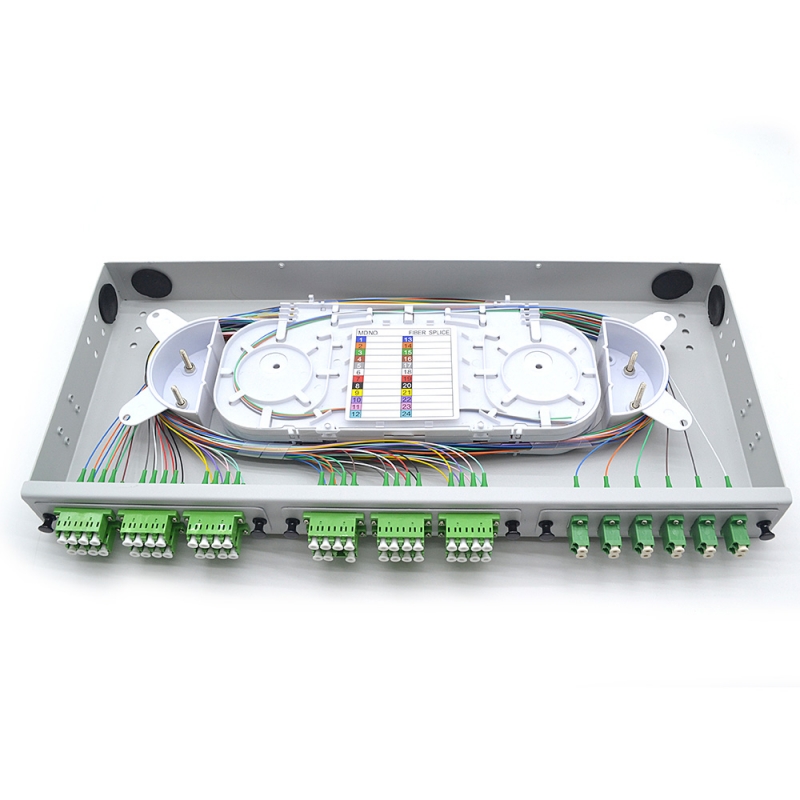

    The case is made of cold rolled steel, Electrostatic Spraying, provides 12 to 48 singleand  or double adapter,available for SC,LC,FC,ST



    12 to 48 Cores LC/APC 19Inch Optical Panel Box Rack Mounted ODF Gray or Black Color Features:

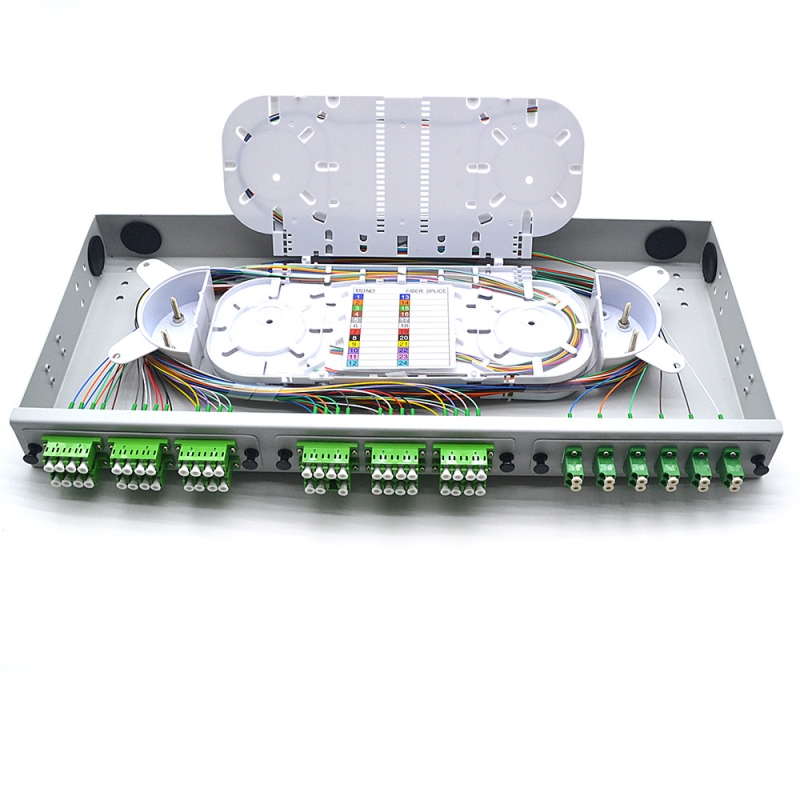

    1.   Removable panel designs can meet different requirements.
    2.   Slide rail construction、panel fasteners for fixing.
    3.   Fit for“19” rack.
    4.   Suitable for FC, SC, LC, ST, etc

    12 to 48 Cores LC/APC 19Inch Optical Panel Box Rack Mounted ODF Gray or Black Color Applications :

    1.   Optical Access Network
    2.   Data Processing Centers
    3.   Cable television
    4.   Local Area Network
    5.   Coarse Wavelength Division Multiplexer

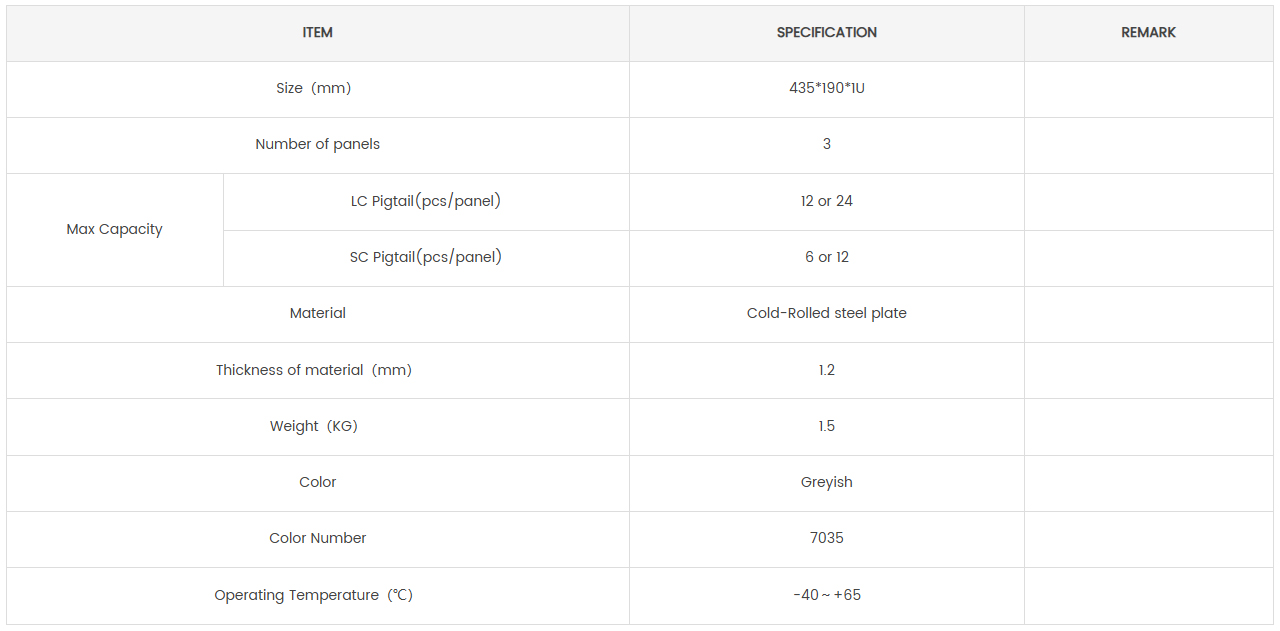

    12 to 48 Cores LC/APC 19Inch Optical Panel Box Rack Mounted ODF Gray or Black Color Configuration:
