9 Cores Pre Connectorized Fiber Distribution Box Of FTTX Network System
This type of fiber access termination box（FDB） can hold up to 9 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connections in one solid protection box.
9 Cores Pre Connectorized Fiber Distribution Box Of FTTX Network System Features:
1. Apply to wall-mounted、Pole pole-mounted and Overhead-mounted installation.
2. Metal or plastic units for optical cable storage are available.
3. High-strength material with good weather adaptability and UV resistance.
4. Port into the end and leakage design, no need to open the box, easy construction.
5. Internal multi-wiring can be independent or in combination with different types of demultiplexer.
6. Adapters are available in black, red, blue, or other colors for easy identification.
7. Ultrasonic welding, excellent sealing performance, Waterproof to IP68.
9 Cores Pre Connectorized Fiber Distribution Box Of FTTX Network System Applications :
1. FTTH Application;
2. Fiber optic communications in harsh outdoor environments;
3. Outdoor communication equipment connection;
4. Waterproof fiber equipment SC port;
5. Remote wireless base station;
6. FTTx FTTA wiring project.

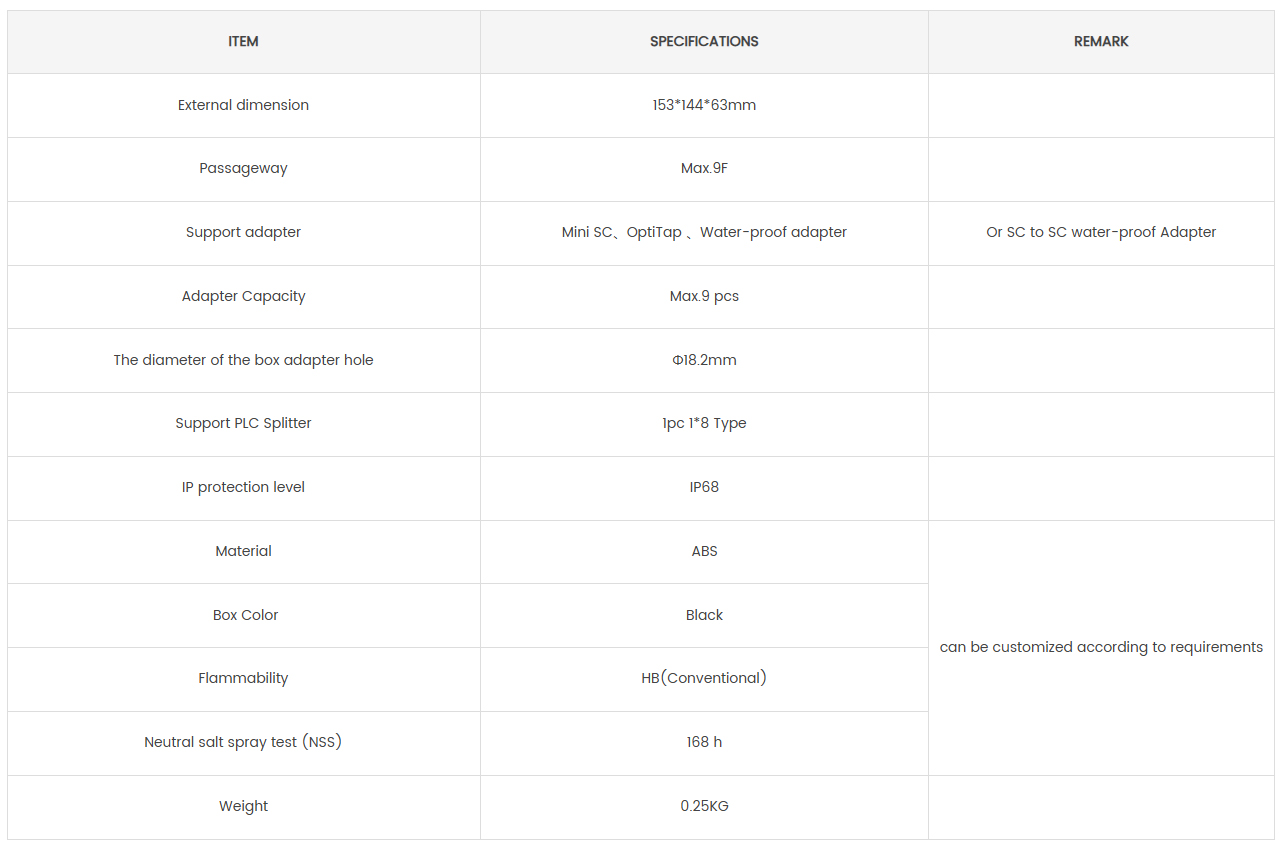

9 Cores Pre Connectorized Fiber Distribution Box Of FTTX Network System Configuration:
