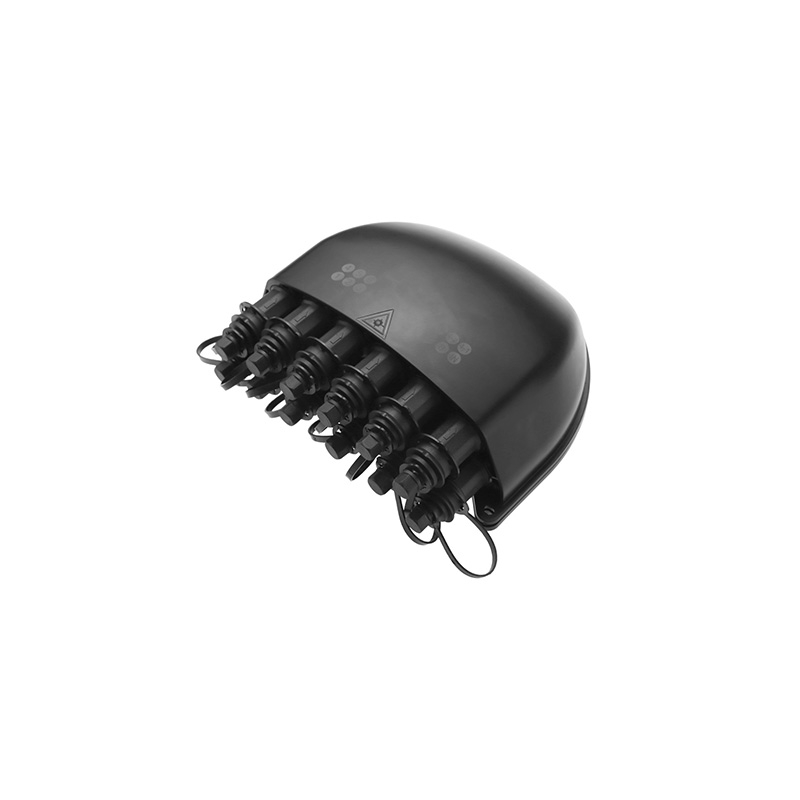

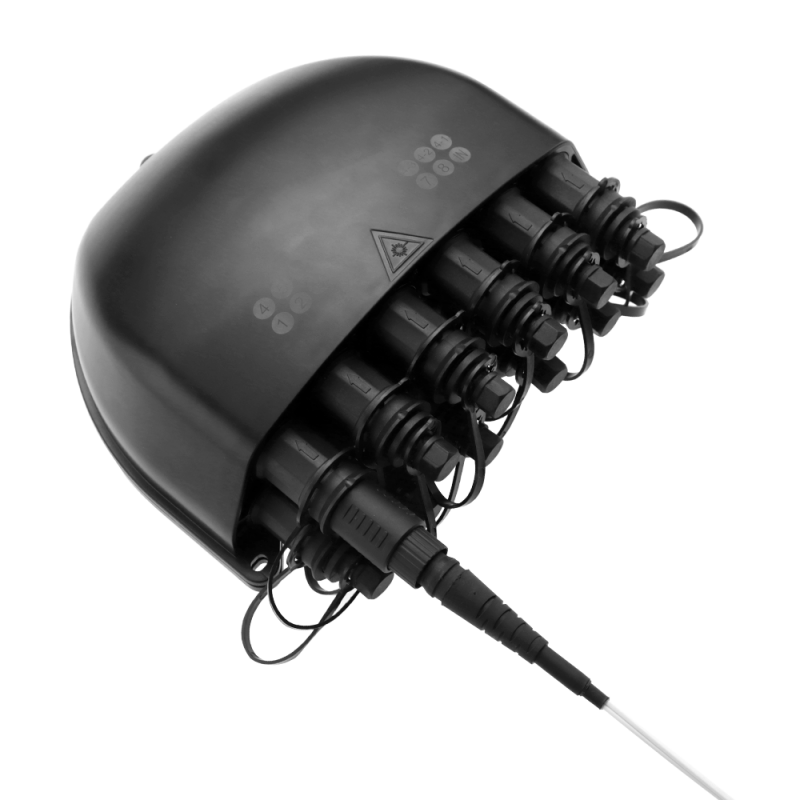

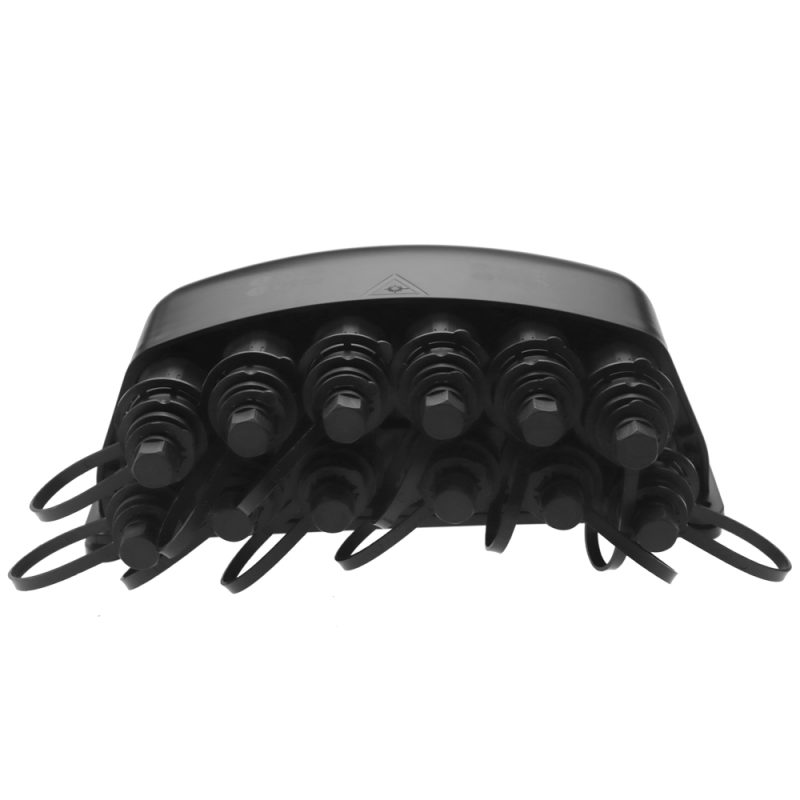

12 Cores Pre Connectorized fiber distribution terminal with OptiTap Adapter
The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
This Fiber Optic Distribution Box is designed with wide compatibility for fiber optic cables, including SC, LC, ST, and MPO connector types. It is built with a rugged IP68-rated protection level and can be easily installed wall-mounted.
12 Cores Pre Connectorized fiber distribution terminal with OptiTap Adapter Features:
1. Apply to wall-mounted、Pole pole-mounted and Overhead-mounted installation.
2. Metal or plastic units for optical cable storage are available.
3. High-strength material with good weather adaptability and UV resistance.
4. Port into the end and leakage design, no need to open the box, easy construction.

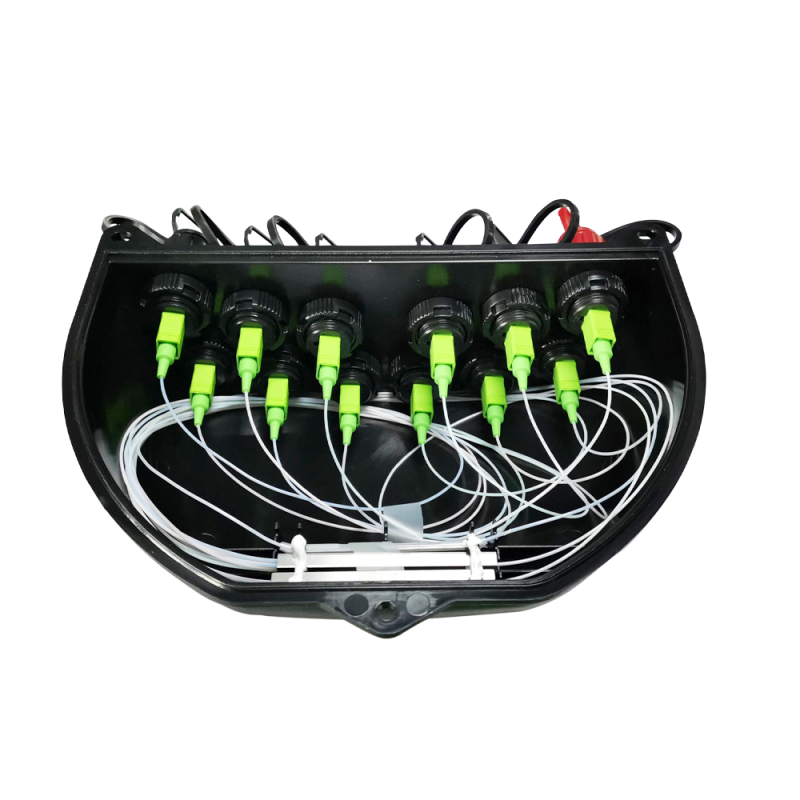

5. Internal multi-wiring can be independent or in combination with different types of demultiplexer.
6. Adapters are available in black, red, blue, or other colors for easy identification.
7. Ultrasonic welding, excellent sealing performance, Waterproof to IP68.
12 Cores Pre Connectorized fiber distribution terminal with OptiTap Adapter Applications :
1. FTTH Application;
2. Fiber optic communications in harsh outdoor environments;
3. Outdoor communication equipment connection;
4. Waterproof fiber equipment SC port;
5. Remote wireless base station;
6. FTTx FTTA wiring project.

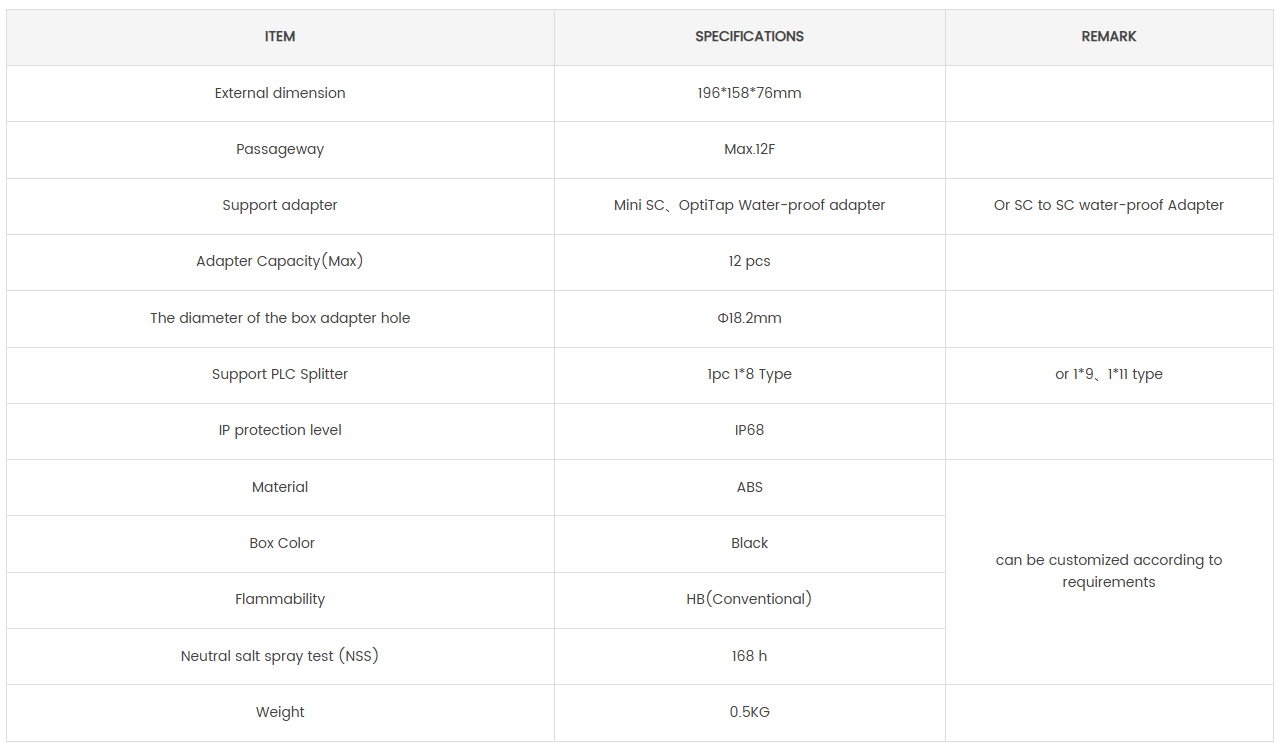

12 Cores Pre Connectorized fiber distribution terminal with OptiTap Adapter Configuration:
