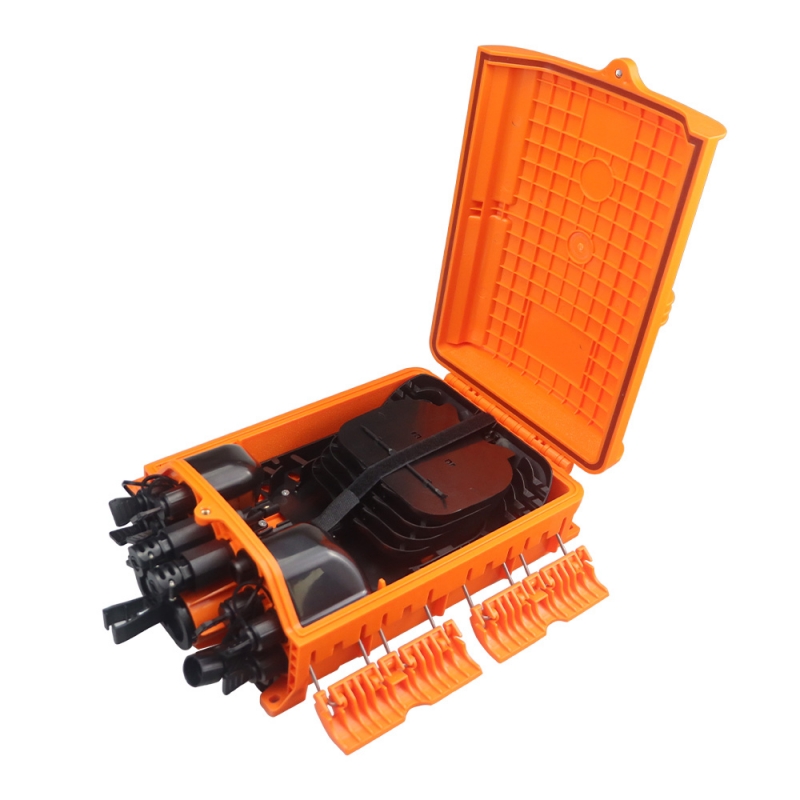

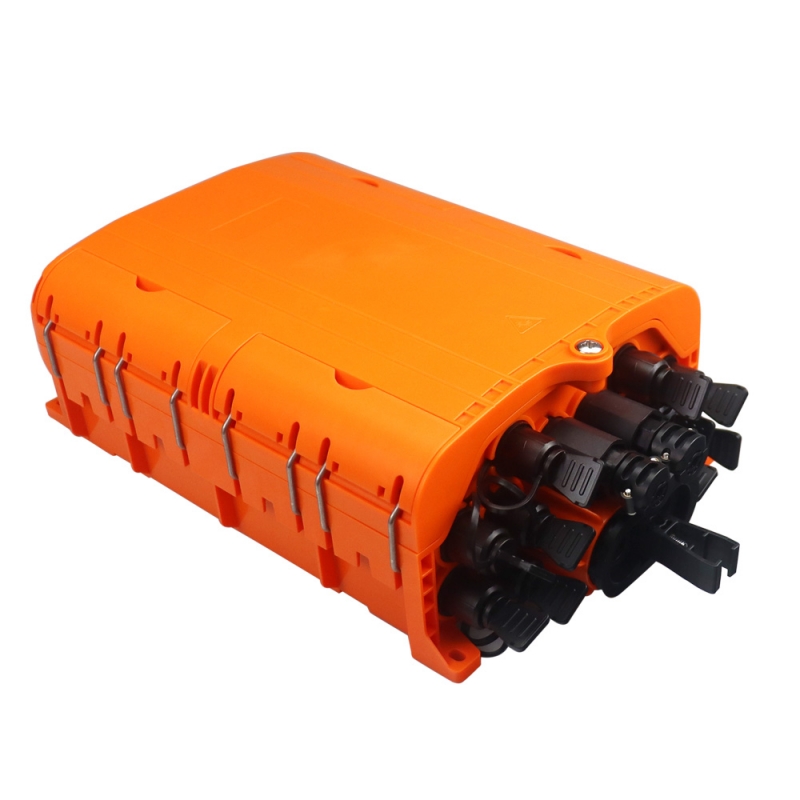

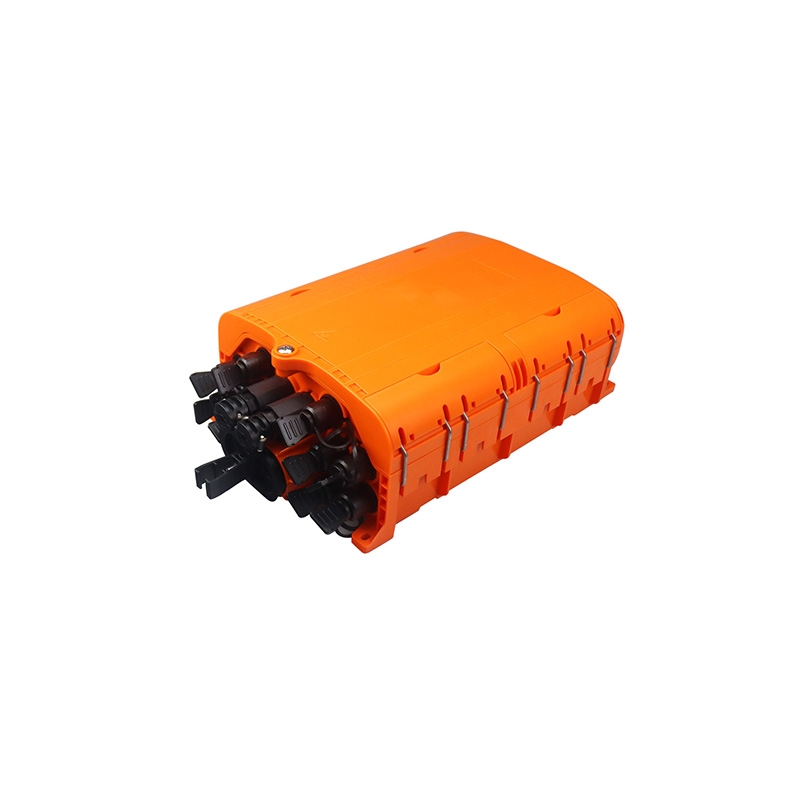

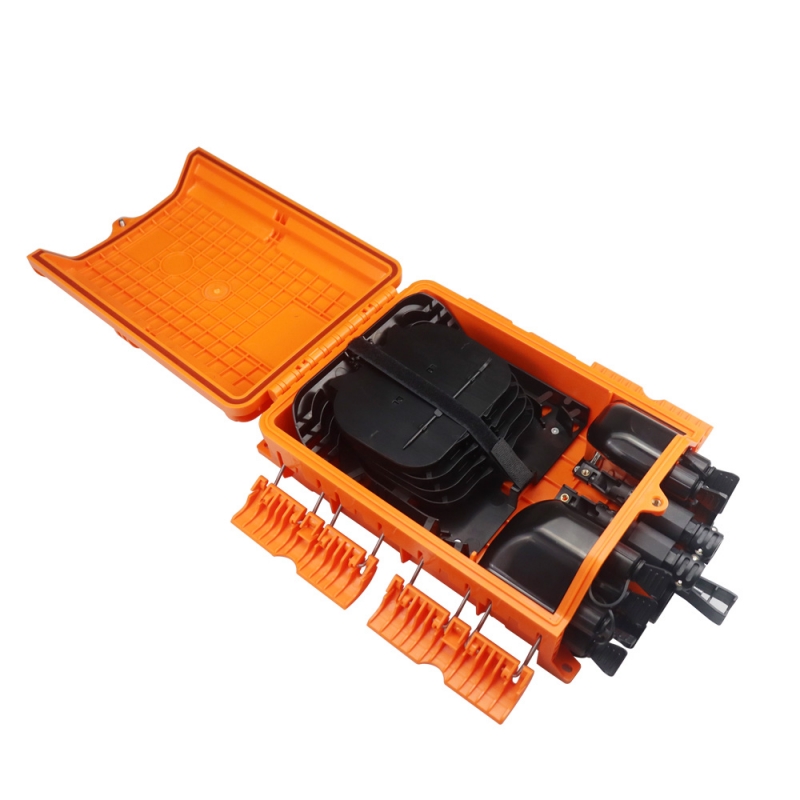

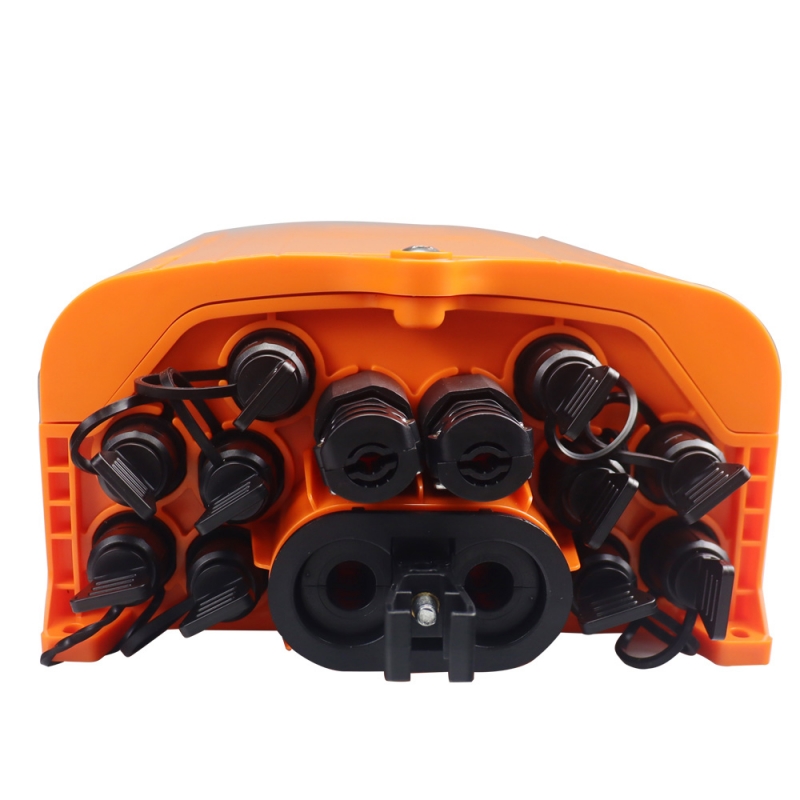

Orange Waterproof SC Fiber Optic Terminal Box With Waterproof Adapter
The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
This Fiber Optic Distribution Box is designed with wide compatibility for fiber optic cables, including SC, LC, ST, and MPO connector types. It is built with a rugged IP68-rated protection level and can be easily installed wall-mounted. Besides, this termination box is available in white color.
Orange Waterproof SC Fiber Optic Terminal Box With Waterproof Adapter Features:
1. Material: PC+ABS,wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP68.
2. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
3. Cable, pigtails, and patch cords run through their paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
4. The distribution panel can be flipped up, and the feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
5. Do More supports 12 waterproof adapters. However, the cable holes can be expanded to 4 (1 oval hole +2 round holes), which supports 10 adapters.
6. Prefabricated end waterproof interface for fast connection wiring.
7. Cabinet can be wall-mounted or column-mounted, suitable for indoor and outdoor use.
Orange Waterproof SC Fiber Optic Terminal Box With Waterproof Adapter Applications :
1. FTTH Application;
2. Fiber optic communications in harsh outdoor environments;
3. Outdoor communication equipment connection;
4. Waterproof fiber equipment SC port;
5. Remote wireless base station;
6. FTTx FTTA wiring project.

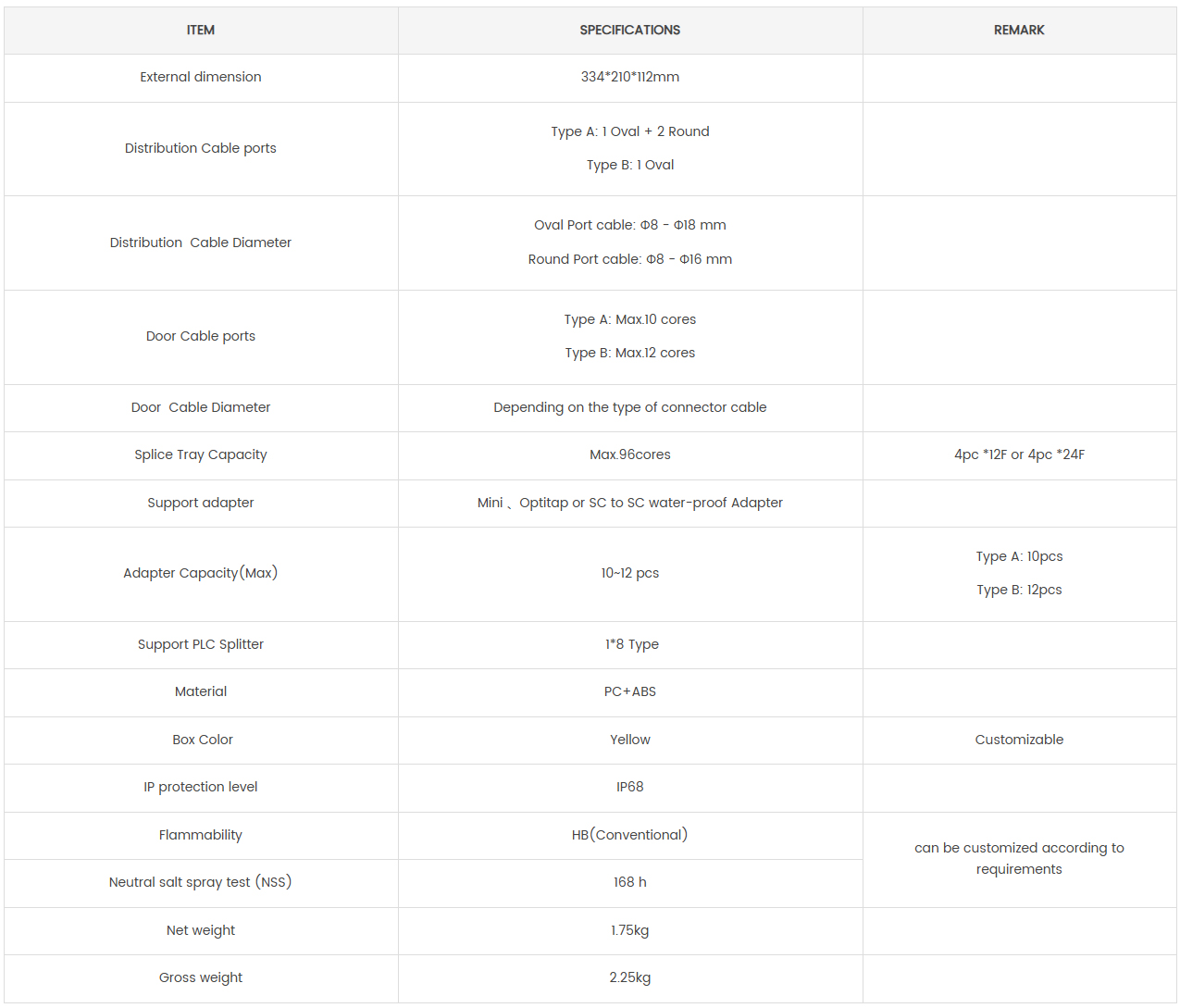

Orange Waterproof SC Fiber Optic Terminal Box With Waterproof Adapter Configuration:
