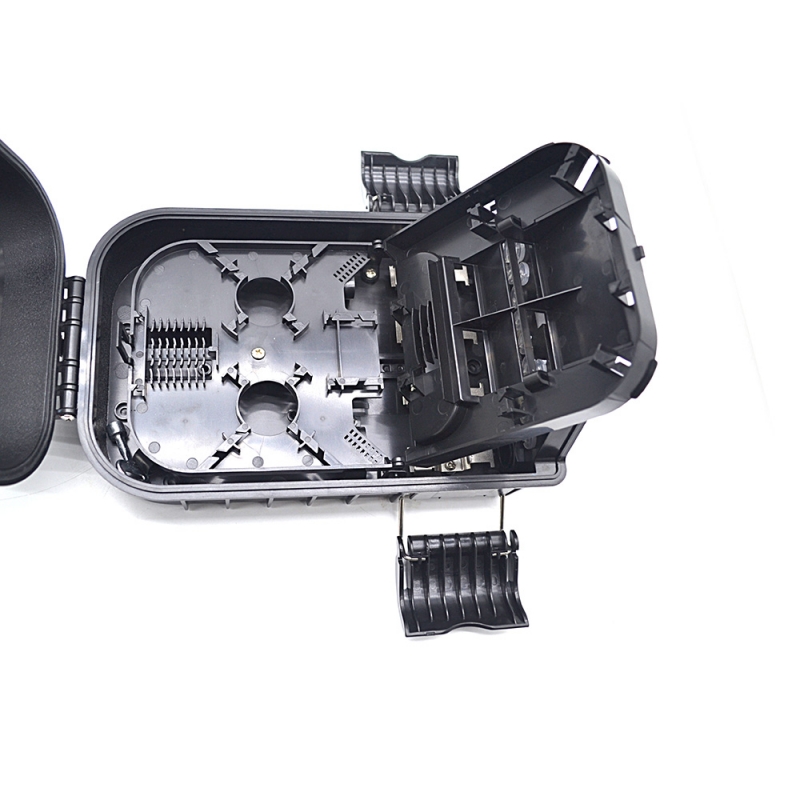

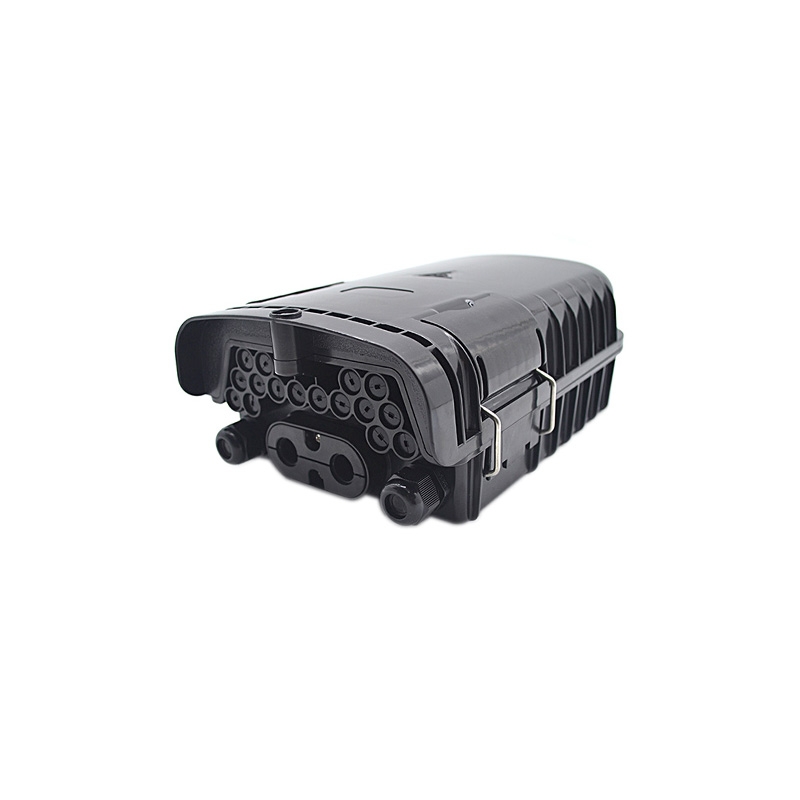

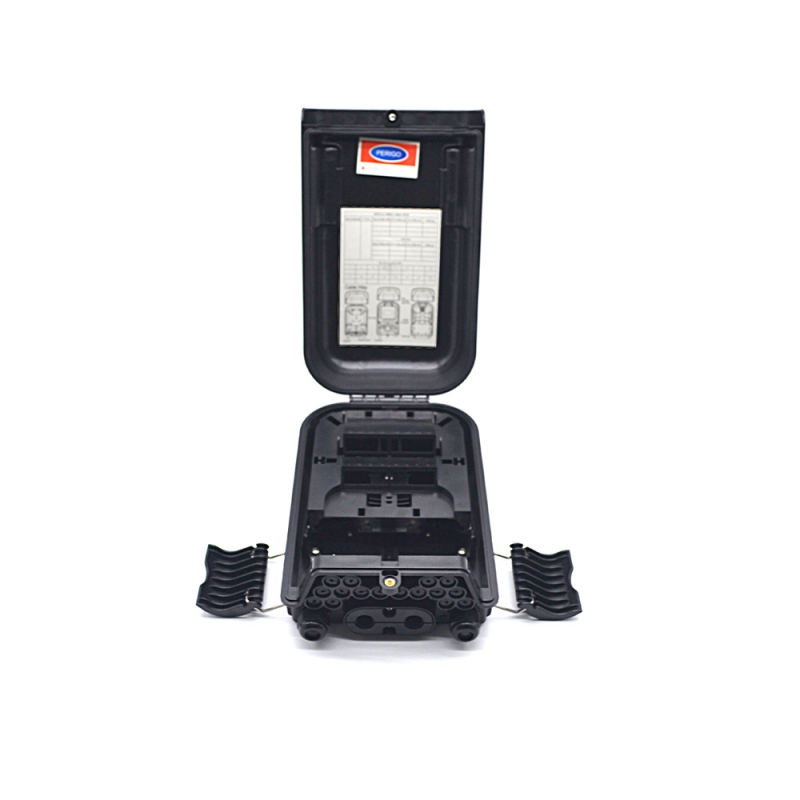

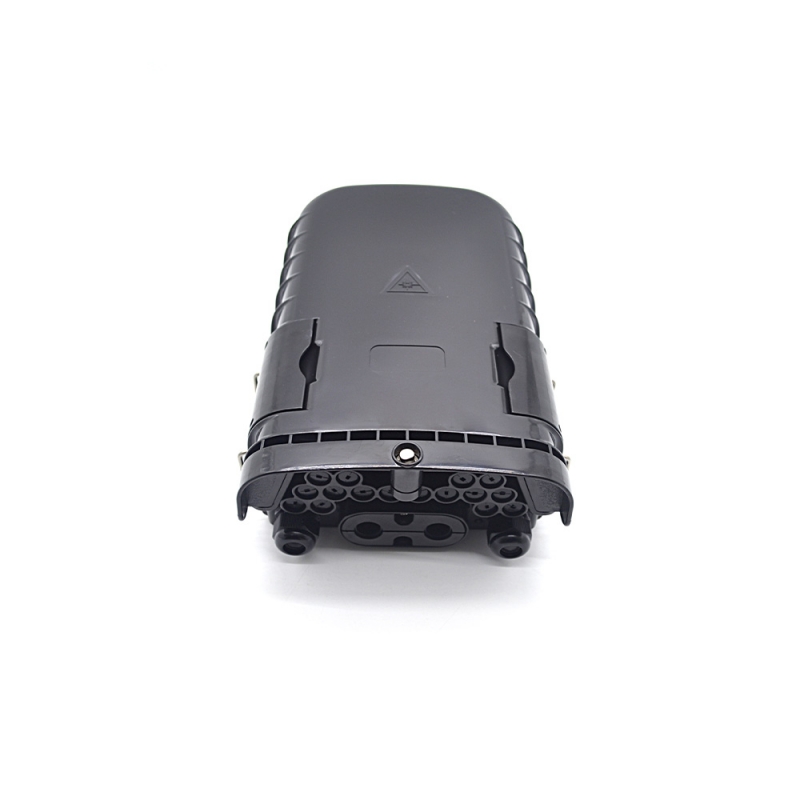

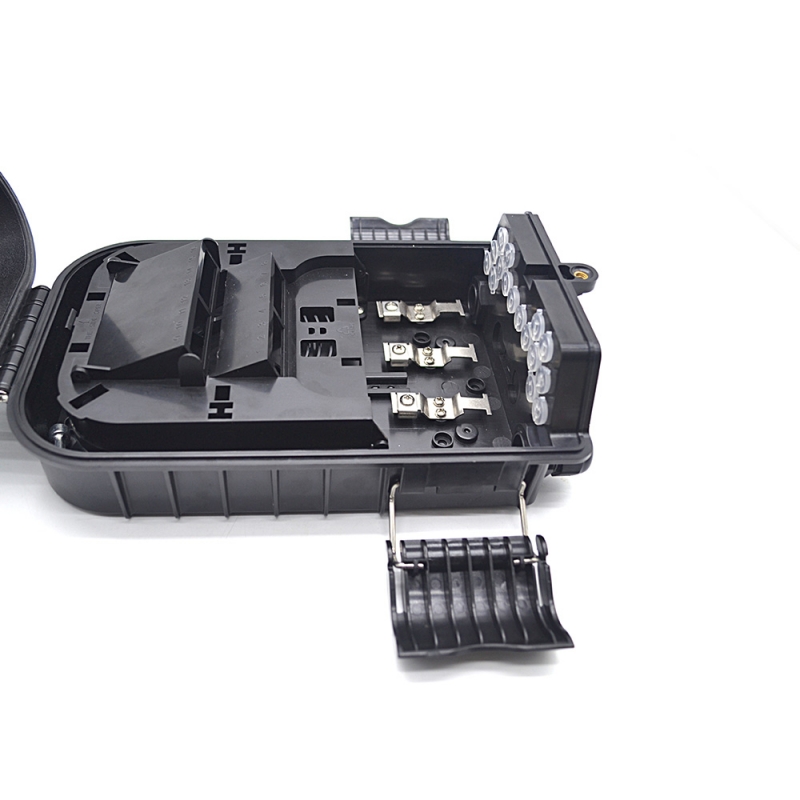

FTTH Fiber Optic Distribution Box 16 Ports ABS Material Cable Termination Box
The Fiber distribution box can hold up to 16 subscribers. This box is used as a termination point for the feeder cable to connect with the drop cable in the FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
FTTH Fiber Optic Distribution Box 16 Ports ABS Material Cable Termination Box Features:
1. Material: PC+ABS,wet-proof、water-proof、dust-proof、anti-aging.
2. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc.
3. Cable, pigtails, and patch cords run through their paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
4. The distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
5. Prefabricated end waterproof interface for fast connection wiring.
6. Installation method: pole-mounted, aerial-mounted, wall-mounted.
7. Supports the connection of the cable when it is longitudinally peeled and not cut.
8. Lock provided for extra security.
9. Protection level up to IP65.
FTTH Fiber Optic Distribution Box 16 Ports ABS Material Cable Termination Box Applications :
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broadband High-bit rate data transmission
4. Active device terminations
5. Testing instruments
6. Optical fiber communication networks
7. PON Networks
8. Optical Signal Distribution

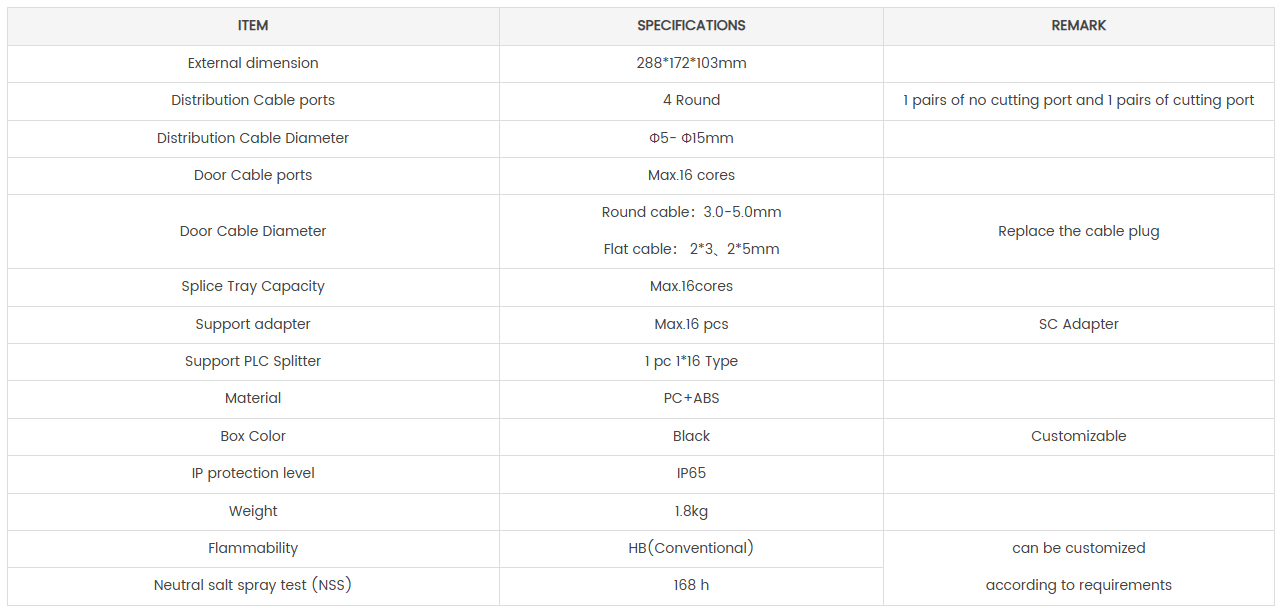

FTTH Fiber Optic Distribution Box 16 Ports ABS Material Cable Termination Box Configuration:
