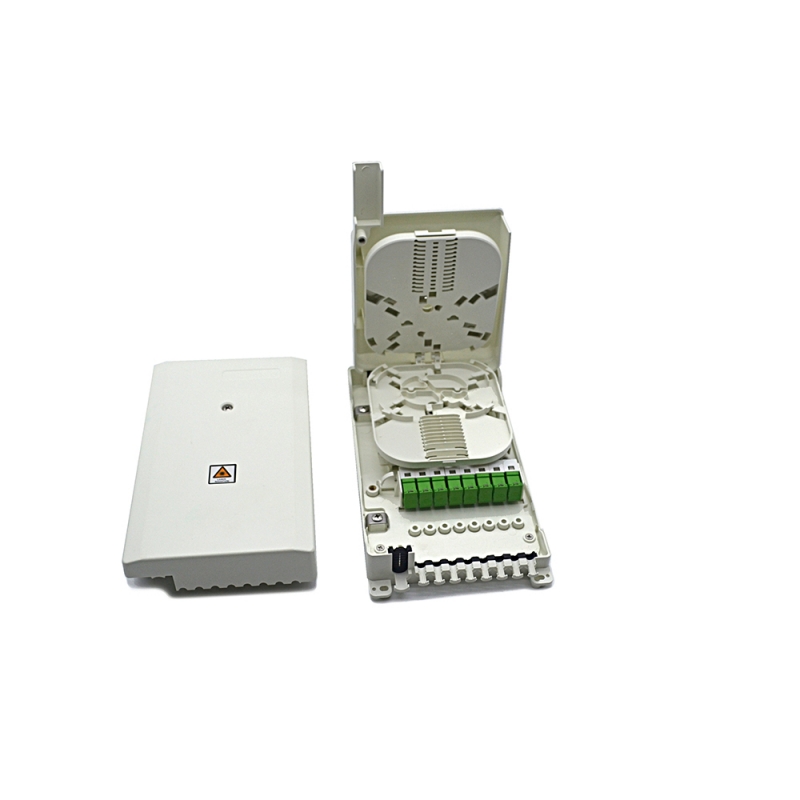

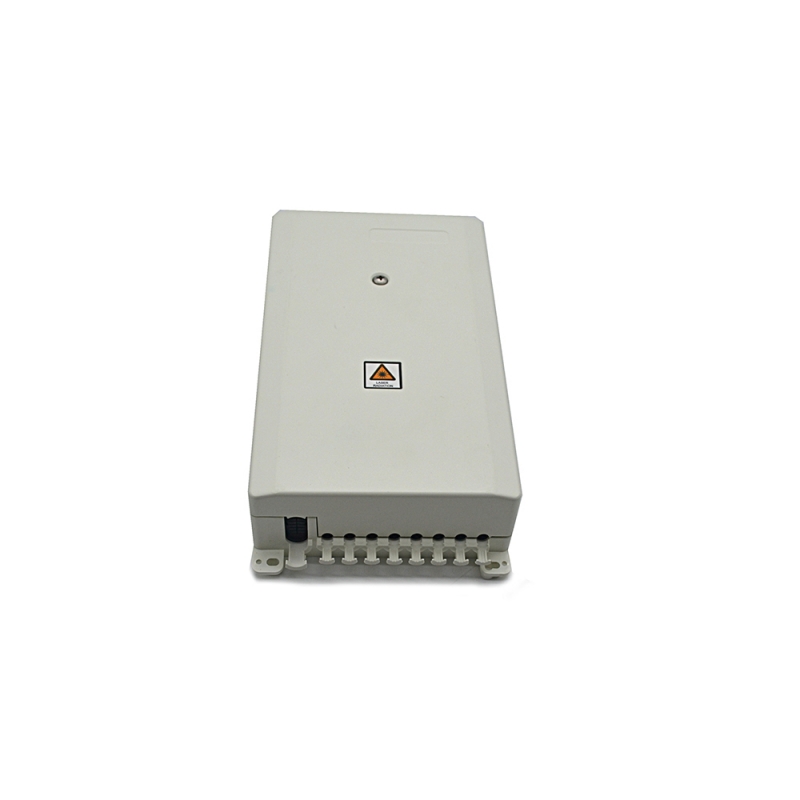

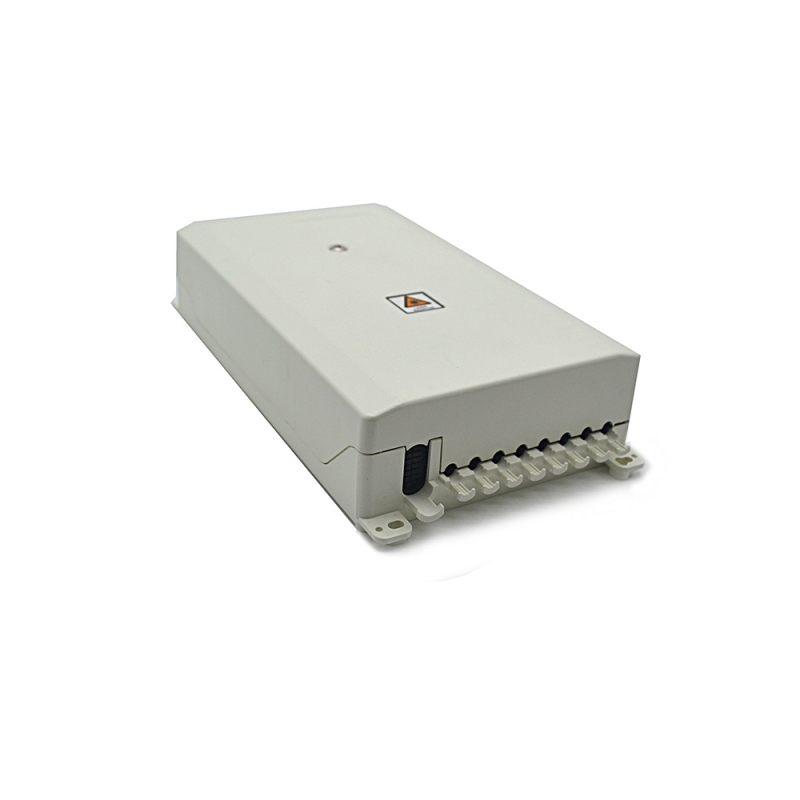

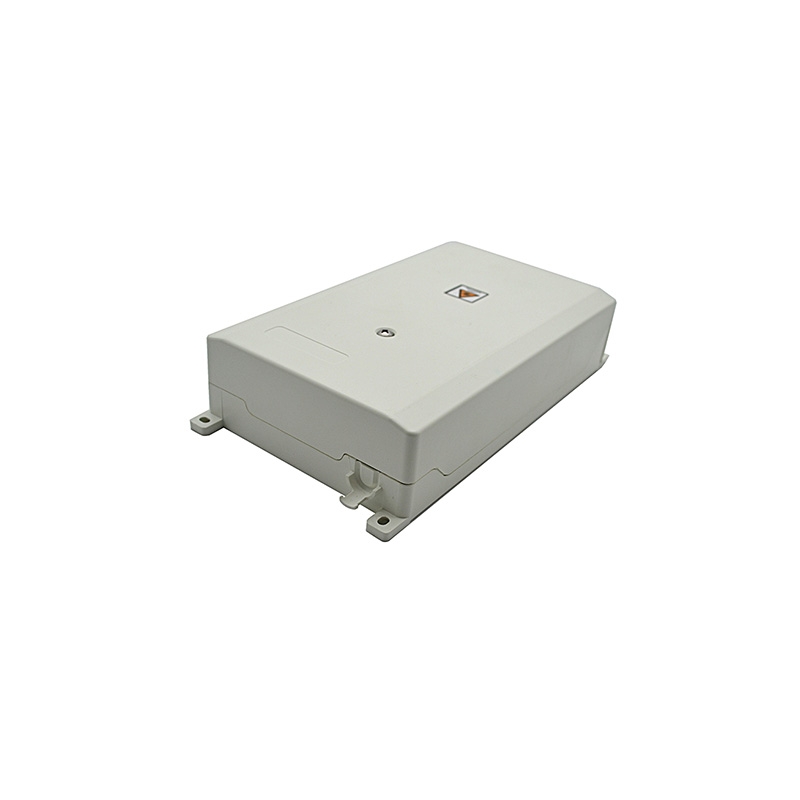

Fiber Optic Distribution Box 8 Ports ABS FTTH Termination Box
The ODU box is designed to connect optical fiber to the pigtail and provides full splice and perfect fiber management.
The box is used indoors or in the cabinet.
Fiber Optic Distribution Box 8 Ports ABS FTTH Termination Box Features:
1. Water-proof design with IP-65 Protection level.
2. Made of Brand new plastic LSZH.
3. There is a special window for drop cable access, no need to open the whole box.

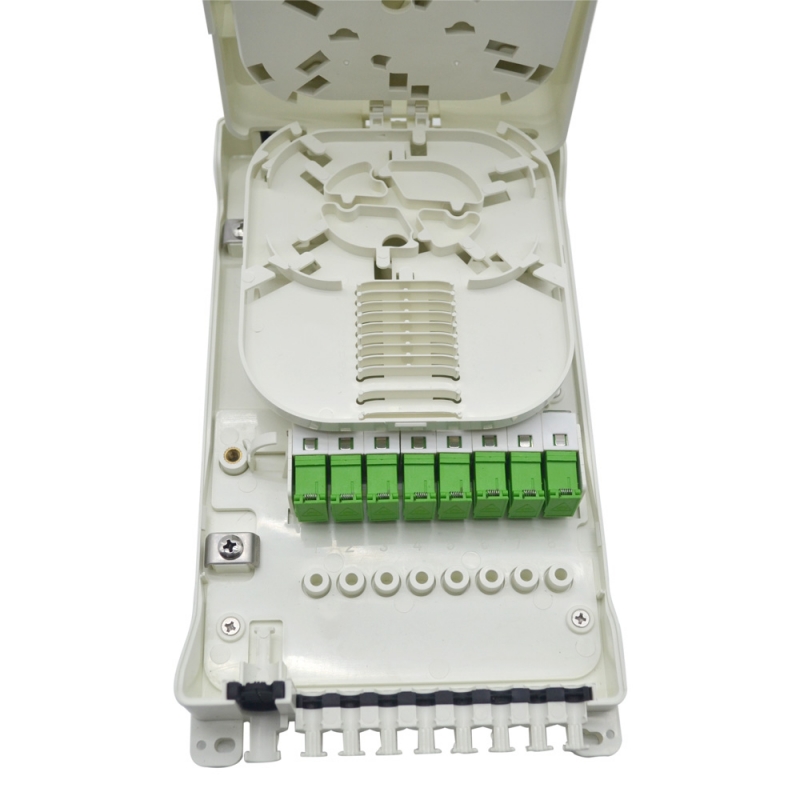

4. Clear fiber function area division and clear fiber routing.
5. Special slot for micro splitter 1:8 in the splice tray.
6. The splice tray can hold 120 degrees when wall-mounted and full load.
7. Adaptor holders can be lifted a little and make the installation easy.
8. The storage tray can be held at 90 degrees.
Fiber Optic Distribution Box 8 Ports ABS FTTH Termination Box Applications :
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broadband High-bit rate data transmission
4. Active device terminations
5. Testing instruments
6. Optical fiber communication networks
7. PON Networks
8. Optical Signal Distribution

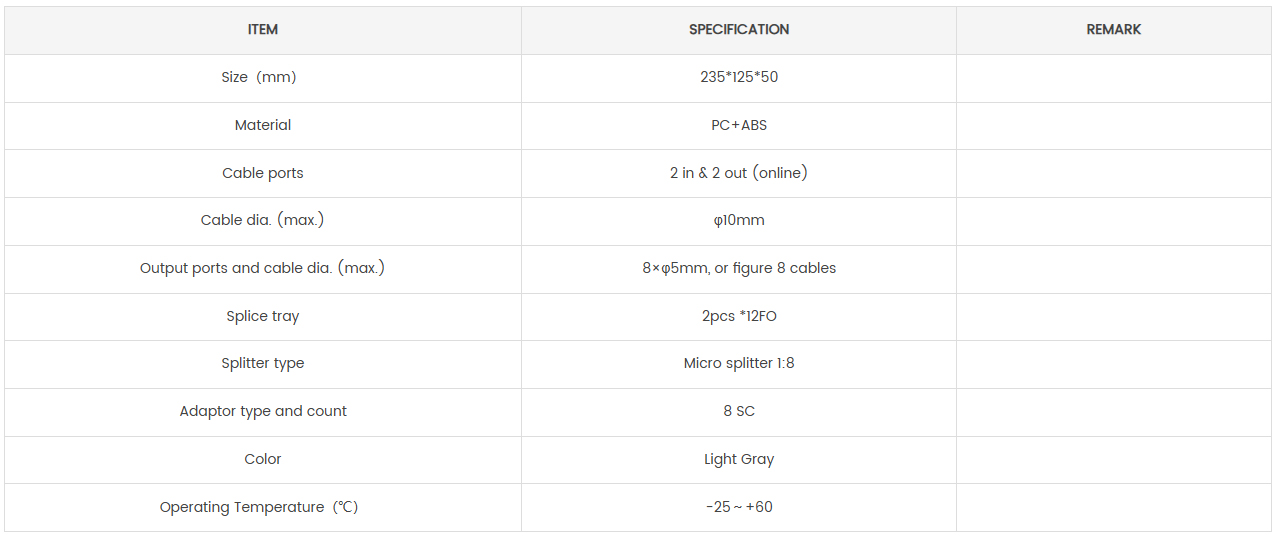

Fiber Optic Distribution Box 8 Ports ABS FTTH Termination Box Configuration:
