Fiber Optic Distribution Box

16 Port Fiber Terminal Box High-Quality Ftth Terminal Box


Model Name: Fiber Distribution Box(CFO-FDB-22B)
Application: FTTx
Waterproof Grade: IP65
Material: ABS+PC
Color: White
Capacity: 16 cores
Operating Temperature: -25~ +75(℃)
Installation: Wall Mounting or Pole Mounting
  • Description
  • Make an inquiry

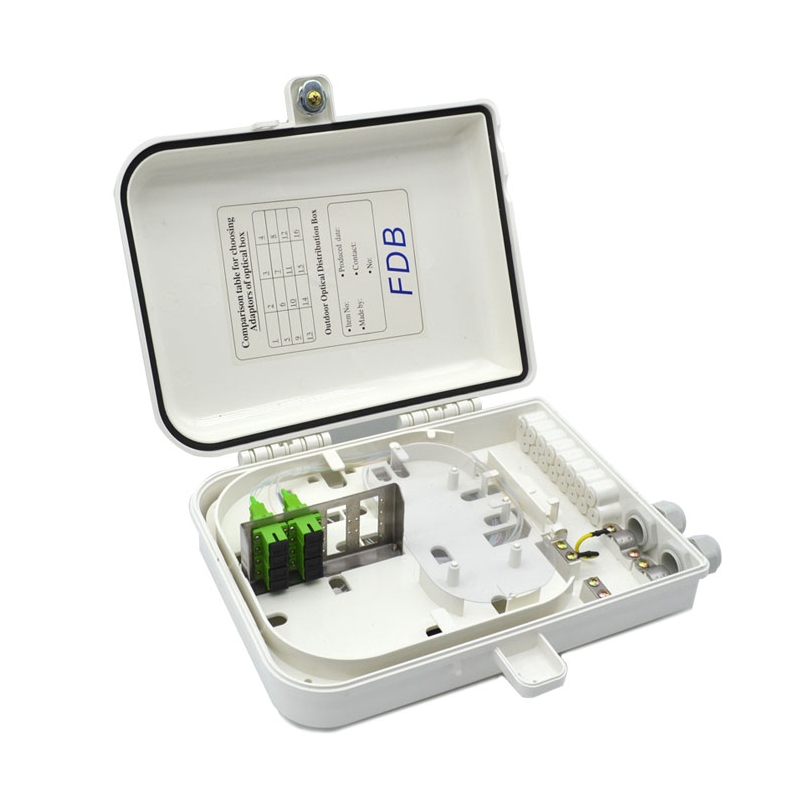

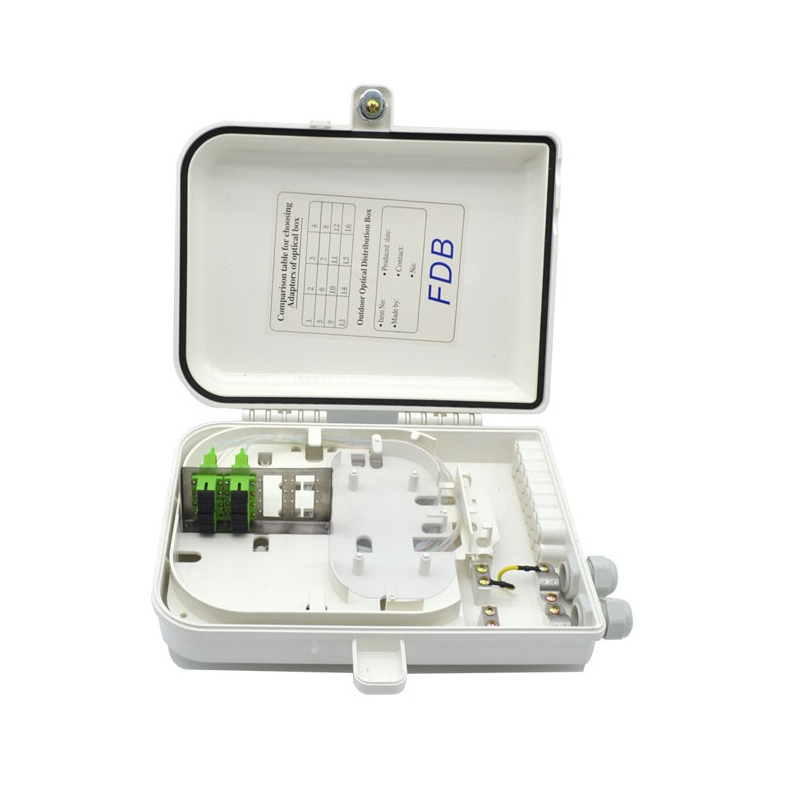

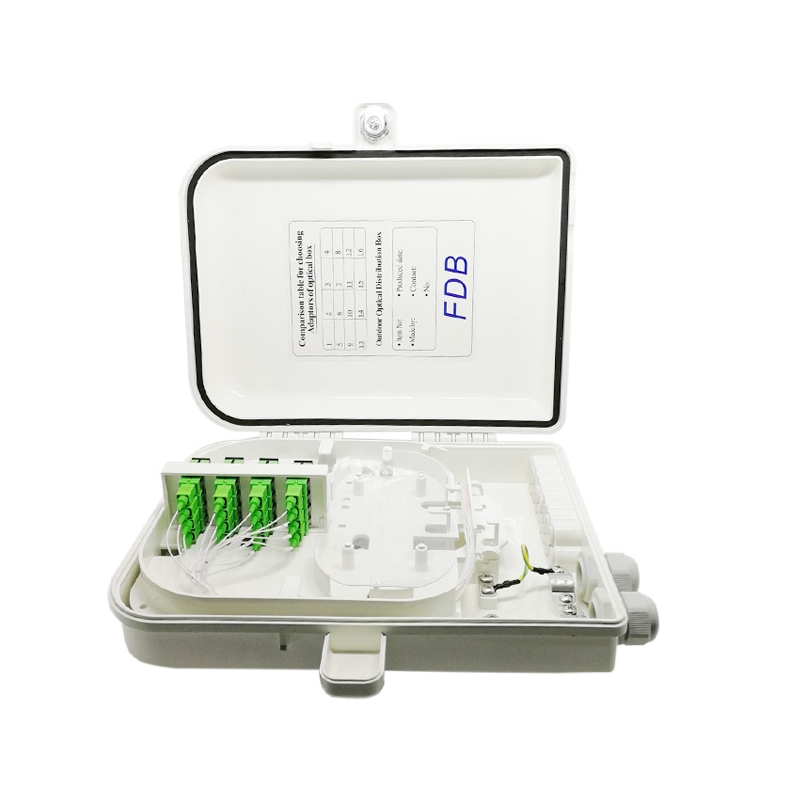

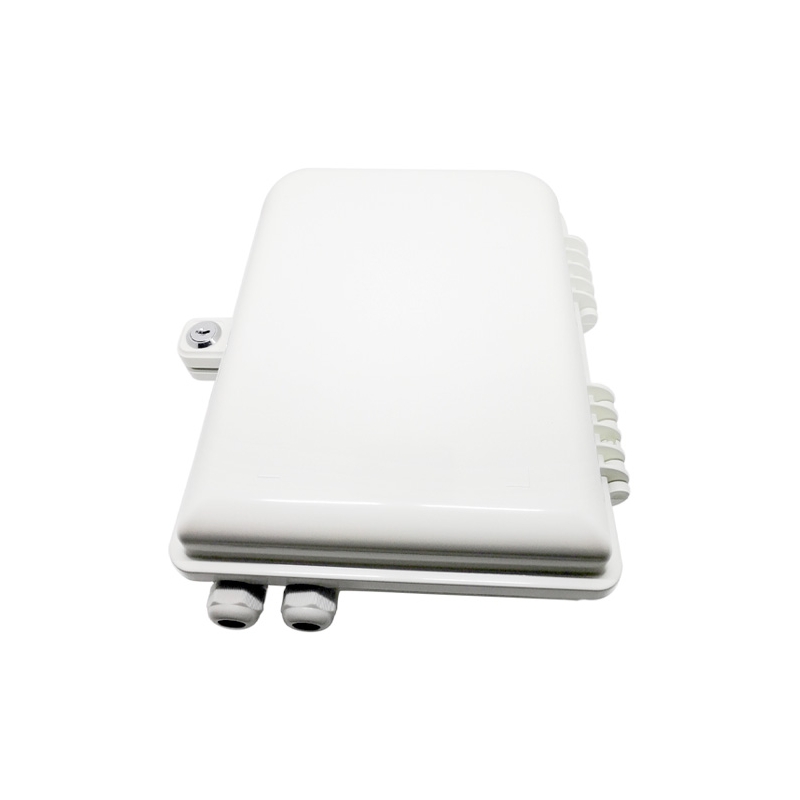

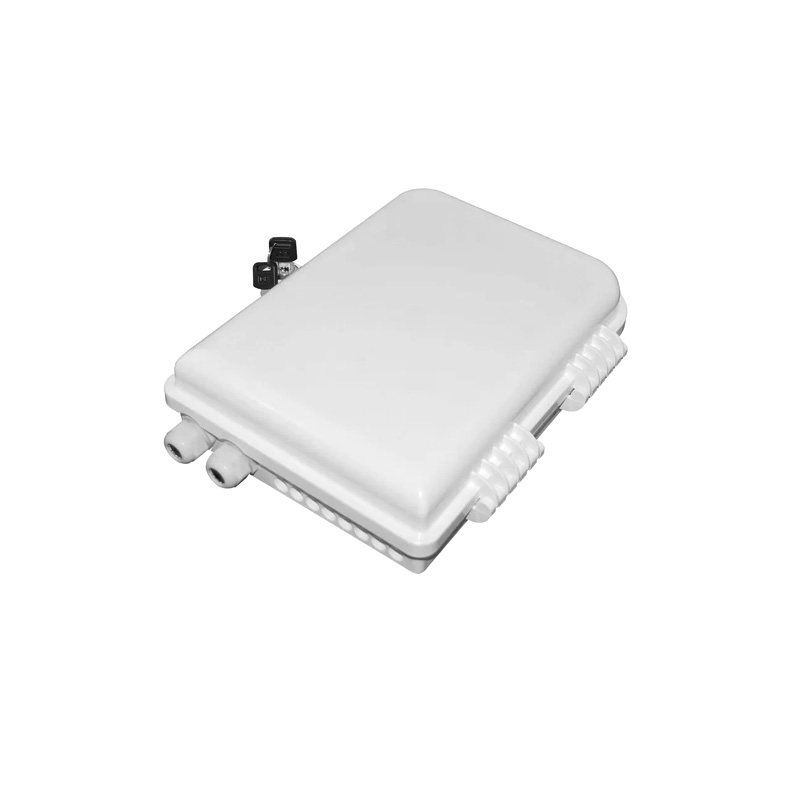

    16 Port Fiber Terminal Box High-Quality Ftth Terminal Box

    This fiber access termination box(FDB) type can hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connections in one solid protection box.



    16 Port Fiber Terminal Box High-Quality Ftth Terminal Box Features:

     1.   Outdoor application and good UV resistance.
     2.   Apply to wall-mounted, and pole-mounted.
     3.   Numerous applications such as mid-span, branch, and direct splice
     4.   Different splitter panels support micro splitter with adapter
     5.   Adapter slots used – No screws and tools needed for installing adapters.
     6.   High strength material with good weather adaptability.
     7.   Excellent sealing performance, It is compatible with different optical cables.

    16 Port Fiber Terminal Box High-Quality Ftth Terminal Box Applications :

     1.   Optical LAN & WAN & CATV
     2.   FTTH project & FTTX Deployments
     3.   Broadband High-bit rate data transmission
     4.   Active device terminations
     5.   Testing instruments
     6.   Optical fiber communication networks
     7.   PON Networks
     8.   Optical Signal Distribution

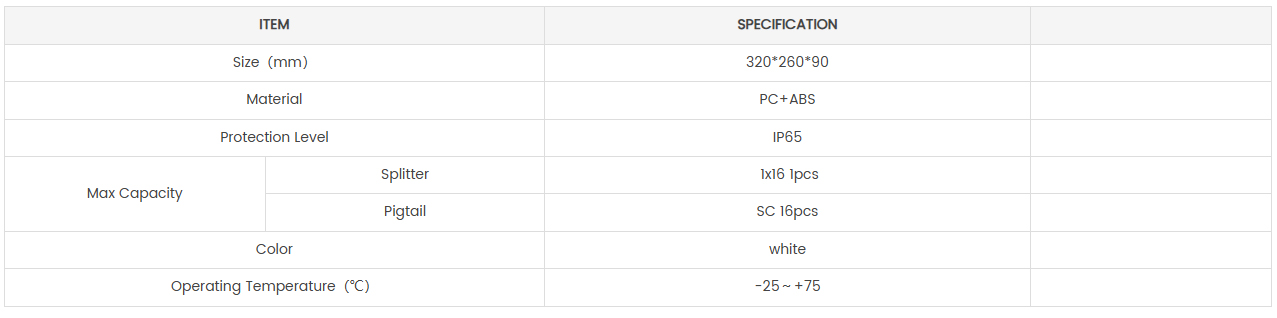

    16 Port Fiber Terminal Box High-Quality Ftth Terminal Box Configuration:
