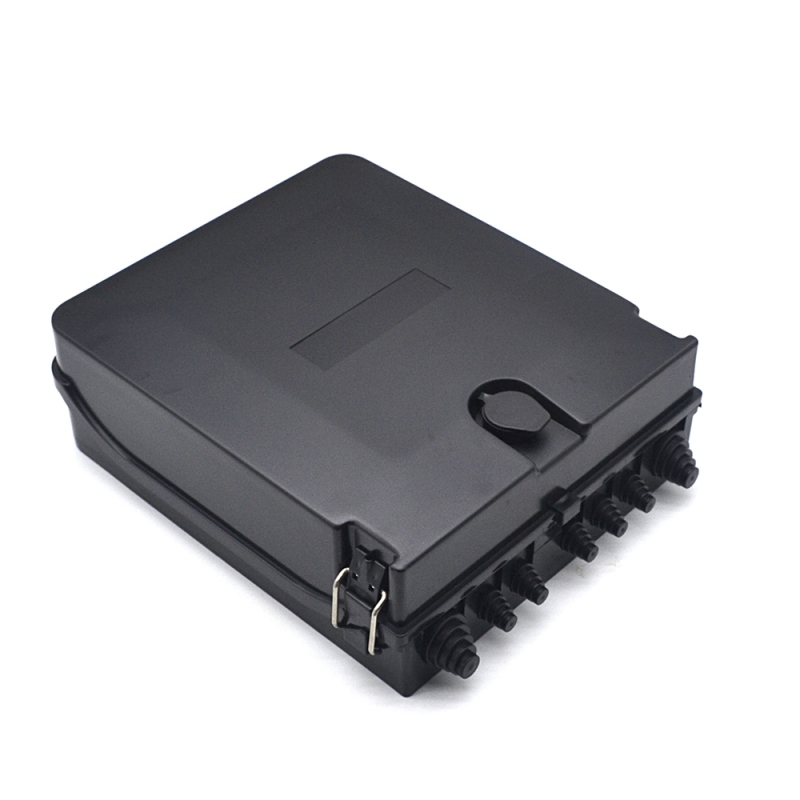

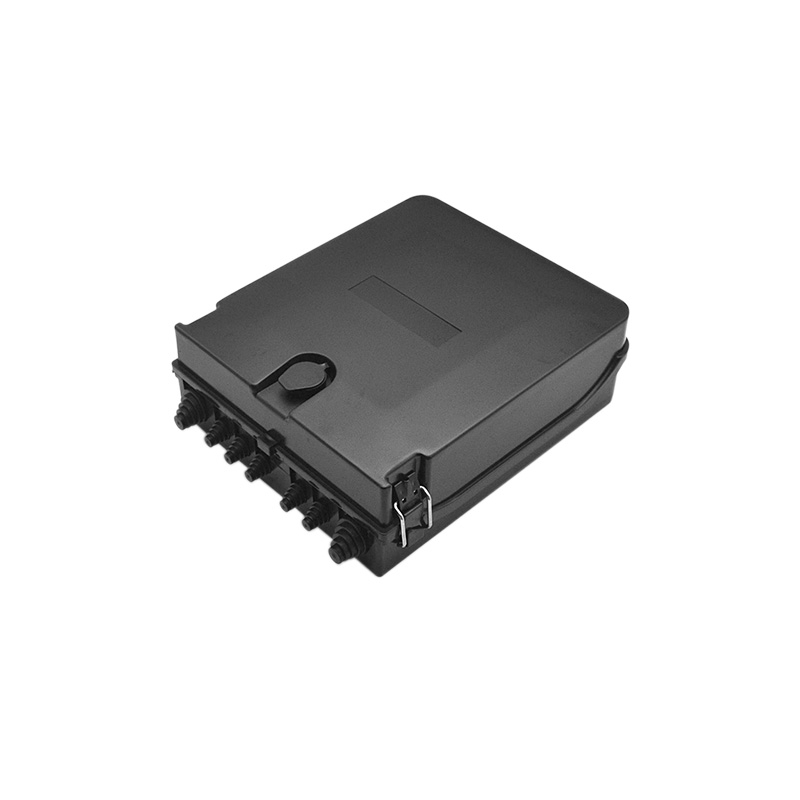

Outdoor Fiber Optic Terminal Box 24 Core In The FTTX Network System
The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Outdoor Fiber Optic Terminal Box 24 Core In The FTTX Network System Features:
1. It is suitable for outdoor and is made of high-quality plastic.
2. Can accommodate ABS box type PLC splitter. 1x8 2pcs,1X16 1pcs.
3. Rainfall-resistant, outdoor use.

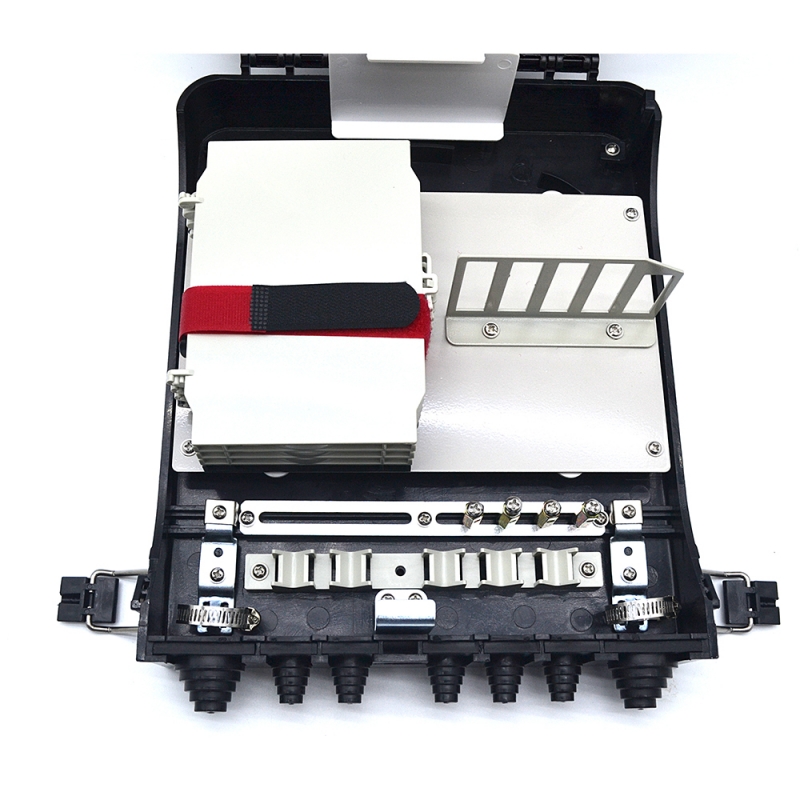

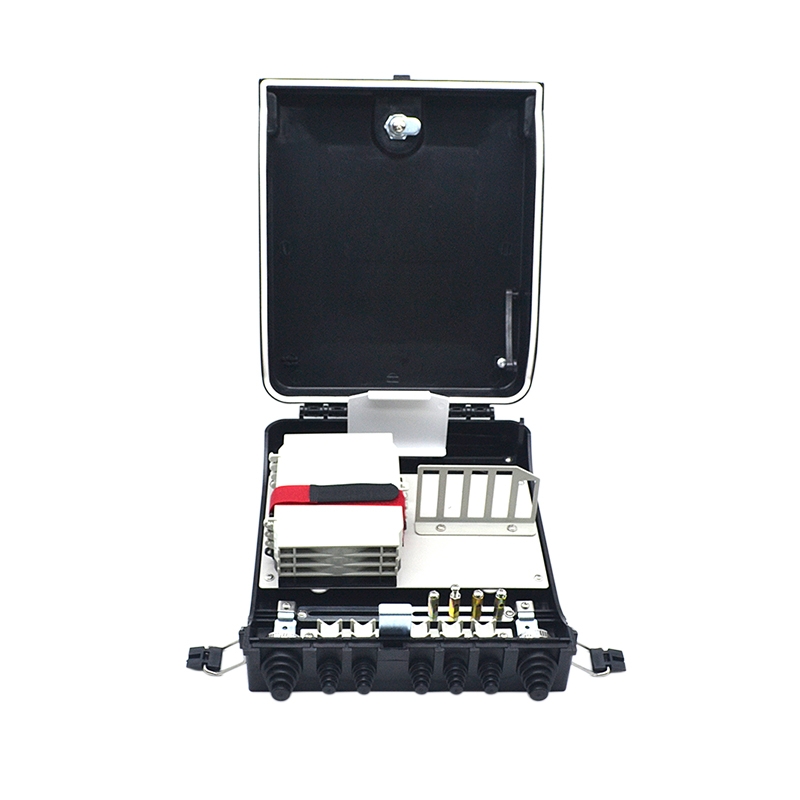

4. Can load 24 pcs SC-type adapters.

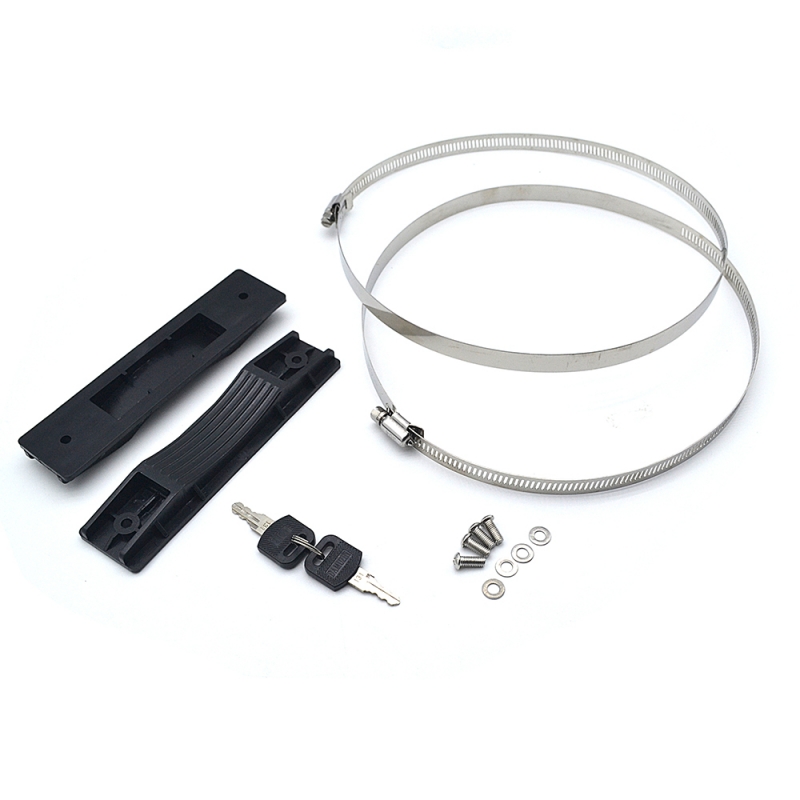

5. Wall mounting and pole mounting application.
6. 2 pcs cable entry ports; the cable can be entered without cutting.
7. 24 pcs exit ports for FTTH drop cable.
8. There is one entrance that can go through the fast connector directly.
Outdoor Fiber Optic Terminal Box 24 Core In The FTTX Network System Application :
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broadband High-bit rate data transmission
4. Active device terminations
5. Testing instruments
6. Optical fiber communication networks
7. PON Networks
8. Optical Signal Distribution

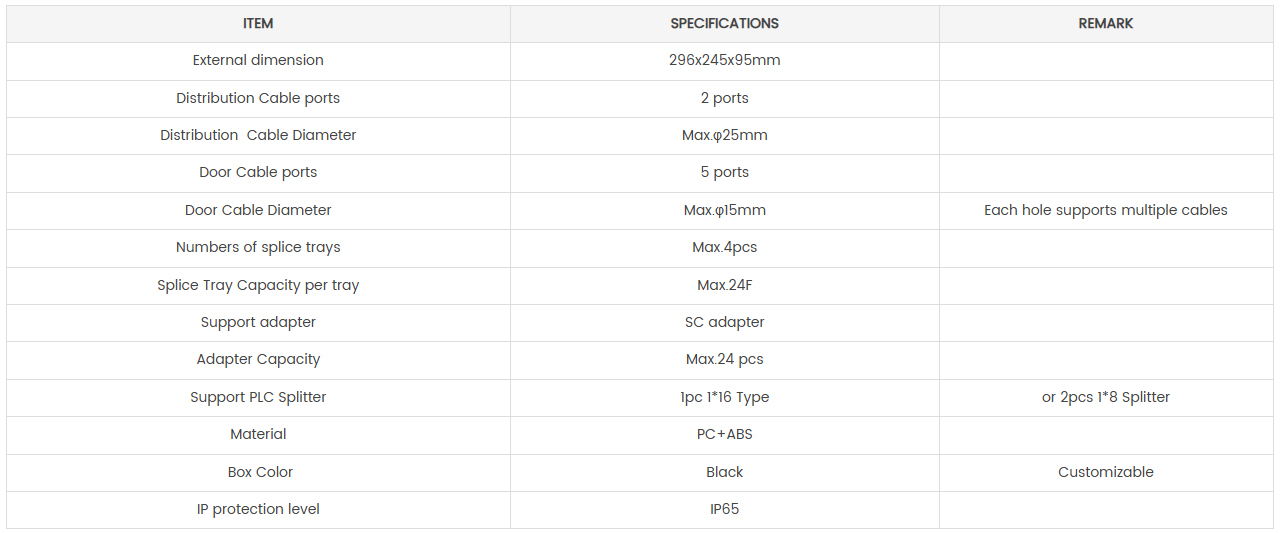

Outdoor Fiber Optic Terminal Box 24 Core In The FTTX Network System Configuration:
