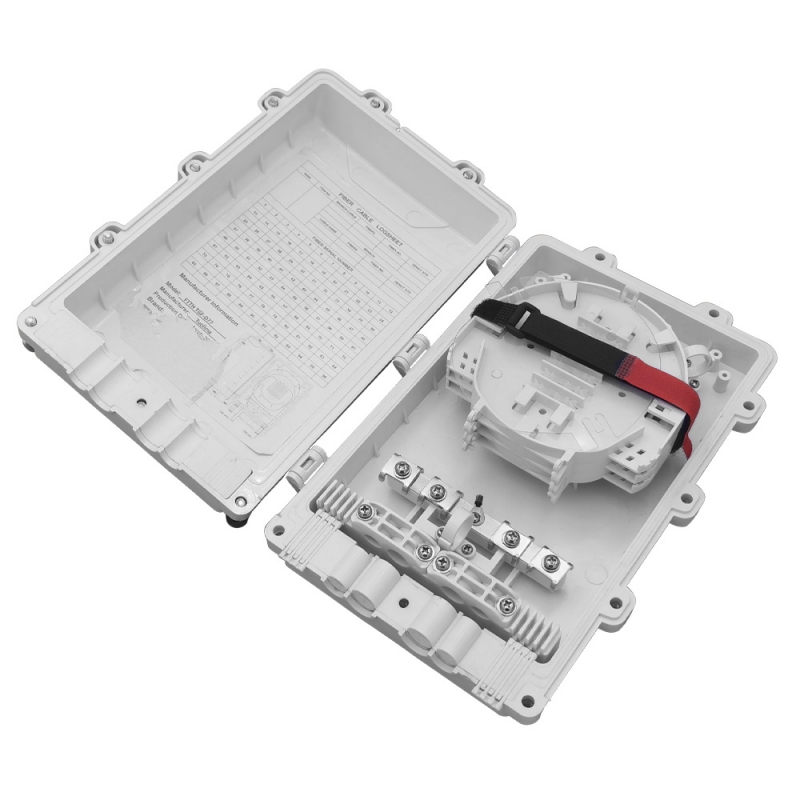

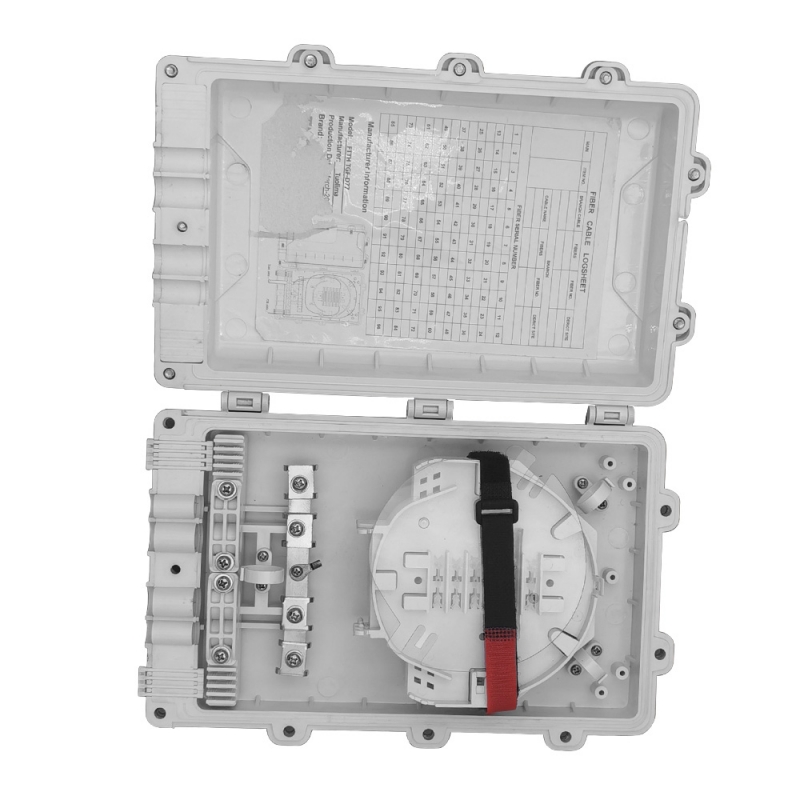

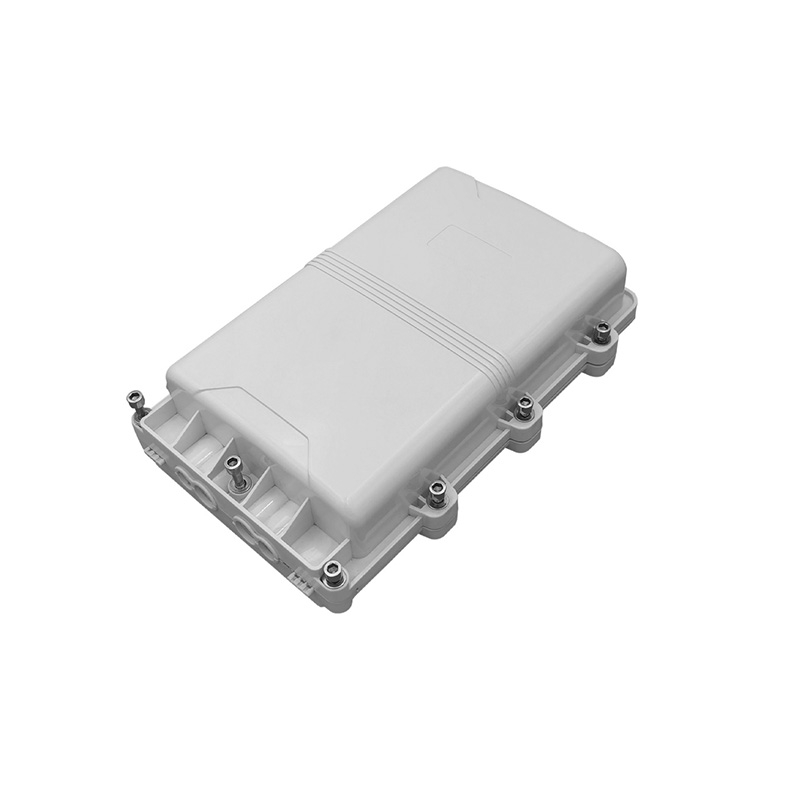

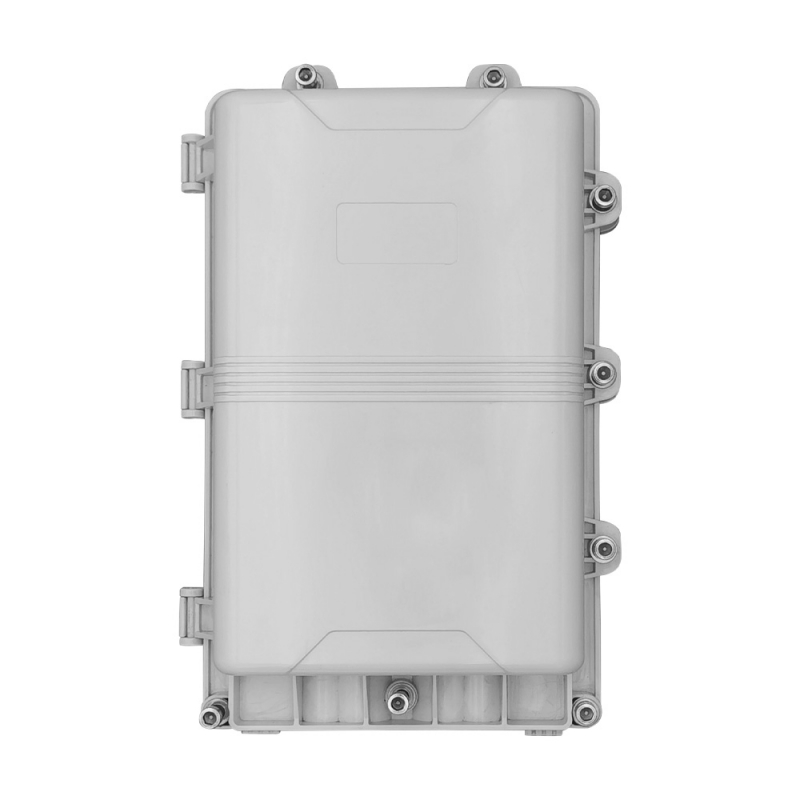

White/Black/Light Gray Color 48 cores Fiber Optical Distribution Box for FTTx Networks
The Fiber distribution box is able to hold up to 48 subscribers. This box is used as a termination point for the feeder cable to connect with the drop cable in the FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
White/Black/Light Gray Color 48 cores Fiber Optical Distribution Box for FTTx Networks Features:
1. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP55.
2. I am clamping for feeder and drop cables, fiber splicing, fixation, storage, distribution...etc.
3. Cable, pigtails, and patch cords run through their paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
4. The distribution panel can be flipped up, and the feeder cable can be placed in a cup-joint way, making it easy for maintenance and installation.
5. Ready for wall mount - installation kits provided. Pole mount (optional) – installation kits need to be ordered.
6. Lock provided for extra security.
7. The cabinet can be installed by way of a wall-mounted
8. Protection Level: IP65.
White/Black/Light Gray Color 48 cores Fiber Optical Distribution Box for FTTx Networks Application :
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broadband High-bit rate data transmission
4. Active device terminations
5. Testing instruments
6. Optical fiber communication networks
7. PON Networks
8. Optical Signal Distribution

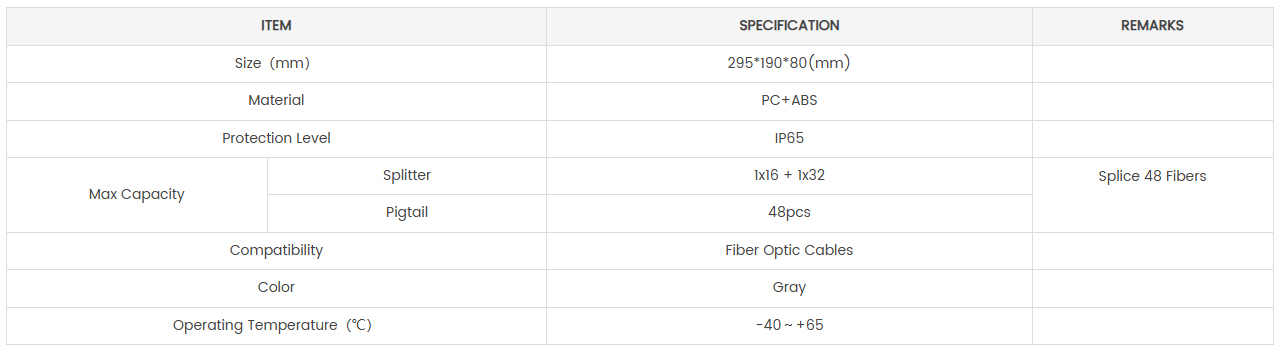

White/Black/Light Gray Color 48 cores Fiber Optical Distribution Box for FTTx Networks Configuration:
