Fiber Optic Distribution Box

1 Port Wall Outlet Fiber Termination Box with Invisible Pigtails and SC Adapter

Model Name: Fiber Rosette Box(CFO-FDB-24A)
Application: FTTX Access And Tele-communications Network
Material: ABS
Box Color: White
Capacity: 1 cores
Adapter: SC Simplex
Wire pressing method: direct plug-in
Installation: Panel type
  • Description
  • Make an inquiry
    1 Port Wall Outlet Fiber Termination Box with Invisible Pigtails and SC Adapter

    This type of fiber rosette box can hold 1 subscriber. It is used as a termination point for the drop cable to connect with the patch cable in the FTTH indoor Application. It integrates fiber splicing, termination, storage, and cable connection in one solid protection box.



    1 Port Wall Outlet Fiber Termination Box with Invisible Pigtails and SC Adapter Features:

    1.   Dust-proof design with IP-45 Protection level.
    2.   Manage fibers in a reasonable fiber radius condition.
    3.   Suitable for the mechanical splice.
    4.   It is an embedded-type surface that is easy to install and remove.
    5.   1ports cable entrance for a patch cable.
    6.   Built-in optical cable storage unit can be rotated and can store 30M long 0.9mm optical cable.
    7.   Screw mounting or double-sided tape mounting.

    1 Port Wall Outlet Fiber Termination Box with Invisible Pigtails and SC Adapter Applications :

    1.   Smart Broadband
    2.   Fiber to the home
    3.   Broadband cable TV
    4.   Local area network

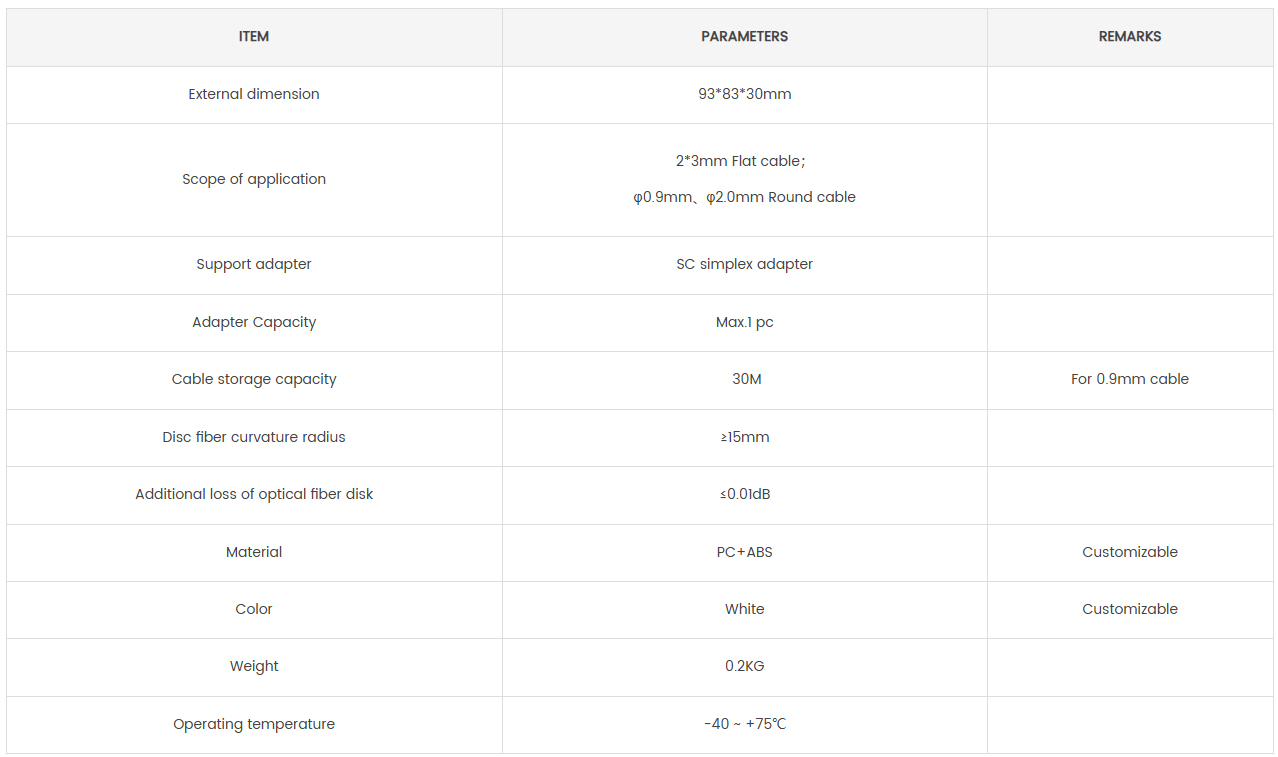

    1 Port Wall Outlet Fiber Termination Box with Invisible Pigtails and SC Adapter Specifications:
