2-4 Core Mini ABS Indoor Fiber optic terminal box With SC Adapter Ftth Fiber Access Box

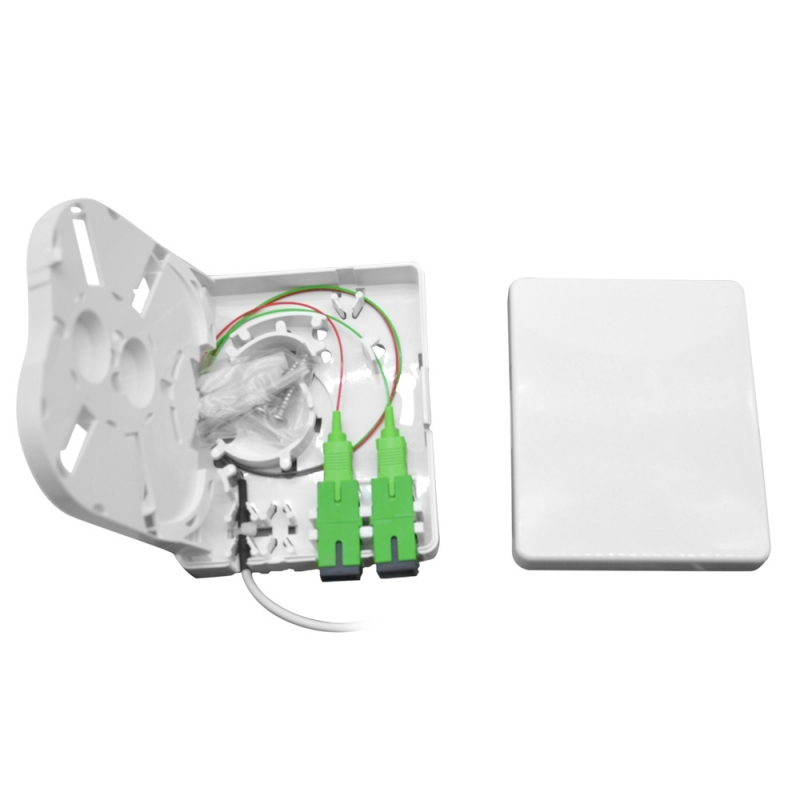

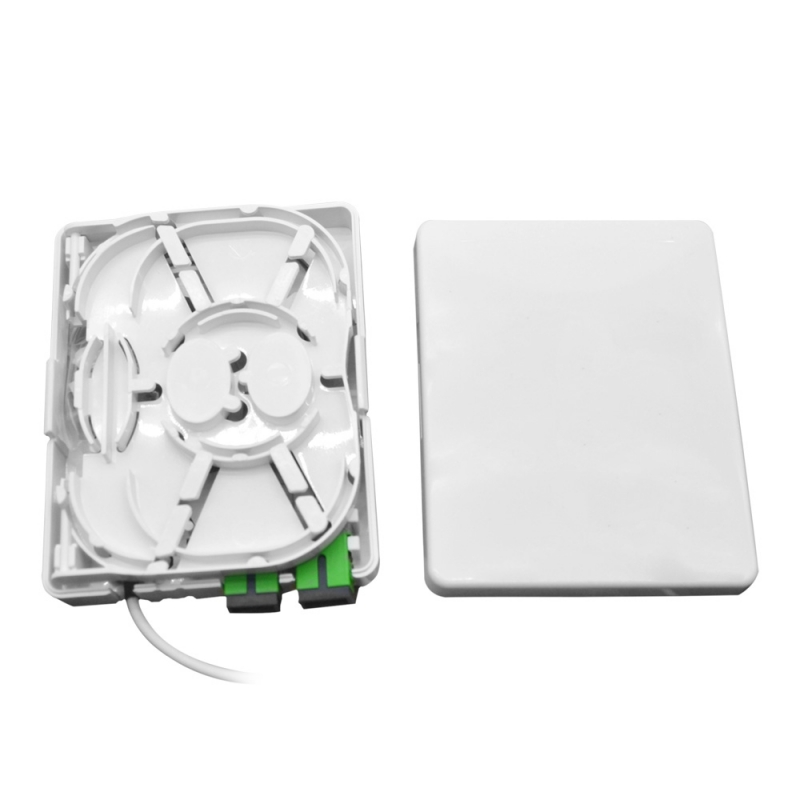

This Wall Outlet Termination Box is used for splicing and termination between indoor fiber optic cable and pigtails with SC or LC duplex type. It is used for wall-mounted or desktop applications. Made of plastic, it is easy to install in the home or office. The outlets are designed to fit SC fiber optic cable patch cord adapters used in the work location subsystem.
2 Fiber SC Wall Outlet Fiber Termination Box with Pigtails and Adapters Features:
1. The wall outlet termination box can be realized with outdoor optical cable fixing, leather line optical cable fixing, adapter fixing, and fast field connector fixing. The pull-off force is greater than 50N, fixed, and reliable.
2. The wall outlet termination box can be realized: single-core sheathed optical cable access to single-port output inside and outside the wall, indoor and outdoor dual-core sheathed optical cable access to dual-port output, outdoor optical cable access to single-port output, outdoor optical cable access to multi-pigtail output The outdoor optical cable is connected to the multi-skin line output, and is used in multiple occasions and multiple demand environments.
3. The wall outlet termination box is easy to operate and has low construction intensity.
4. The wall outlet termination box is designed with a large arc shape to ensure that the fiber optic cable placed in it will not be damaged when subjected to external forces, affecting the quality of communication.
5. For home or work area (FTTD) fiber interface.
6. Connecting type: SC, LC with common model adapters.
7. Using high-quality ABS material, has a certain fire resistance.
8. With a dustproof device to prevent dust from entering.
9. Scope of application 3.1 × 2.0mm drop cable or patch cable
2 Fiber SC Wall Outlet Fiber Termination Box with Pigtails and Adapters Applications :
1. Smart Broadband
2. Fiber to the home
3. Broadband cable TV
4. Local area network

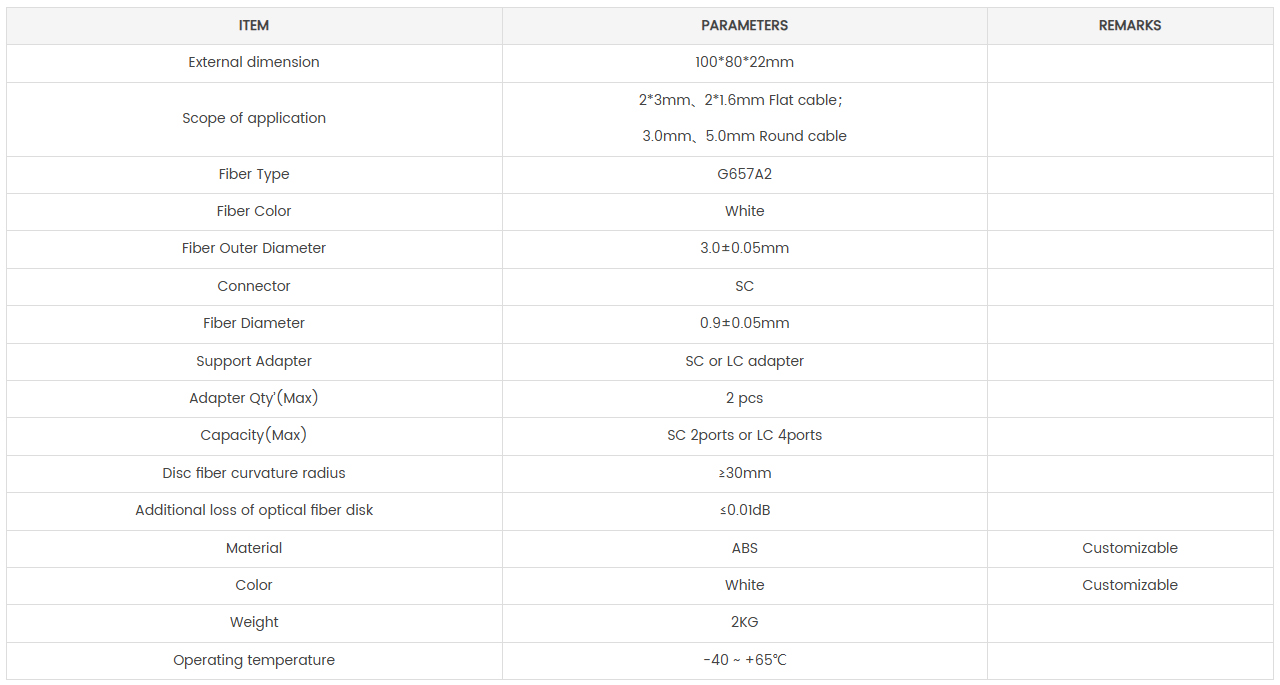

2 Fiber SC Wall Outlet Fiber Termination Box with Pigtails and Adapters Specifications:
