Fiber Optic Fast Connector

Communication Equipment Quick Assembly Connector For 0.9mm Indoor Cable

Model Name: CFO-SC-L4201 APC/UPC
Connector Length: 42mm
Connector Structure: Pre-embedded Type
Application For: Drop Cable, Indoor Cable, Outdoor Cable
Cable Type: Φ0.9mm
Fiber Mode: Single & Multi-Mode
Return Loss: APC≥ 50dB UPC≥ 45dB
  • Description
  • Make an inquiry
    Communication Equipment Quick Assembly Connector For 0.9mm Indoor Cable
    The invention relates to a fused optical fiber connector, which connects the product with the optical cable through the optical fiber welding machine, has the advantages of simple operation and stable product performance, and is widely used in optical fiber to the home.

    Communication Equipment Quick Assembly Connector For 0.9mm Indoor Cable Features:
    1.   Low insertion loss and high return loss.
    2.   Excellent end-face geometry parameter.
    3.   Easy to operate, high reliability.

    Communication Equipment Quick Assembly Connector For 0.9mm Indoor Cable Application Scenarios:
    1.   FTTH、FTTR and FTTX
    2.   Image transmission Networks
    3.   Optical test instrument
    4.   Photoelectric automatic control system

    Communication Equipment Quick Assembly Connector For 0.9mm Indoor Cable Technical Specifications:

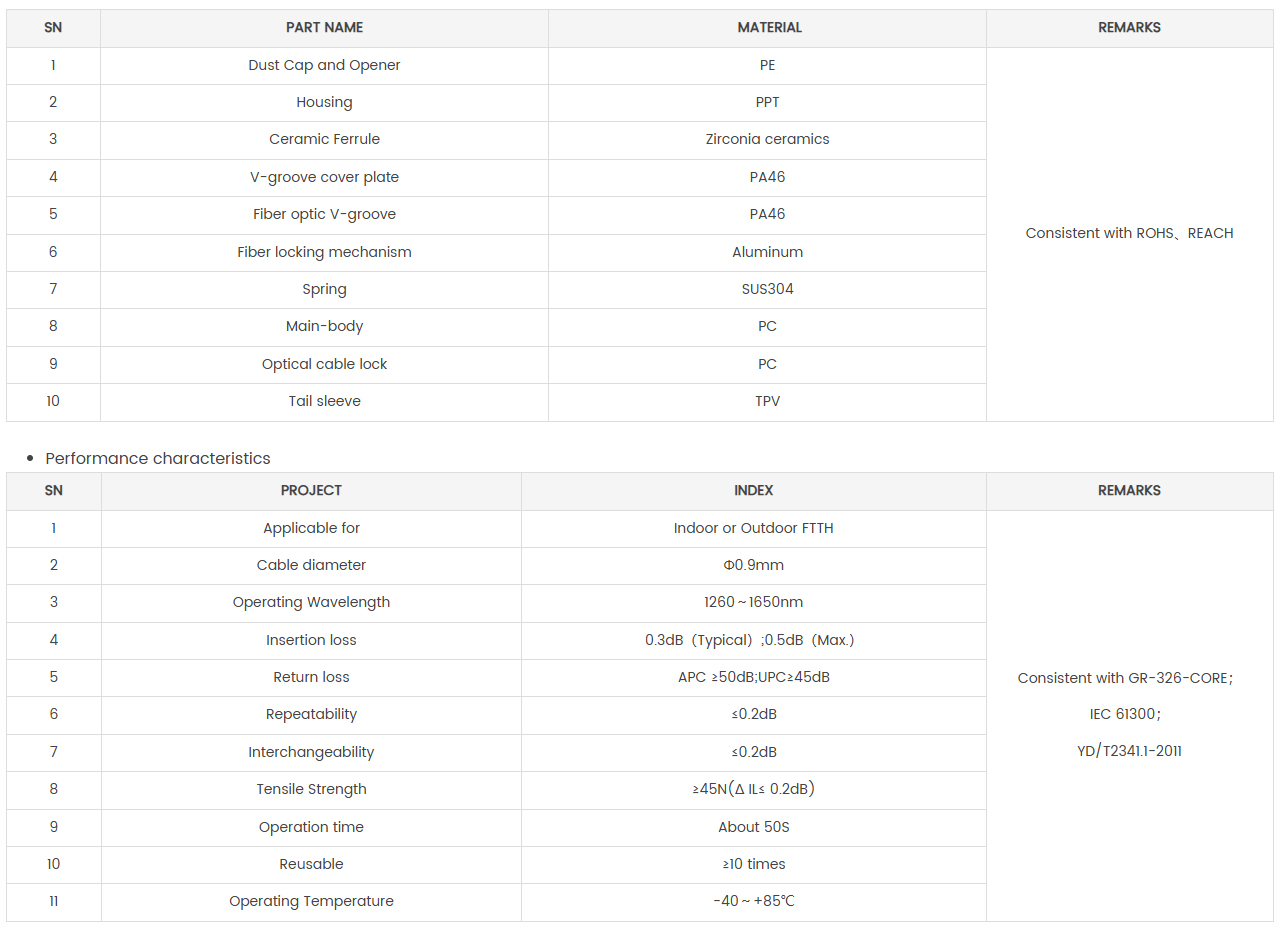

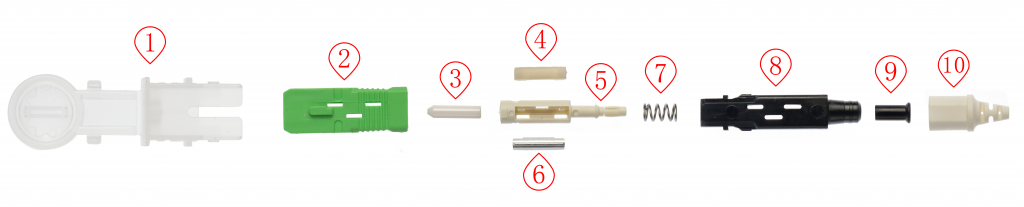

        Material
