Fiber Optic Fast Connector

ANATEL Certificated Click Tipo Optic Fiber Fast Connector For Fiber To The Home(FTTH)

Model Name: CFO-SC-L5204 APC/UPC
Connector Length: 55mm
Connector Structure: Pre-embedded Type
Application For: Drop Cable, Indoor Cable, Outdoor Cable
Cable Type: 2*1.6mm 、2*3mm Flat cable
Fiber Mode: Single & Multi-Mode
Return Loss: APC≥ 50dB UPC≥ 45dB
  • Description
  • Make an inquiry
    ANATEL Certificated Click Tipo Optic Fiber Fast Connector For Fiber To The Home(FTTH)
    They are mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is HW adapter, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple and easy to install, and no special tools are required.

    ANATEL Certificated Click Tipo Optic Fiber Fast Connector For Fiber To The Home(FTTH) Features:
    1.   Low insertion loss and high return loss.
    2.   Excellent end-face geometry parameter.
    3.   Easy to operate, high reliability.

    ANATEL Certificated Click Tipo Optic Fiber Fast Connector For Fiber To The Home(FTTH) Application Scenarios:
    1.   FTTH、FTTR and FTTX
    2.   Image transmission Networks
    3.   Optical test instrument
    4.   Photoelectric automatic control system

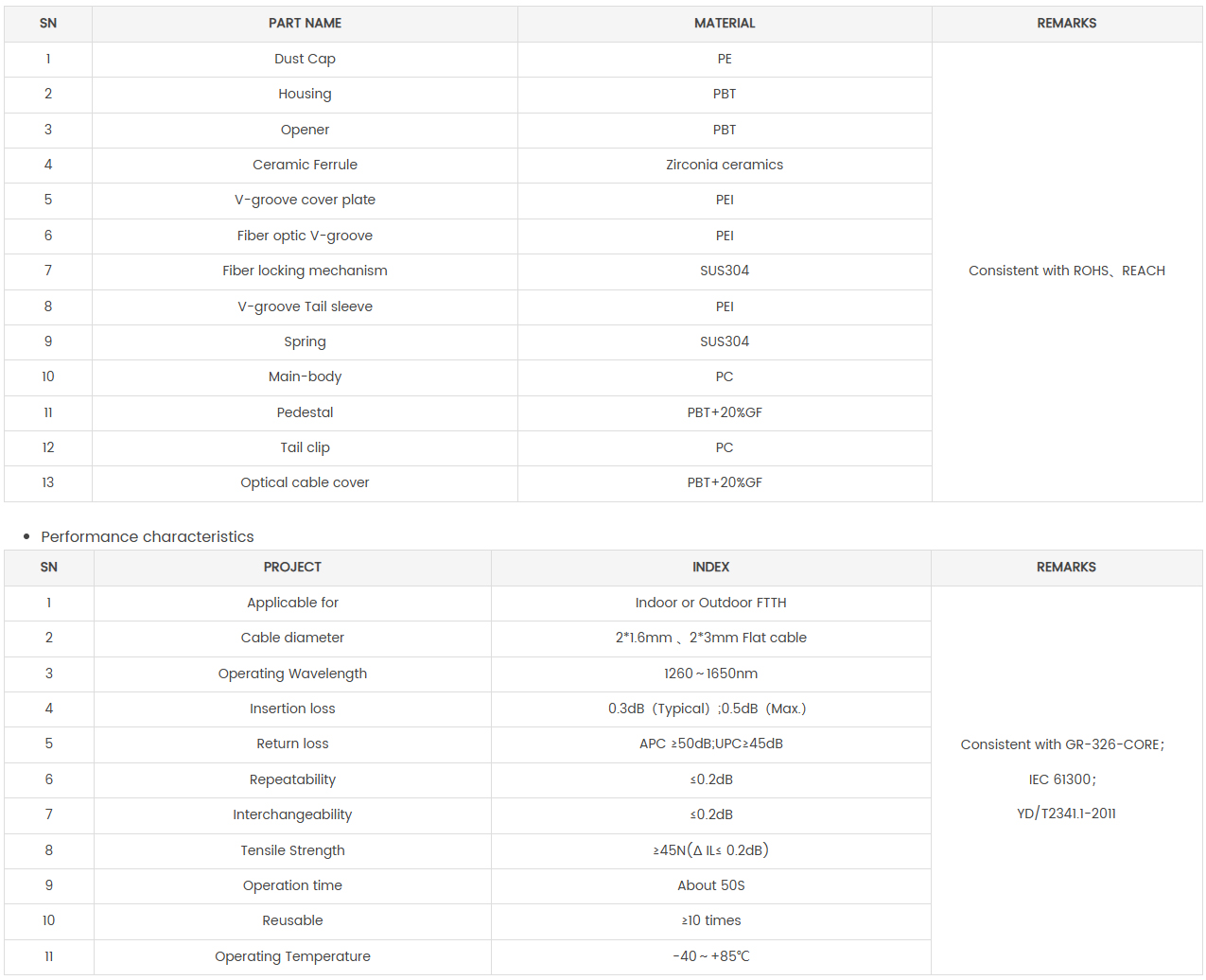

    ANATEL Certificated Click Tipo Optic Fiber Fast Connector For Fiber To The Home(FTTH) Technical Specifications:

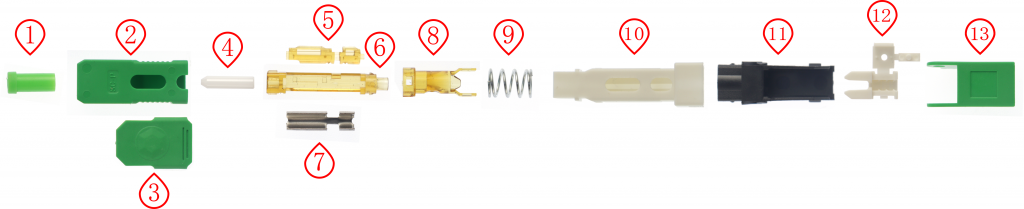

    Material
