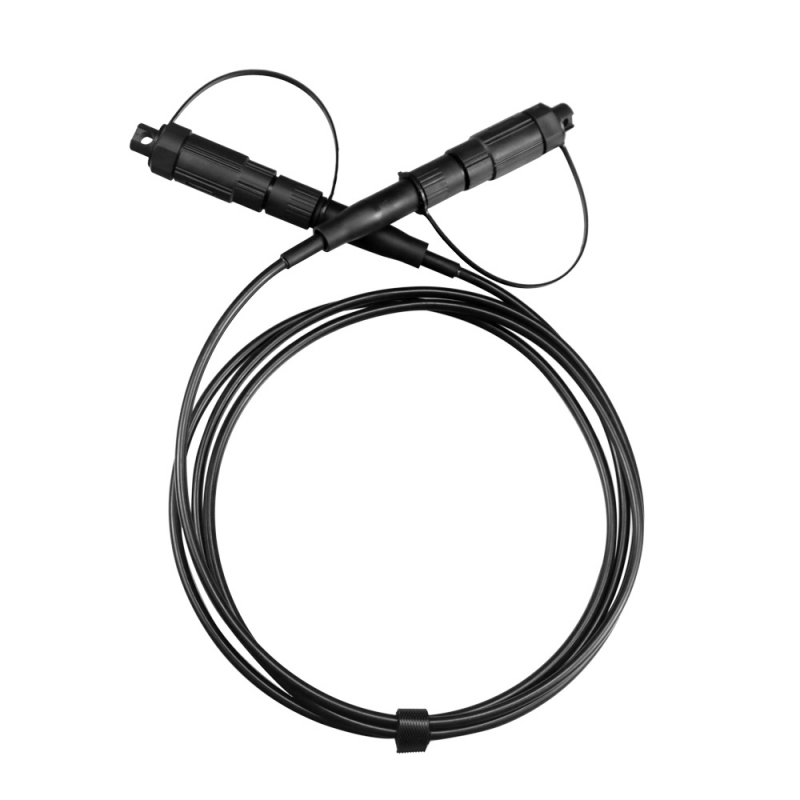

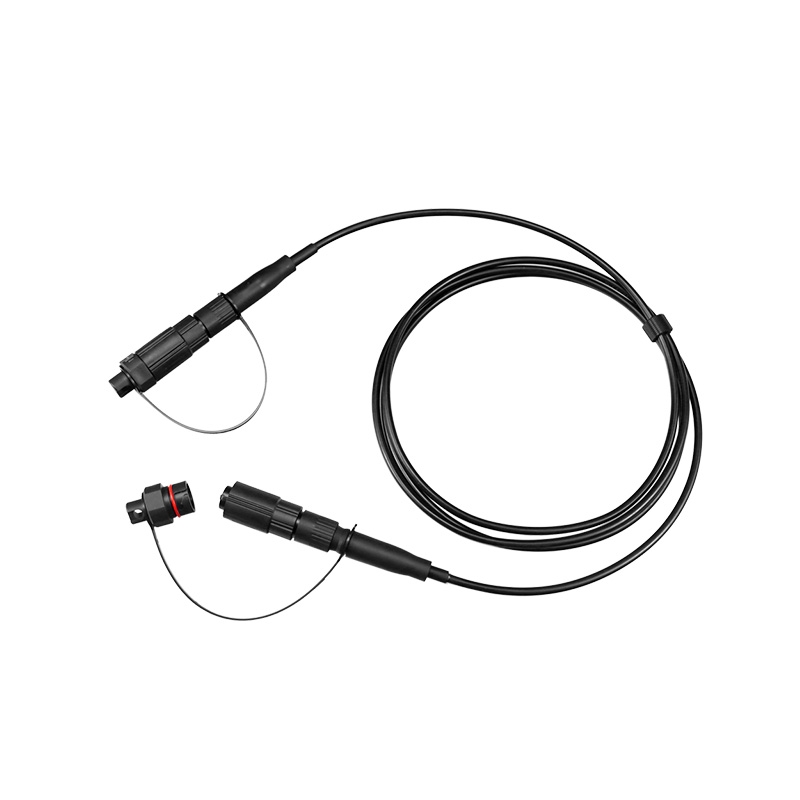

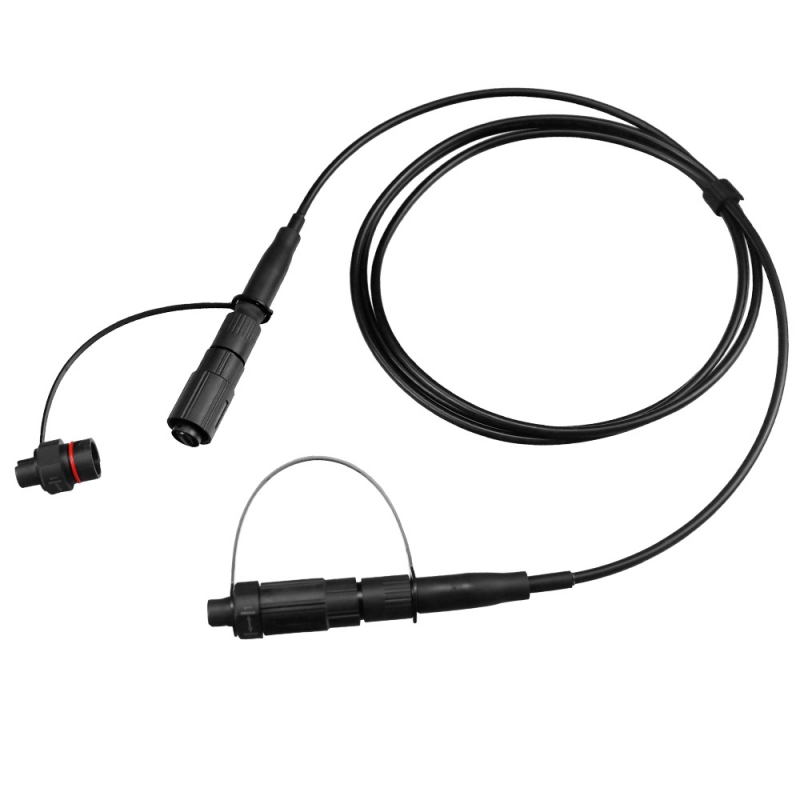

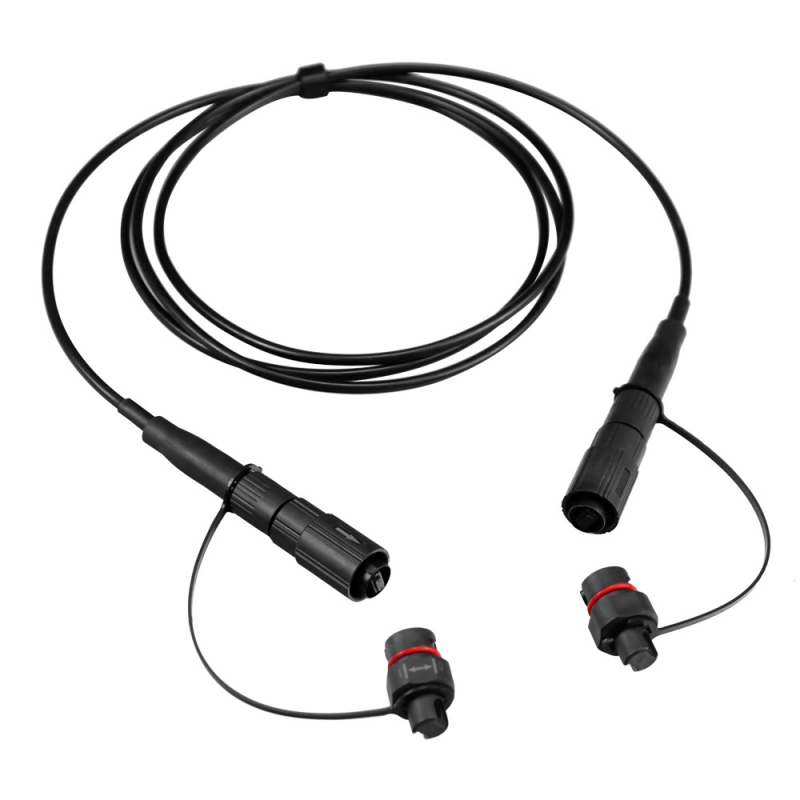

5.0mm G657A2 Round Cable with Mini SC Waterproof MPO Connector for FTTH
They are mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is HW adapter, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple and easy to install, and no special tools are required.

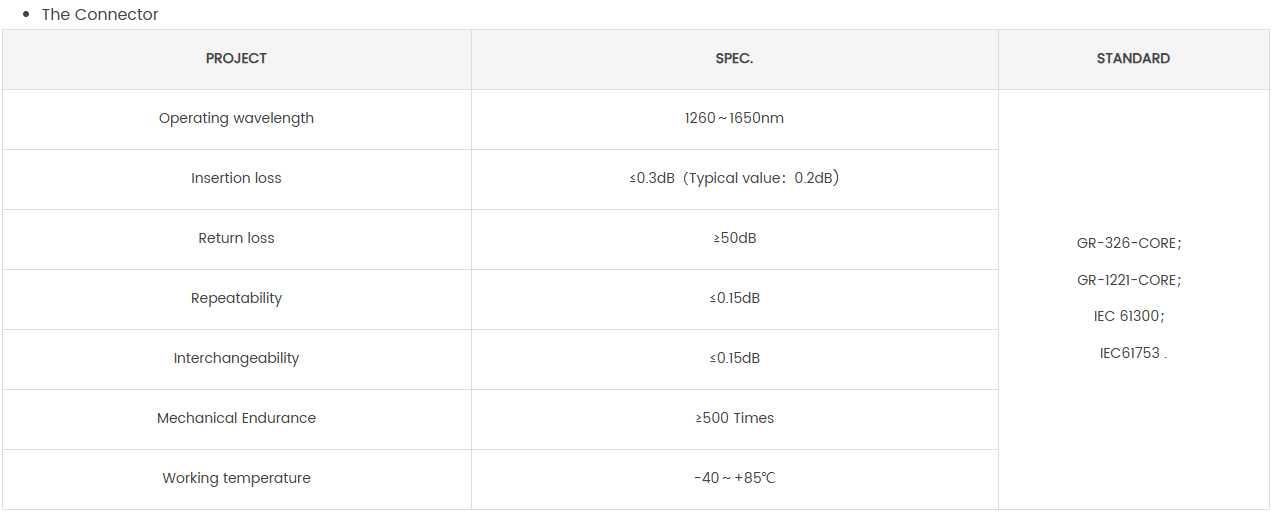

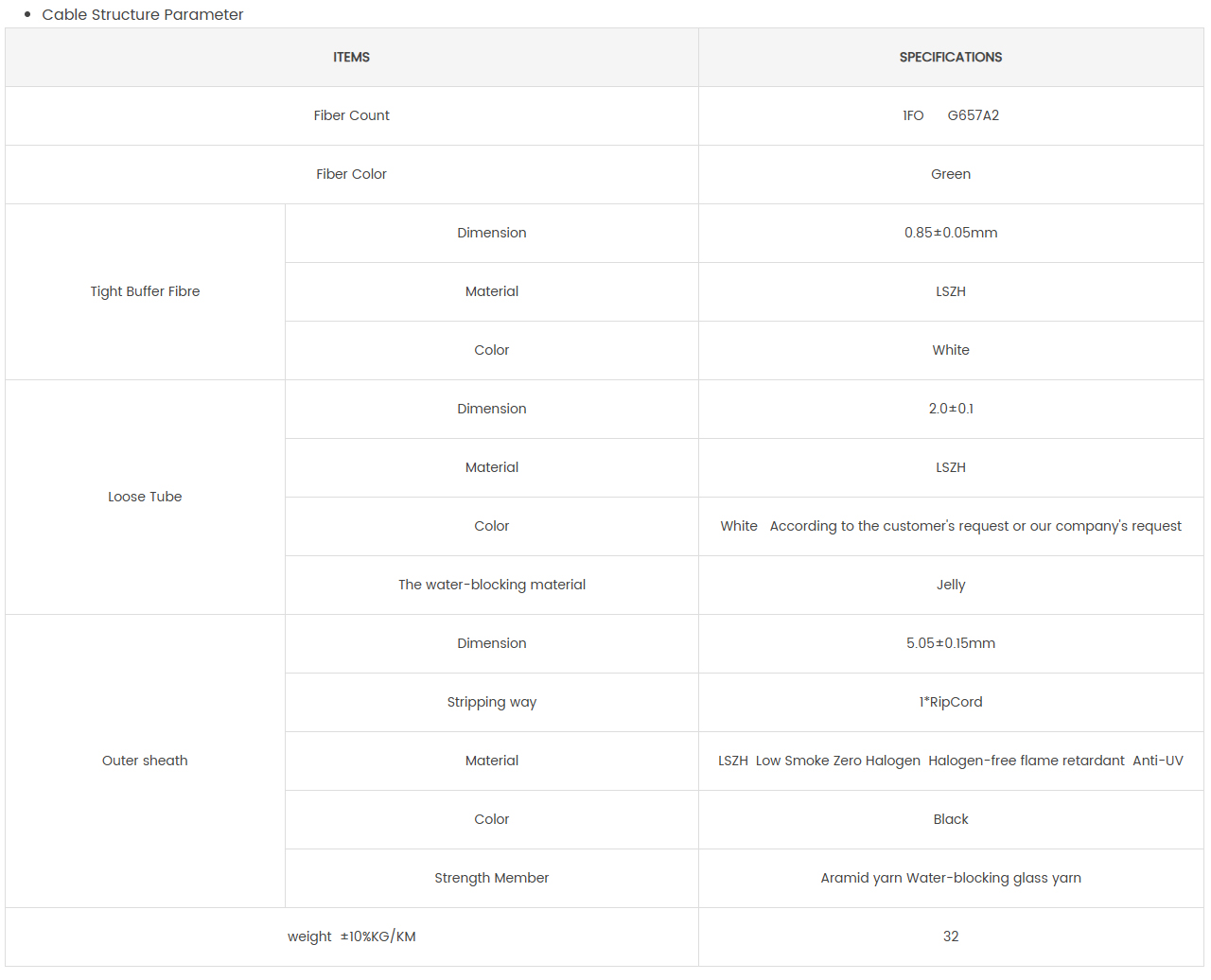

5.0mm G657A2 Round Cable with Mini SC Waterproof MPO Connector for FTTH Specification:
5.0mm G657A2 Round Cable with Mini SC Waterproof MPO Connector for FTTH Features:
1. Provides moisture and dust protection for use in harsh industrial environments.
2. IP68 protection, salt-mist proof, humidity proof, dust proof.
3. Drastically reduces field splicing with a predetermined loss at each waterproof tether access point. Reduce installation time by as much as 50 percent per network access point.
4. 100% optically tested to ensure quality performance assemblies. "Available in single mode and multimode styles to work with any common fiber type.
5. A broad temperature range (-40 to +70 °C) is ideal for indoor or outdoor applications.
6. The spiral clamping mechanism ensures a long-term reliable connection.
7. Guide mechanism, can be inserted with one hand blind, simple and fast, connection installation.
8. Suitable for MPO/MTP application.
9. MPO connector complies with IEC-61754-7.
5.0mm G657A2 Round Cable with Mini SC Waterproof MPO Connector for FTTH Application Scenarios:
1. Optical fiber communication in a harsh outdoor environment
2. Outdoor communication equipment connection
3. Huawei SC waterproof fiber optic equipment port
4. Pull far wireless base station
5. FTTx wiring engineering
.jpg)
.jpg)
