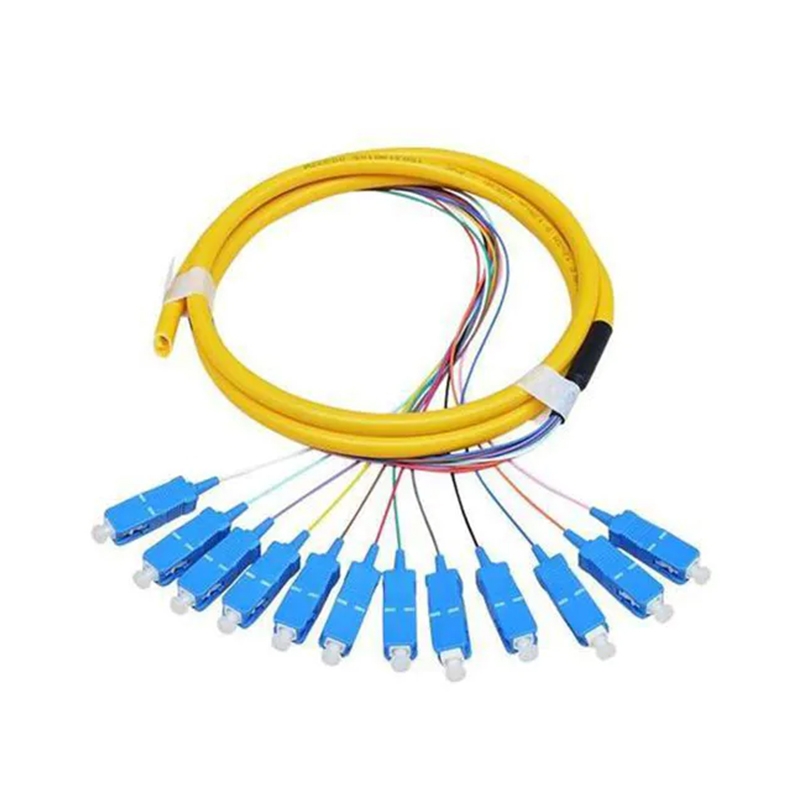

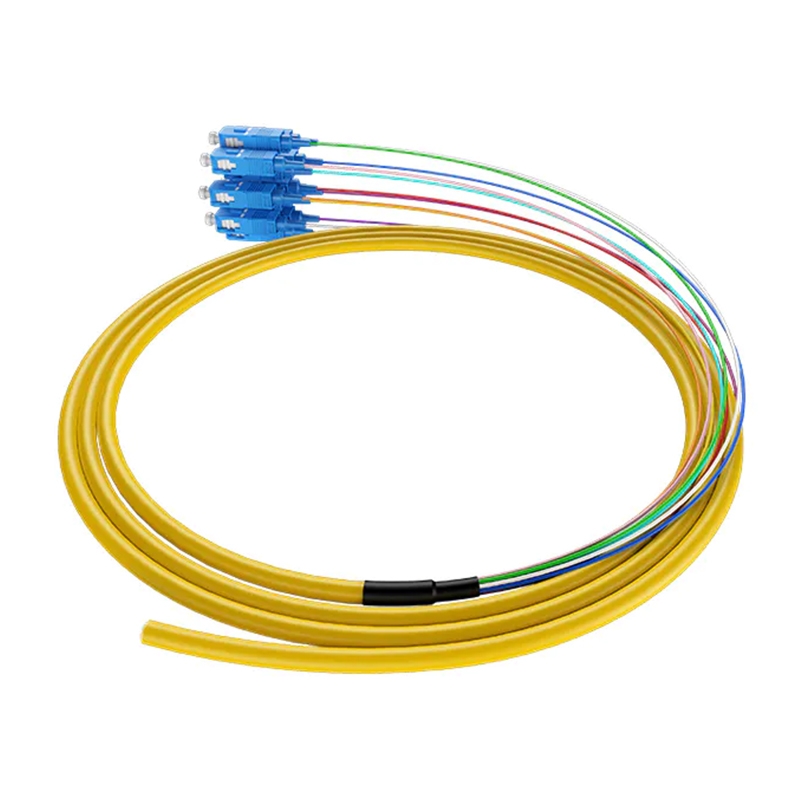

12 Cores Single Mode Fiber Patch Cord SCUPC

Bundle pigtails, also known as pigtail bundles and multi-core connectors, have only one end with a connector, and the other end is a broken end of an optical fiber. It is connected to other optical fiber cores by fusion and often appears in optical fiber terminal boxes. Used to connect optical cables and terminal equipment.

Pigtails are divided into multimode pigtails and single-mode pigtails. The multimode pigtail is orange, the wavelength is 850nm, and the transmission distance is 2.5km, which is used for short-distance interconnection. The single-mode pigtail is yellow, with two wavelengths, 1310nm, and 1550nm, and the transmission distances are 10km and 120km respectively. It consists of 12 pigtails, the colors are blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, and light blue.

MOQ： >500

Place of Origin： China

Brand： CFO

Material: PVC

Delivery Time： 5-15days

Start Port： shenzhen

Supply Ability： 500pcs/day

Description
Make an inquiry

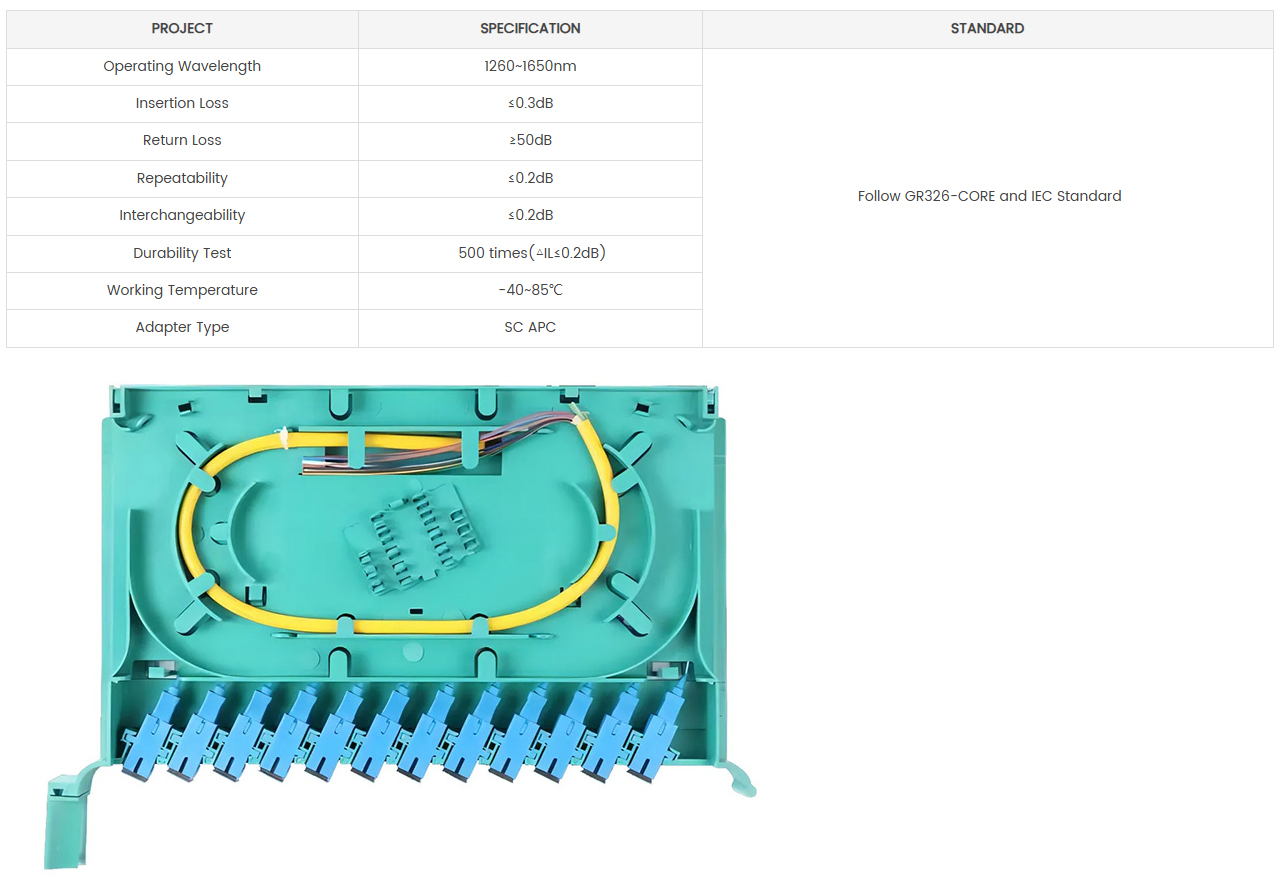

Technical Specifications

Cable Diameter: 0.9 mm( as default)、 2.0mm 、3.0mm

Product Features

1. Comply with ANSI, Bellcore, TIA/EIA, IEC, and other international standards and domestic telecommunications industry standards

2. Enables Active Connections over Fiber Transport

3. Small insertion loss, large return loss

4. Good interchangeability and repeatability

5. Special specifications are available upon the customer’s request.

Applicable Scope

1. Data Transmission Networks

2. Image transmission Networks

3. Optical test instrument

4. Photoelectric automatic control system

If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
