E2000 Fiber Pigtail with 0.9mm Cable for CATV/FTTH/LAN/WAN Networks-Fujitomo Optronics Technology Co., Ltd.

E2000 Fiber Pigtail with 0.9mm Cable for CATV/FTTH/LAN/WAN Networks

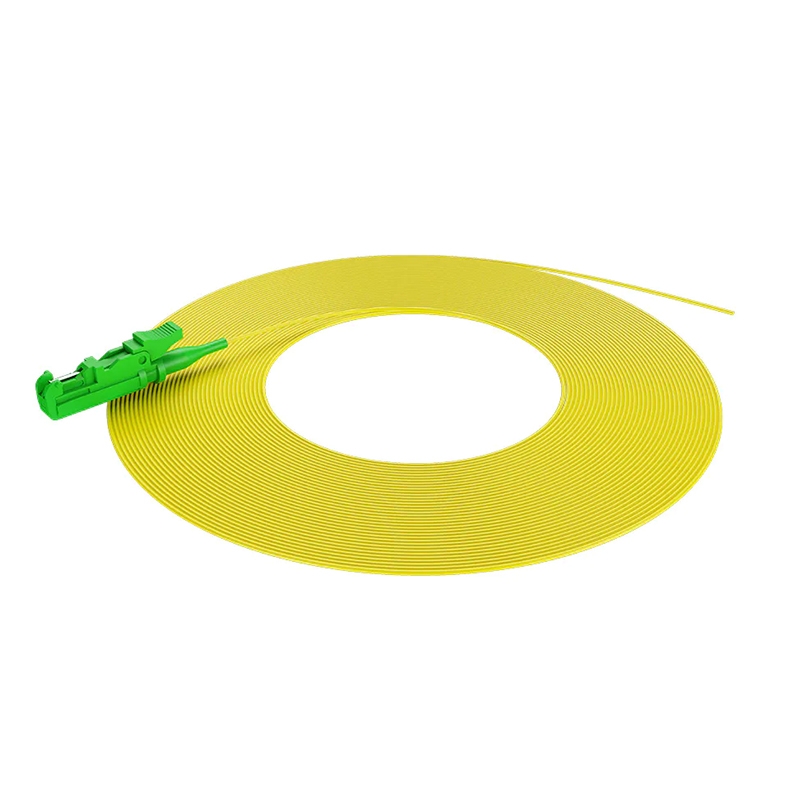

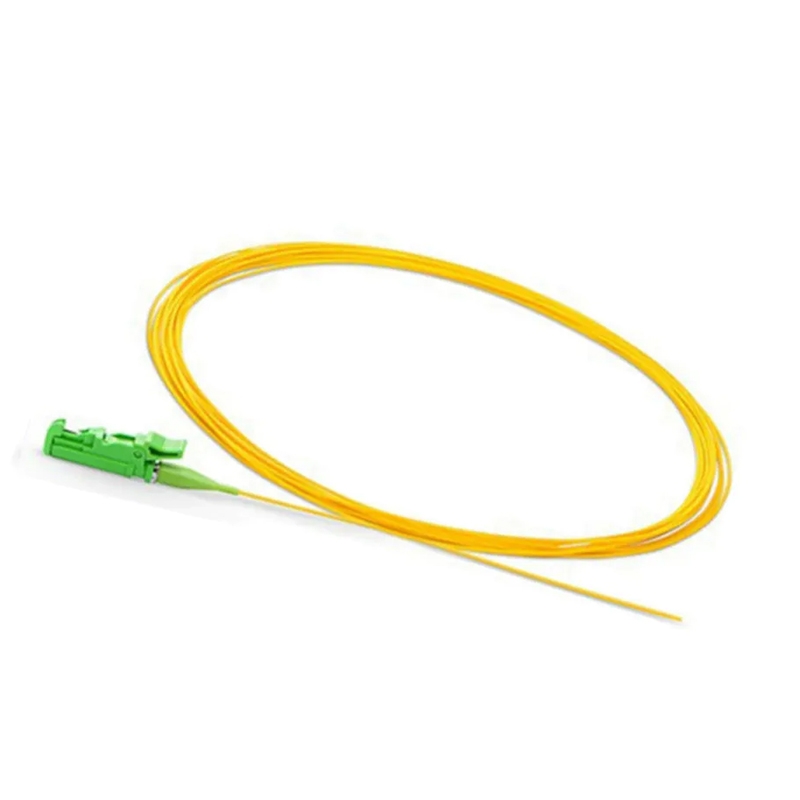

E2000 pigtail is a cable with a high-grade E2000 fiber optic connector on one end, the end unterminated. They can configure single mode and multimode fiber for the specific application. These E2000 pigtail Assemblies are available in UPC and APC polish with simplex or duplex fiber cable versions. Cable length, cable diameter, and jacket are optional. The typical type of fiber pigtail uses 0.9mm cable because it is especially suitable for high-density splice applications.

Model： CFO-GC-03-067

MOQ： >500

Place of Origin： China

Brand： CFO

Material: PVC

Delivery Time： 5-15days

Start Port： shenzhen

Supply Ability： 1000pcs/day

Description
Make an inquiry

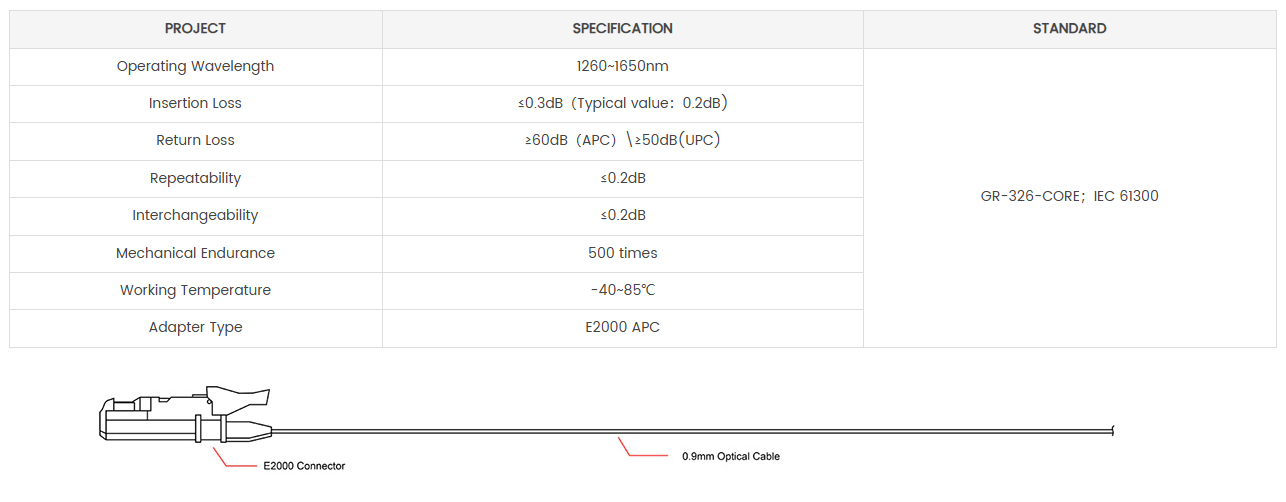

Technical Specifications

Cable Diameter: 0.9 mm( as default)、 2.0mm 、3.0mm

Product Features

1. Low insertion loss and high return loss

2. Excellent end-face geometry parameter

3. Special specifications available upon customer’s request.

Applicable Scope

1. Data Transmission Networks

2. Image transmission Networks

3. CATV

4. Optical test instrument

5. Photoelectric automatic control system

If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
