Fiber Optic Patch CordsPigtail

MPO/UPC-8LC/UPCconnectors, DPX, OM4, LSZH shell

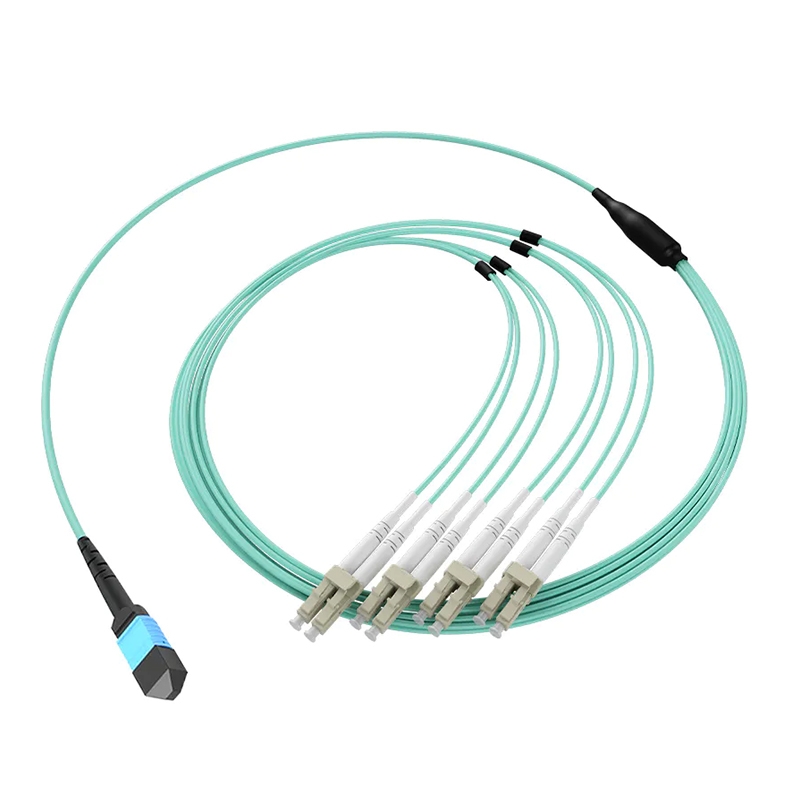

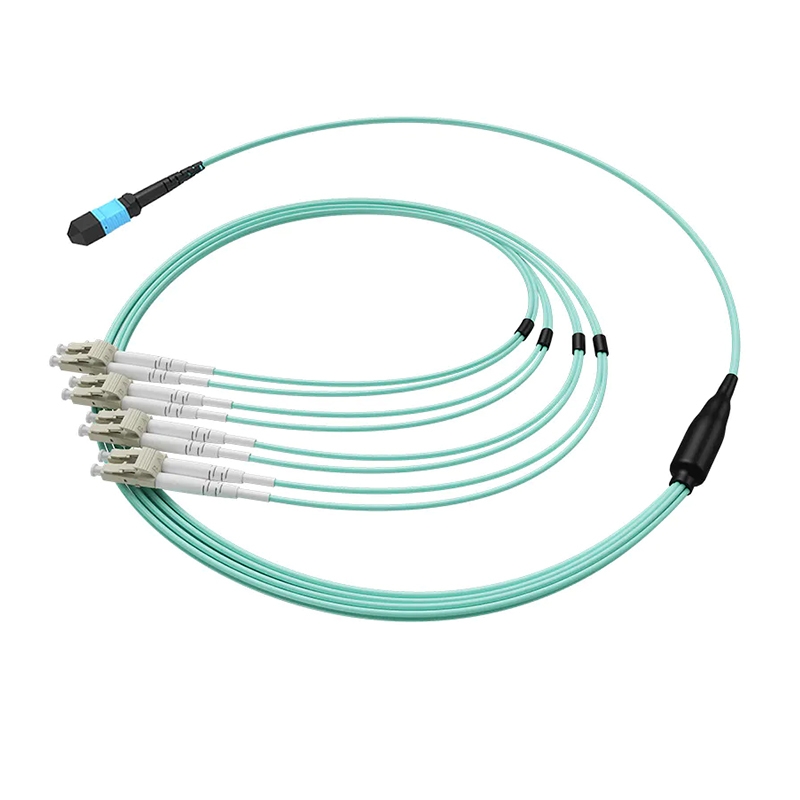

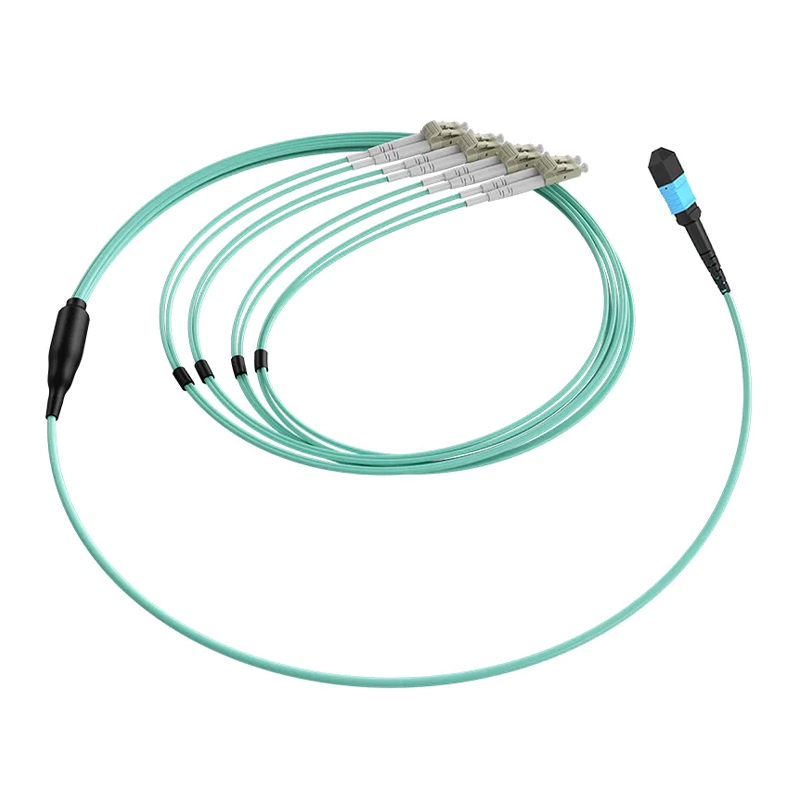

MPO-8LC-UPC-OM4 is MPO Female to 8x LC male, OM4 Multimode, 8 Fiber, Type B cable available in length from 1 meter to 50 meters. This MPO to 8x LC cable uses 50/125-micron Multimode fiber with a cable jacket diameter of 3 mm on the MPO end, and 2 mm diameter on the LC ends. The cable jacket material is available in two options – Low Smoke Zero Halogen (LSZH) or Optical Fiber Nonconductive Plenum (OFNP). The LSZH cable jacket ensures lower smoke and zero smoke characteristics, but OFNP cables have fire resistance and low smoke characteristics. OFNP is the highest fire-rating fiber cable; no other cable types can be used as substitutes. MPO to 8x LC cable supports 850nm and 1310nm wavelengths, and its attenuation at 850nm is 2.5dB/km and at 1310nm is 0.6dB/km which ensures best performance at short distances. Operating temperature is rated to -20C to +70C which suits a wide range of environments. MPO-8LC-UPC-OM4 MPO to 8x LC cable is manufactured with Type B crossover configuration to support 40G-QSFP-SR4 to 10G-SFP+ SR, or 100G-QSFP28-SR4 to 25G-SFP28-SR high speed Data Center applications.

MOQ: >500
Place of Origin: China
Brand: CFO
Material:  PE
Delivery Time: 5-15days
Start Port: shenzhen
Supply Ability: 1000pcs/day
  • Description
  • Make an inquiry

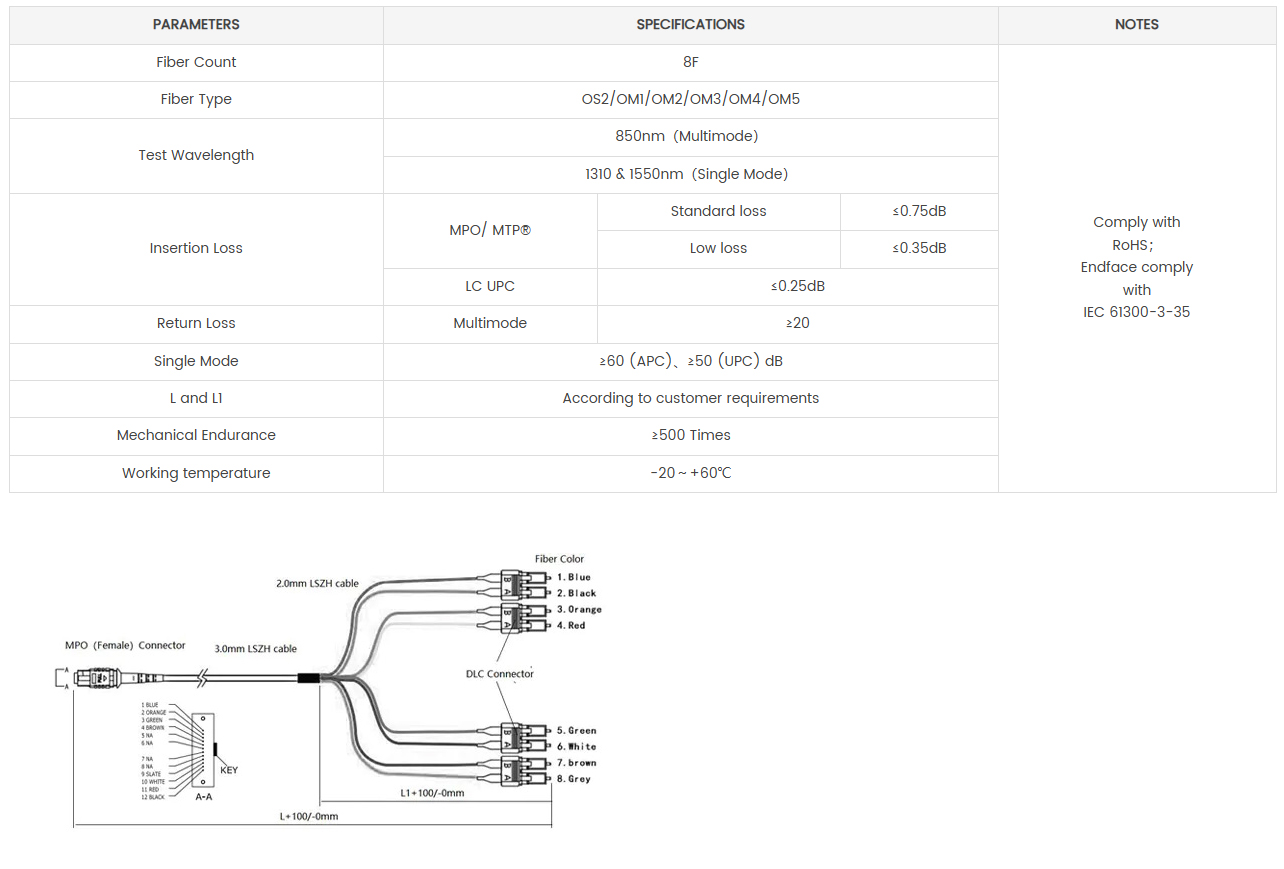

    Specification

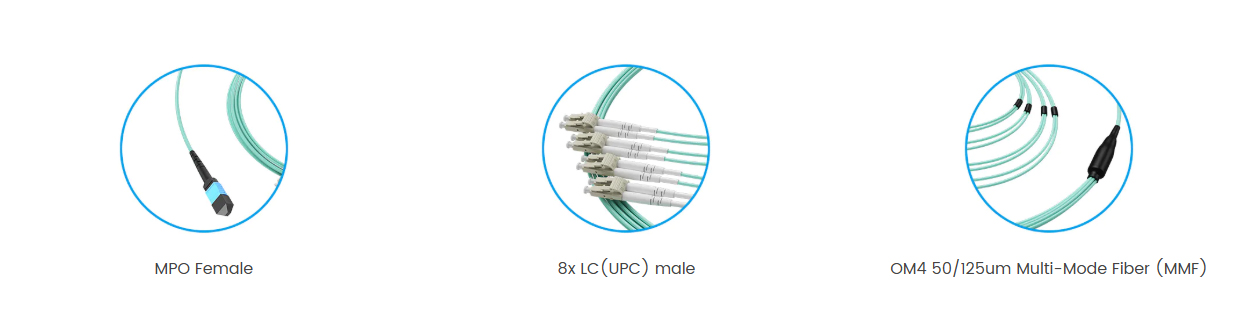

    Product Structure


    Product Features
    1.   Low insertion loss and high return loss
    2.   Excellent end face geometry parameter
    3.   Special spec.available upon customer’s request.

    Applications
    1.   Data transmission Networks
    2.   Image transmission Networks
    3.   Optical test instrument

    Production tests

    Packge Method
    Tie the line into the PE bag, the connector head position down, product labels affixed to the middle of the PE bag. The long side of the label is parallel to the bottom edge of the PE bag, finally put it into the carton.
