Fiber Optic Patch CordsPigtail

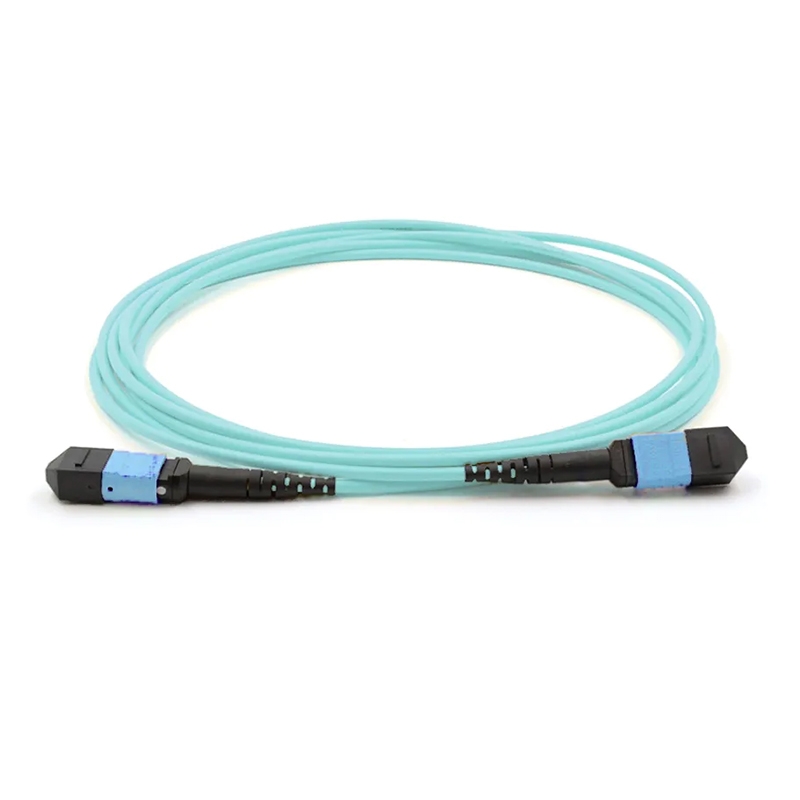

MPO/PC, MPO/PC, Multi-mode, 8 cores, MM, 3.5 mm, LSZH

These multi-fiber cables from L-com offer up to 8 times the density compared to the same size SC connector. These cables connect equipment in data centers where 10 to 40Gbps ethernet connections are required and are specifically designed to work with 40G QSFP transceivers. Made with a Low Smoke Zero Halogen (LSZH) jacket, it gives off very little smoke and does not produce toxic halogen-based gasses. Type B is a Key Up to Key Up connector configuration and refers to the connector‘s polarity. This cable comes with alignment pins. These are also fully compatible with US Conec MTP products.

MOQ: >500
Place of Origin: China
Brand: CFO
Material:  PE
Delivery Time: 5-15days
Start Port: shenzhen
Supply Ability: 1000pcs/day
  • Description
  • Make an inquiry

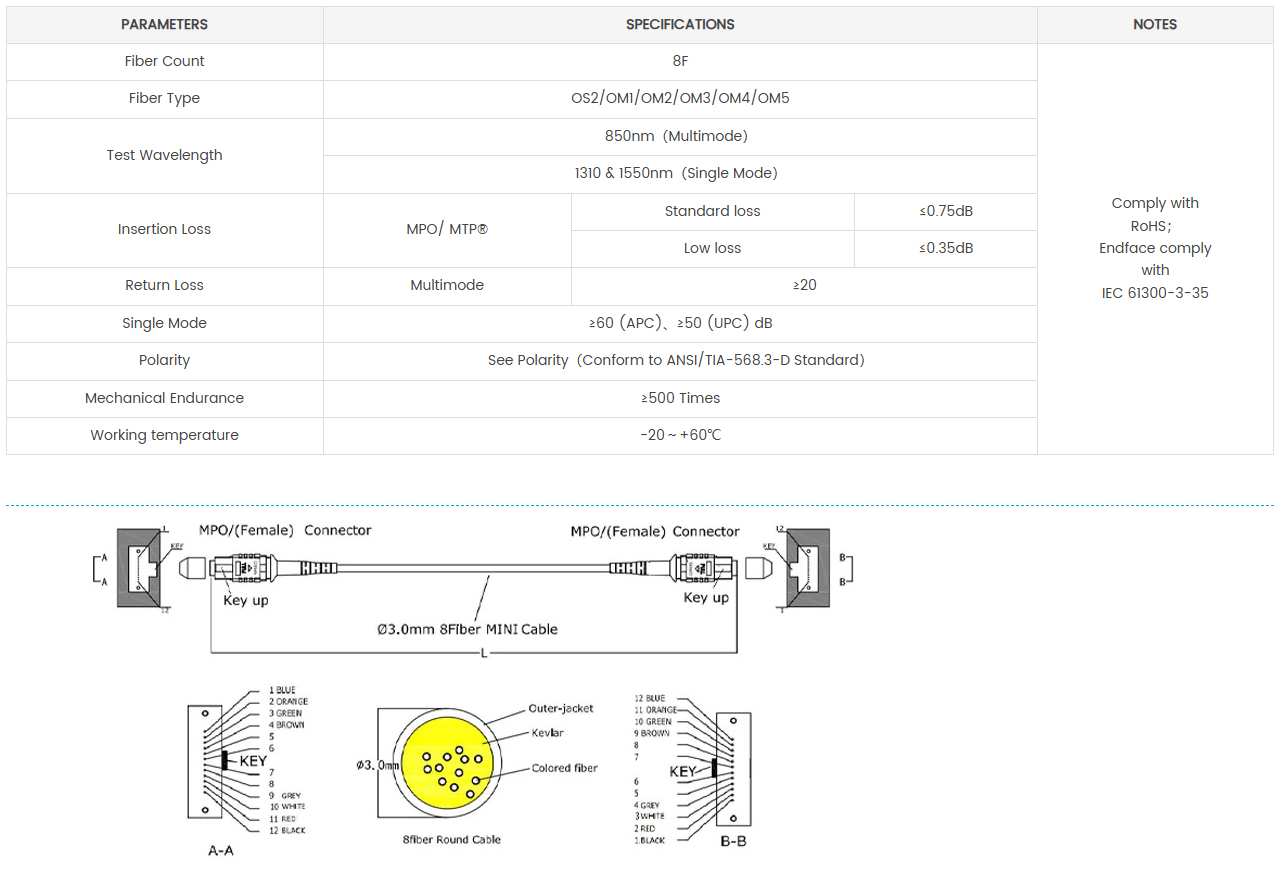

    Specification



    Product Features
    1.   Low insertion loss and high return loss
    2.   Excellent end face geometry parameter
    3.   Special spec.available upon customer’s request.

    Applications
    1.   Data transmission Networks
    2.   Image transmission Networks
    3.   Optical test instrument

    Production tests


    Packge Method
    Tie the line into the PE bag, the connector head position down, product labels affixed to the middle of the PE bag. The long side of the label is parallel to the bottom edge of the PE bag, finally put it into the carton.

    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
