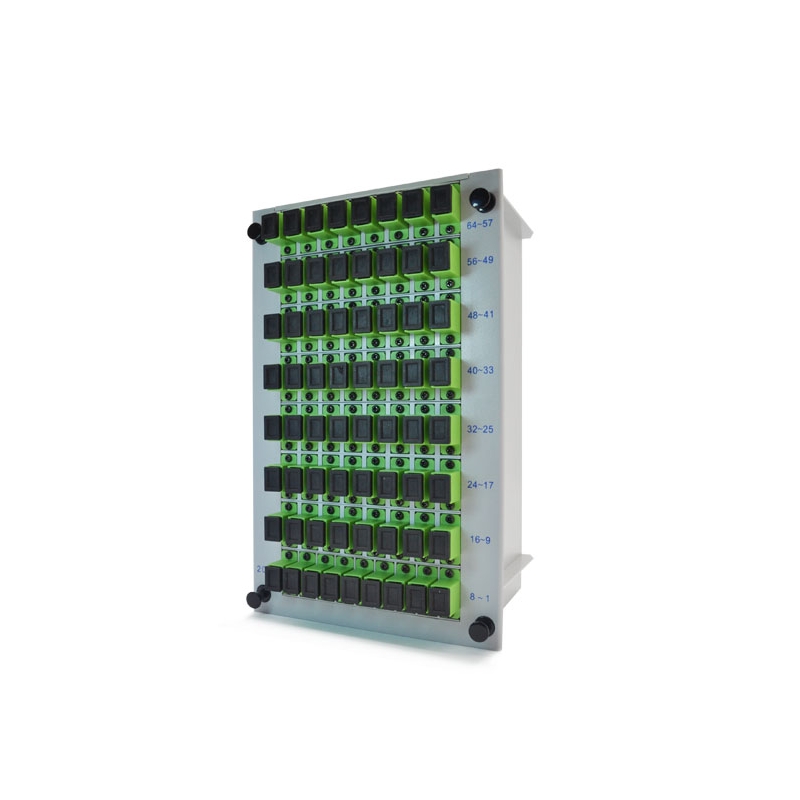

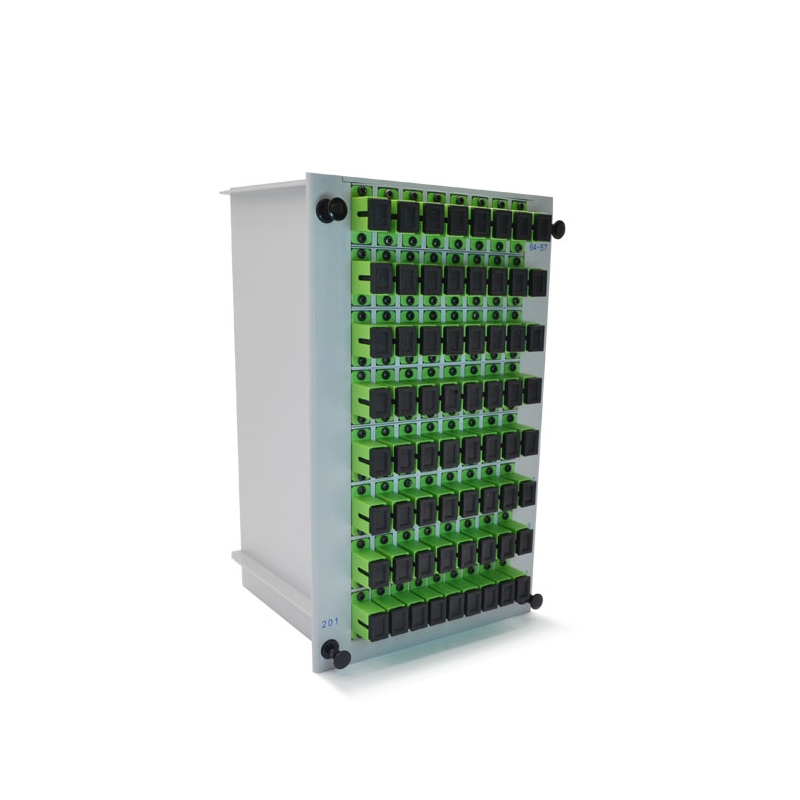

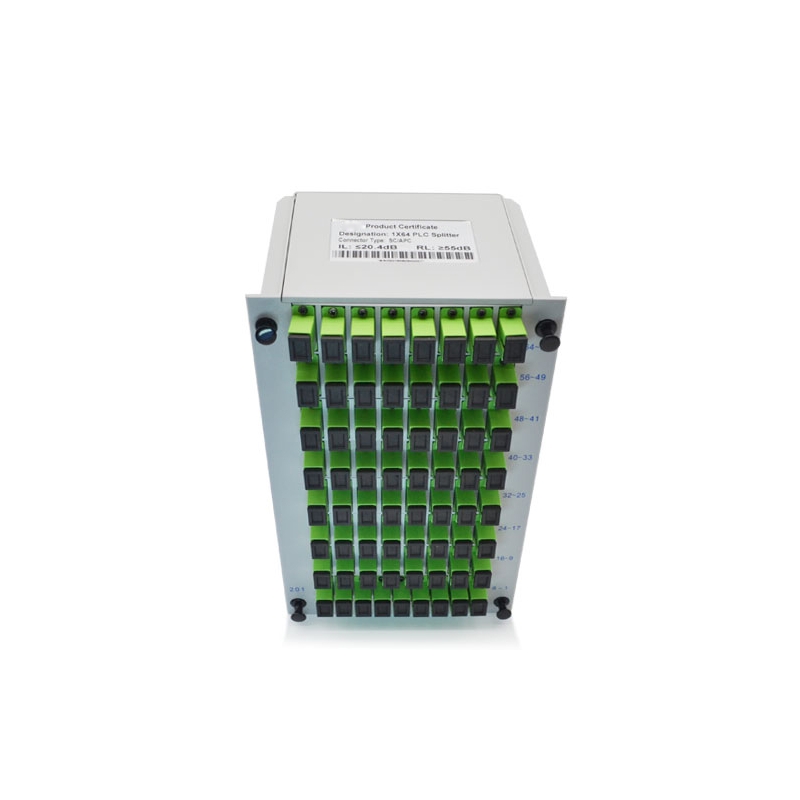

Low PDL 1650nm Fiber Optic PLC Splitter 1x64 Modular Design
Planar Lightwave Circuit Splitter (PLC Splitter) is based on planar waveguide optical power distribution products, with low insertion loss and polarization-dependent loss, small size, wide operating wavelength range, high channel uniformity, and good characteristics, generally used in passive optical networks (EPON, BPON, GPON, etc.) to realize the optical power splitting. Our PLC splitters are compliant with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD/T 1117-2001, and RoHS standards.
Low PDL 1650nm Fiber Optic PLC Splitter 1x64 Modular Design Features:
1. 1xN and 2xN splitters tailored per application
2. Low Insertion Loss and low PDL
3. Superior Uniformity
4. Wide Operation Wavelength
5. Wide Operation Temperature
6. High Stability and Reliability
Low PDL 1650nm Fiber Optic PLC Splitter 1x64 Modular Design Applications :
1. FTTX Networks
2. PON Networks
3. CATV Links
4. Data Communication
5. Optical Cable Cross Connection Cabinet
6. Optical Fiber Distribution Box/Cabinet
Low PDL 1650nm Fiber Optic PLC Splitter 1x64 Modular Design Type:
1. 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
2. 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
3. Type: Bare-fiber type, micro type, ABS box type, Cassette type
4. Adapter type of splitter: SC/UPC, SC/APC

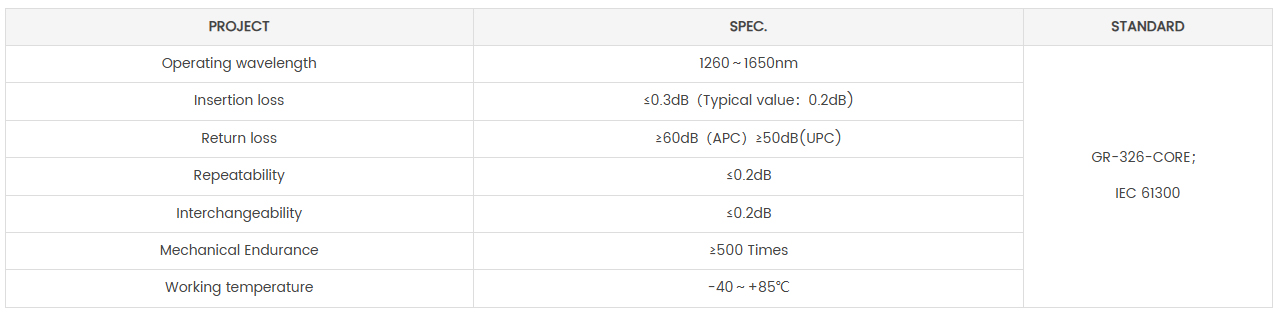

Low PDL 1650nm Fiber Optic PLC Splitter 1x64 Modular Design Specifications:
1. The Connector

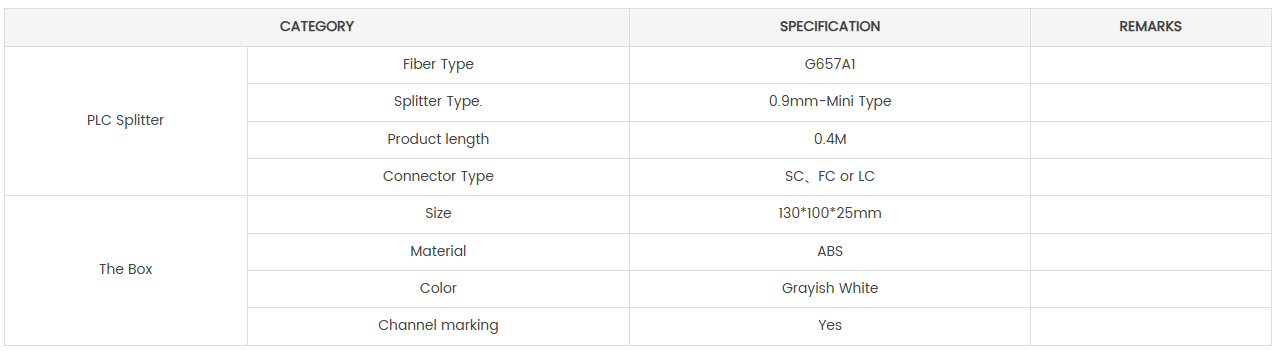

2. Composition Information
