Dual Window Passive Optical Coupler 1m FSC / APC ABS Box Type

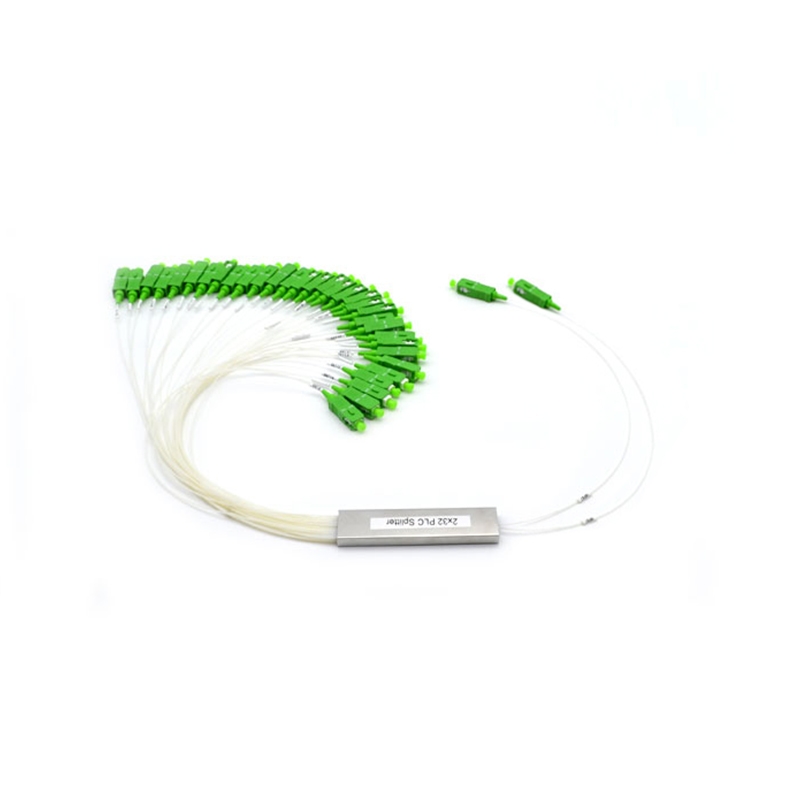

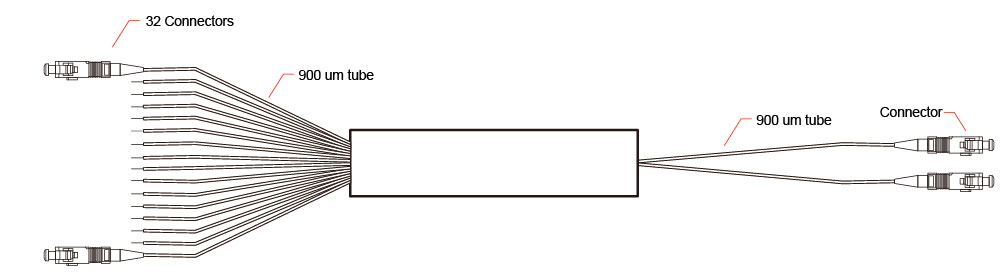

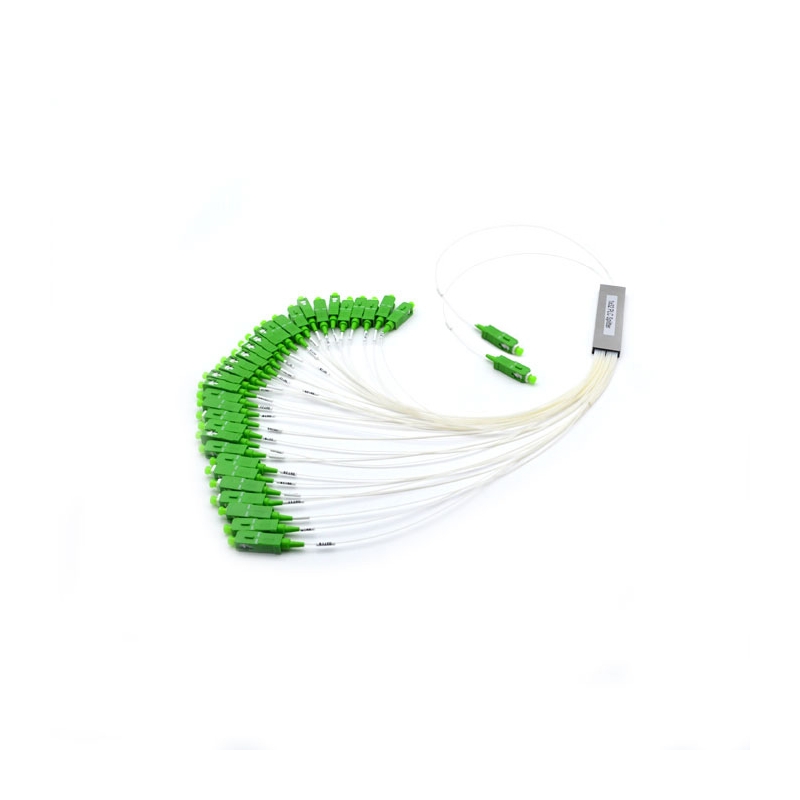

PLC (Planar Lightwave Circuit) Splitters are Single-mode splitters with an even split ratio from one input fiber to multiple output fibers. This PLC Splitter is a 2x32, with 1 input and 32 output fibers, and an even split ratio across all fibers regardless of input wavelength. PLC Splitters are available with 900µm loose tube single-mode fiber and can be terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization.
Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Dual Window Passive Optical Coupler 1m FSC / APC ABS Box Type Features:
1. High-quality PLC design features a protective metal casing around the fibers
2. The PLC splitting mechanism divides the input signal into equal parts across all output fibers
3. 900µm loose tube fiber for easy stripping, splicing, or terminating
4. Also available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Dual Window Passive Optical Coupler 1m FSC / APC ABS Box Type Applications :
1. Fiber to The Point (FTTX)
2. Fiber to The Home (FTTH)
3. Passive Optical Networks (PON)
4. Gigabit Passive Optical Networks (GPON)
5. Local Area Networks (LAN)
6. Cable Television (CATV)
7. Test Equipment
Dual Window Passive Optical Coupler 1m FSC / APC ABS Box Type Technical Specifications:

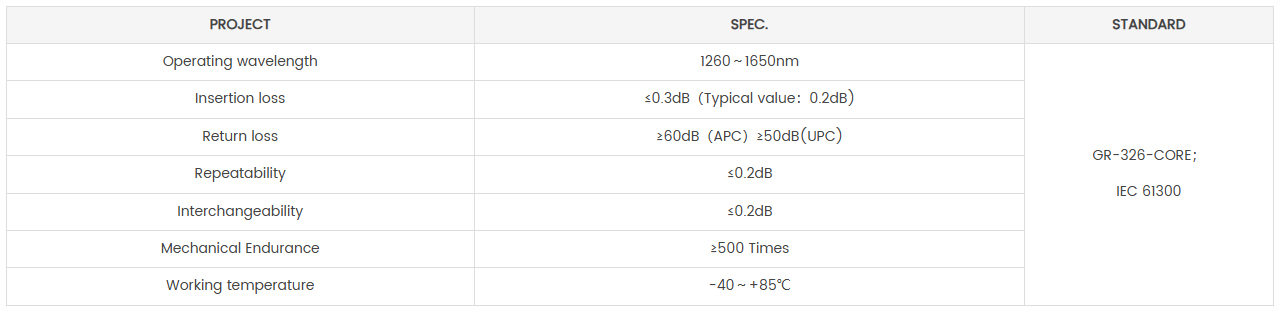

1. The Connector

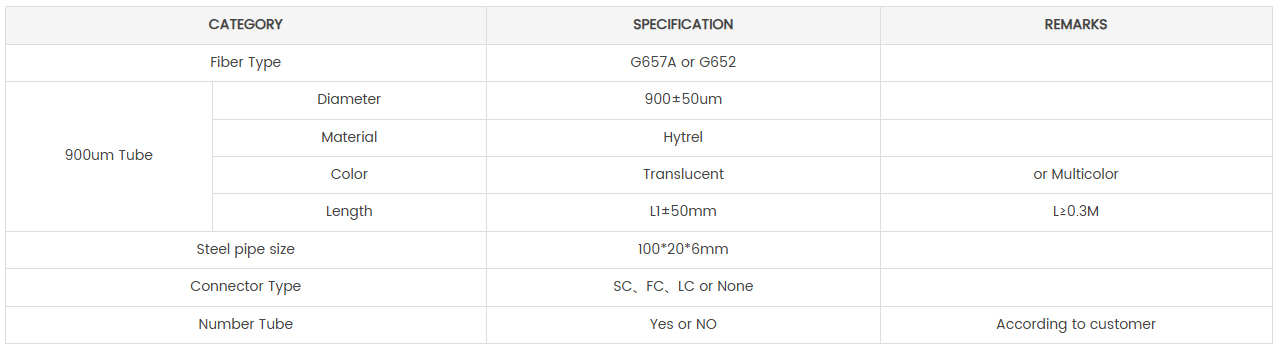

2. General requirement
