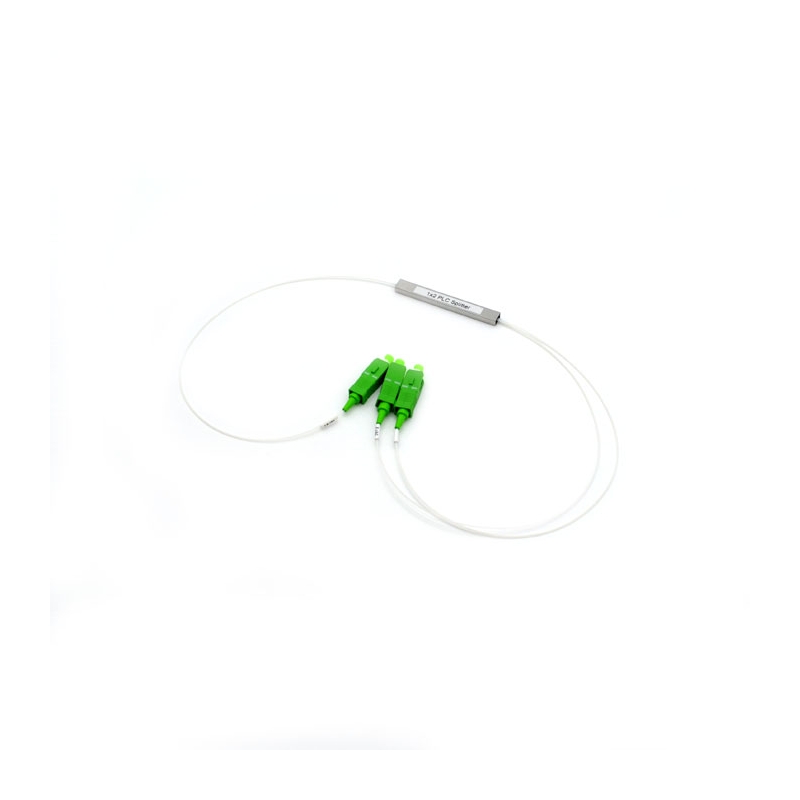

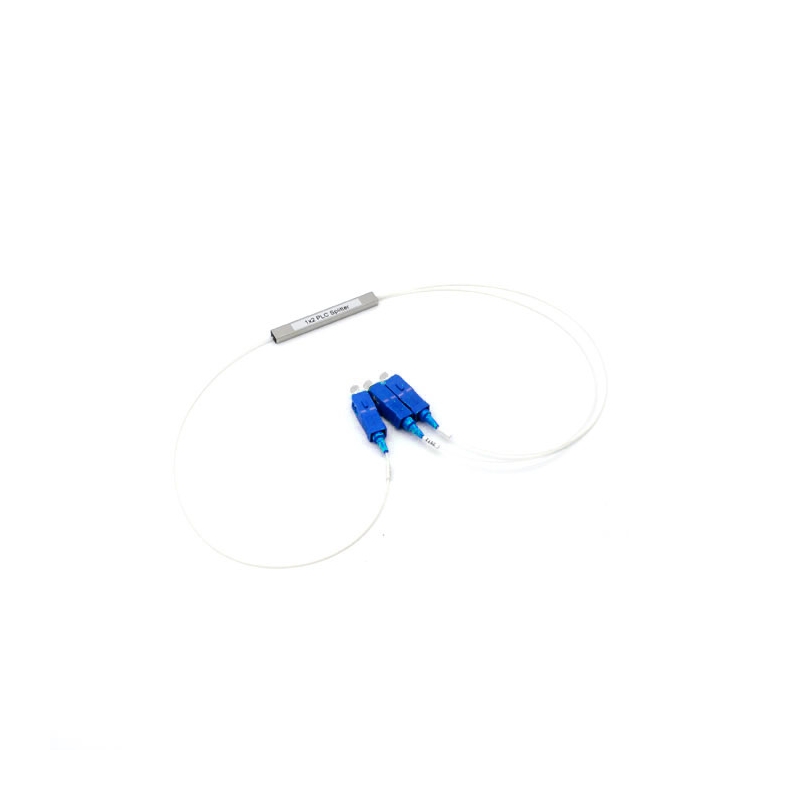

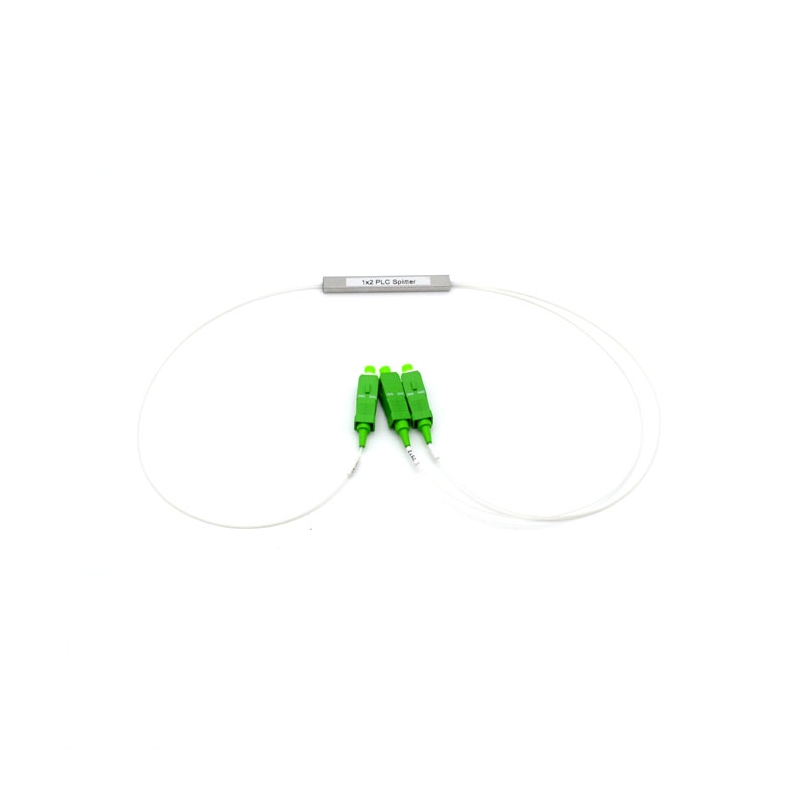

Single Mode 1x2 PLC Fiber Optic Splitter With SC APC Connector
A planar lightwave circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology to distribute optical signals from the central office (CO) to multiple premises locations.
Single Mode 1x2 PLC Fiber Optic Splitter With SC APC Connector Features:
1. Split Input Signal Evenly into 2 Output Ports
2. ≤4.1dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss
3. Fully Passive Optical Branching Device
4. Compact Housing Fits Racks, Wall-mounted Boxes, Optical Distribution Boxes, etc.
5. 1260~1650nm Broad Operating Wavelengths
6. G.657A1 Bend Insensitive Fibers for Low Bending Loss
7. Commonly Found in POL, Datacom, LAN, CATV, LCP, FTTx
Single Mode 1x4 PLC Fiber Optic Splitter With SC APC Connector Applications :
1. Fiber to The Point (FTTX)
2. Fiber to The Home (FTTH)
3. Passive Optical Networks (PON)
4. Gigabit Passive Optical Networks (GPON)
5. Local Area Networks (LAN)
6. Cable Television (CATV)
7. Test Equipment
Single Mode 1x2 PLC Fiber Optic Splitter With SC APC Connector Technical Specifications:

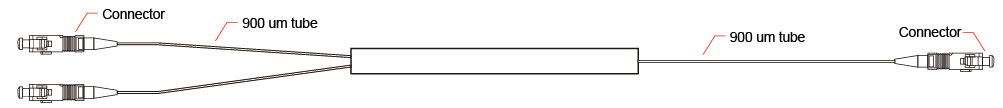

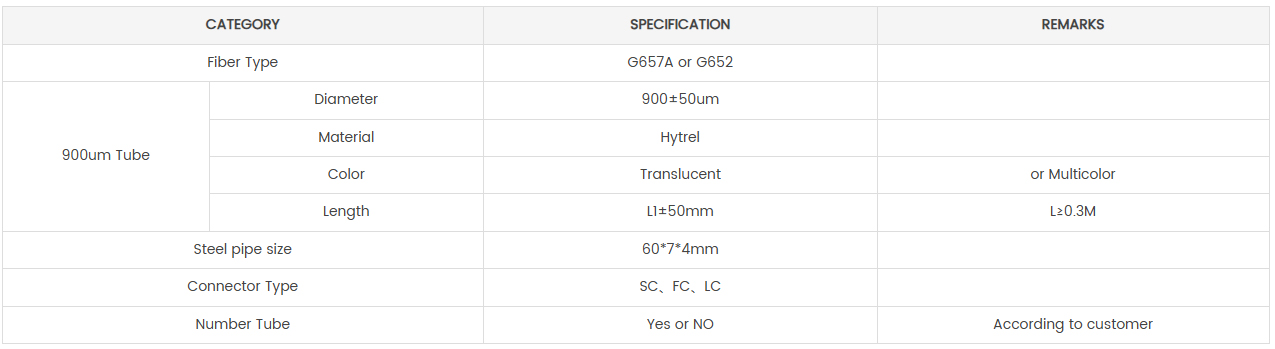

1. The Connector

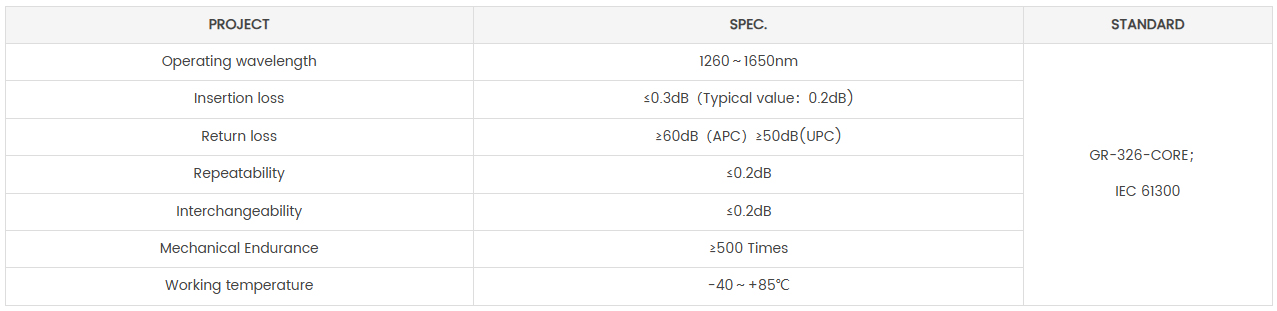

2. General requirement
