Fiber optic PLC splitter

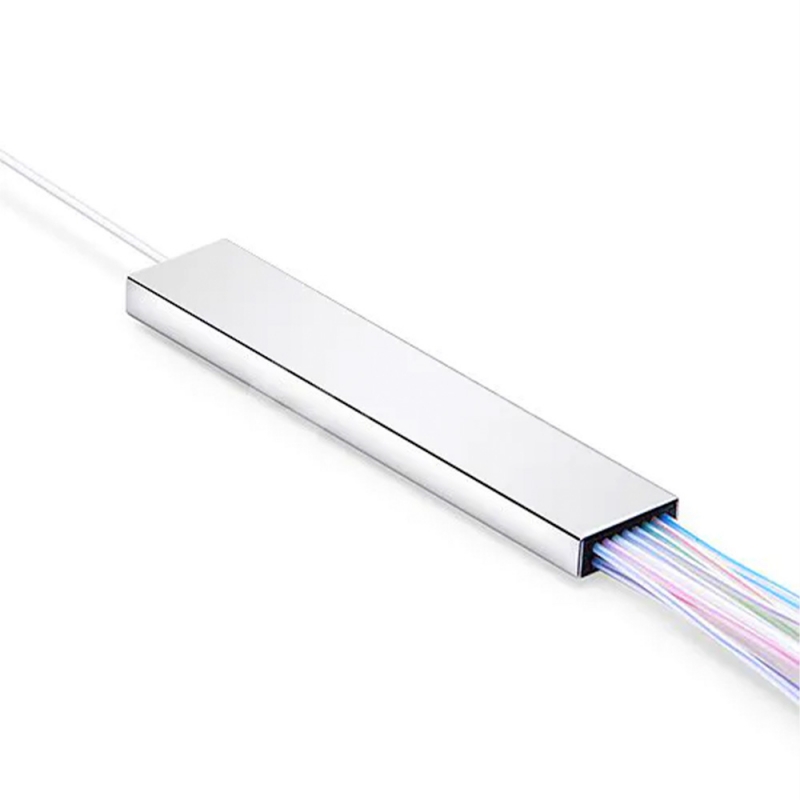

1x8 Mini Steel PLC Splitte

PLC optical splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

1.   Good Uniformity
2.   Not Sensitive to wavelengths
3.   Low Polarization loss
4.   Reliable
5.   YD/T 2000.1-2014
6.   GR-1209-Core
7.   GR-1221-Core
8.   ISO/IEC 11801 Generic cabling for customer premises
9.   Smaller size
  • Description
  • Make an inquiry

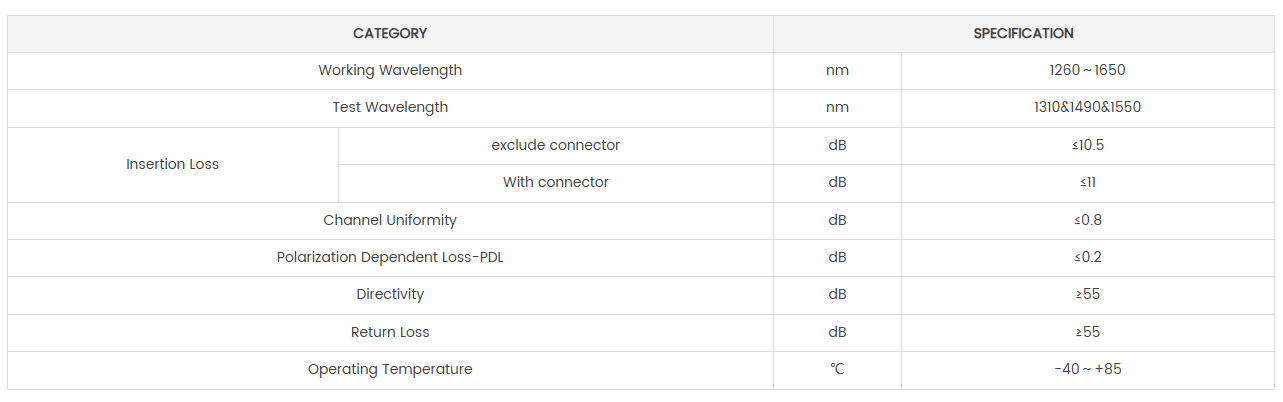

    Specification

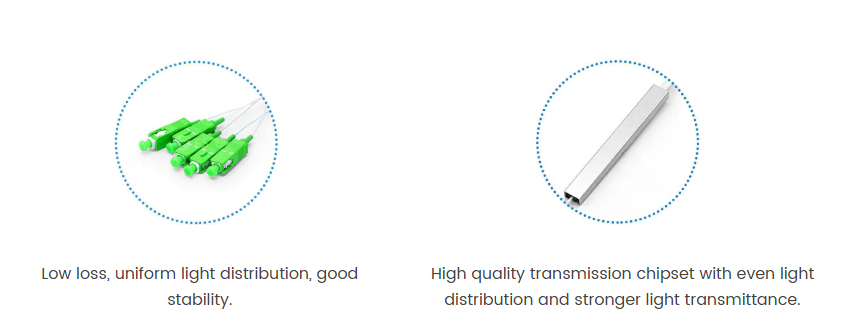

    Products Features

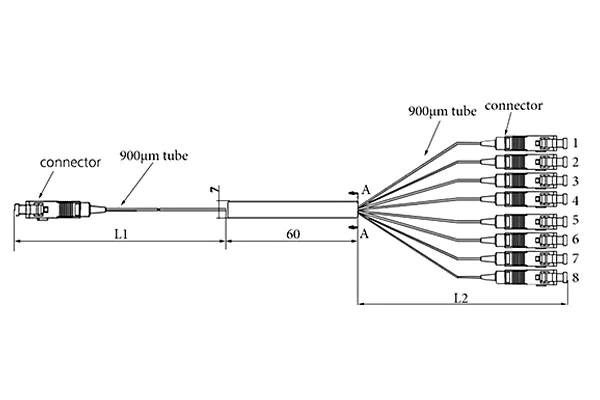

    Product structure diagram


    Remarks:

    Tolerance length of the 0.9mm tube is ±50mm
    The steel pipe material is sus304
    The matching tolerance of outer shell is ±0.5mm



    Packge Method
    The product will be winding and packed into the plastic box, then loaded into the color box and the outer box, finally put it into the carton. The packaging requirements natural beauty!
