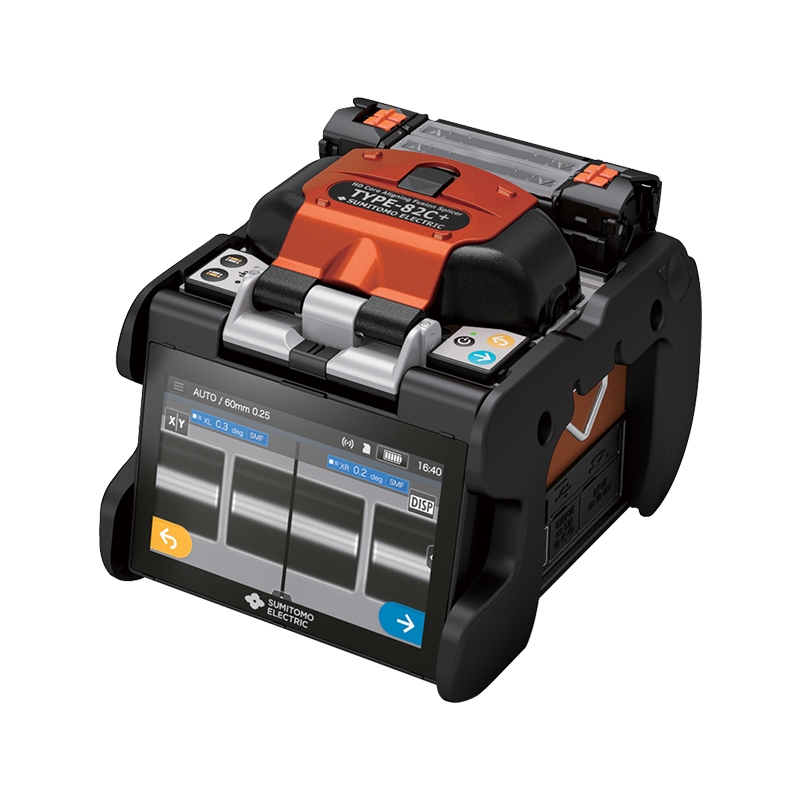

Features
Feature 01
The ultimate level of splicing performance
High Definition Core Alignment
NanoTune™
Insertion loss (typical) : 0.01dB for SMF
Splice speed (typical) : 5 sec for SMF
Feature 02
Quality and high speed protection

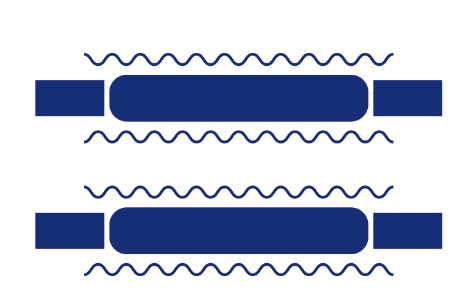

Dual automatic independent oven
Patented technology
Heating time (typical) : 8 Sec for 60mm sleeve
Feature 03

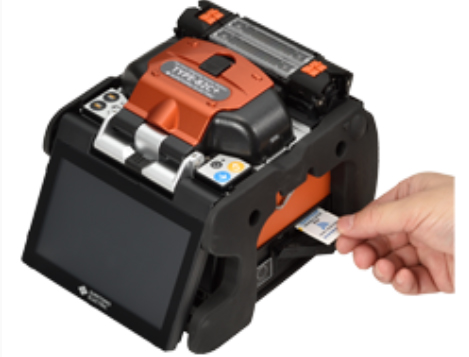

Super long battery life
Smart power monitor
Splice while charging

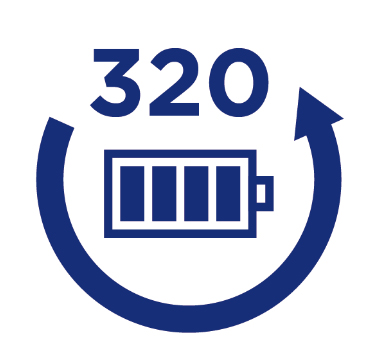

320 splice cycle
Feature 04

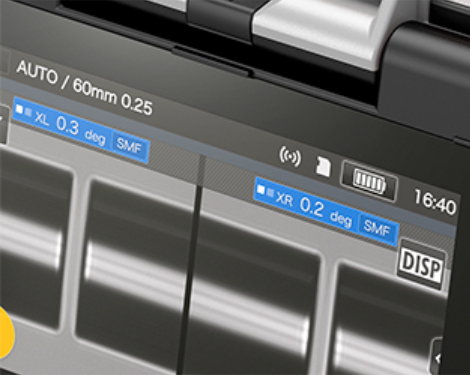

Intuitive touch screen display
5.0" WVGA LCD
Smartphone-like intuitive operation
Feature 05

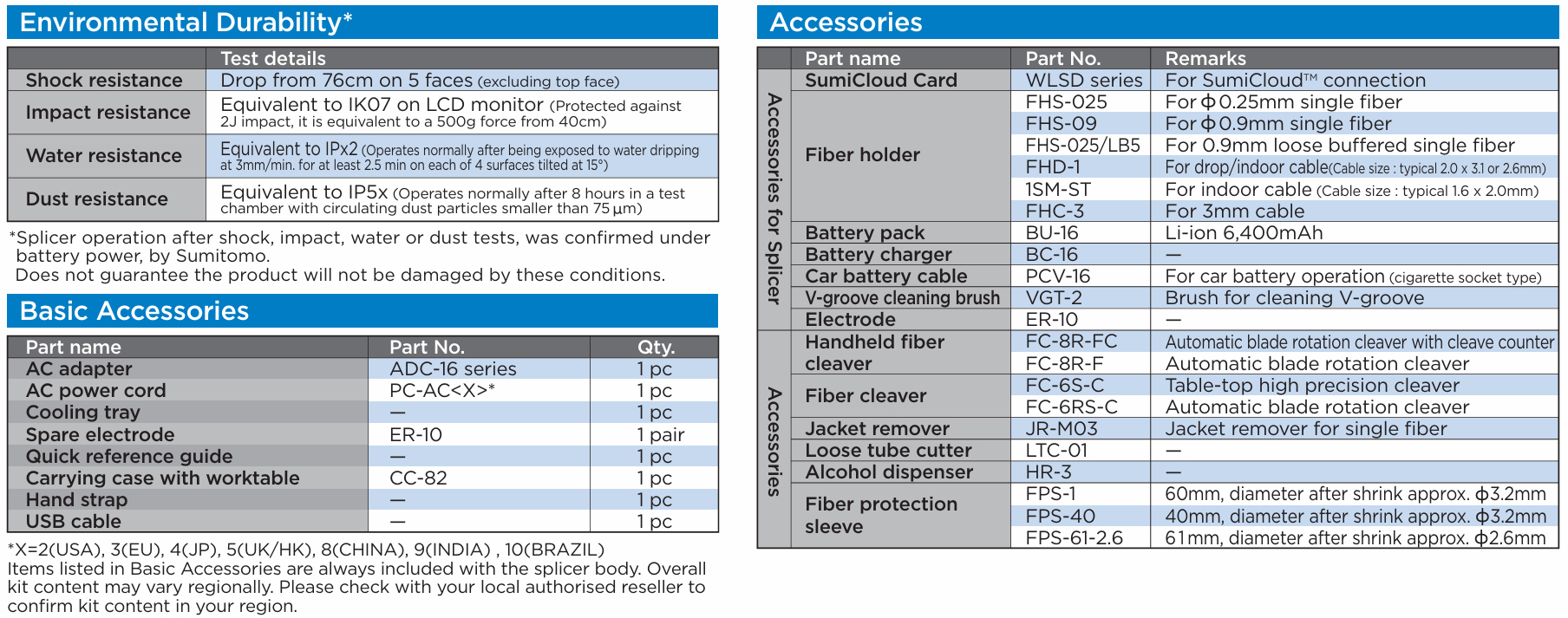

Unsurpassed toughness when dropped
Drop from 76cm on 5 faces
(excluding the top face)
Feature 06
IP52, Water & Dust resistance
Dust; Equivalent to IP5x
(Operates normally after 8 hours in a test chamber
with circulating dust particles smaller than 75um)
Water; Equivalent to IPx2
(Operates normally after being exposed to
water dripping at 3mm/min. for at least 2.5 min
on each of 4 surfaces tilted at 15°)

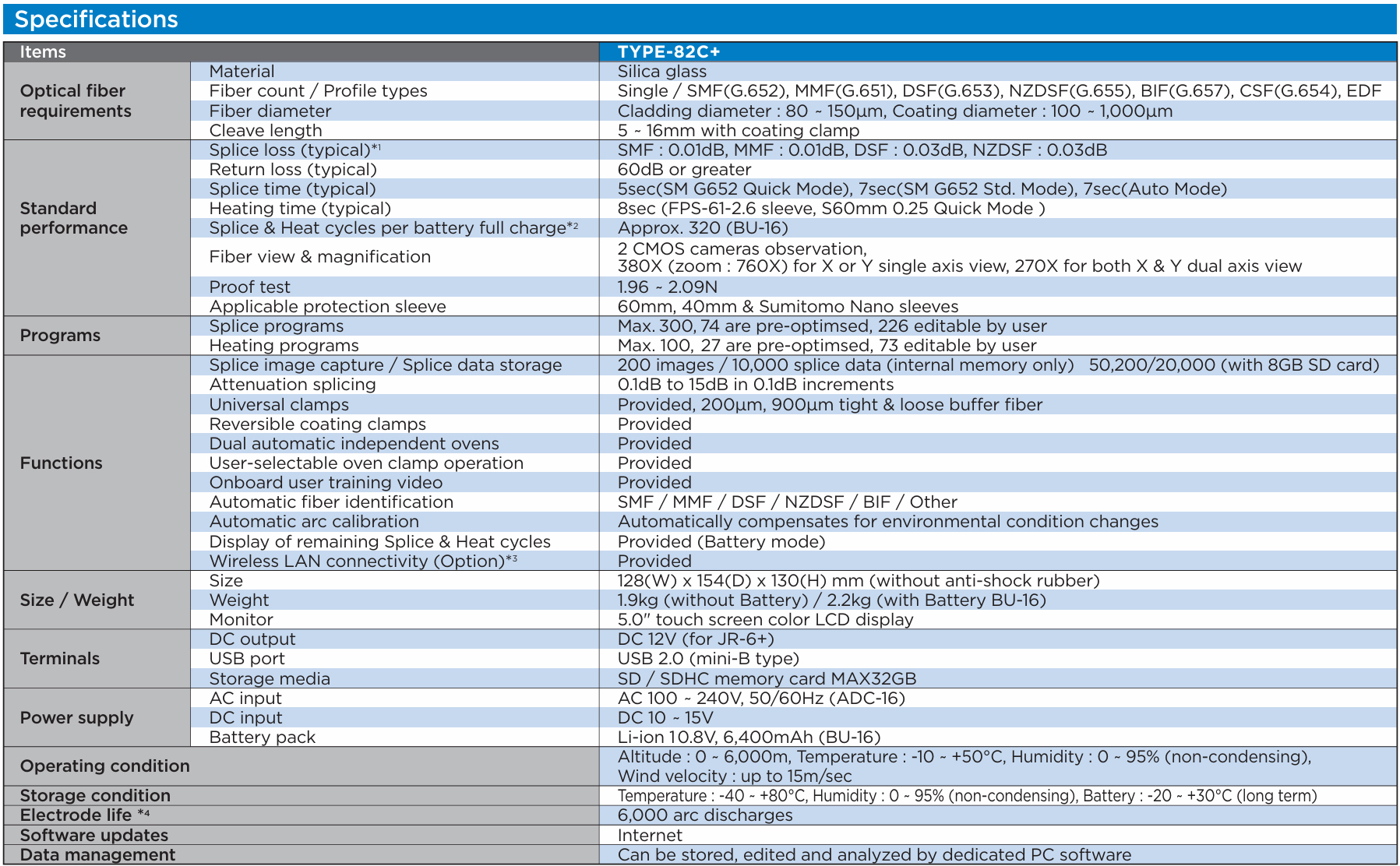

Specs
Storage
Internal; 200 images, 10,000 data
Internal + External; SD/SDHC (Max. 32GB), 50,200 images, 20,000 data

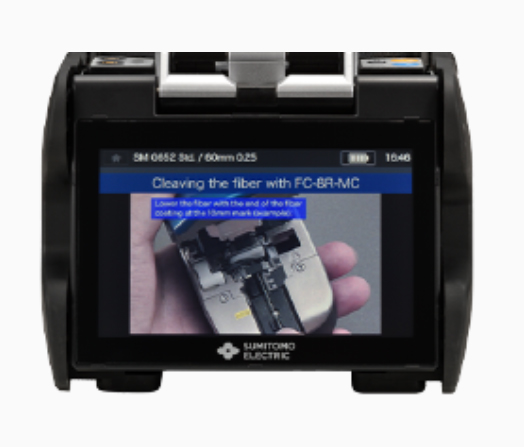

Help video
Play on the display or our web site
Automation
Fiber identification (SMF / MMF / DSF / NZDSF / BIF / Other)
Splice/Oven auto start
Network connection
SumiCloud™; via smartphone by wireless LAN
FSMA; via PC by USB

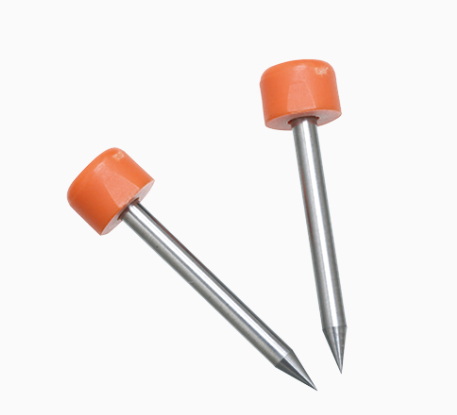

Electrode life
6000 splices with the genuine electrode, ER-10

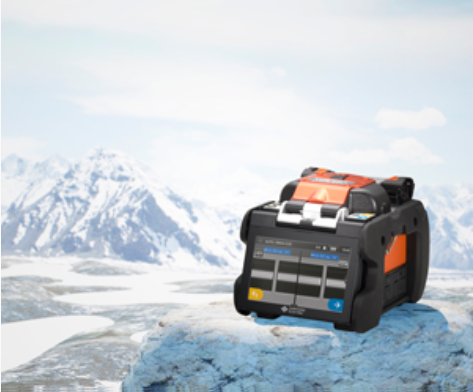

Operating condition
Altitude : 0 ~ 6000m,
Temperature : -10 ~ +50°C,
Humidity : 0 ~ 95% (non-condensing)
Wind velocity : up to 15m/sec
