Features
Feature 01
Best suited for FTTx fields
Active Clad alignment with NanoTune™
Insertion loss (typical) : 0.03dB for SMF
Splice speed (typical) : 6 sec for SMF
Feature 02
Quality and high speed protection
Single automatic oven
Heating time (typical) : 12 Sec for 60mm sleeve
Feature 03
Small with long battery life
Power monitor available
Splice while charging
250 splice cycle
Feature 04

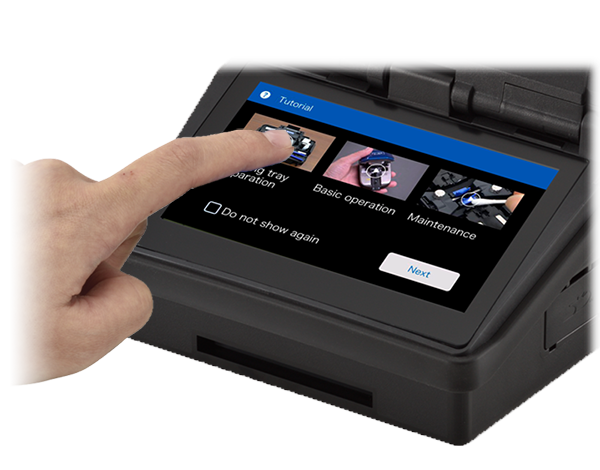

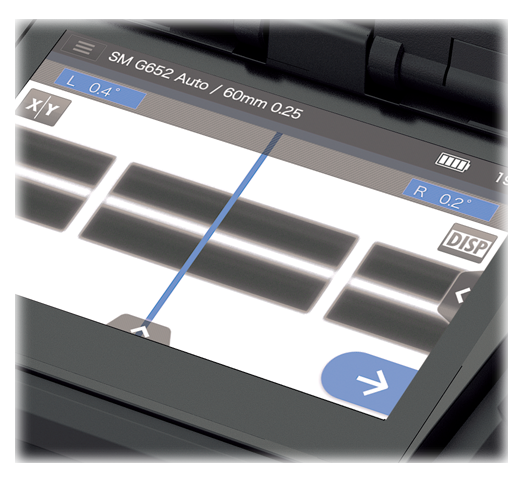

Intuitive touch screen display
4.3" WVGA LCD
Smartphone-like intuitive operation
Feature 05
Unsurpassed toughness when dropped
Drop from 76cm on 5 faces
(excluding the top face)
4 edges and corners on the bottom
Feature 06
IP52, Water & Dust resistance
Dust; Equivalent to IP5x
(Operates normally after 8 hours in a test chamber
with circulating dust particles smaller than 75um)
Water; Equivalent to IPx2
(Operates normally after being exposed to
water dripping at 3mm/min. for at least 2.5 min
on each of 4 surfaces tilted at 15°)

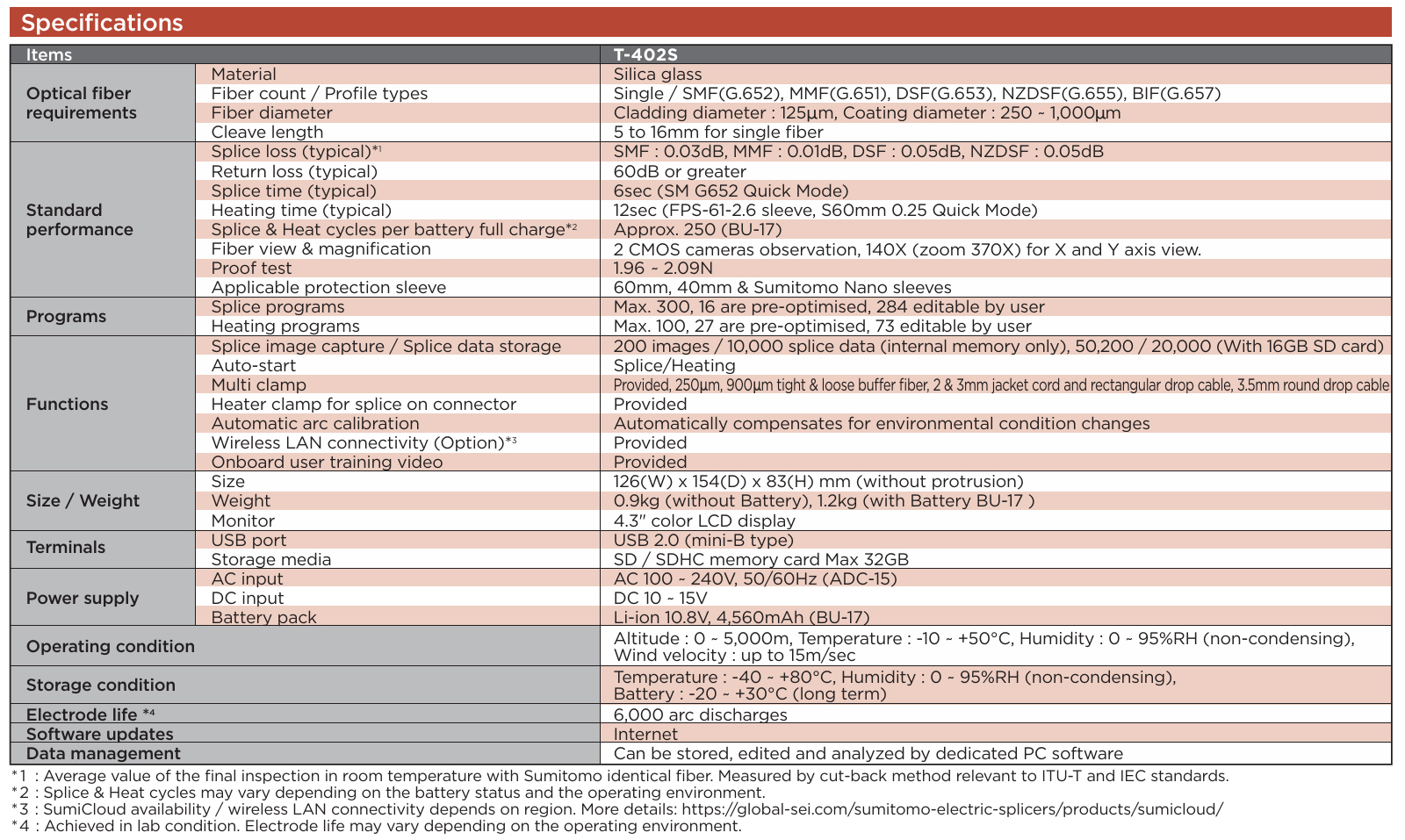

Specs

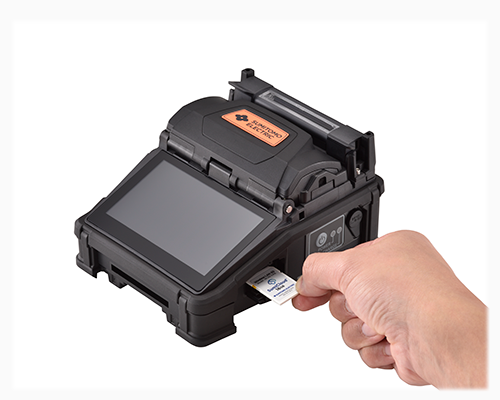

Storage
Internal; 200 images, 10,000 data
Internal + External; SD/SDHD (~32GB), 50,200 images, 20,000 data
Help video
Play on the display or our web site
Automation
Splice/Oven auto start
Network connection

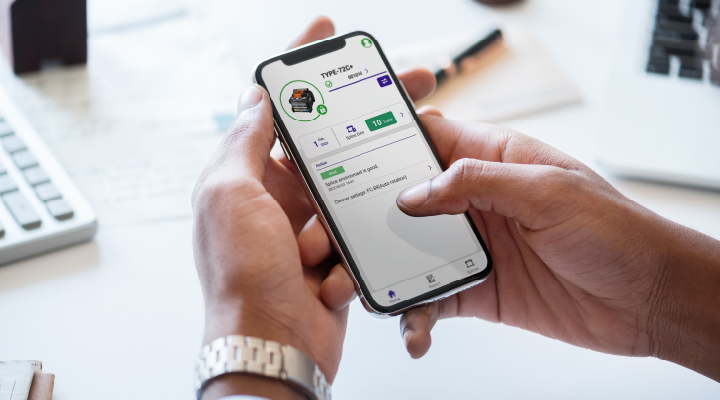

SumiCloud™; via smartphone by wireless LAN
FSMA; via PC by USB

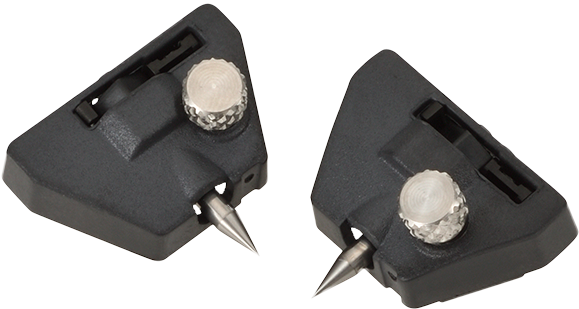

Electrode life
6000 splices with the genuine electrode, ER-17

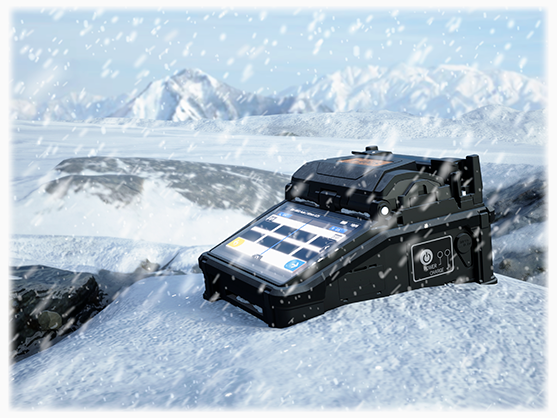

Operating condition
Altitude : 0 ~ 5000m,
Temperature : -10 ~ +50°C,
Humidity : 0 ~ 95% (non-condensing)
Wind velocity : up to 15m/sec
