Features
Feature 01
Quality splice performance
Clad alignment
Insertion loss (typical) : 0.05dB for SMF
Splice speed (typical) : 11 Sec for SMF
Feature 02
Quality fiber protection
Single automatic oven
Heating time (typical) : 30 Sec for 60mm sleeve
Feature 03
Small but long battery life
Power monitor available
Splice while charging
100 splice cycle
Feature 04
Intuitive touch screen display
3.5" LCD
Touch screen operation
Feature 05
Tough against shock
Drop from 76cm
on the Bottom Face
Feature 06
IP52, Water & Dust resistance
Dust; Equivalent to IP5x
(Operates normally after 8 hours in a test chamber
with circulating dust particles smaller than 75um)
Water; Equivalent to IPx2
(Operates normally after being exposed to
water dripping at 3mm/min. for at least 2.5 min
on each of 4 surfaces tilted at 15°)

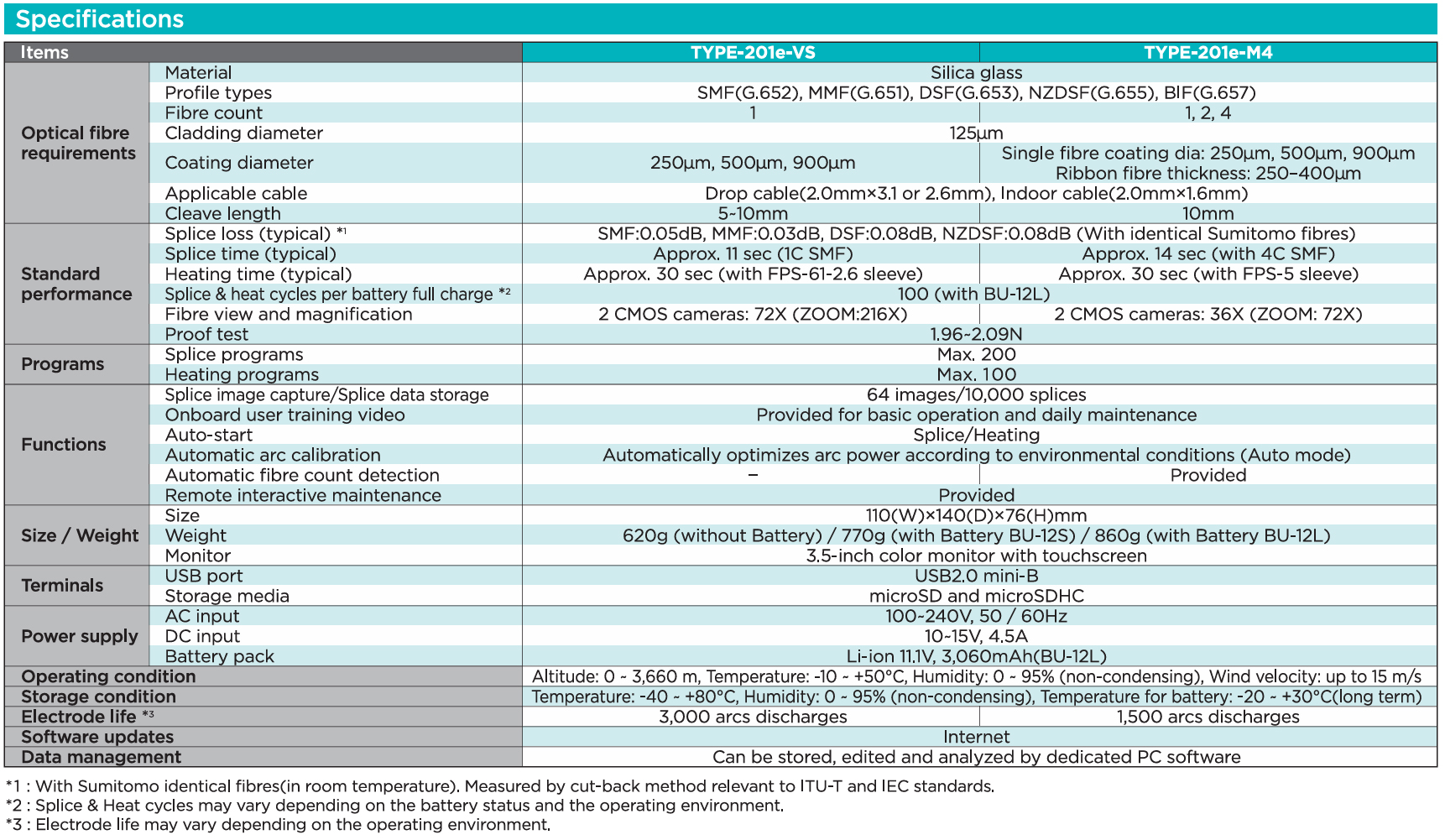

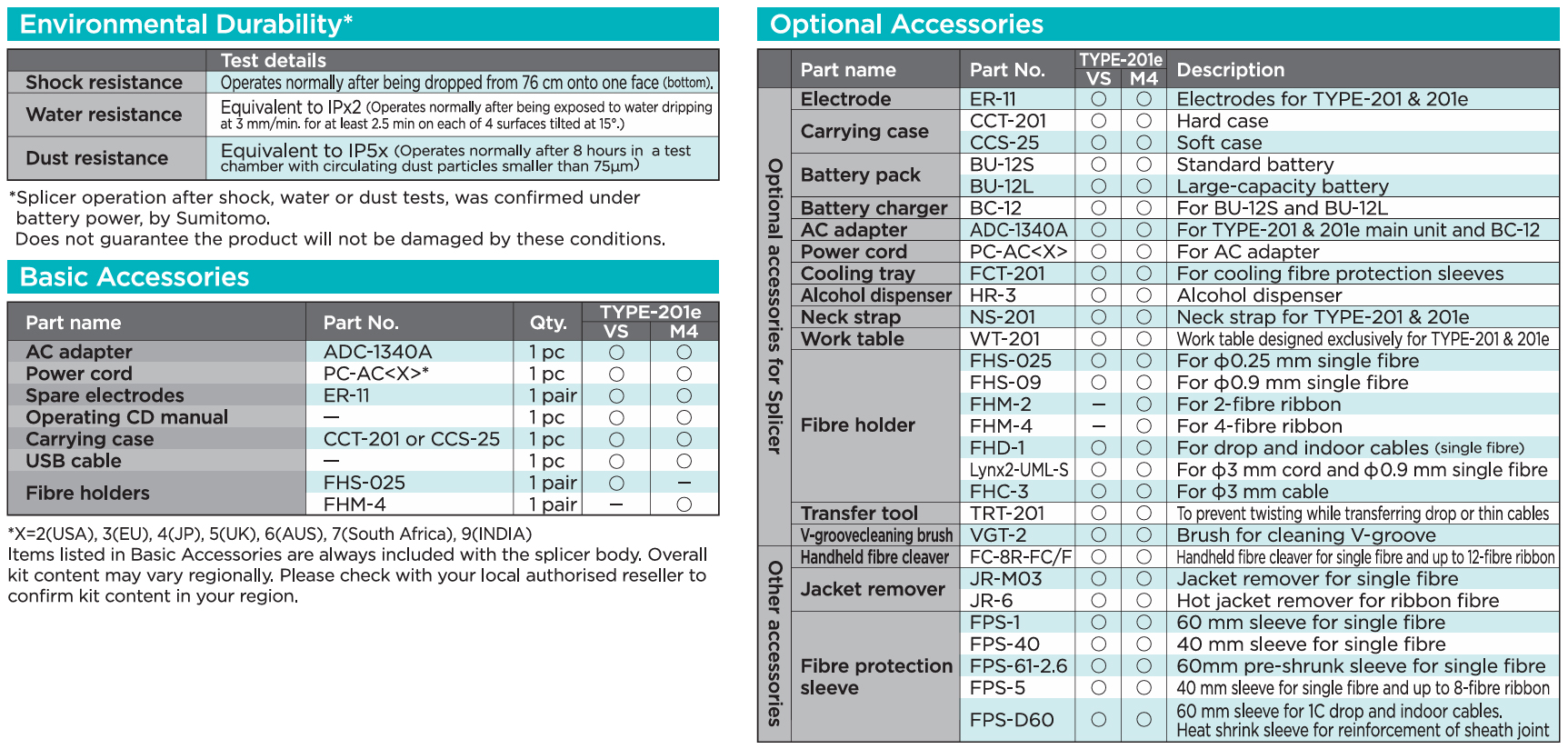

Specs
Designed for daily use
Storage; Internal and External (micro SD)
Help Video; Play on the display
NW Connection; via PC
Electrode life; 1500 splices
