Features
Feature 01
The ultimate level of splice performance
Clad Alignment
assisted by Active-AIAS
Insertion loss (typical) : 0.05dB for SMF
Splice speed (typical) : 11 sec for SMF
Feature 02
Quality and high speed protection
Dual automatic independent oven
Patented technology
Heating time (typical) : 35 sec for 40mm ribbon sleeve
Feature 03
Super long battery life
Smart power monitor
Splice while charging
180 splice cycle
Feature 04
Intuitive touch screen display
5.0" WVGA LCD
Smartphone-like intuitive operation
Feature 05
Unsurpassed toughness when dropped
Drop from 76cm on 5 faces
(excluding the top face)
Feature 06
IP52, Water & Dust resistance
Dust; Equivalent to IP5x
(Operates normally after 8 hours in a test chamber with circulating dust particles smaller than 75um)
Water; Equivalent to IPx2
(Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5

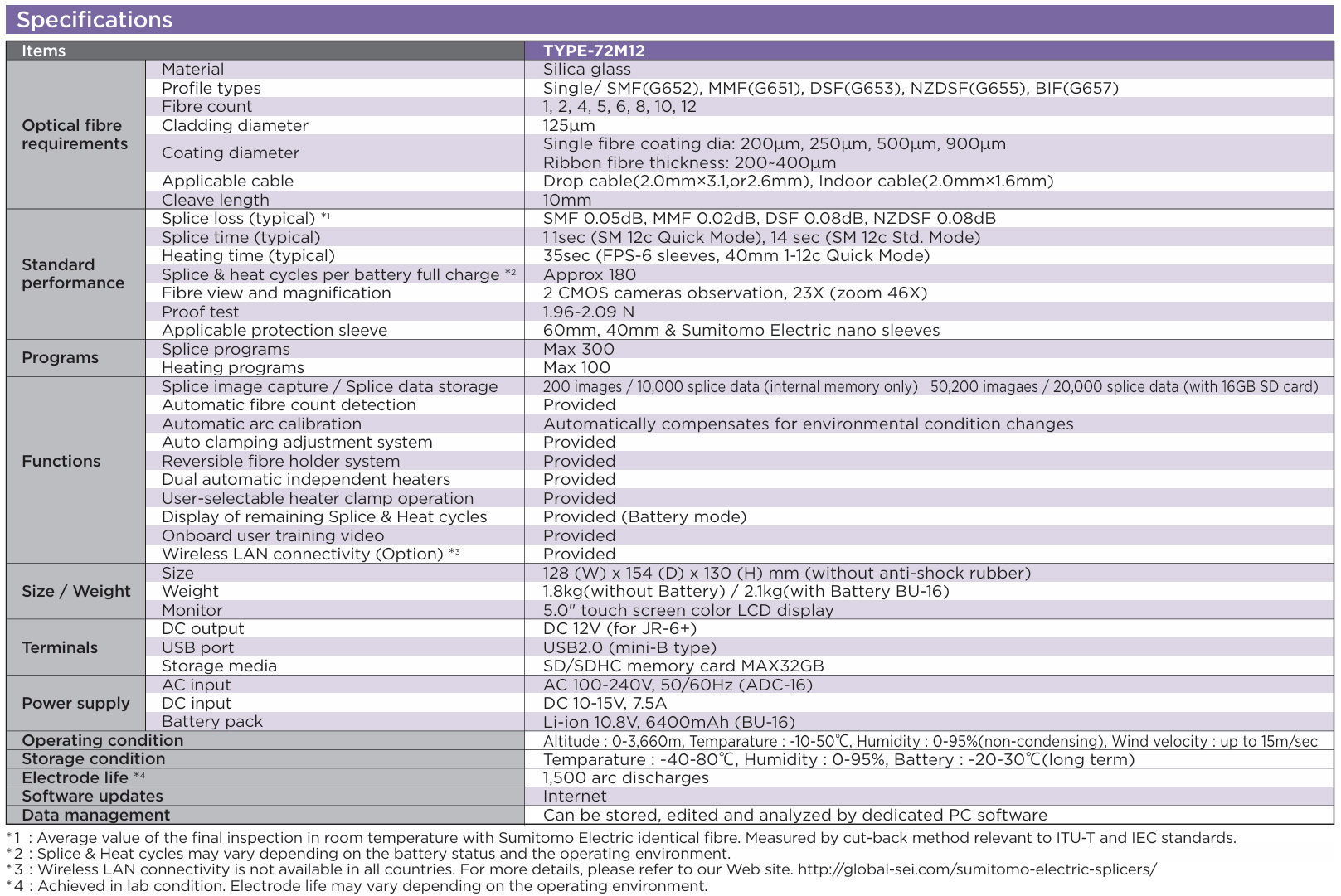

Specs
Storage
Internal; 200 images, 10,000 data
External; SD/SDHC (~32GB), 50,200 images, 20,000 data
Help video
Play on the display or our web site
Automation
Active-AIAS
Fiber count
Splice/Oven auto start
Network connection

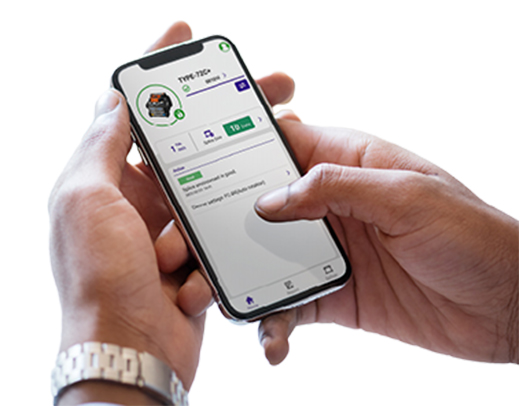

SumiCloud™; via smartphone by wireless LAN
FSMA; via PC by USB

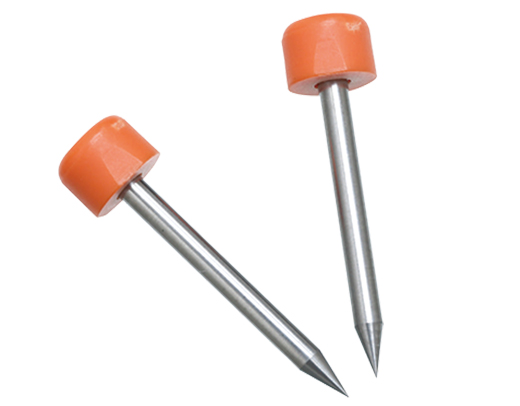

Electrode life
1500 splices with the genuine electrode, ER-10
Operating condition
Altitude : 0 ~ 6000m,
Temperature : -10 ~ +50°C,
Humidity : 0 ~ 95% (non-condensing)
Wind velocity : up to 15m/sec
