Masterpiece
High-end luxury

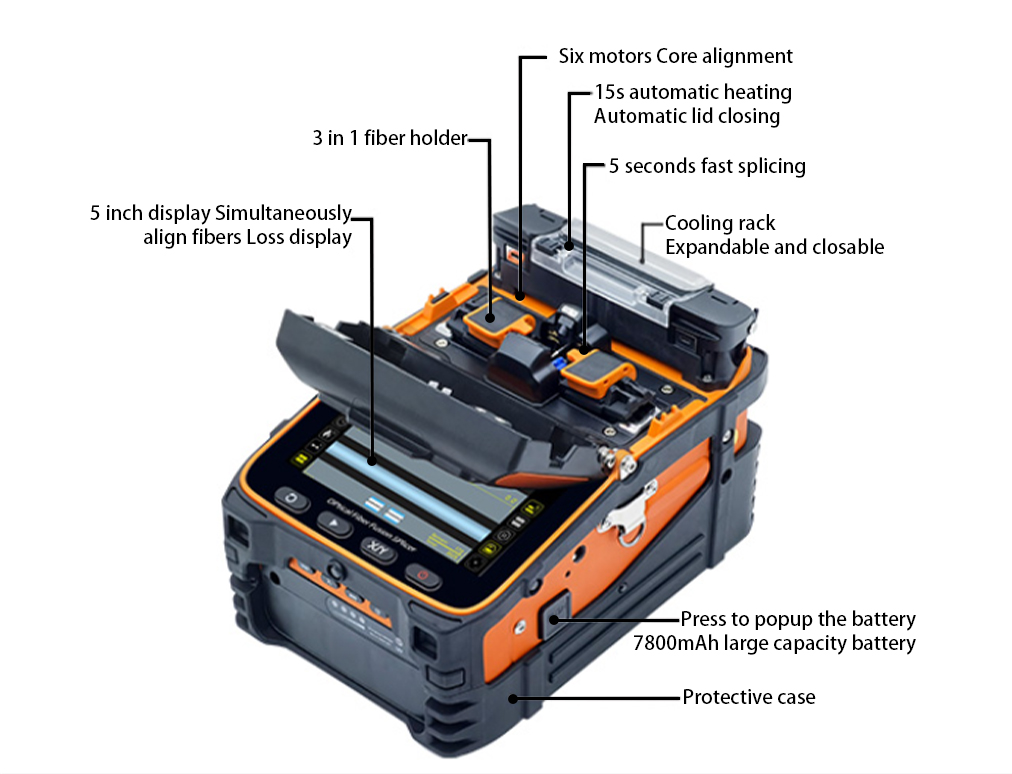

Signalfire fiber splicer AI-9 is a six-motor, fiber core alignment automatic fiber welding machine, with optical power, red light detection function.
Industrial quad-core CPU, fast running speed, 5 seconds fast welding, 15 seconds fast heating,
5 inches high resolution LCD screen, 300 times magnification; The working efficiency is 50% higher than that of ordinary welding machine.
Large-capacity lithium battery can be heated by fusion of about 260 cores,
high altitude, desert, extremely cold and other harsh environment performance is still outstanding.

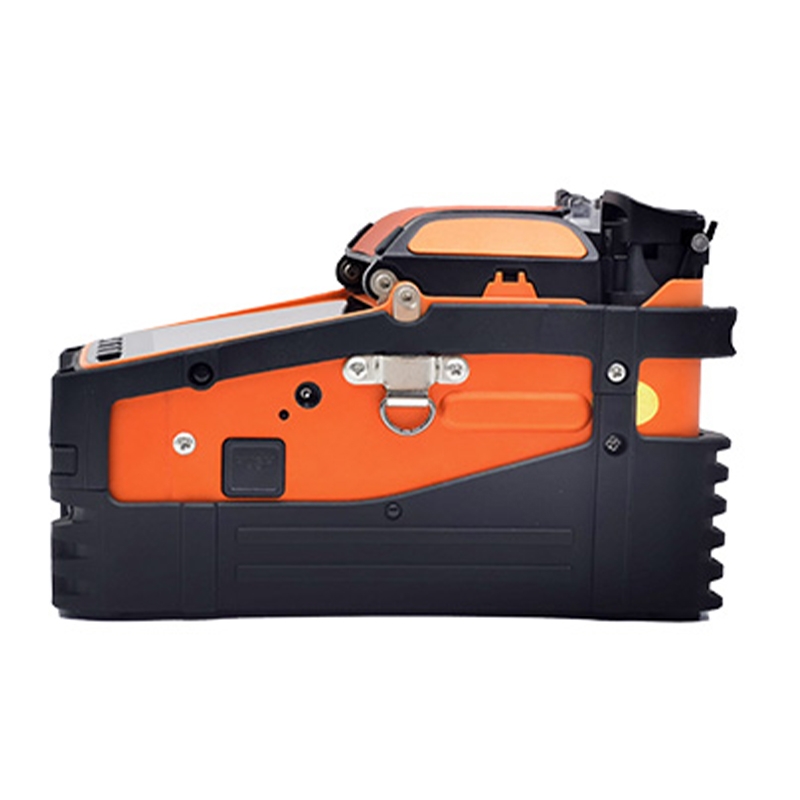

Metal body with beautiful details
Used in telecom, mobile, Unicom, radio and television operatorsposts and telecommunications, railway engineering companiesand institutions of optical cable line construction, line maintenance,emergency repair, security monitoring and research institutes research, teaching.

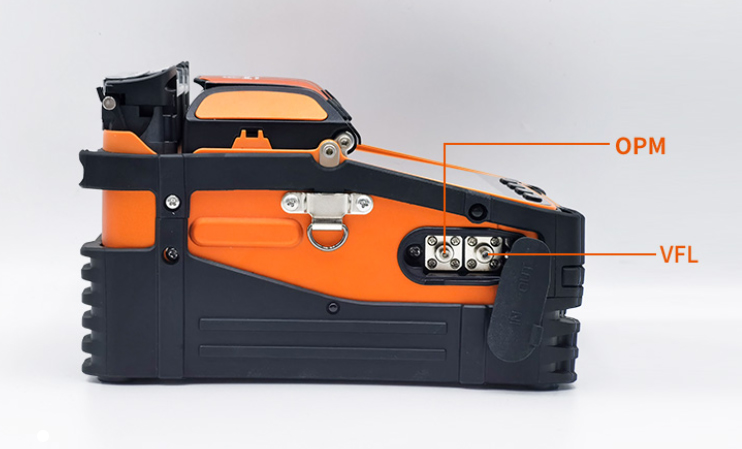

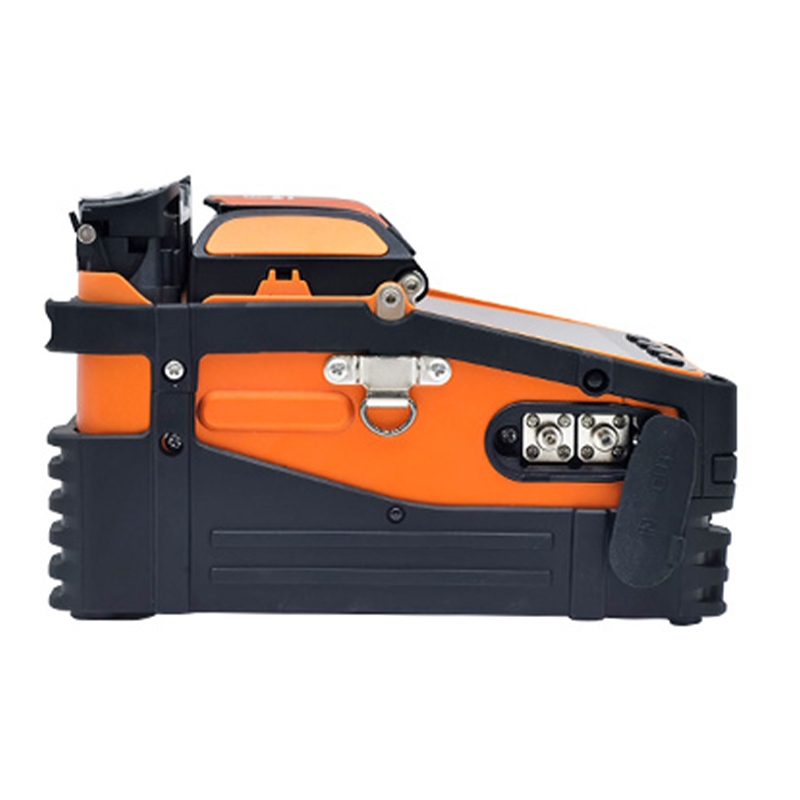

Within VFL and OPM function
Effectively measure connection losses, verify continuity
and help evaluate fiber link transmission quality
OPM: SWITCH BETWEEN TEN STATES
Wavelength:850nm、1300nm、1310nm、1490nm、1550nm1625nm、980nm、1270nm、1577nm、1650nm
VFL: SWITCH BETWEEN THREE STATES
power:15mW, 2Hz flashing and steady on mode

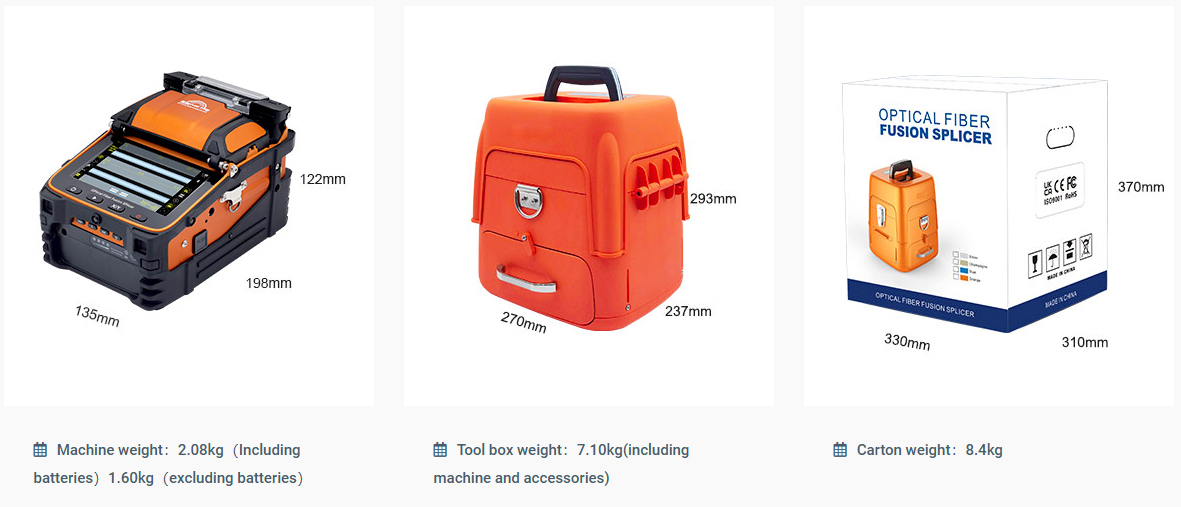

Size and wight

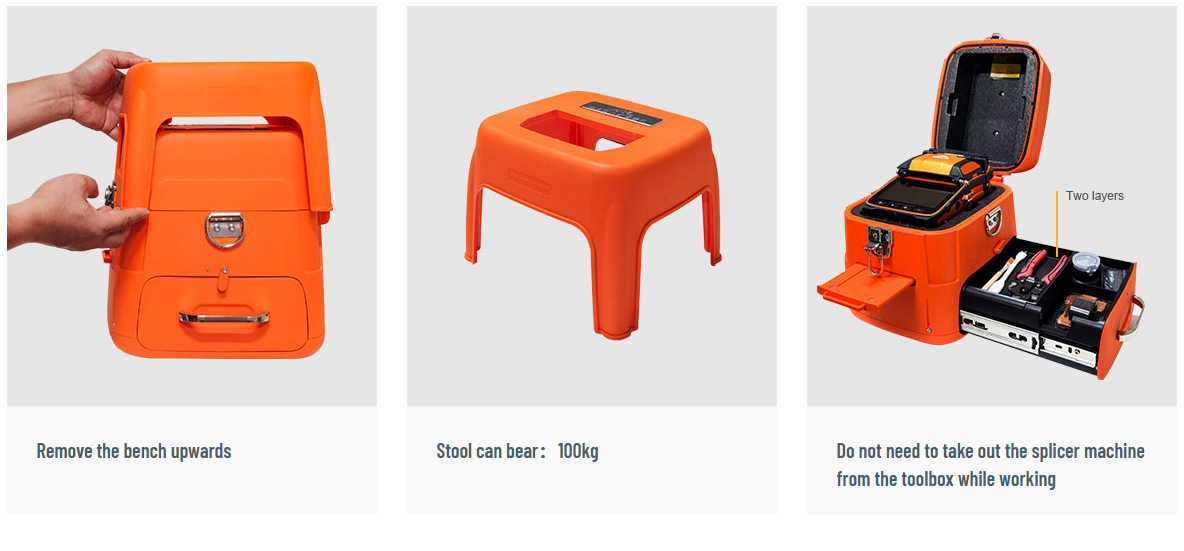

The toolbox
comes with a stool to facilitate the construction workers
