FiberBasix 50 handheld testers
SERIES COMPRISING THE ELS-50 LIGHT SOURCE AND EPM-50 POWER METER
Delivering simple, accurate measurement of signal attenuation during fiber-optic cable installation.
Key features
1. Easy-to-use interface for error-free testing
2. Interchangeable connectors, for first-class flexibility
3. Cost-effective, rugged and highly reliable
4. Ideal for testing and troubleshooting optical premises networks
5. Five test kits to choose from: LAN, outside plant, contractor, FTTH and CATV
Applications
1. Link-loss characterization (ELS-50 Light Source)
2. Power measurement (EPM-50 Power Meter)
Worry-free, simple and good to go

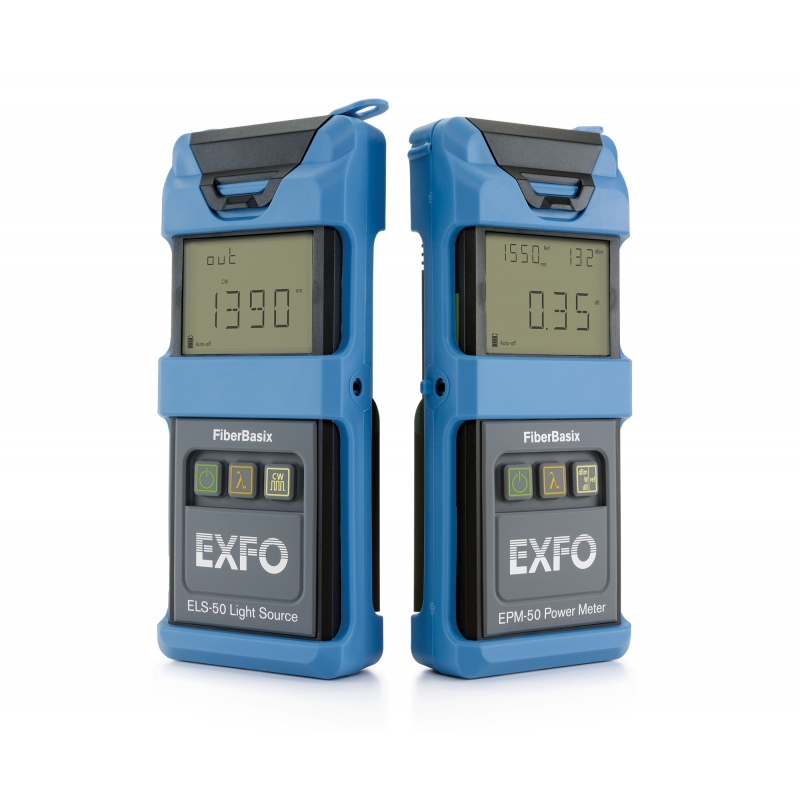

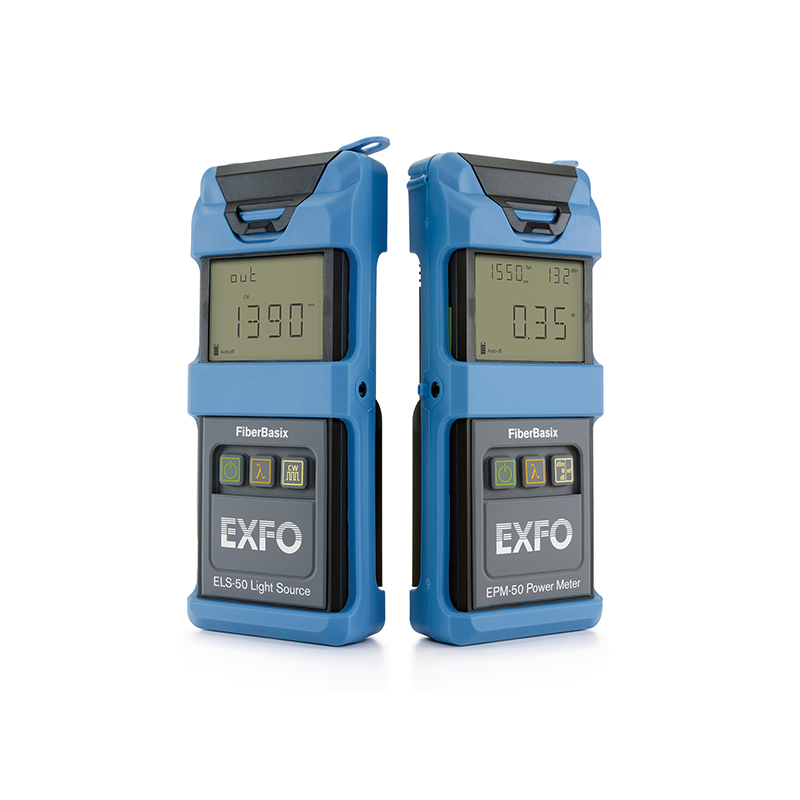

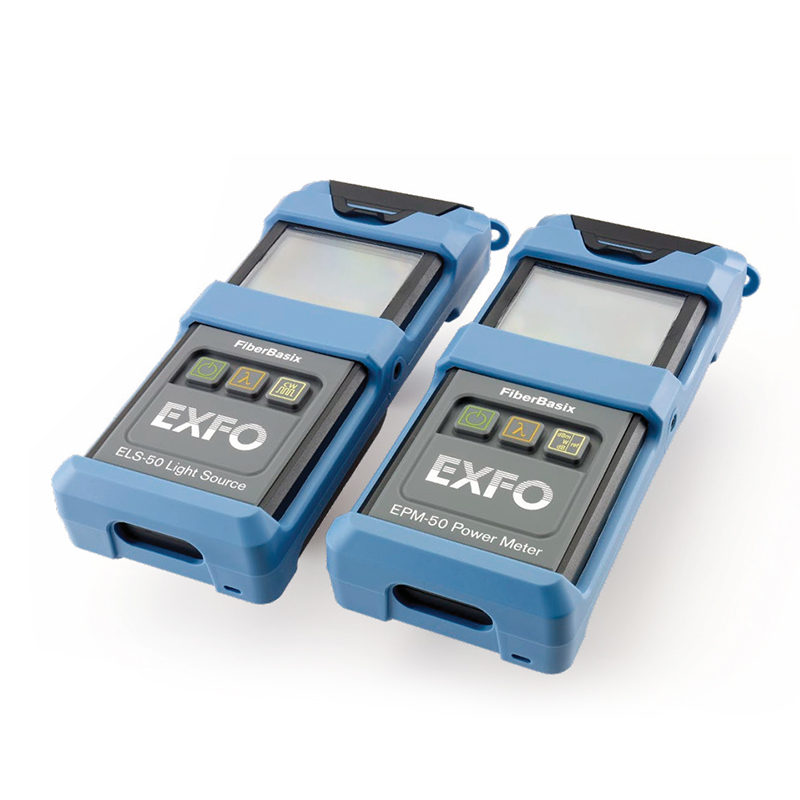

EXFO’s FiberBasix 50 series meets your basic day-to-day test requirements while helping you stay within budget. These worry-free, straightforward handheld testers enable accurate measurement of signal attenuation during fiber-optic cable installation. The FiberBasix 50 series includes two highly convenient instruments:
• The ELS-50 light source, which offers up to three wavelengths for singlemode testing and two wavelengths for multimode testing
• The EPM-50 power meter, which offers high accuracy and referencing capabilities
ELS-50 LIGHT SOURCE: MULTIWAVELENGTH CAPABILITY
EXFO’s ELS-50 light source provides excellent stability and high measurement accuracy for up to three singlemode wavelengths (1310, 1490 and 1550 nm) or two multimode wavelengths (850 and 1300 nm). It is the perfect complement to the FiberBasix 50 EPM-50 power meter when it comes to measuring attenuation on fiber-optic links.
EPM-50 POWER METER: HIGH ACCURACY AND EASY REFERENCING
The EPM-50 power meter provides highly accurate power measurements, as well as reference value setting capabilities. It offers power autonomy of 300 hours, for reliable, long-lasting performance in the field.
An FTTx test solution
These products are part of EXFO‘s series of FTTx optical test products. They allow for the testing of passive optical networks (PONs) at the three main wavelengths (1310, 1490 and 1550 nm) used in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks and comply with the ITU-T G.983 and G.984 Recommendation series and the IEEE 802.3ah standard.
ELS-50 light source: multiwavelength capability
EXFO’s ELS-50 Light Source provides excellent stability and high measurement accuracy for up to three singlemode wavelengths or two multimode wavelengths. It is the perfect complement to the FiberBasix 50 EPM-50 Power Meter when it comes to measuring attenuation on fiber-optic links.
EPM-50 power meter: high accuracy and easy referencing
The EPM-50 Power Meter provides highly accurate power measurements, as well as reference value setting capabilities. It offers power autonomy of 300 hours, for reliable, long-lasting performance in the field.
