MPC-100
OPTICAL POWER CHECKER
This micro optical power checker brings optical testing capability to your Android or iOS smart device.
KEY FEATURES
1. Stand-alone operation
2. Compatible with Android™ and iOS™ devices
3. Wireless connection via Bluetooth™
4. Internal data storage
5. Universal 2.5 mm (supports SC, FC, ST optical connectors) and
6. 1.25 mm adapter (supports LC and E-2000 optical connectors)
7. Small form factor, pocket-size
8. Rechargeable battery
9. Backlit display
10. Wrist strap

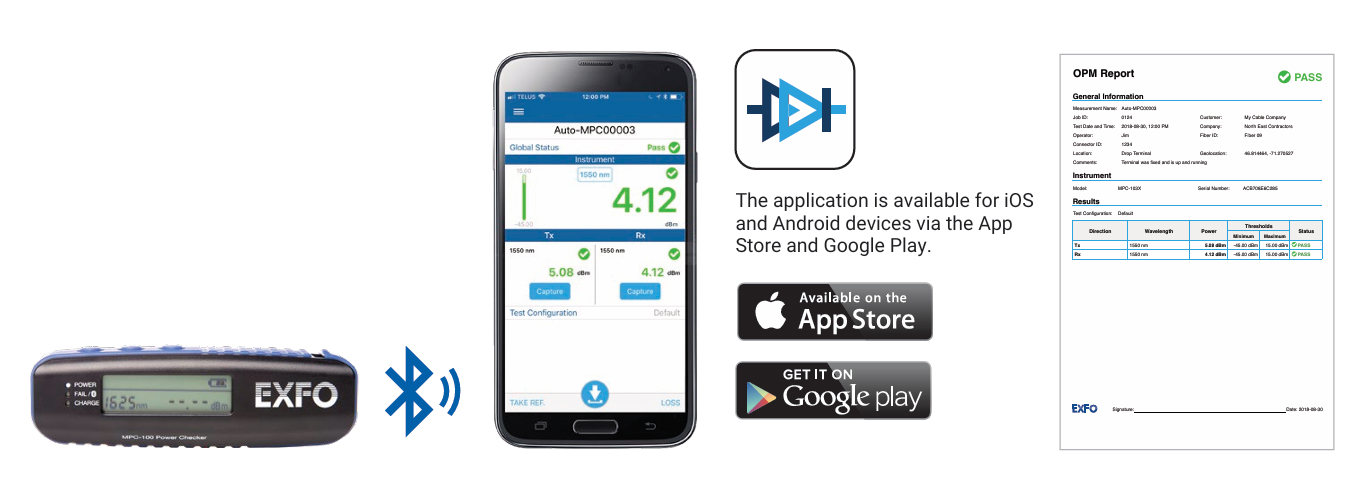

SMART DEVICE APPLICATION
This micro power checker communicates with the smart device via Bluetooth. Its straightforward and free smart applications
make the operation of this instrument really simple. Data can be saved directly into the smart device for seamless sharing via text
and emails.
Key features of the app
• Supports Duplex measurements storing values on the transmit (Tx) and receive (Rx) side on the same window and in the same report
• Possibility to add GPS coordinates to measurement data to easily track measurement sites
• Export of the results in .JSON format making it easy to integrate in data management systems. PDF format also supported.

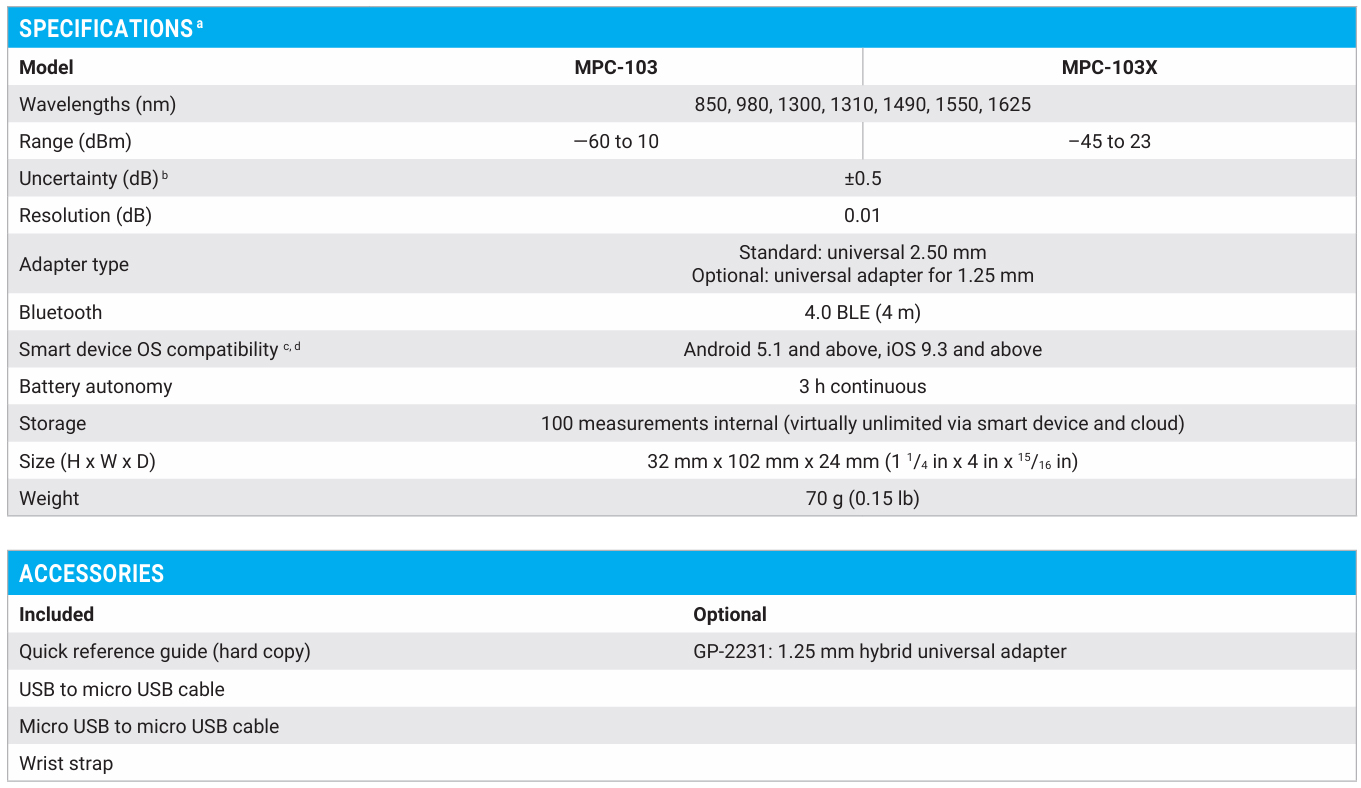

a. Typical.
b. At 23 °C, 1550 nm, –20 dBm, for CW signals and using singlemode fibers.
c. Software compatible with Samsung Galaxy Note® 4 & 5, Samsung Galaxy S® 3, 4, 5, 6 & 7, Google Nexus 5X, Apple iPhone 6S Plus & 7 and Apple iPad Air 2 devices. Other models are not guaranteed to be fully compatible. Download our free MPC-100 app on Google Play and App Store.
d. Not available on Android tablets.
