Optical Power Expert

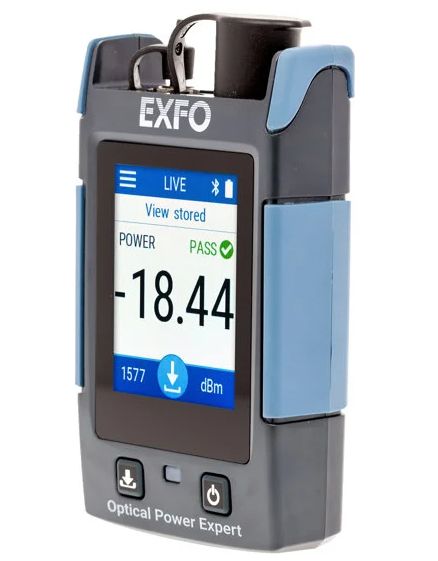

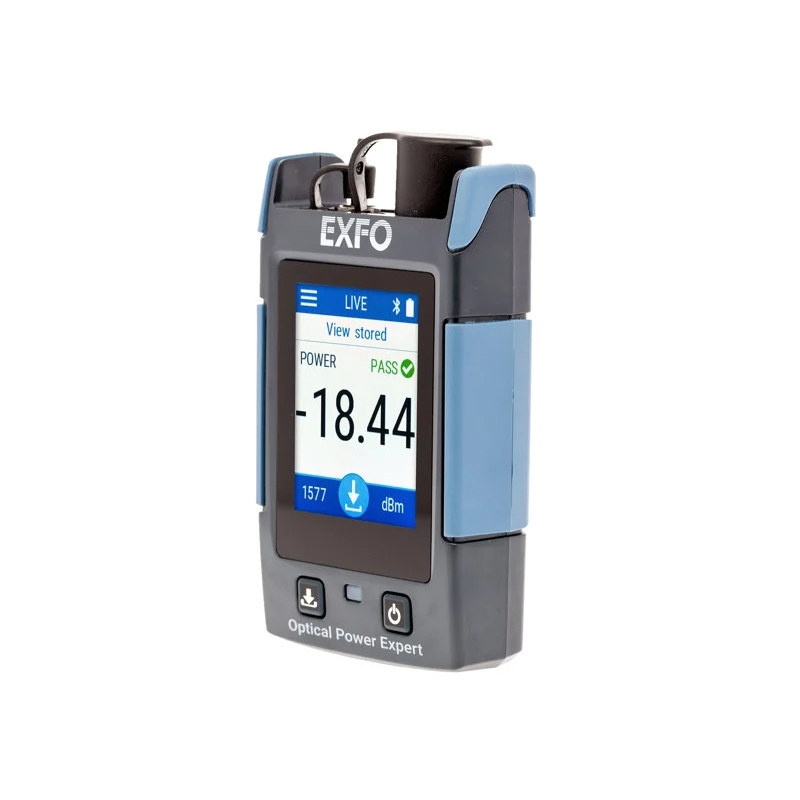

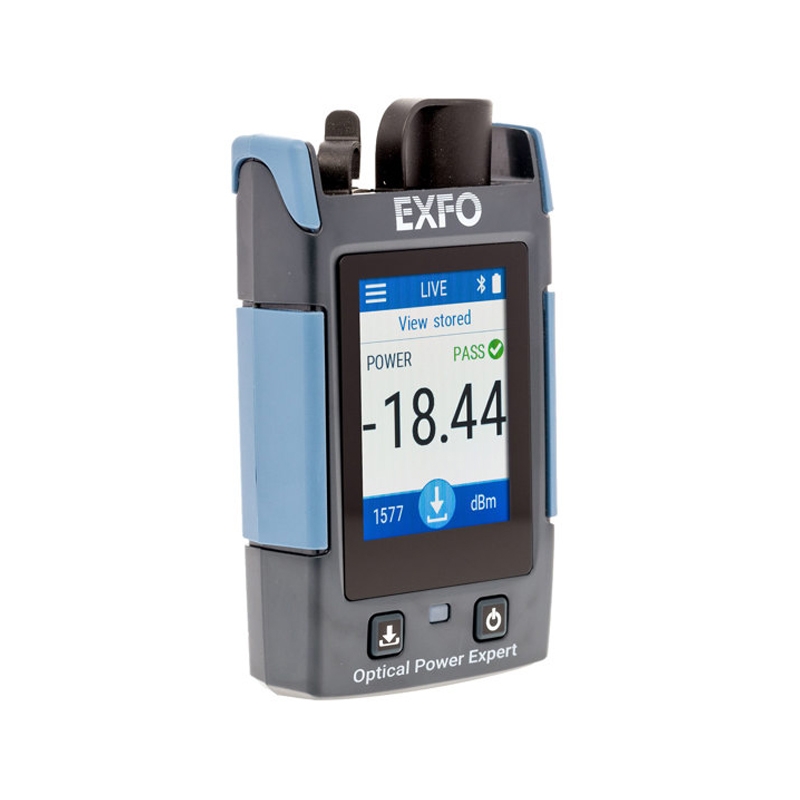

CONNECTED OPTICAL POWER METER

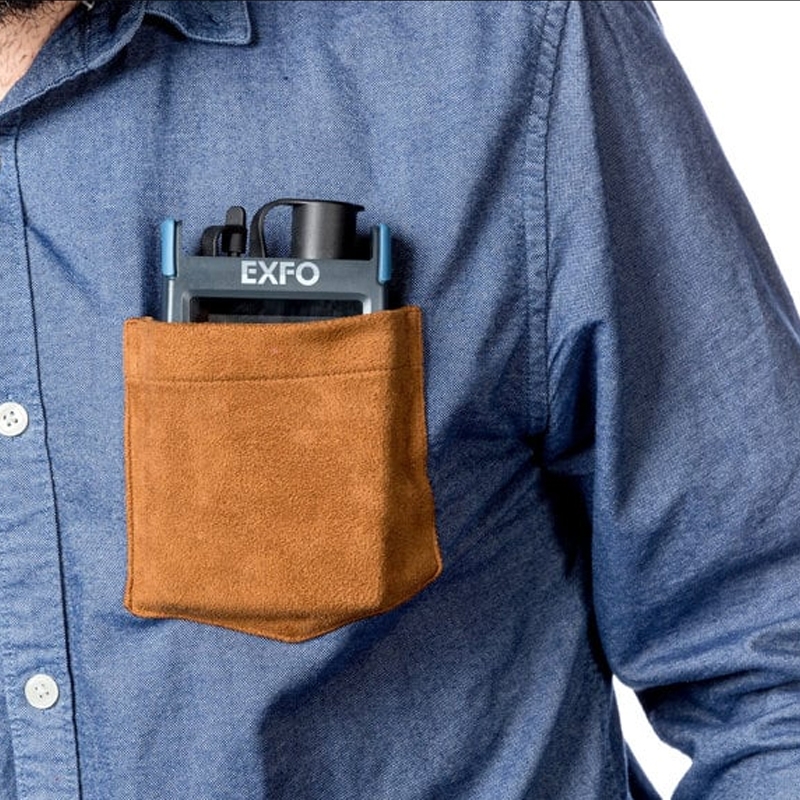

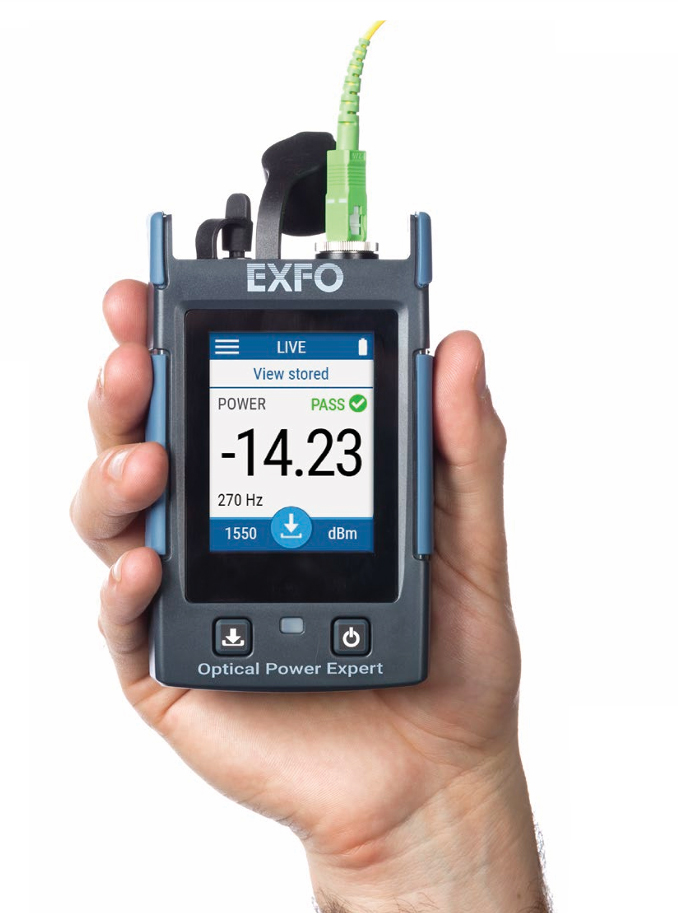

State-of-the-art power meter with Bluetooth connectivity, a wide touchscreen and best-in-class optical performances. In a pocket-sized form factor. Turns on instantly for use on the go.
KEY FEATURES
1. Connect to smart app via Bluetooth for data reporting from the field

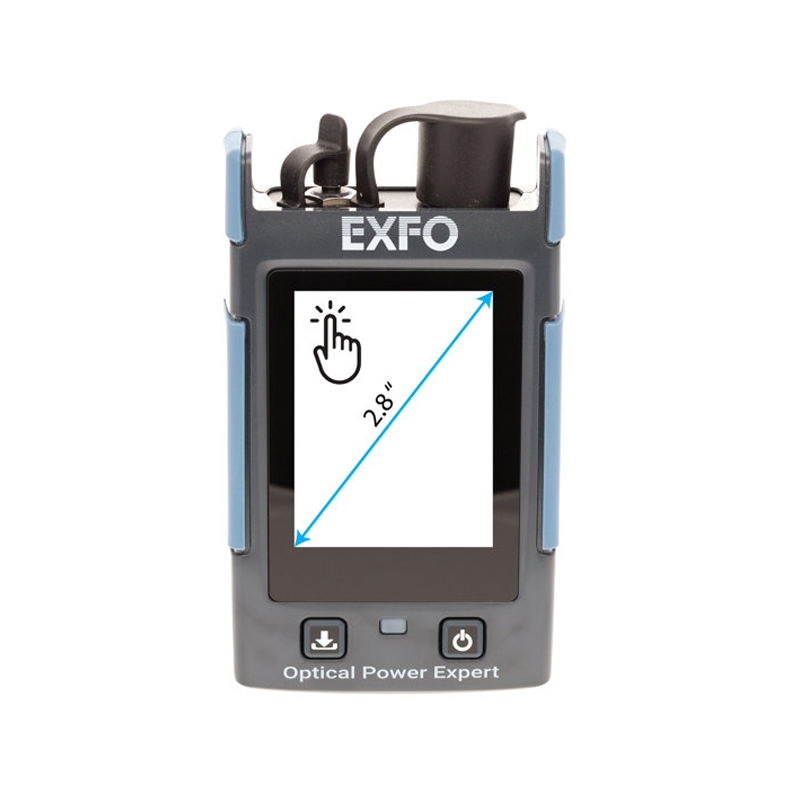

2. User-friendly: Compact, color touchscreen and intuitive interface
3. Robust and rugged: IP54 design for dust and water protection
4. Time-saving features: no offset nulling, lightning-fast boot-up
5. Visual fault locator (PRO model)
6. Onboard data storage of 1000 test results
7. Error-free, automated wavelength recognition and switching (PRO model)
8. 3-year warranty and calibration interval
Applications
1. Measuring optical power and insertion loss
2. Fiber tracing
3. Passive optical networks (PON)
4. 5G rollouts
5. FTTx
6. LAN/WAN access and enterprise
7. CATV
8. Military applications
AUTOMATED TESTING = ERROR-FREE TESTING

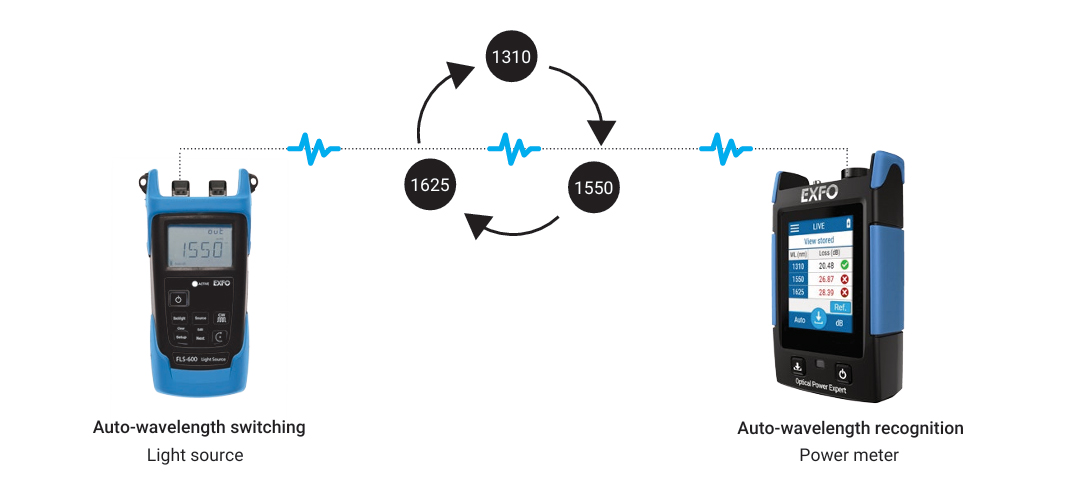

When used in combination with an EXFO light sourcea in auto-switching mode, the power meter automatically recognizes the wavelength in use and switches to the proper calibration parameter. At the press of a button, you can store results for all wavelengths at once.
FIBER TRACING

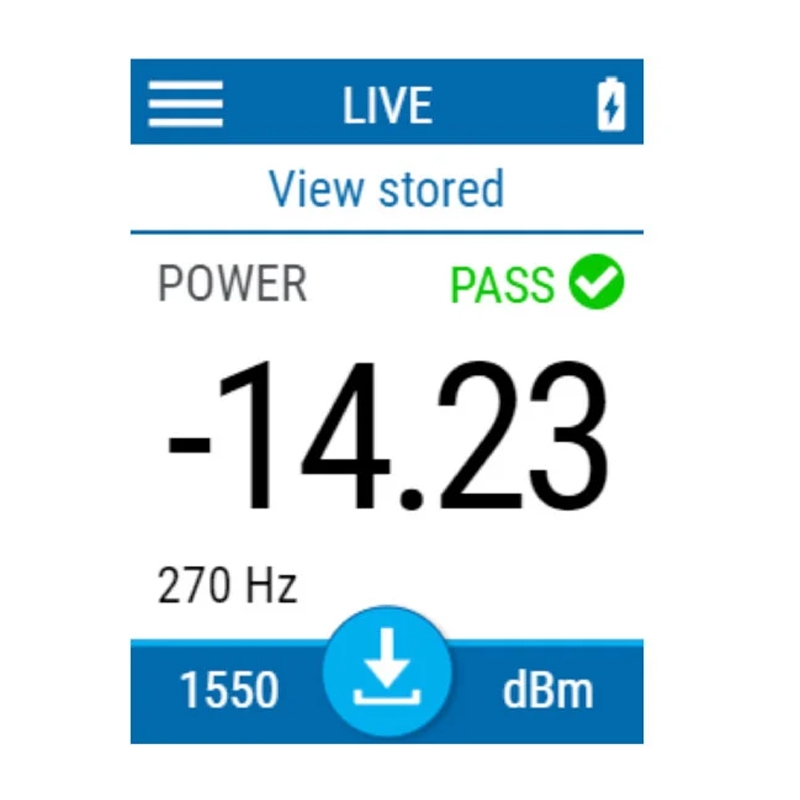

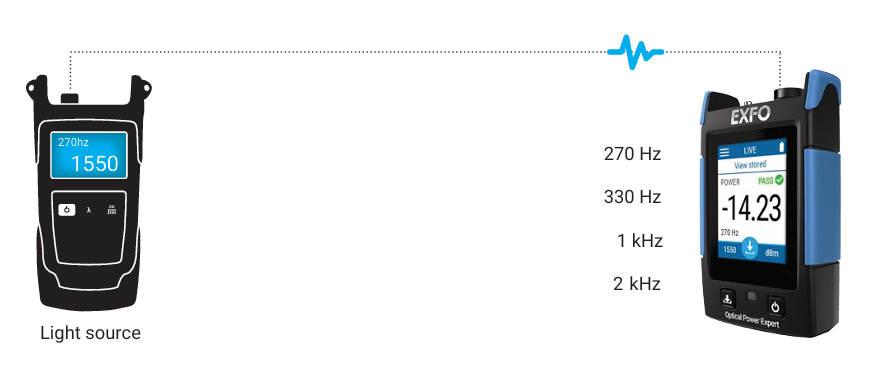

When it comes to fiber tracing, the Optical Power Expert can detect four different tones emitted from a sourcea: 270 Hz, 330 Hz, 1 kHz and 2 kHz.

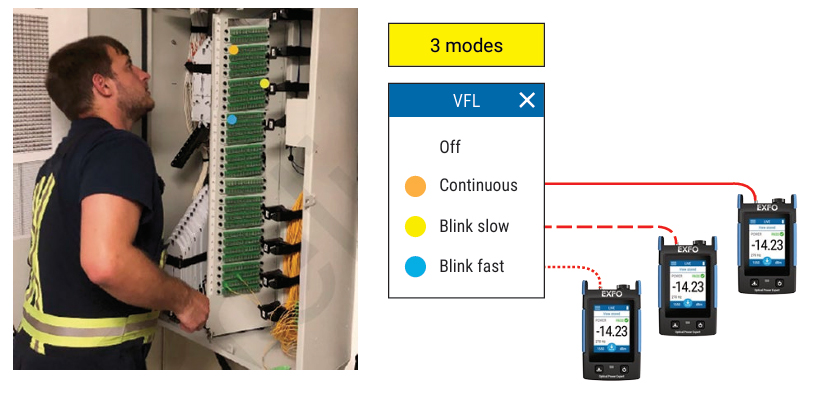

The PRO configuration includes a visual fault locator that emits light in three different modes (continuous, slow blink and fast blink)
to trace fibers and identify breaks and macrobends.

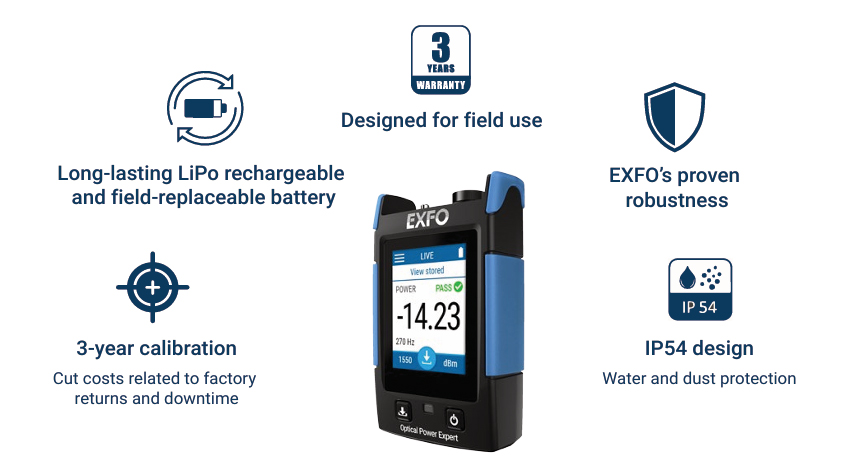

LOW COST OF OWNERSHIP
Designed for extended use in the field, the Optical Power Expert delivers best-in-class optical performances day in, day out. EXFO’s
track-record of robustness, backed with IP54 design for water and dust protection, makes this device extremely reliable and a
long-lasting investment.
CONFIGURATIONS AVAILABLE
The Optical Power Expert is available in two configurations: PX1 and PX1-PRO.
Both the PX1 and PX1-PRO are available with either standard detector (10 to –70 dBm) or high-power detector (26 to –50 dBm).
PX1
Features
1. Measure absolute power (dBm) and loss (dB)
2. Pass/fail status
3. 11 calibrated wavelengths
4. Tone detection
PX1-PRO
Features
1. Measure absolute power (dBm) and loss (dB)
2. Pass/fail status
3. 45 calibrated wavelengths organized in bundles
4. Tone detection
5. Applicative bundle of wavelengths for PON (GPON, XGS-PON, NG-PON2, RFoG), CWDM and DWDM ITU channels
6. Add up to 24 wavelengths to favorite list
7. Wavelengths adjustable by 1 nm steps
8. Visual fault locator (VFL)
9. Auto-wavelength recognition and switching
10. Soft-pouch included

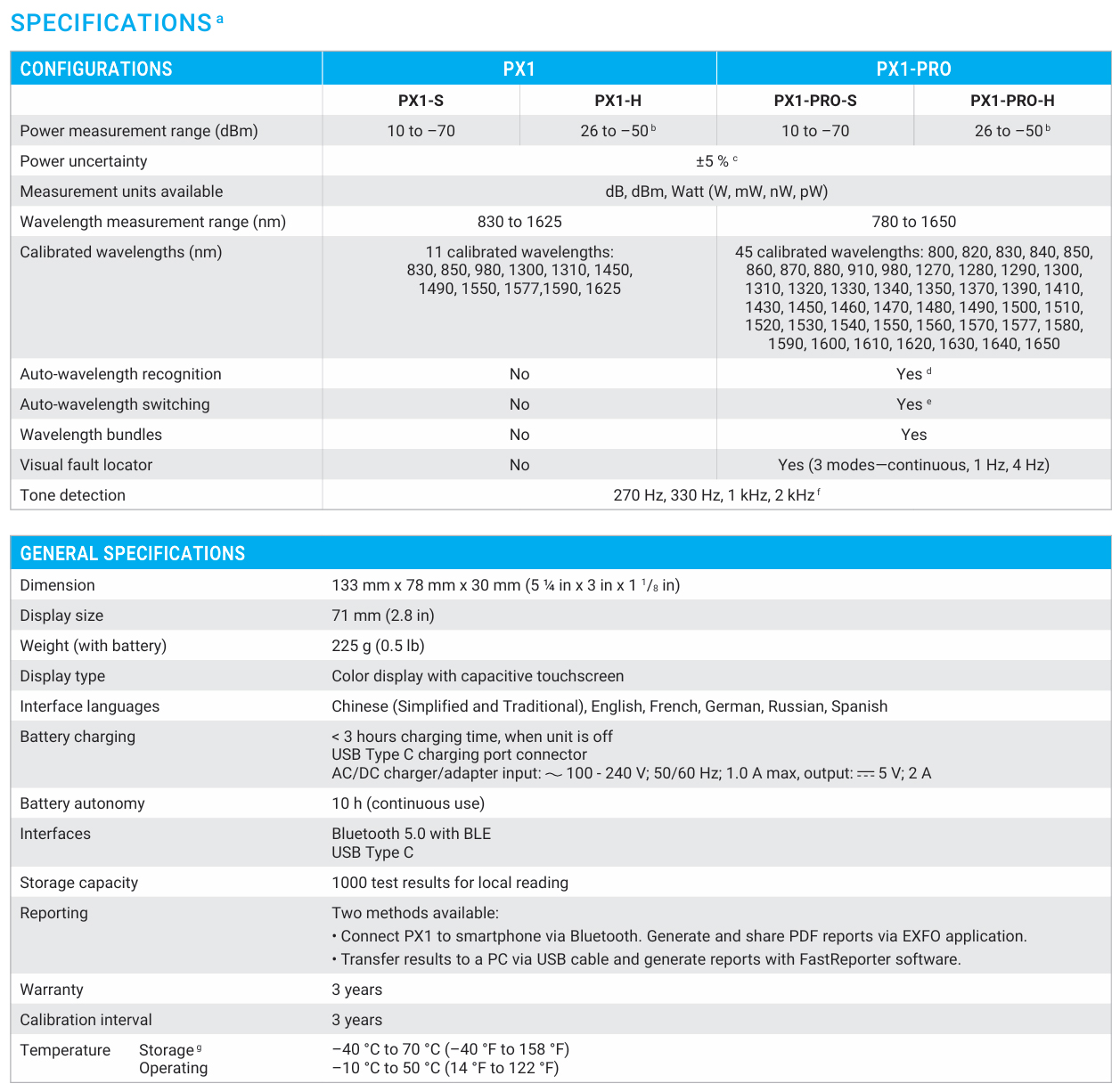

a. Specifications valid at (23 ± 1 °C), 1550 nm, with an FOAS-22 adapter and FC/UPC connector.
b. Typical.
c. Singlemode fiber or a 50 µm fiber. Bluetooth ON. Charge OFF. Brightness at 75 %. Between 17 dBm to –35 dBm for high-power model. Between 5 dBm to –50 dBm for standard model.
d. Auto-wavelength recognition with FLS-300, FLS-600, FOT-300, FOT-600.
e. Auto-wavelength switching with FLS-600, FOT-600.
f. Wavelength measurement range up to 1650 nm.
g. Without battery.
