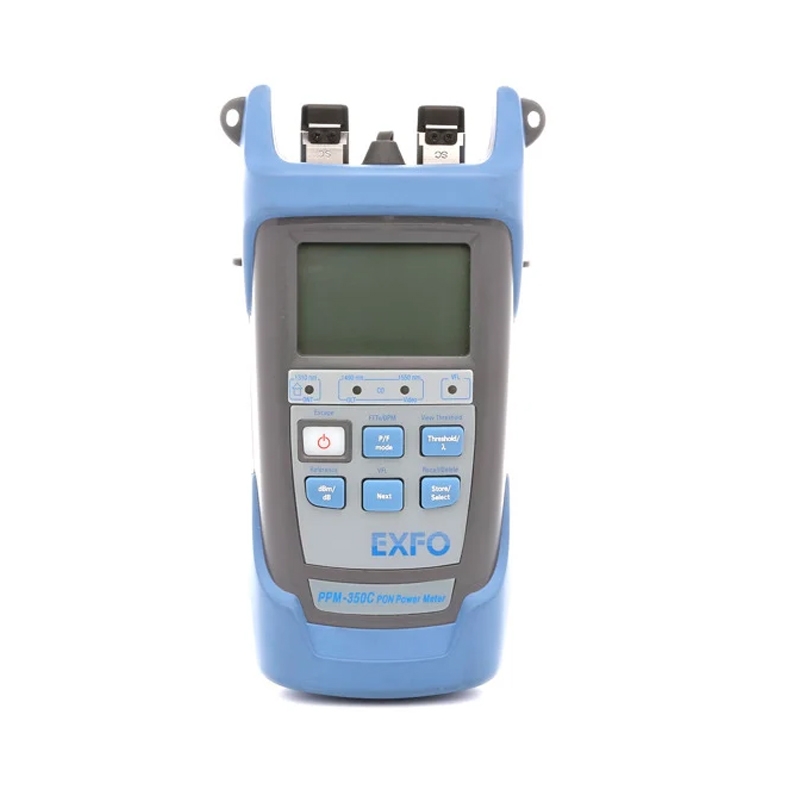

PPM-350C PON
power meter
Unique workflow management for faster PON deployments.
KEY FEATURES
1. Concurrent measurement of all PON signals anywhere on the network
2. Innovative workflow management for boosted test routine efficiency
3. Enhanced rugged and weatherproof design
4. Protected data format for guaranteed test result authenticity
Applications
1. BPON, EPON and GPON configurations
2. Service activation and troubleshooting
3. Data storage and reporting capabilities
THE FRONTRUNNER NOW RUNS EVEN FASTER
When FTTH was first deployed, EXFO was there to test it, namely by pioneering the concurrent upstream/downstream measurement technique via a pass-through connection. In fact, the EXFO-pioneered PPM-350 Series, which quickly established itself as the clear-cut leader in the PON power meter market—over 35000 units sold—has played an important part in major FTTH deployments worldwide.
Since then, we have developed our instrument even more to provide you with the best PON power meter to date. The PPM-350C enables quick, on-site testing of all PON signals, anywhere on the network. Its new workflow management capabilities and enhanced ruggedness will increase the efficiency of your daily deployment activities.
Moreover, its visual fault locator port allows for easy fiber identification and macrobend location. This handheld unit also features
pass/warning/fail LED indicators with user-defined thresholds.
RELIABLE PERFORMANCE, WHETHER THE ELEMENTS AGREE OR NOT
Thanks to its enhanced weatherproof design and intuitive user interface, and building on the strength of its predecessor (PPM-350B), the PPM-350C PON power meter establishes a new FTTx testing benchmark. It delivers fast, reliable results, even when used in cold, wet or windy conditions.

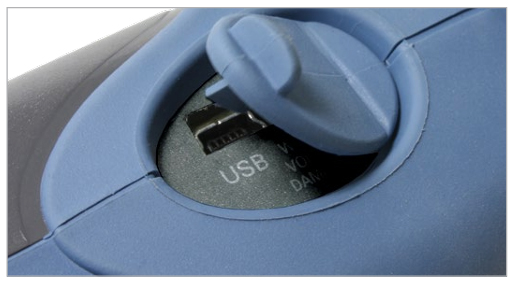

Easy-to-access data storage
The unit’s data storage capabilities provide ultimate flexibility. Transfer your data quickly and easily, store your test results for future reference and generate a wide range of FTTH reports. Moreover, the PPM-350C allows you to store up to 1000 test results, which are downloadable through its USB interface.

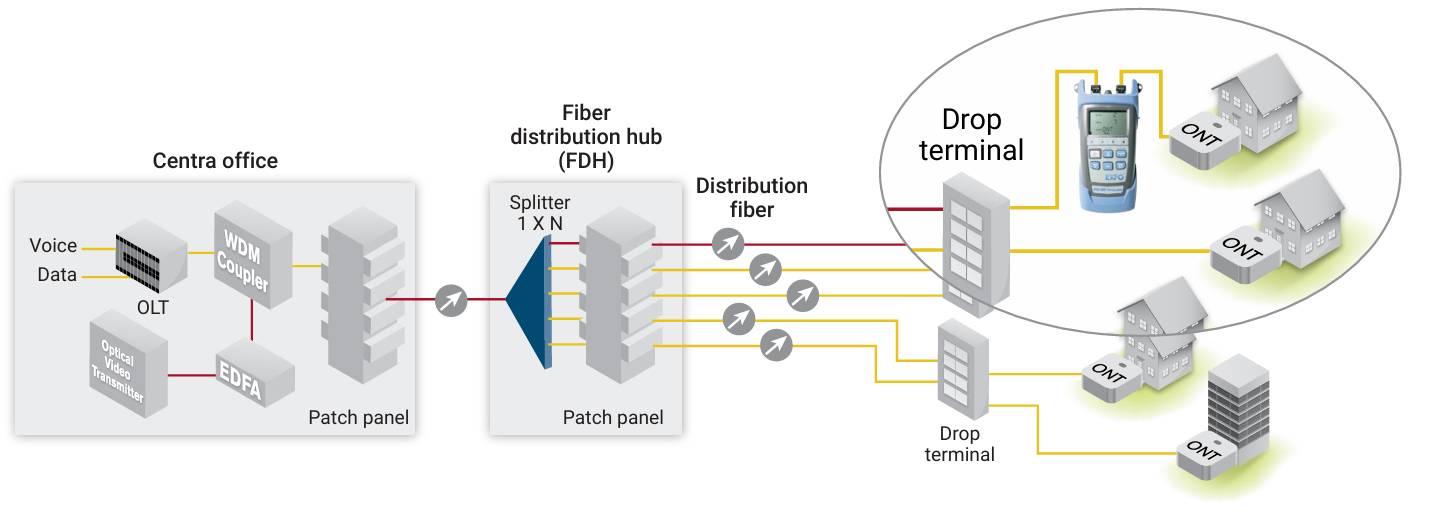

Simultaneous display of all PON signals

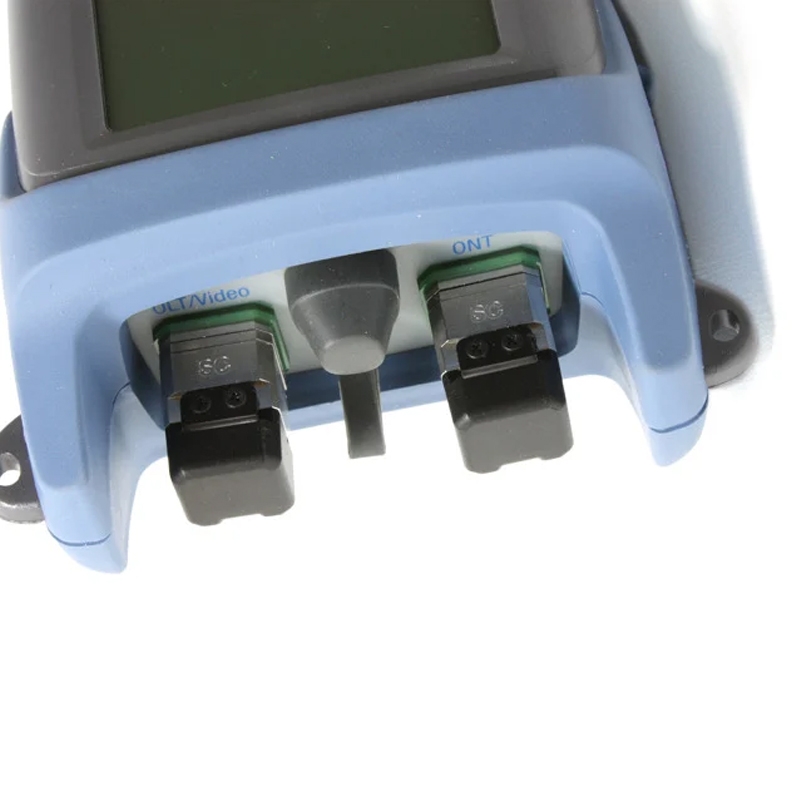

The PPM-350C acts as a pass-through device, allowing the concurrent measurement and simultaneous display of all PON signals—voice, data and video. This patented, built-in technology facilitates service-activation testing and troubleshooting.
Quick and efficient visual inspection
Whether to identify breaks, bends, faulty connectors or splices, as well as other causes of signal loss, the PPM-350C’s optional visual fault locator (VFL) enables quick and easy troubleshooting. This valuable option helps you shorten time-to-restoration cycles and increase the productivity of your field crews.

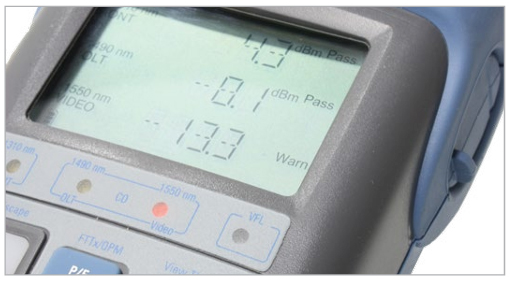

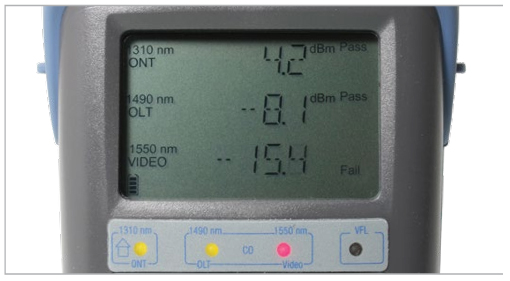

Automated pass / Warning / Fail assessment
In addition to user-defined thresholds, EXFO’s PON power meter offers pass/ warning/fail LED indicators that allow you to clearly and quickly assess your network’s power level. This user-friendly feature facilitates QoS verification.

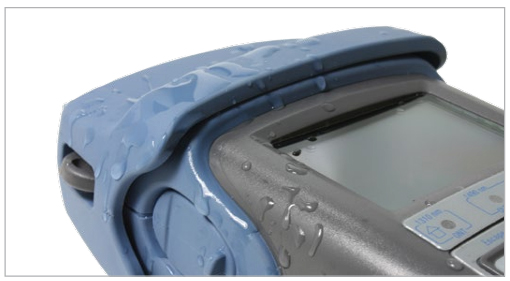

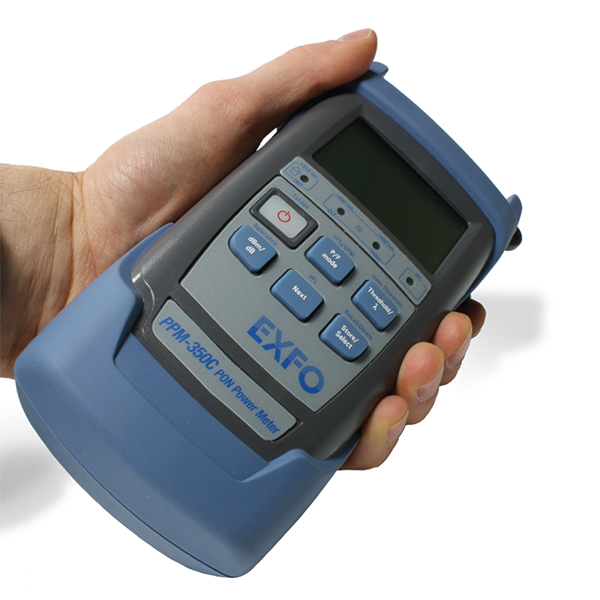

Rugged and weatherproof design

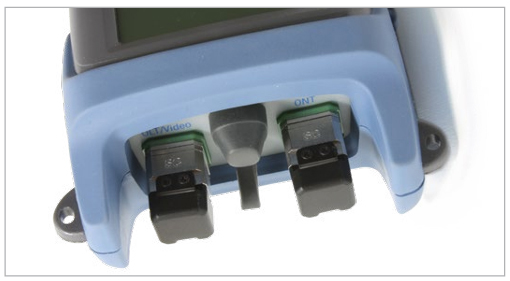

Truly rugged and weatherproof, the PPM-350C is the ideal tool for technicians working outdoors. Its enhanced design also features a waterproof keyboard, port cover flaps and a protective cap.
UNIQUE WORKFLOW MANAGEMENT FOR FASTER DEPLOYMENTS
Ensure the authenticity of each measurement

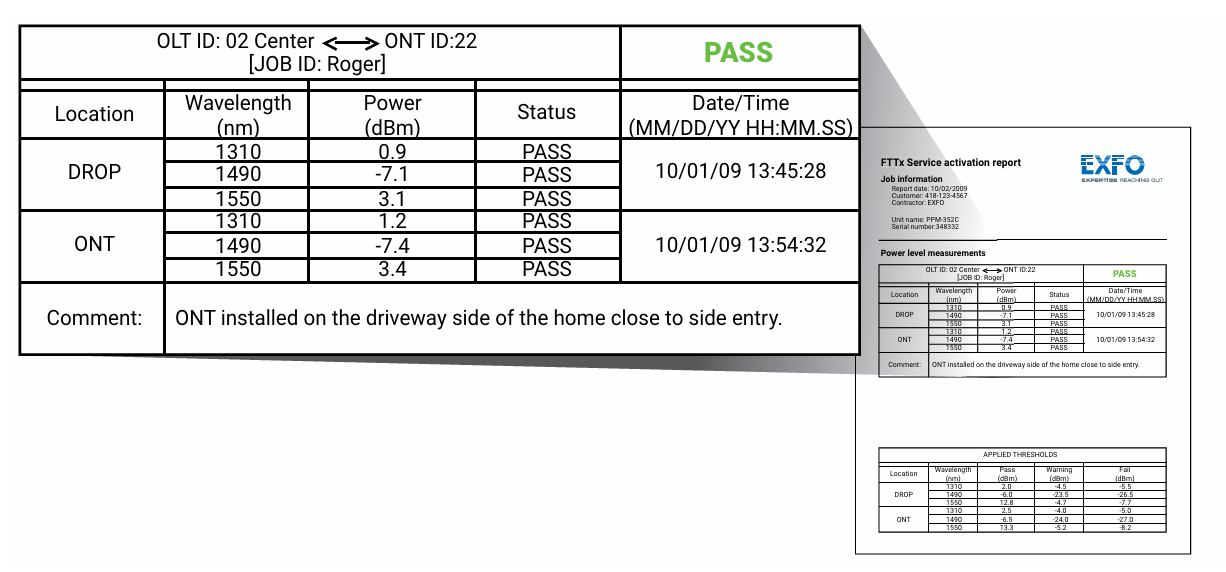

Eliminate guesswork with EXFO’s comprehensive and easy-to-use data-storage interface designed with PON testing in mind. Test results can be stored and flagged per OLT, per ONT and even, per location. Then, they are stored in a protected data format, ensuring the authenticity of each measurement.

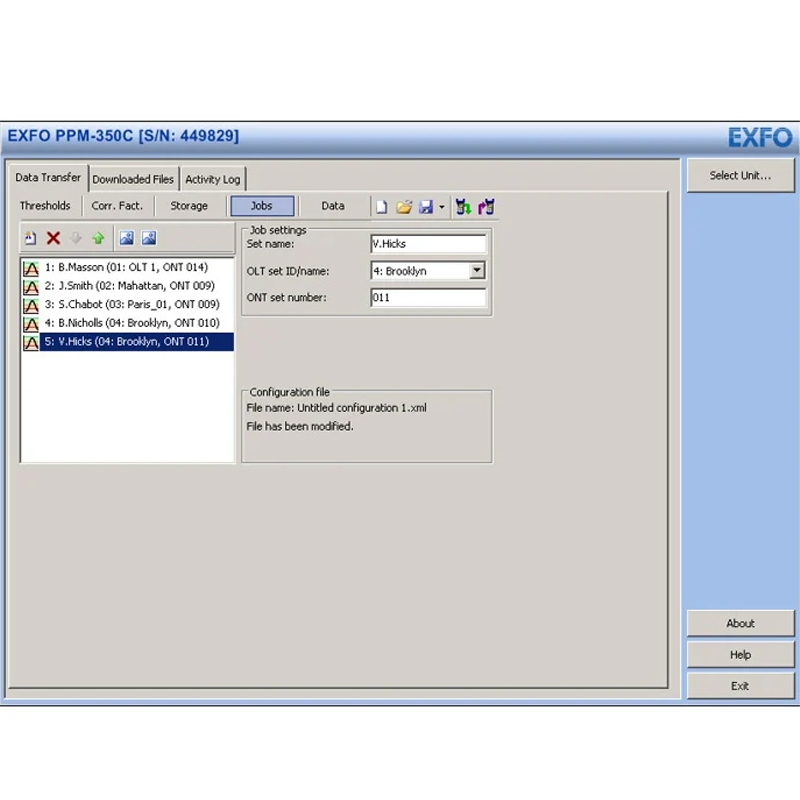

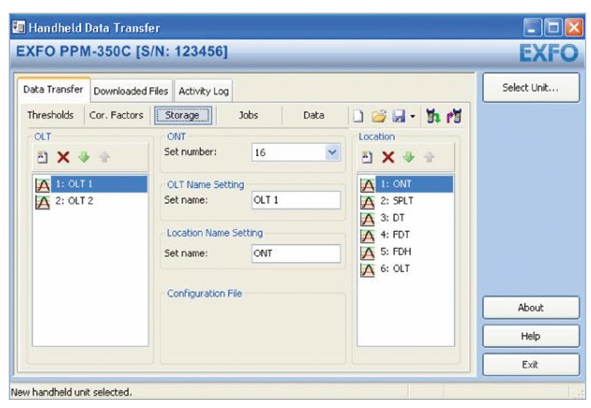

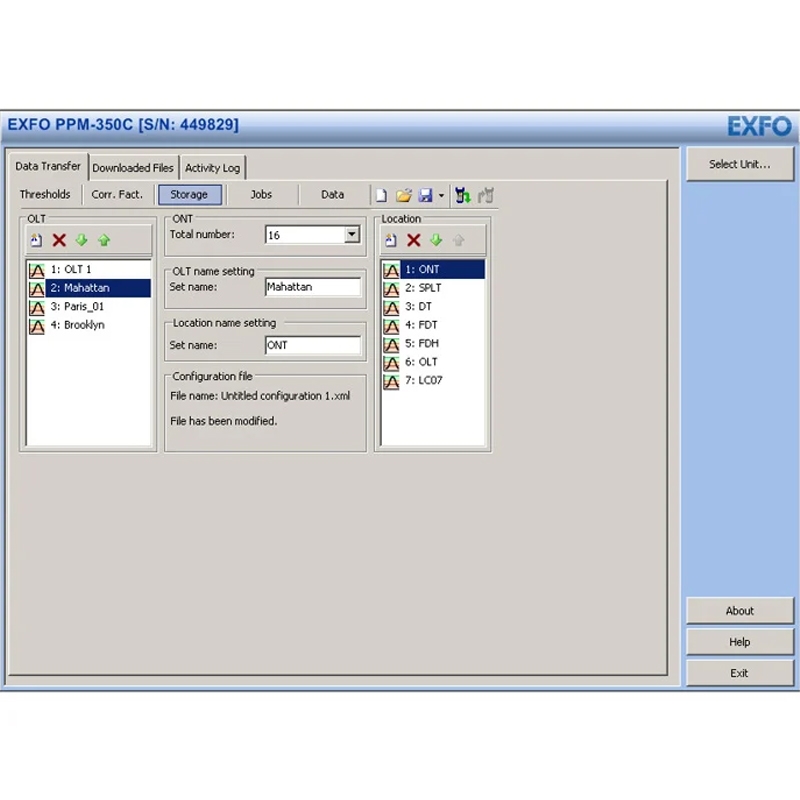

Customize location names, inside and outside
The computer interface allows easy customization of OLT, ONT and location names. Start testing right away; don’t waste time naming files. This time-saving feature eliminates the risk of mistakes. Each file is named correctly so you don’t have to worry about having to rename each file when you are back at the office.
ELIMINATE WRONG DATA NAMING AND SPEED UP TEST ROUTINES

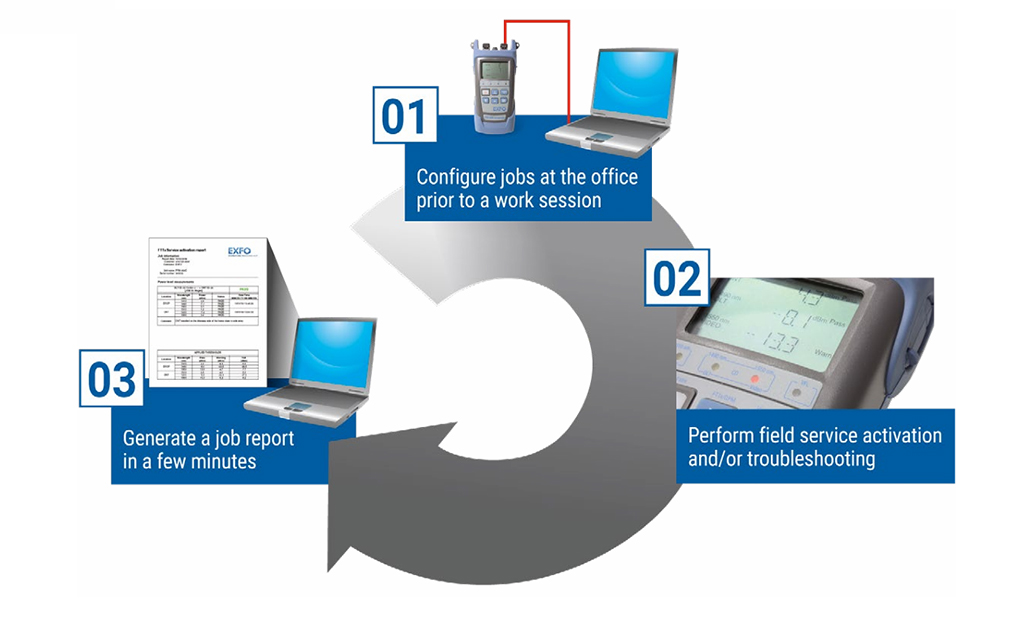

The PPM-350C features a Job Editor mode, which allows you to pre-configure upcoming jobs in the unit’s memory. Once on location, you simply have to select the job ID, the ONT number and the location ID for quick data storage—making the need to carry your work schedule in the field a thing of the past. This is the best way to link results with customers/activations, also called jobs. It’s as easy as 1-2-3:
Plus, even when the Job Editor mode is not configured, you can still store your results using generic names, for quick and efficient testing.

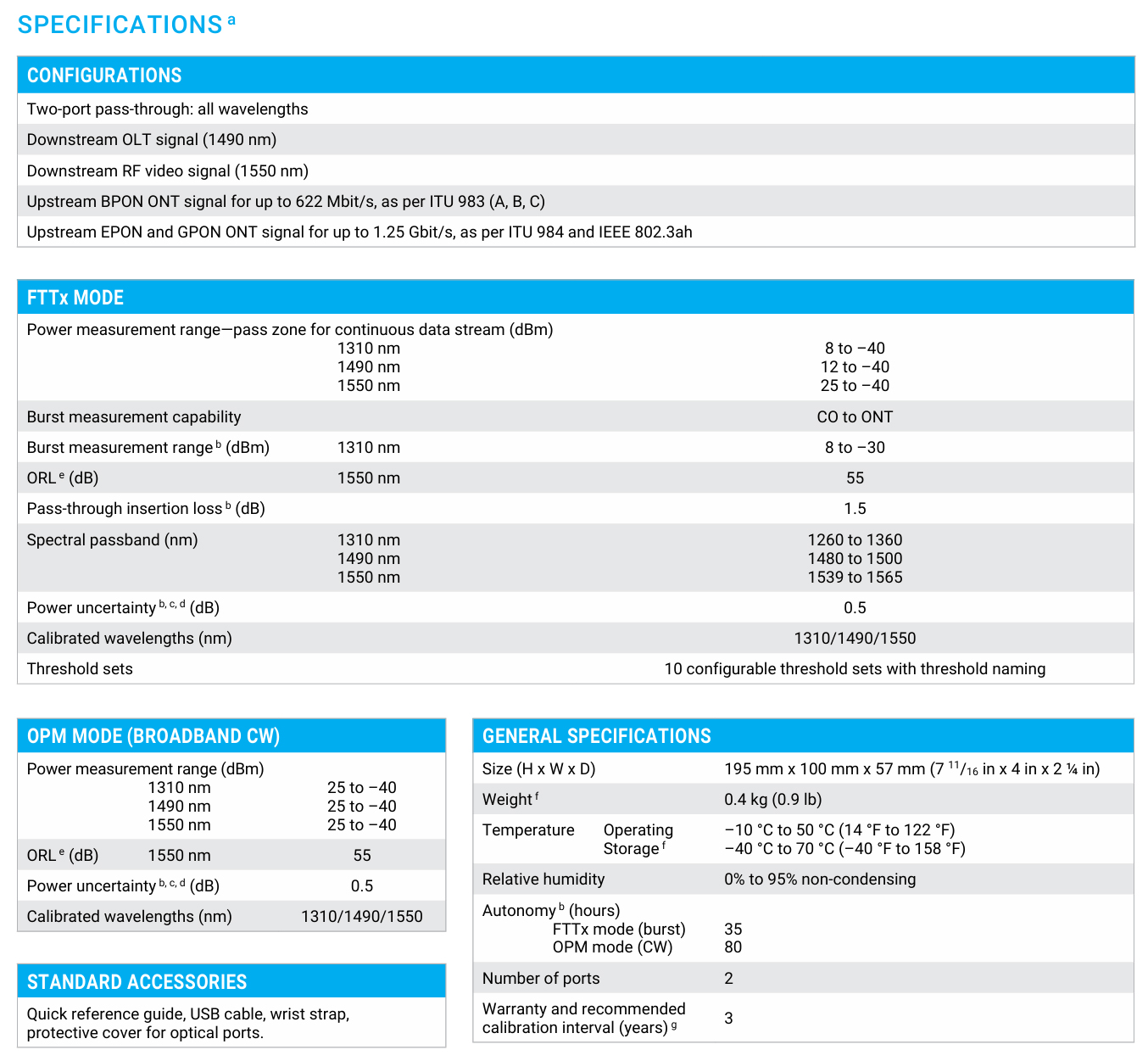

a. At room temperature.
b. Typical.
c. Around –7 dBm, CW.
d. At calibrated wavelengths.
e. For APC connectors.
f. Without batteries.
g. Excluding connector wear.
