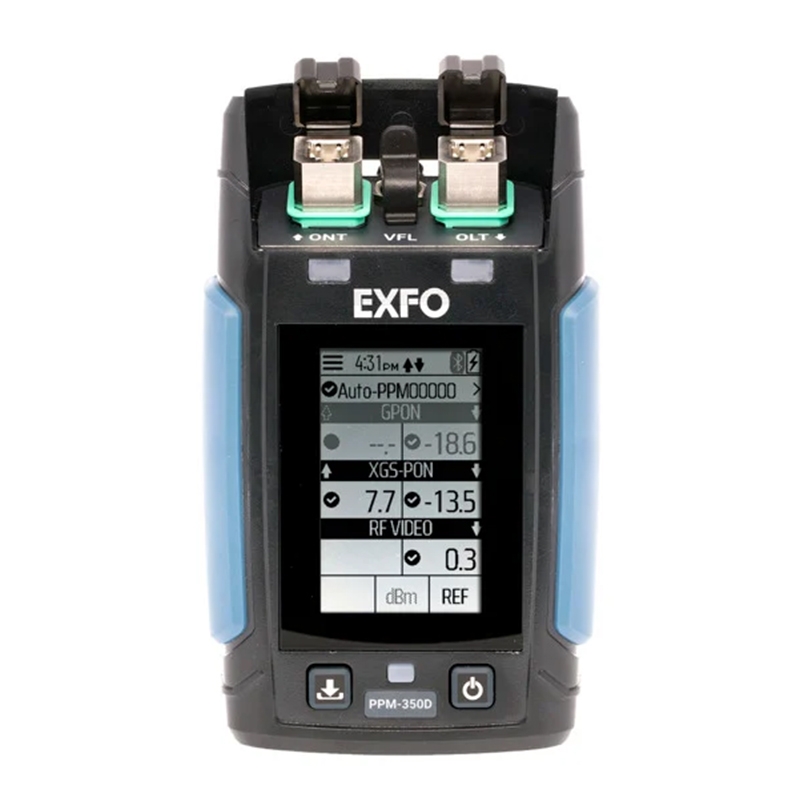

PPM-350D PON power meter
TEST ANY PON TECHNOLOGY WITH ONE INTELLIGENT INSTRUMENT
This intelligent PON power meter automatically detects and adapts test parameters to the PON technology in use at the customer premises, thanks to its groundbreaking, patented PON-aware™ capability.
Key features
1. Unique PON-aware™ capability automatically detects PON technology in use
2. Compatible with GPON and EPON networks (GPON, EPON, XG-PON, XGS-PON, NG-PON2, 10G-EPON)
3. Supports 10G-capable PON networks
4. Pass-through mode for ONT/ONU verification
5. Bluetooth and USB connectivity
6. Smart app to configure, execute and report jobs
7. Job mode operation with predefined fiber ID and test configuration
8. Compact, rugged and designed to comply with the IP54 enclosure standard
9. Rechargeable battery lasts for up to 8 hours of continuous use
Applications
1. Supports legacy & next-gen PON technologies, including XGS-PON and NG-PON2
2. Single-layer PON service activation
3. Multi-layer PON service activation
Description
To provide the right speeds to the right customers, communications service providers (CSPs) are deploying next-gen and legacy passive optical network (PON) technologies by overlaying multiple new wavelengths on existing fibers. This brings new challenges for quick and accurate testing during the critical service activation phase: CSPs need power meters capable of testing next-gen and legacy PON technologies, and their field teams need to be sure they are correctly testing the right technology.
The PPM-350D was designed to tackle both challenges head-on with its unique PON-aware™ technology. Developed in partnership with a Tier 1 CSP, the PPM-350D PON Power Meter automatically detects and adapts test parameters for the PON technology in use at the customer premises, eliminating costly guesswork by field technicians. As a result, service providers can deploy faster, cut activation costs and boost customer satisfaction.
Key benefits:
1. Automate test results management.
2. Boost compliance and efficiency.
3. Improve collaboration and visibility.
4. Access comprehensive reporting.
5. Unlock insights to see what matters.
NEXT-GENERATION PON COMPLIANT
Next-generation passive optical networks (PONs) will, in most cases, leverage the existing outdoor plant infrastructure already in use for current PON customers. This adds a level of complexity to PON testing since multiple wavelengths will reach the end user at the service activation location. Having the right instrument is vital to avoid meaningless test results or false positives.
EXFO’s PPM-350D can be used in legacy and next-generation PON scenarios. It is compatible with single-layer PON and RF overlays as well as mixing a next-generation layer on top of it. The PPM-350D affords the unique ability to test several next-generation PON technologies (XGS-PON, NG-PON2) with a single unit. With the same PPM-350D test unit you can tackle today’s increasing field complexities and you are already equipped for tomorrow’s PON challenges.

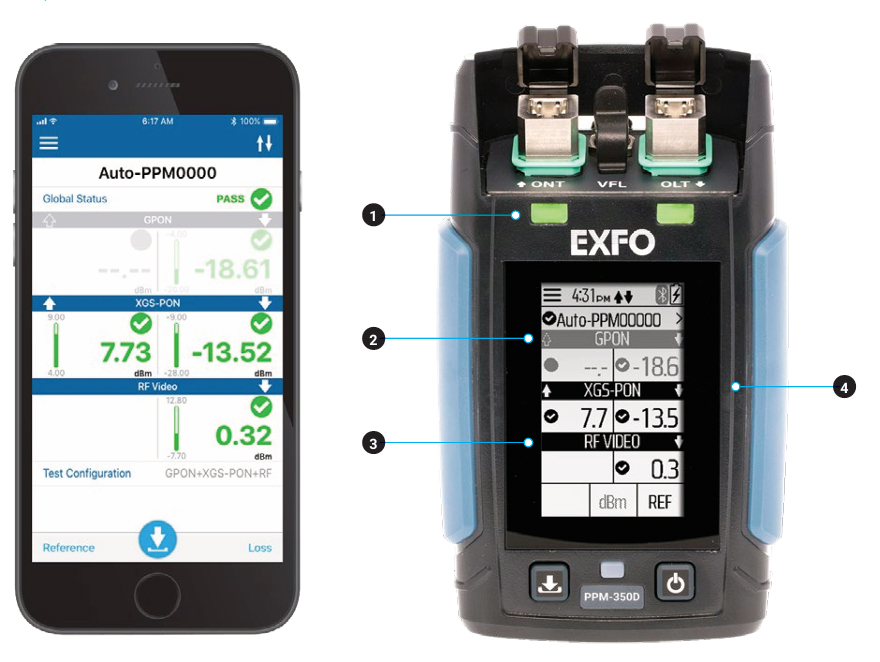

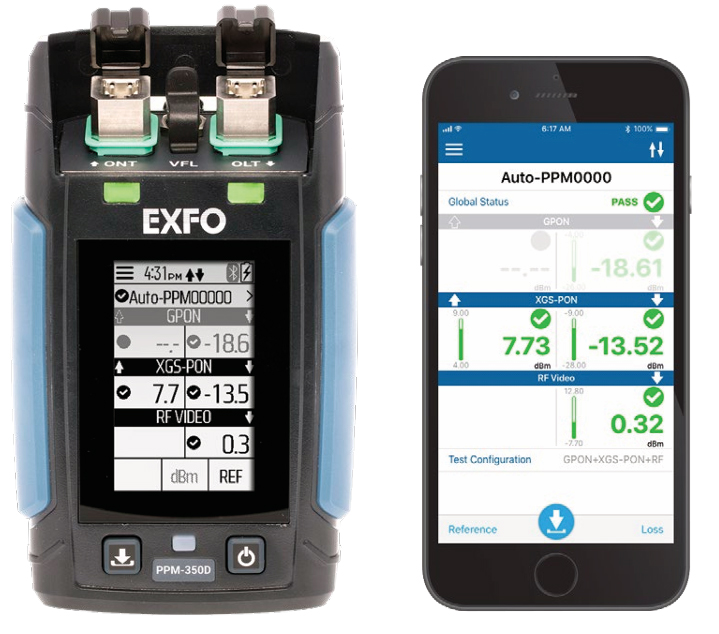

EQUIPEMENT AND MOBILE APP OVERVIEW
Example of a triple layer network with GPON, XGS-PON and an RF video overlay. PON-aware™ technology helps technicians validate the service activation for GPON and XGS-PON customers with a single test configuration. The PON-aware™ feature automatically detects the service being activated and provides a clear pass/fail status according to that service.
1. Pass/fail LEDs for upstream and downstream.Get a clear view of pass/fail status without looking at the screen.
2. Touchscreen interface
3. View of multiple layers simultaneously

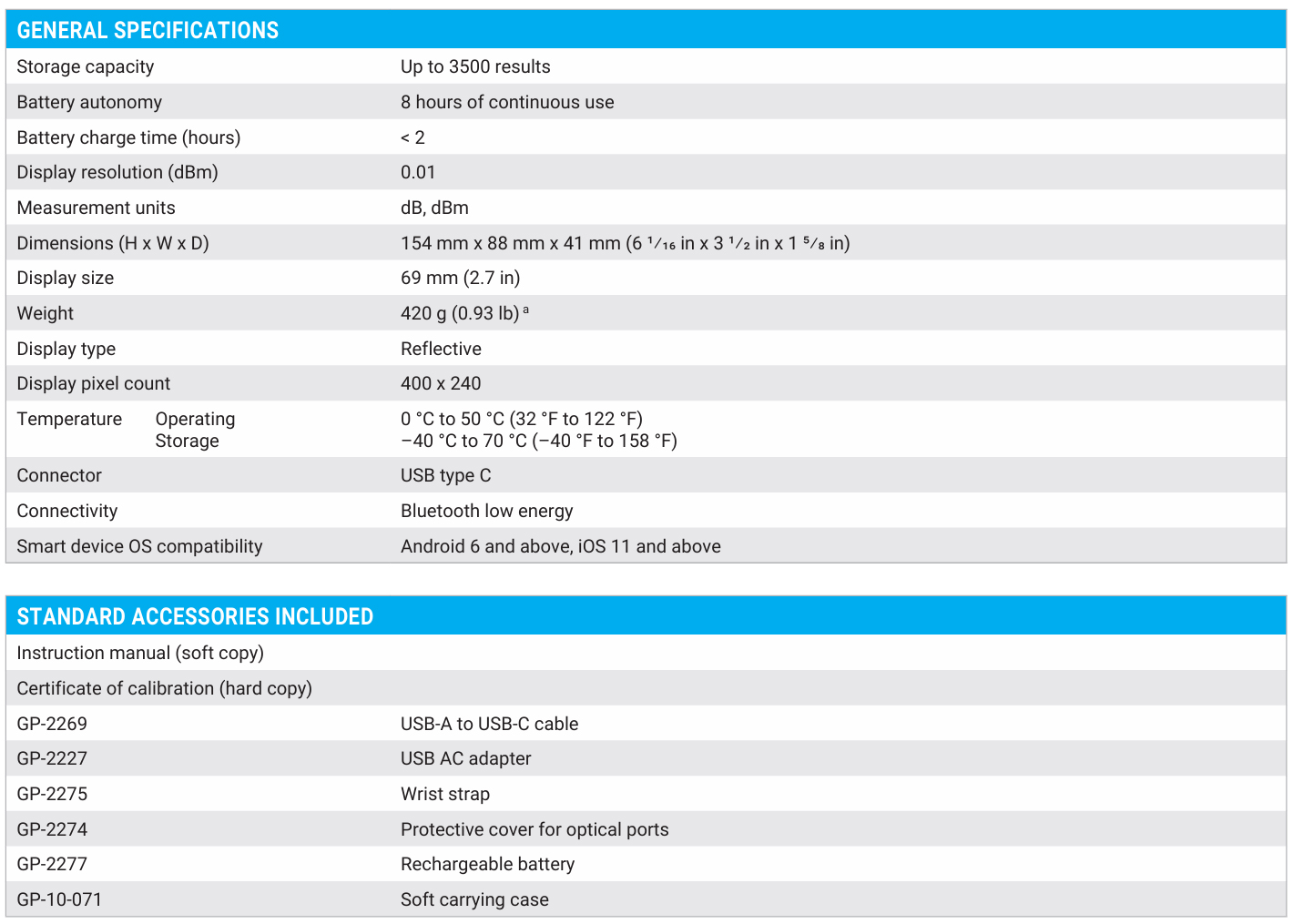

4. Designed in compliance with IP54 rating. Rechargeable battery. Internal storage up to 3500 results.Bluetooth® and USB connectivity.
REPORTING
Create complete service activation reports directly from your mobile device.
LOSS TESTING
On top of using it for PON service activation, the PPM-350D can be used to measure insertion loss (IL) of fiber networks using a portable light source or the PON system transmit cards of the optical line terminal (OLT) at the central office. The PPM-350D and the mobile application feature a loss testing mode to take a reference for accurate IL measurement of the fiber under test.

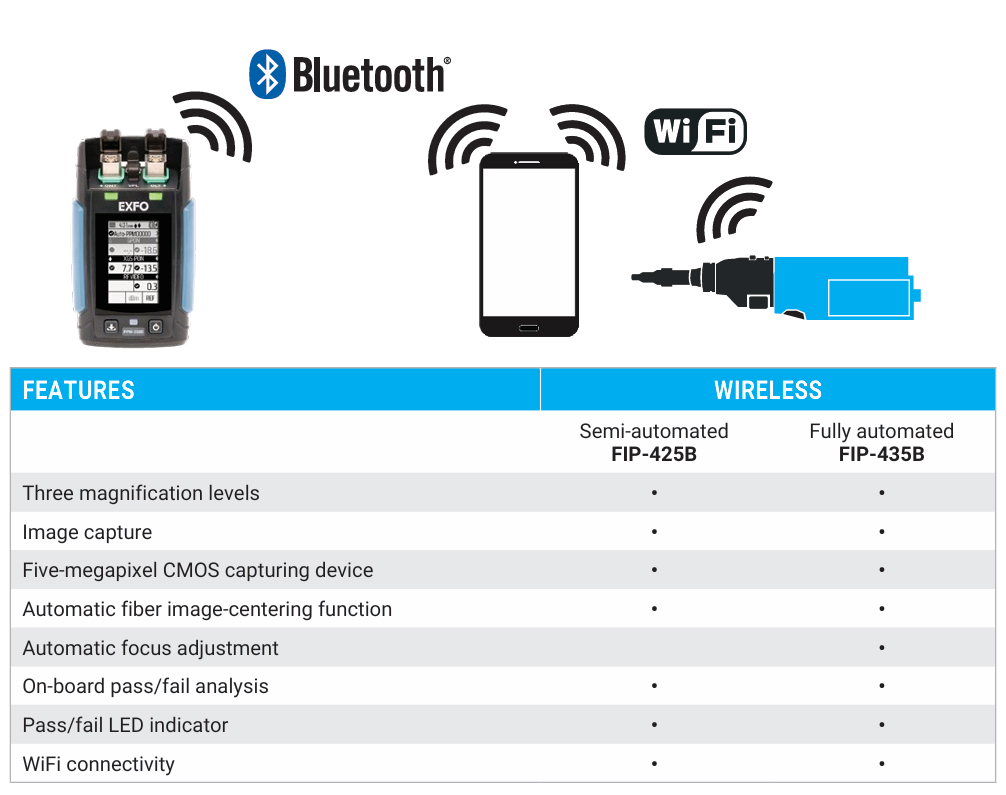

FIBER CONNECTOR INSPECTION AND CERTIFICATION– THE ESSENTIAL FIRST STEP BEFORE ANY OPTICAL TESTING
Taking the time to properly inspect a fiber optic connector using an EXFO fiber inspection scope can prevent a lot of issues from arising further down the line, thus saving you time, money and trouble. Moreover, using a fully automated solution with autofocus capabilities will turn this critical inspection phase into a fast and hassle-free one-step process.
DID YOU KNOW THAT THE CONNECTOR OF YOUR TEST INSTRUMENT IS ALSO CRITICAL?
The presence of a dirty connector at a test instrument port or test jumpers can negatively impact your test results, and even cause permanent damage during mating. Therefore, it is critical to regularly inspect these connectors to ensure that they are free of any contamination. Making inspection the first step of your optical testing is a best practice that will maximize the performance of your instrument and your efficiency.

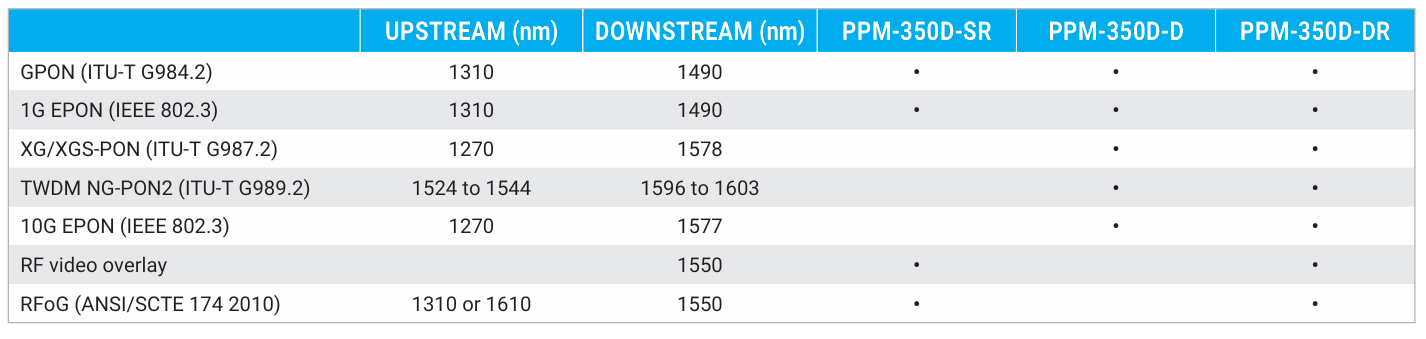

THREE PON OPTIONS
Available in three options, this instrument is tailored to fit your needs. Choose between single- or dual-layer PON testing and RF overlay supporting RF video.
VISUAL FAULT LOCATER OPTION
The PPM-350D’s optional visual fault locator (VFL) enables quick and easy troubleshooting to identify breaks, bends and faulty connectors or splices, as well as other causes of signal loss. This valuable option helps you shorten time-to-restoration cycles and increase the productivity of your field crews.

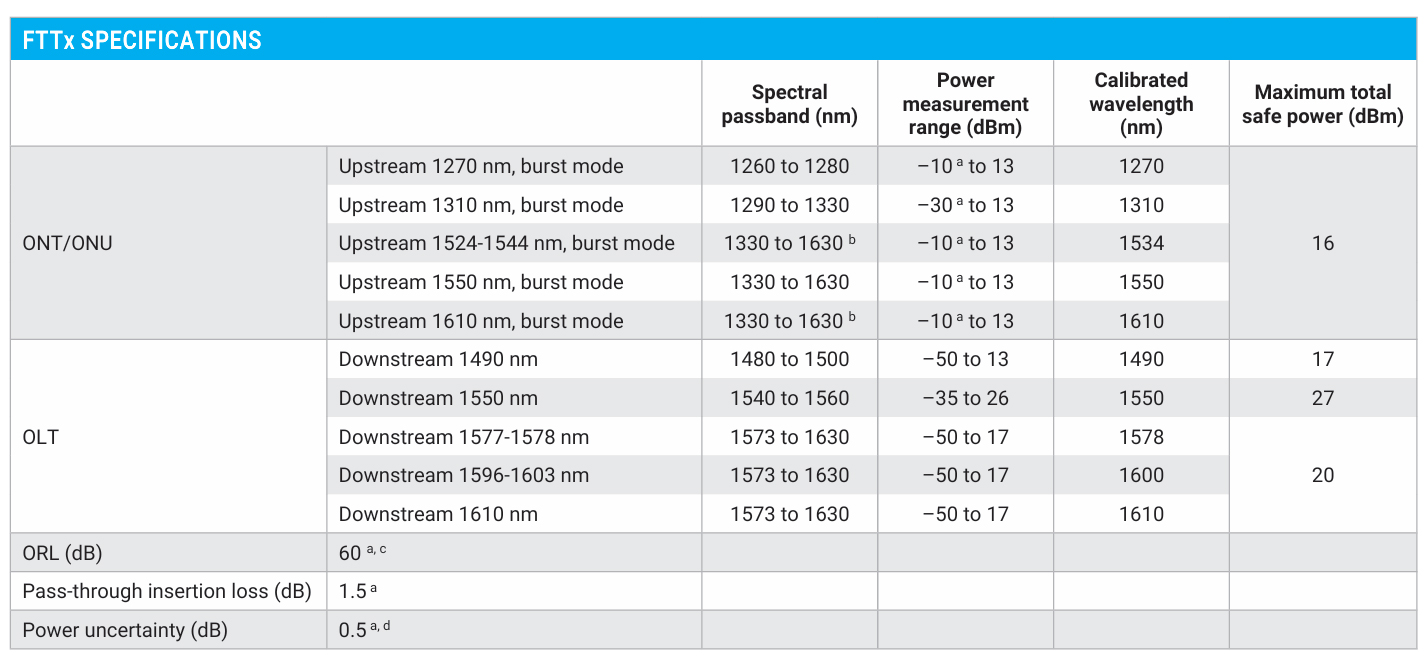

a. Typical, at 23 °C ± 3 °C and with SC/APC connectors.
b. For model PPM-350D-DR, 1555 nm ± 5 nm is excluded from the spectral passband.
c. At calibrated wavelength.
d. At input level 2 dBm, CW.
a. PPM-350D-SR model
