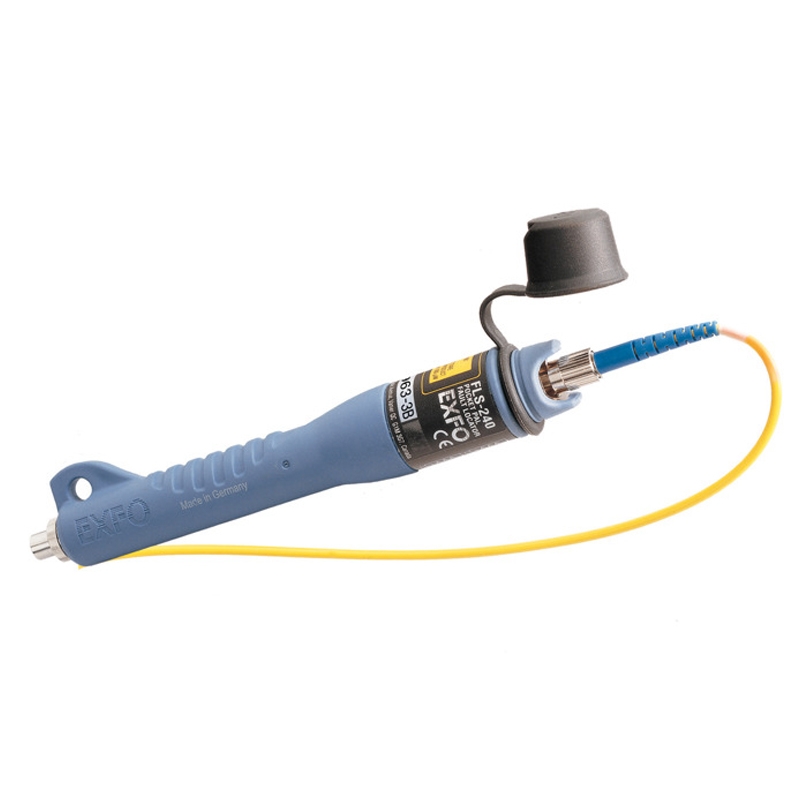

FLS-240 pocket pal
VISUAL FAULT LOCATOR (VFL)
The FLS-240 is the easiest way to identify fibers from end to end and locate polished connector endfaces.
Rugged design for demanding locations
Due to its small size, lightweight and simple but proven design, the Pocket Pal can accompany you anywhere. In your pocket or belt pouch, carry your FLS-240 to the most demanding environments.
Key features
1. Bright red laser at 635 nm
2. Pulsed and CW operation
3. 50 hours of operation (typical)

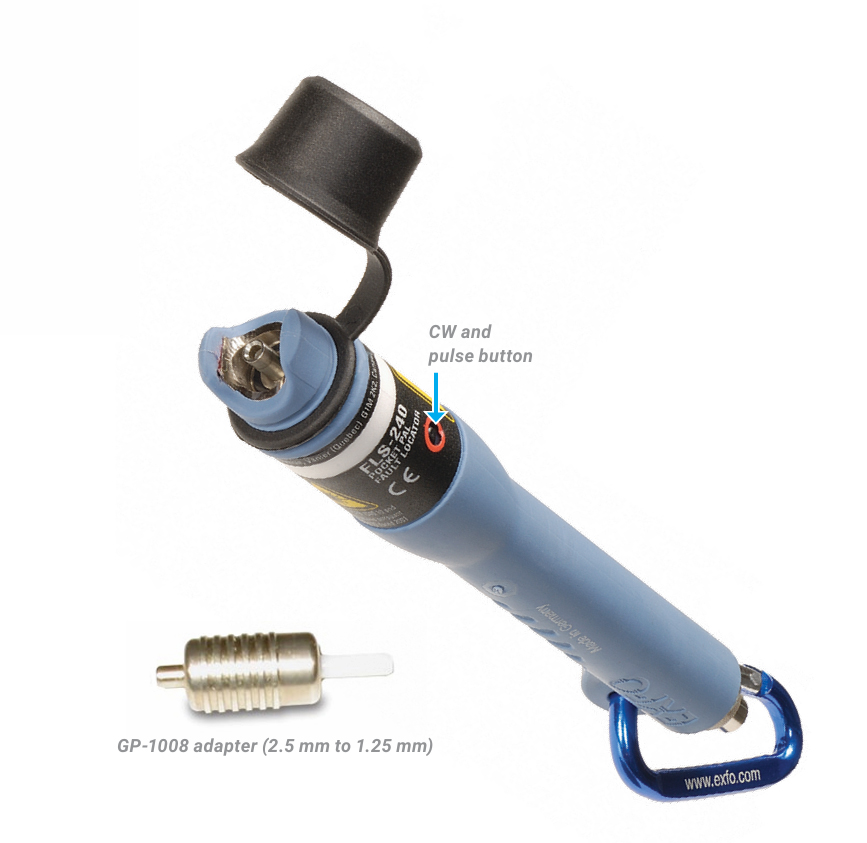

4. 2.5 mm universal connector
5. Rugged and weatherproof
Applications
1. Break and macrobend location
2. Fiber identification
Description
The FLS-240 Pocket Pal Visual Fault Locator is a straightforward solution for identifying breaks, bends, faulty connectors or splices, as well as other causes of signal loss. It can detect faults over distances of up to 5 km. The FLS-240 visually locates faults by creating a bright red glow at the exact location of the fault on singlemode or multimode fibers.
Robust design
To ensure ruggedness, the Pocket Pal features rubber seals, a fully enclosed laser head and a long-lasting On/Off switch. It has been tested to provide reliable operation under intensive use and harsh conditions.
The FLS-240 is the easiest way to identify fibers from end to end and locate polished connector endfaces. Its red laser shines through most yellow-jacketed fibers to help you pinpoint breaks, bends, faulty connectors, splices and other causes of signal loss. It has a reach of up to 5 km *. The convenient FLS-240 locates faults visually by creating a bright red glow at the exact location of the fault on singlemode or multimode fibers.
Due to its small size, lightweight and simple but proven design, the FLS-240 can accompany you anywhere. In your pocket or belt pouch, carry your FLS-240 to the most demanding environments. To ensure ruggedness, it features rubber seals, a fully enclosed laser head and a long-lasting On/Off switch. It has been tested to provide reliable operation under intensive use and harsh conditions.
* Typical length of continuous fiber at which end-to-end identification is possible. VFL depends on ambient light conditions at test site.

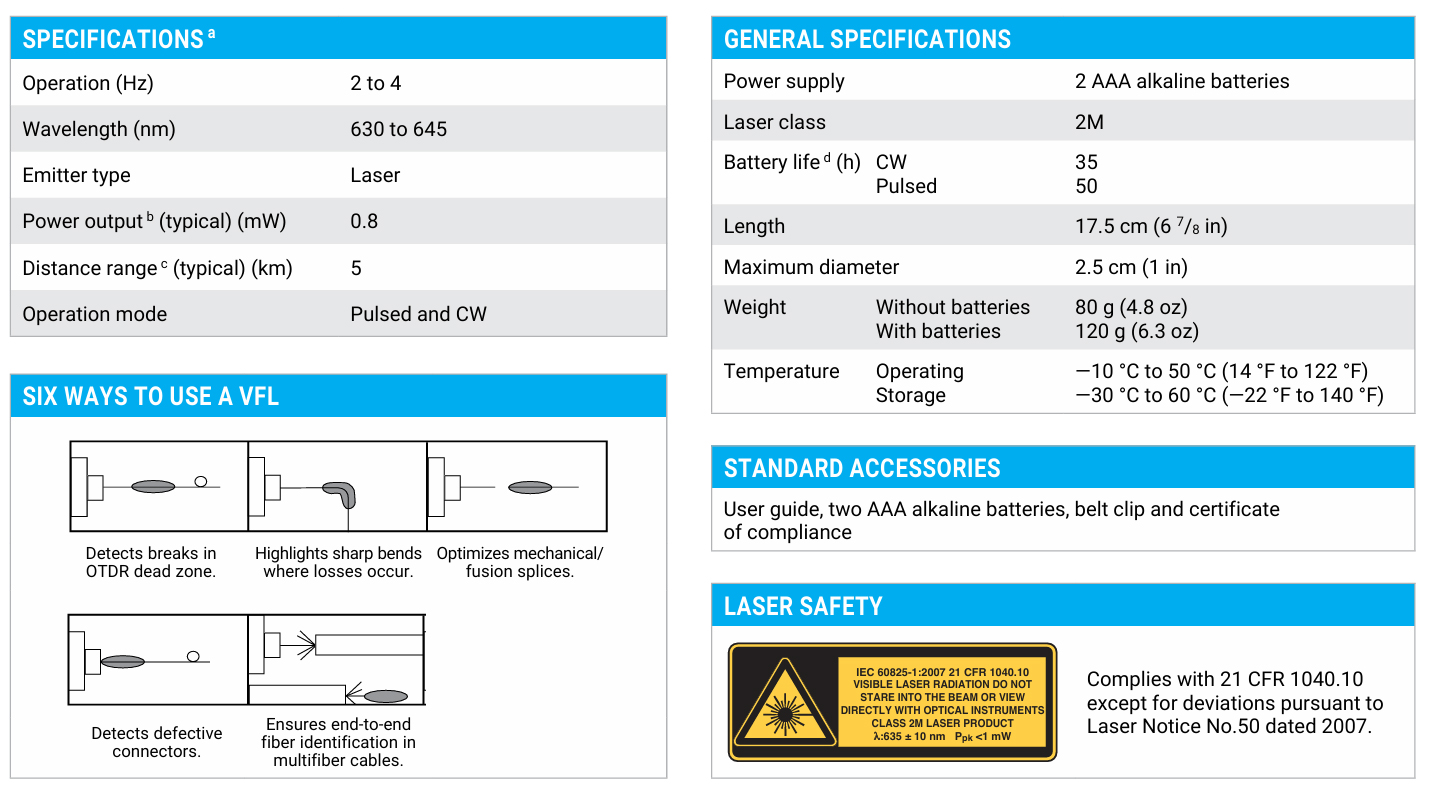

a. Specifications are valid at 23 °C ± 1 °C.
b. Only valid with 50/125 µm fiber.
c. Depends on fiber attenuation.
d. Typical battery life using AAA alkaline batteries. Battery life may fluctuate significantly, depending on specific unit’s laser current.
