Key features
1. Rugged, handy, lightweight, tablet-inspired design built for outside plant
2. 7-inch, outdoor-enhanced touchscreen—the biggest in the handheld industry
3. 12-hour autonomy
4. Dynamic range of up to 36 dB in singlemode and 29 dB in multimode
5. FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

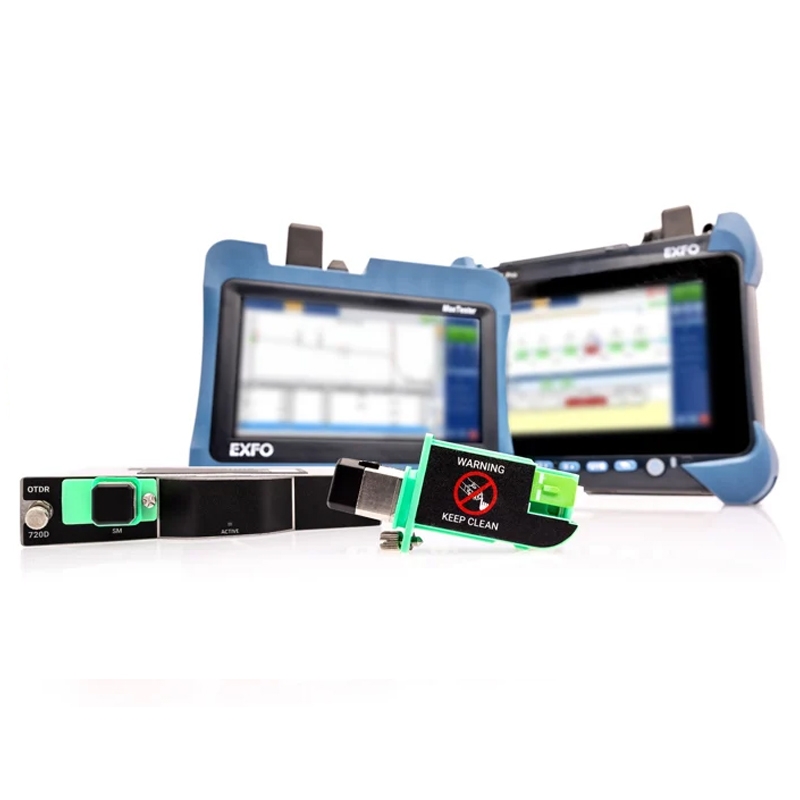

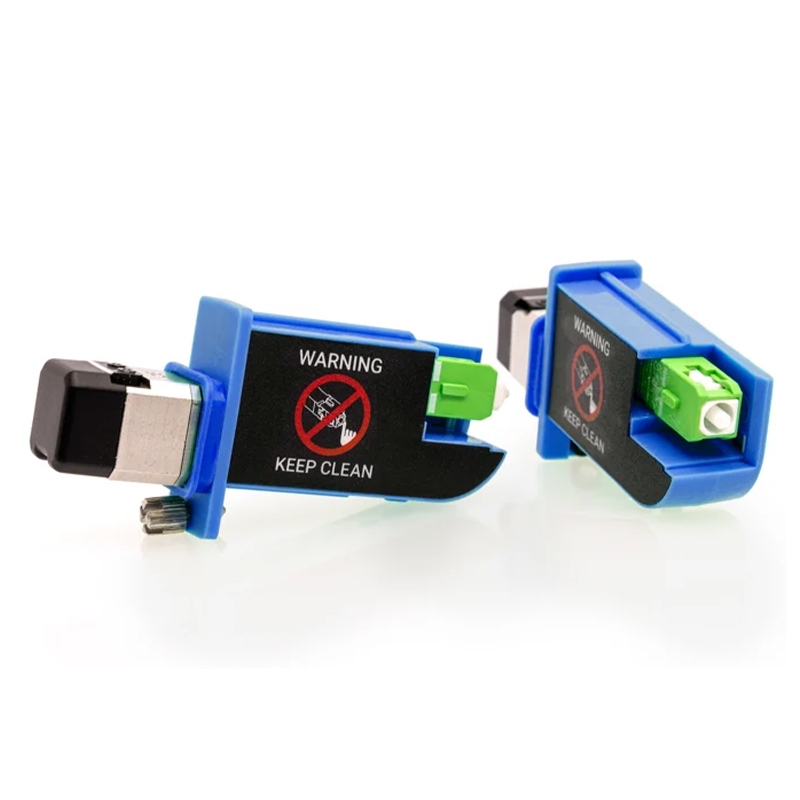

6. Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime
7. iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
8. 3-year warranty
9. OTDR, light source and power checker through single port to optimize the fiber handling process.
Applications
1. Access network construction and troubleshooting
2. FTTx/PON testing though splitters (up to 1x32)
3. FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
4. Central office link certification
5. Data center and private networks (Tier-2 certification)
6. Tier-2 certification of private/enterprise
7. LAN/WAN characterization
8. Fronthaul/backhaul (FTTA, FTTT, RRH, DAS and small cells)
Description
The handheld OTDR... with proven perfomance
The MaxTester 700D Series builds on the proven tablet-inspired, lightweight and rugged OTDR MaxTester platform. The familiar 7-inch, outdoor-enhanced touchscreen continues to deliver an unprecedented user experience with its intuitive Windows-like GUI ensures a fast learning curve. The OTDR 2 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real‑time modes.
The MaxTester 700D Series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time.
The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier.

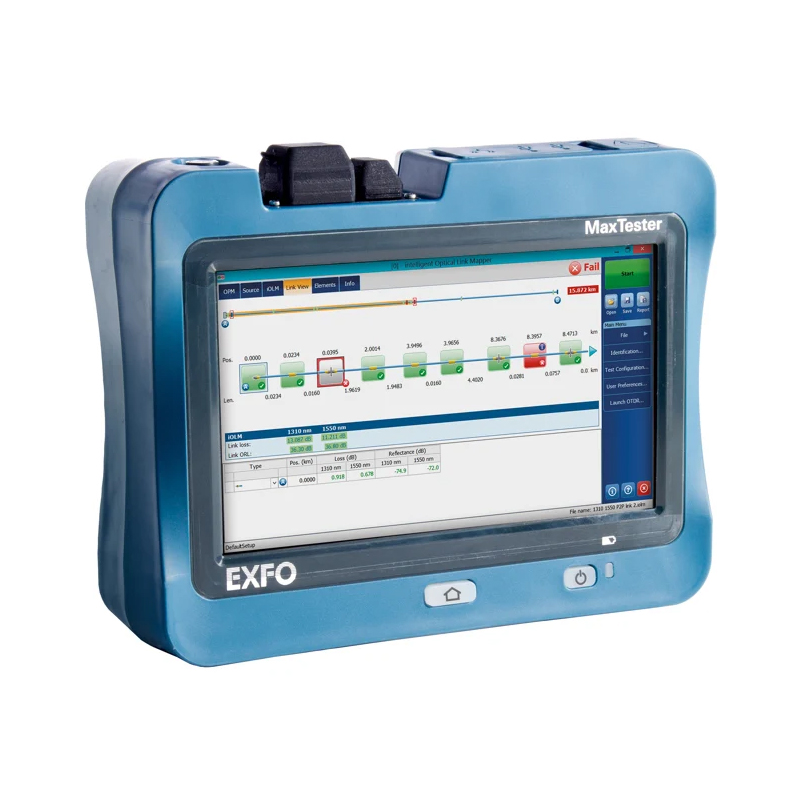

Most importantly, the MaxTester 700D Series comes with the intelligent Optical Link Mapper (iOLM), an intelligent OTDR‑based application. This advanced software turns even the most complex trace analysis into a simple, one-touch task.
Ultimately, the MaxTester 700D Series is small enough to fit in your hand and big enough to fit all your needs!
Entry-level solution designed for all your testing needs
The MaxTester 720D (MAX-720D) features a dynamic range of 36 dB in singlemode and 29 dB in multimode, as well as industry‑leading dead zones. This ensures efficient testing of closely spaced events such as patchcords in data centers, or patch panels in central offices (COs). The MaxTester 720D is optimized for point-to-point (P2P) testing of any access network, and is suitable for testing through 1×32 splitters.
The 1650-nm, out-of-band, live testing capabilities enable efficient troubleshooting of active networks without impacting the signal of other clients.

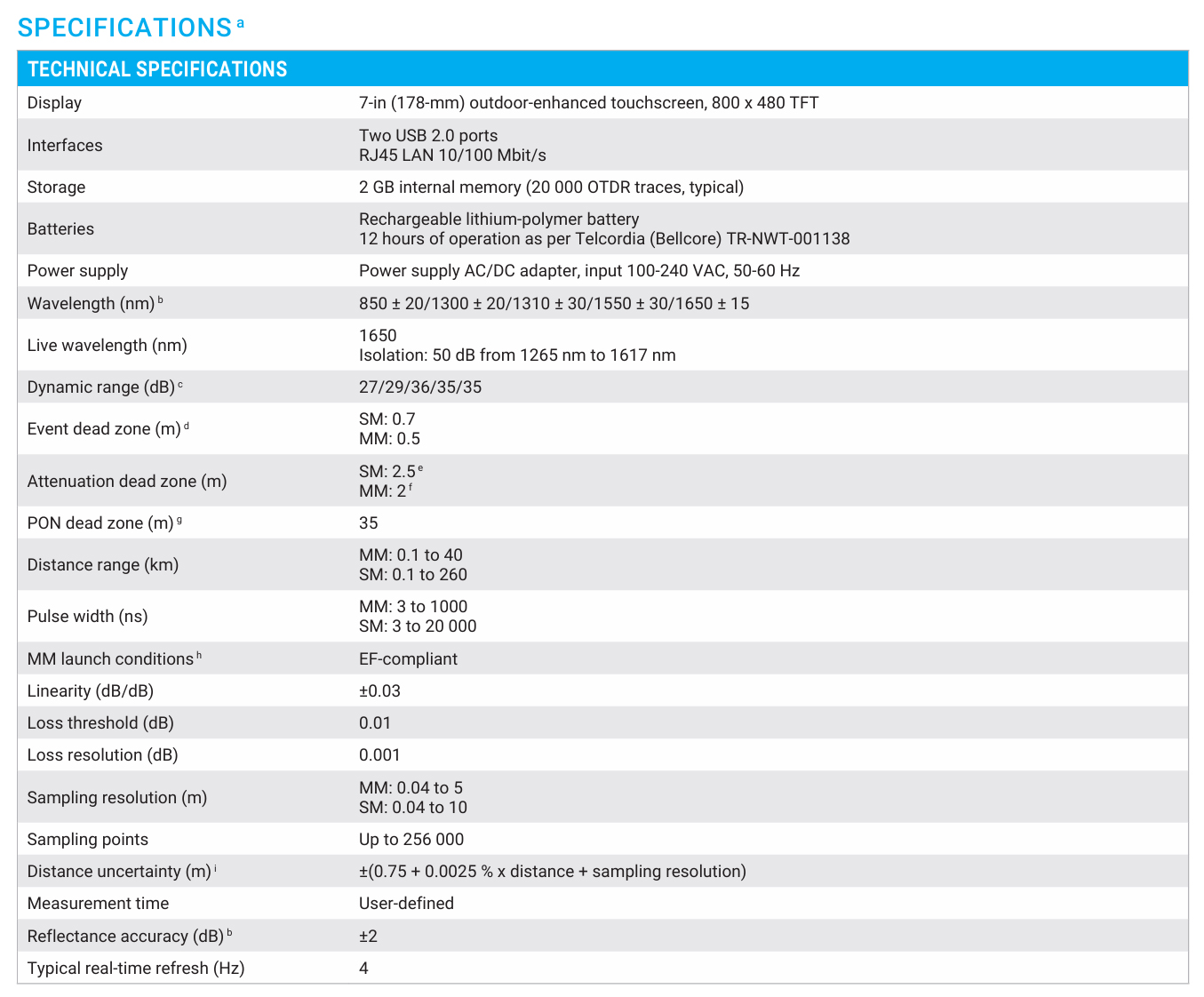

SPEC SHEET
MaxTester 720D access OTDR
OPTIMIZED FOR MULTIMODE AND SINGLEMODE ACCESS NETWORK CONSTRUCTION AND TROUBLESHOOTING
Fully featured, entry-level, dedicated OTDR with tablet-inspired design; perfect for construction, troubleshooting and everyday field testing in any access network.

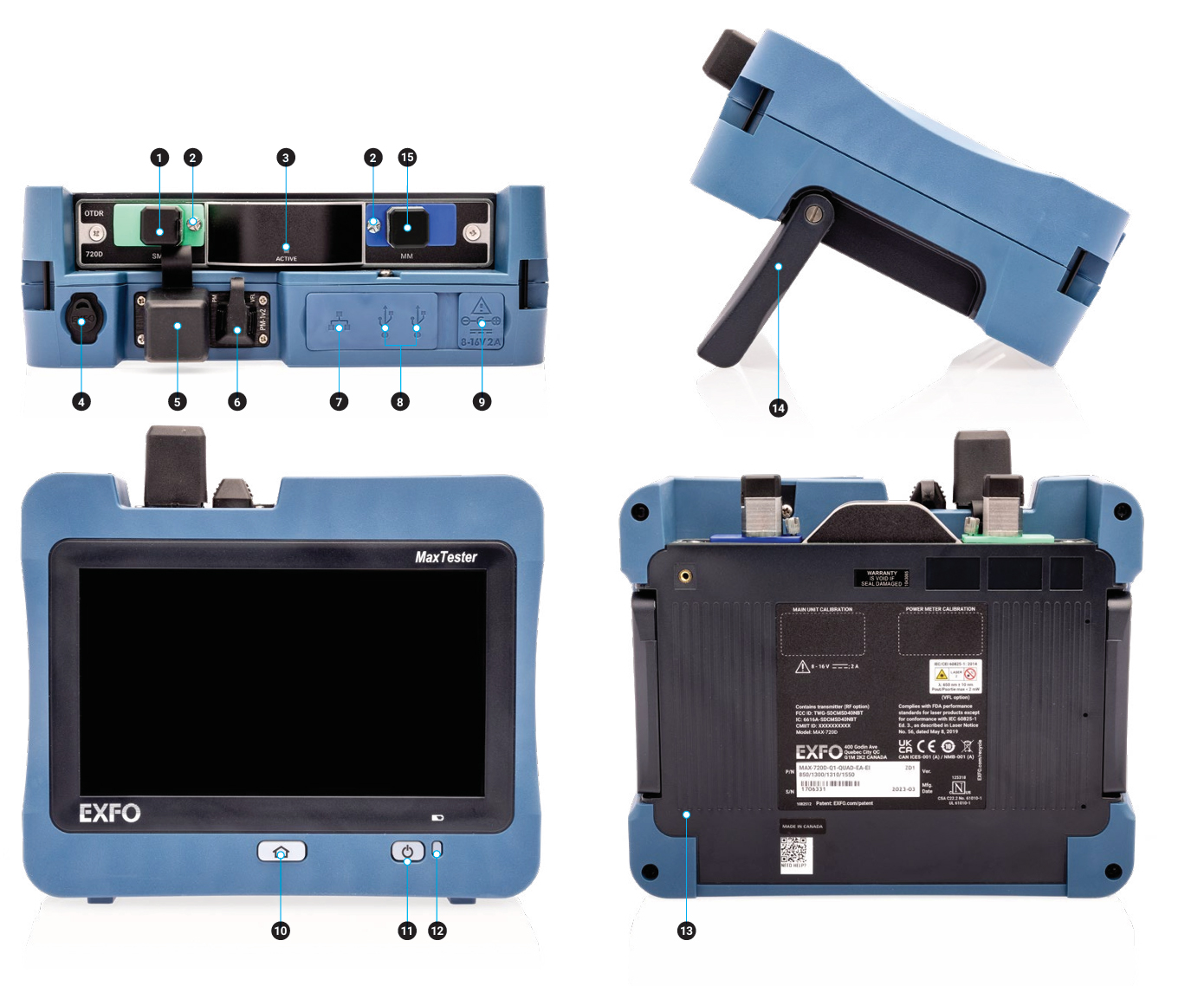

PACKAGED FOR EFFICIENCY

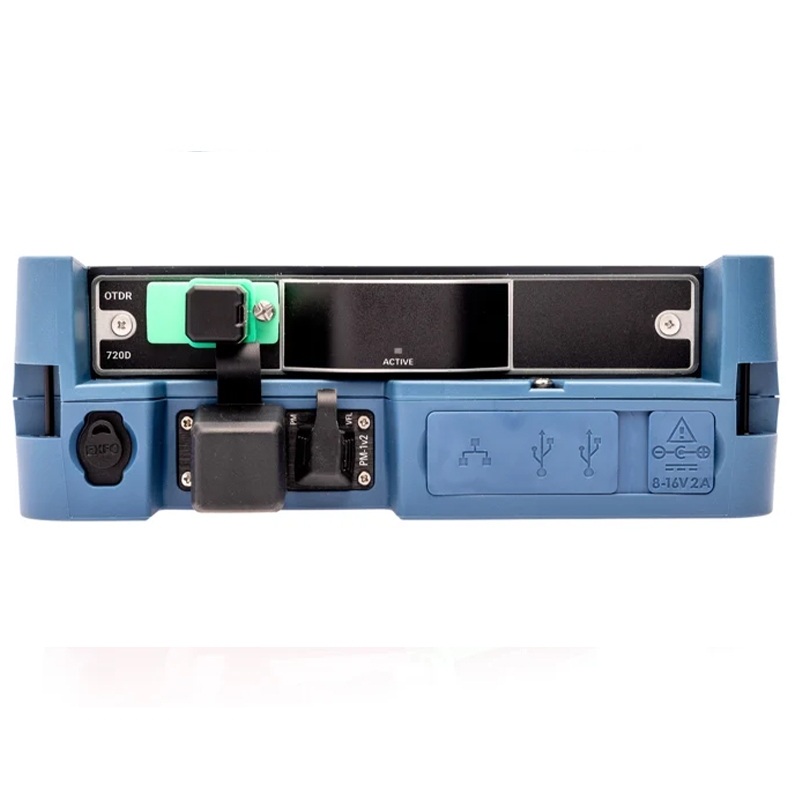

1. SM/Live OTDR port
2. Swap out connector screw
3. Testing LED indicator
4. Stylus
5. Power meter
6. Visual fault locator
7. 10/100 Mbit/s Ethernet port
8. Two USB 2.0 ports
9. AC adapter
10. Home/switch application and screen capture (hold)
11. Power on/off/stand by
12. Battery LED status
13. Built-in WiFi/Bluetooth

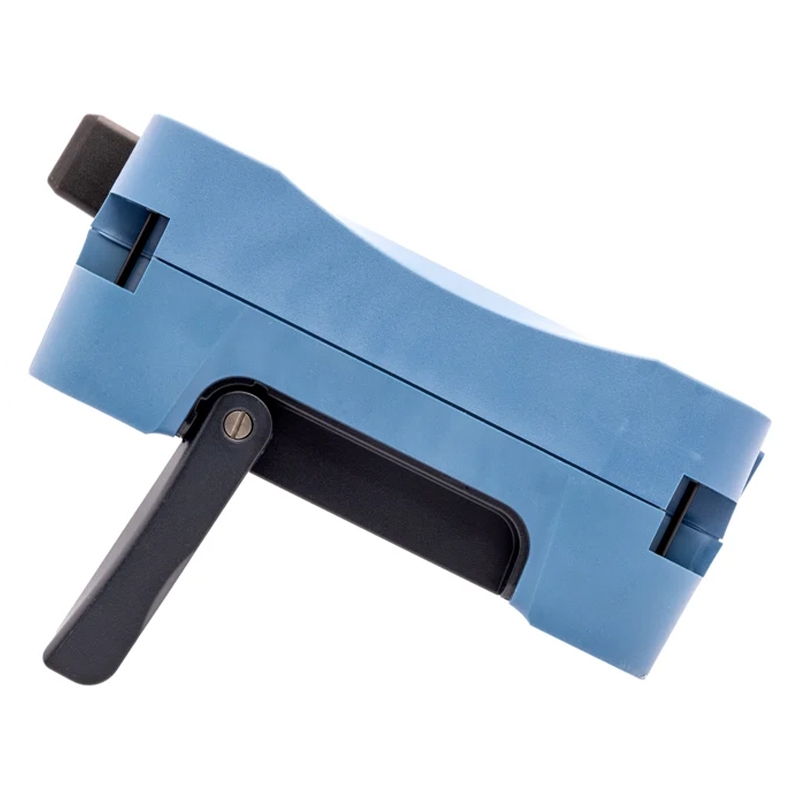

14. Stand support
15. MM OTDR port on quad model
