Key features
1. Rugged, handy, lightweight, tablet-inspired design built for outside plant
2. 7-inch, outdoor-enhanced touchscreen—the biggest in the handheld industry
3. 12-hour autonomy
4. Dynamic range up to 39 dB for up to 132 km point-to-point (P2P)
5. Short dead zones: event dead zone (EDZ) 0.5 m, attenuation dead zone (ADZ) 2.2 m, PON dead zone 30 m
6. FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

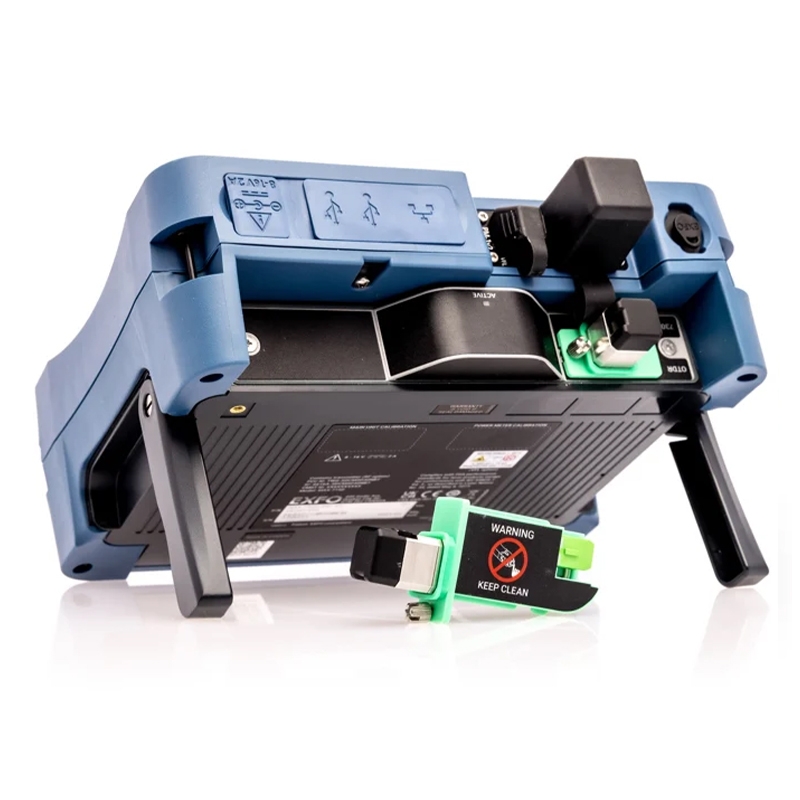

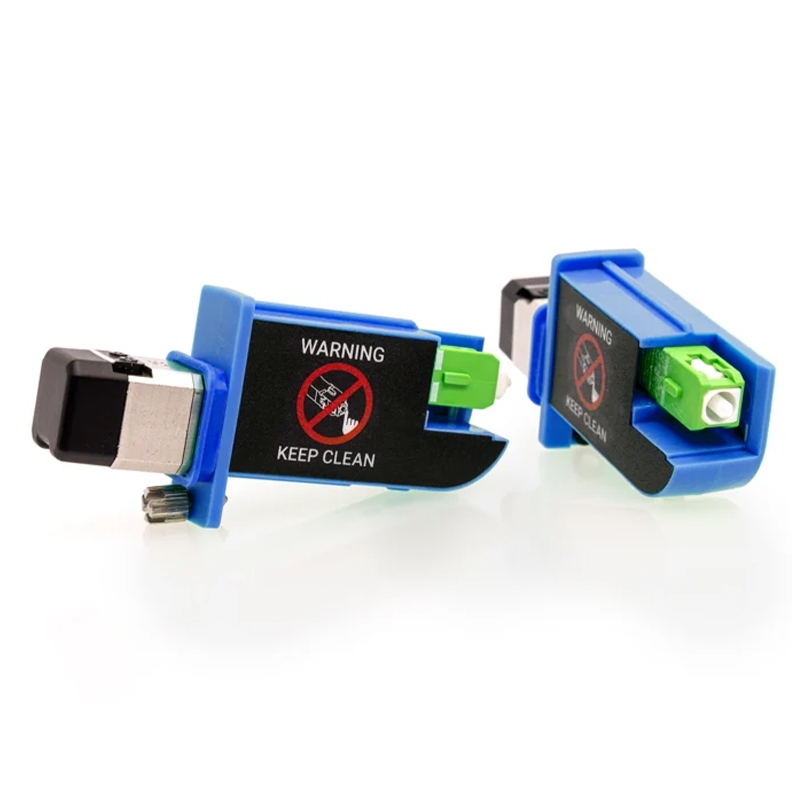

7. Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime
8. iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format
9. Industry-leading onboard PDF reporting and post‑processing, included for all users
10. 3-year warranty
Applications
1. FTTx/PON testing through splitters (up to 1x128)
2. FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON
3. Access network testing (P2P)
4. Metro links testing (P2P)
5. Live fiber troubleshooting
6. Passive optical LAN (POL)

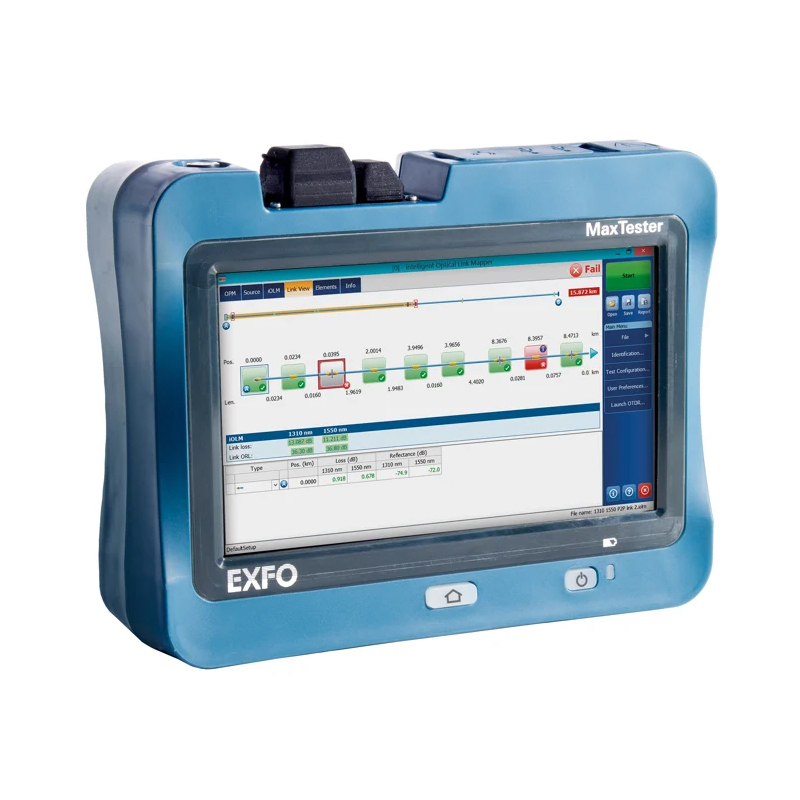

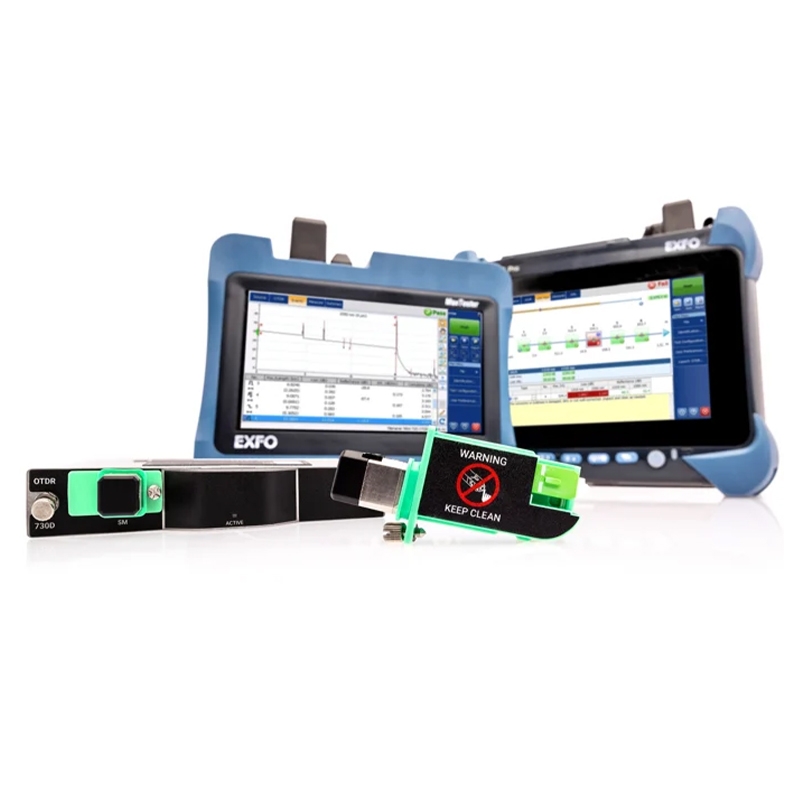

MaxTester 730D PON/metro OTDR
OPTIMIZED FOR FTTx/MDU FIBER DEPLOYMENTS AND TROUBLESHOOTING, SUITABLE FOR METRO
Fully featured, entry-level, dedicated OTDR with tablet-inspired design, suitable for metro and optimized to test through optical splitters, for seamless end-to-end FTTH characterization and troubleshooting.

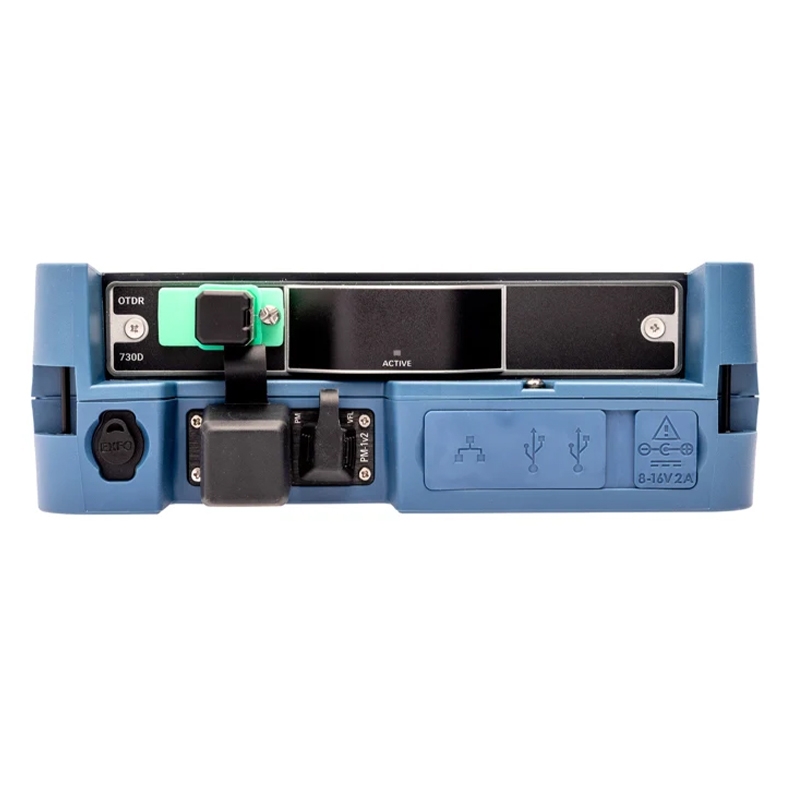

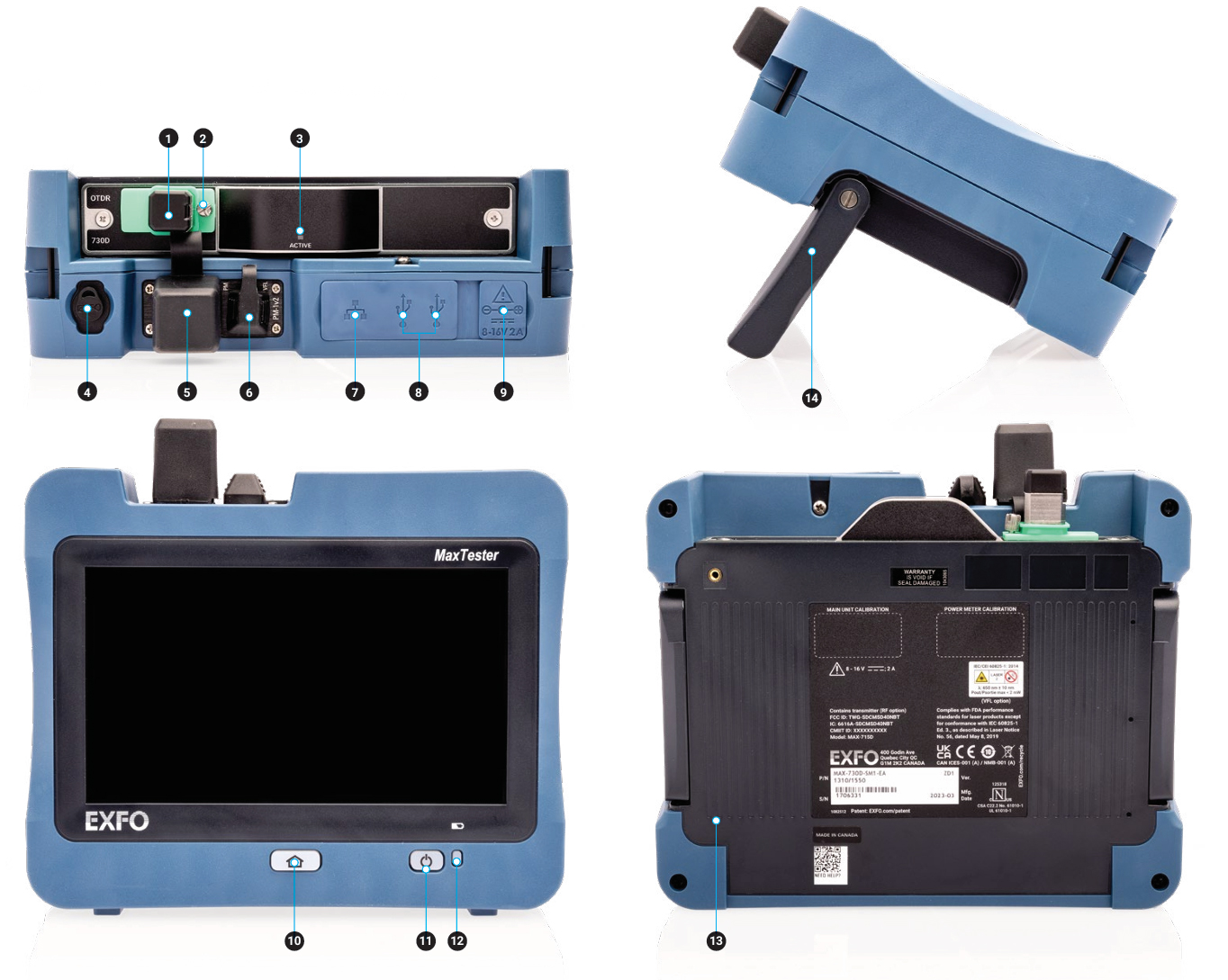

PACKAGED FOR EFFICIENCY
1. Singlemode OTDR port
2. Swap out connector screw
3. Testing LED indicator
4. Stylus
5. Power meter
6. Visual fault locator
7. 10/100 Mbit/s Ethernet port
8. Two USB 2.0 ports
9. AC adapter
10. Home/switch application and screen capture (hold)
11. Power on/off/stand by
12. Battery LED status
13. Built-in WiFi/Bluetooth

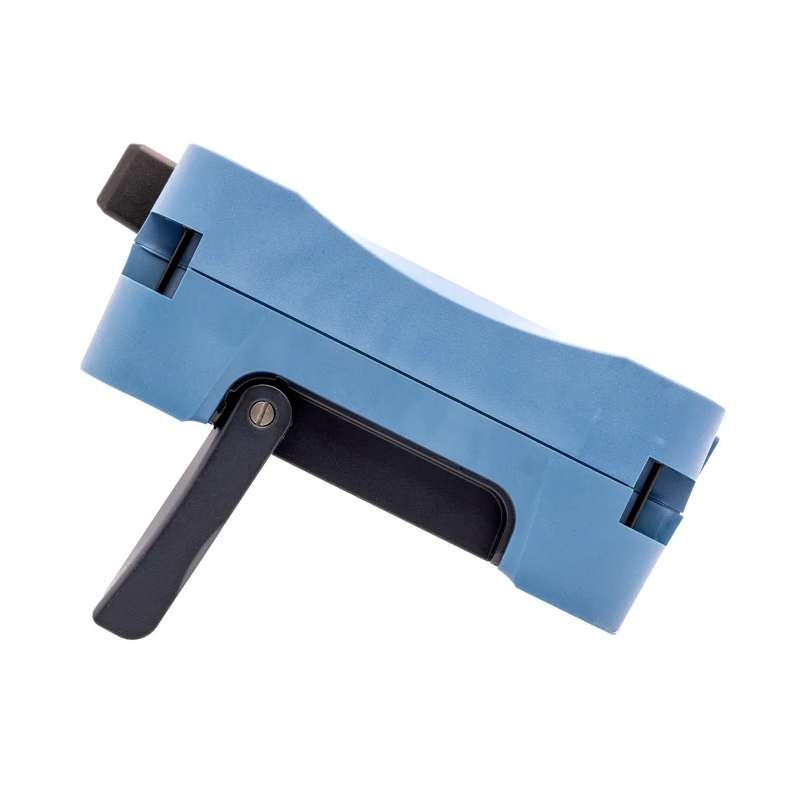

14. Stand support
