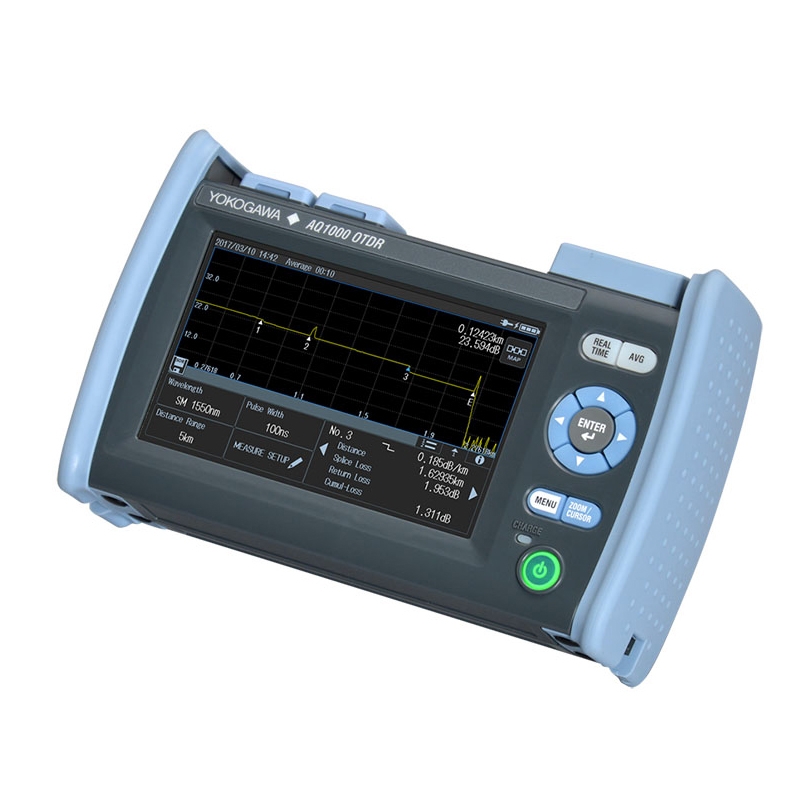

The AQ1000 satisfies test and measurement needs in analyzing access optical networks.
1. Wavelengths: 1310 / 1550 nm
2. Dynamic ranges: 32 / 30 dB
3. Size: 185 mm (W) × 116 mm (H) × 56 mm (D) ( 7.3" (W) × 4.6" (H) × 2.2" (D) )
4. Weight: 660 g ( 1.46 Lbs )
Multi-touch touchscreen
Intuitive and responsive

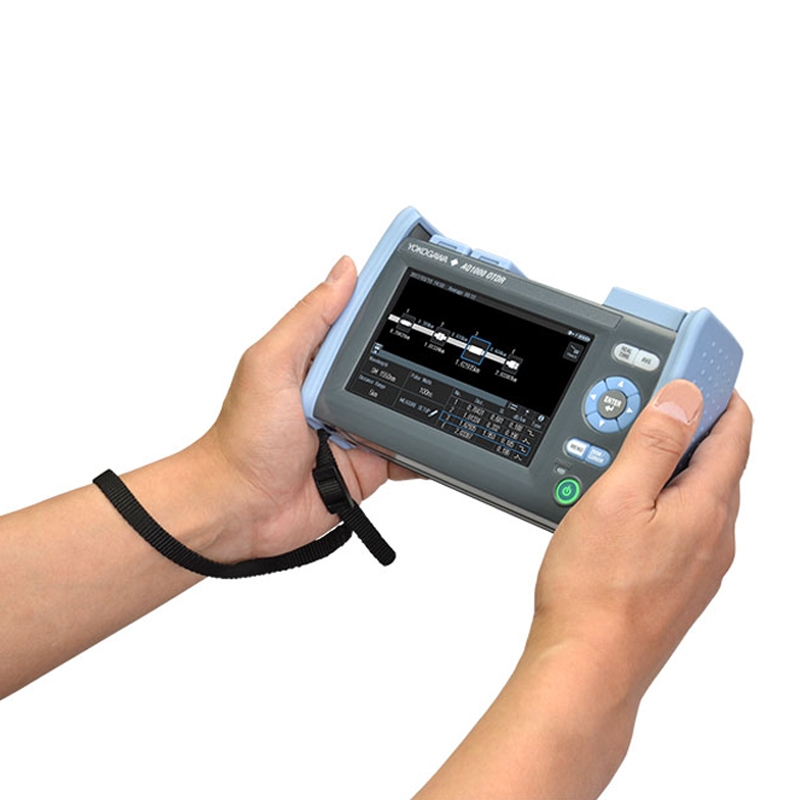

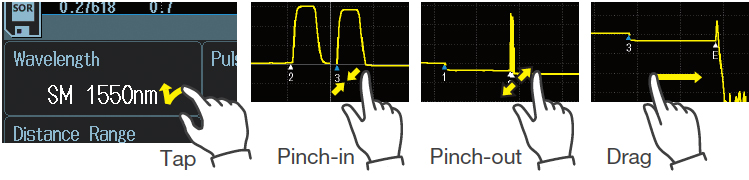

Tap, swipe, pinch or press with the intuitive and responsive multi-touchscreen display. This high resolution, responsive 5.0-inch multi-touch capacitive touchscreen combined with hard-key buttons make OTDR operations simple and intuitive.
One-button measurement

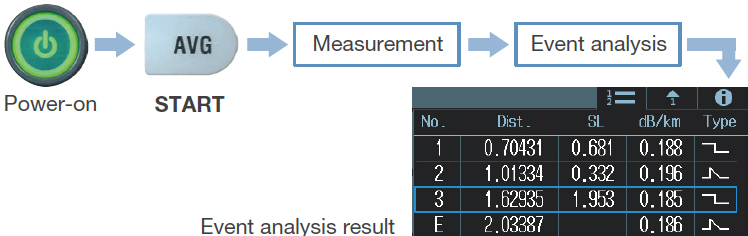

Full-Auto
By simply pressing one singe button, the AQ1000 initiates an OTDR measurement, detects and comprehensively characterizes network events with PASS/FAIL judgment based on user-defined thresholds. The measurement data can be saved automatically if desired.
OTDR view modes

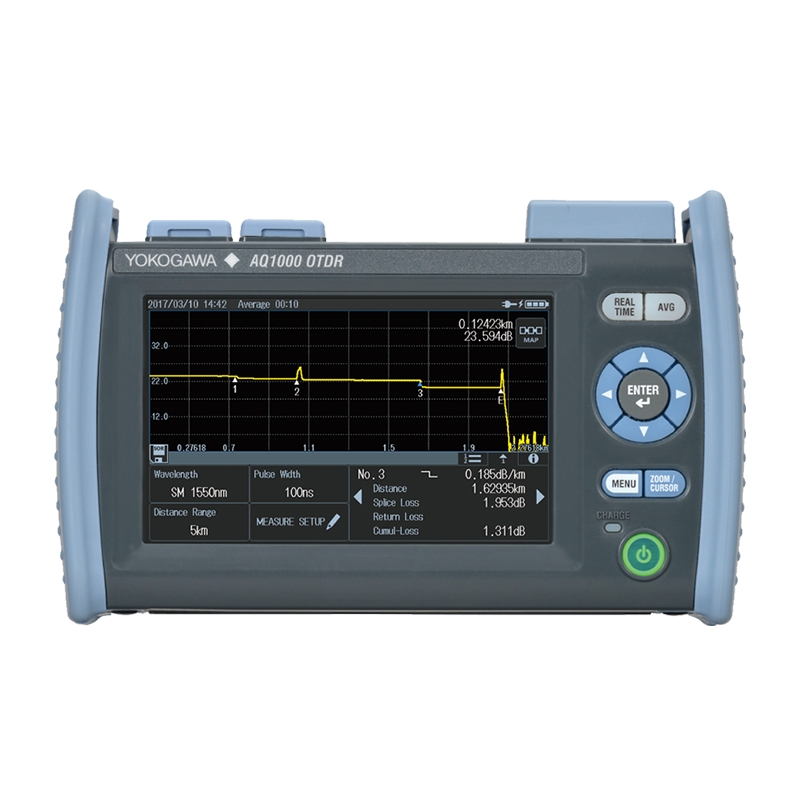

Trace view

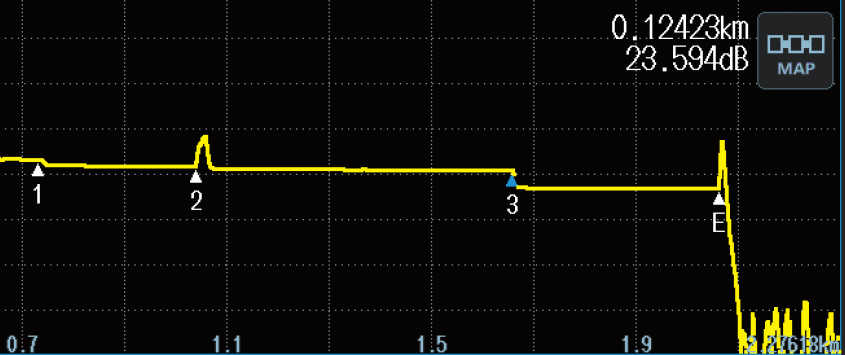

Traditional view with OTDR waveforms and event markers.
Map view

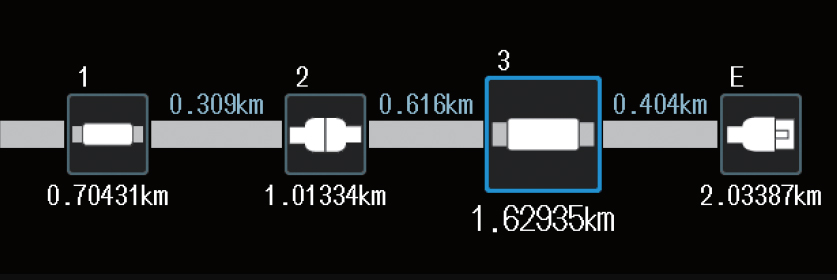

Simple, icon-based map view for easy interpretation of network events.
Long battery operation time
Over 10 hours!
No worrying about running out of battery power during your daily work. The AQ1000’s high capacity Li-Ion battery will last for 10 hours under the Telcordia standard conditions.
Quick boot-up
Under 10 seconds!
From completely OFF to measurement ready in under 10 seconds!
Key Measurement Functions
1. Distance measurement
2. Loss measurement
3. Return loss measurement (Total/Section)
4. Auto event search
5. Pass/Fail judgment
6. Real-Time

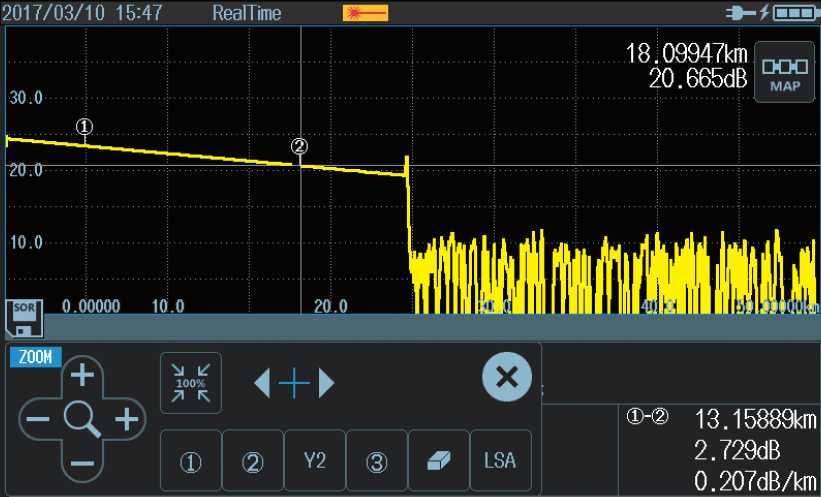

Simple and fast way to observe how the network connection looks like and make a Pass/Fail judgment of the network connection. The markers enables distance and loss measurements.
Built-in PC and LS, and VLS
Power checker (PC)

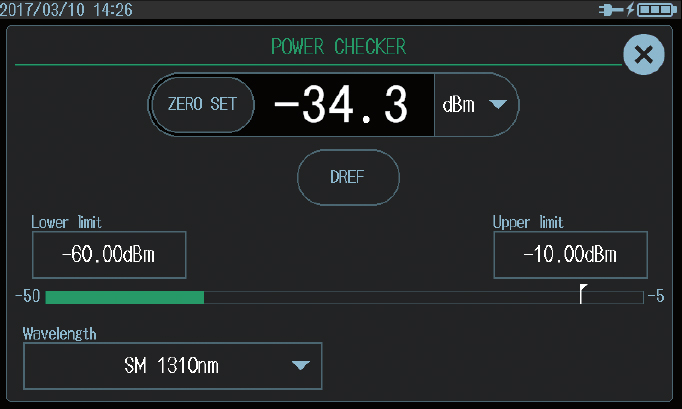

Measures and displays optical power of incoming light for testing network performance.

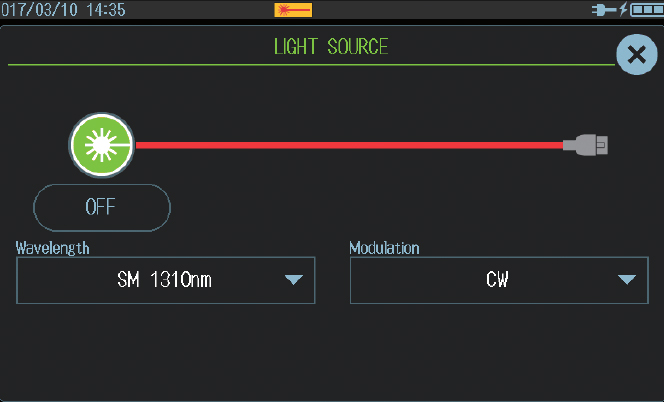

Light source (LS)
Outputs a stable, continuouswave/modulated light for measuring end-to-end attenuationaccurately when paired with an optical power sensor.
Visible light source (VLS)

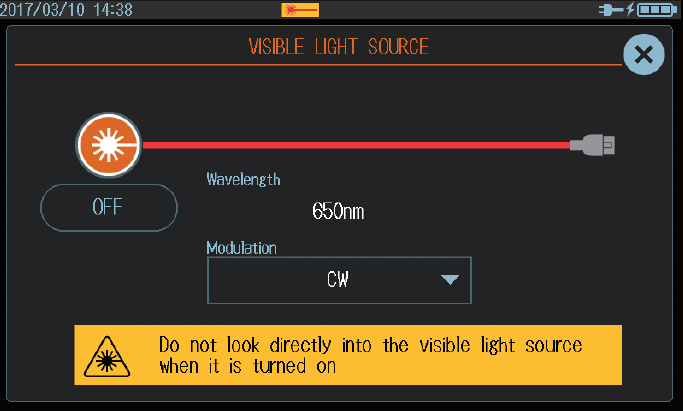

Outputs red light for checking continuity of launch numbers or short number trunks. Breaks and bending in number can be identified visually.
(/VLS option is required.)
Data handling features
Direct data saving

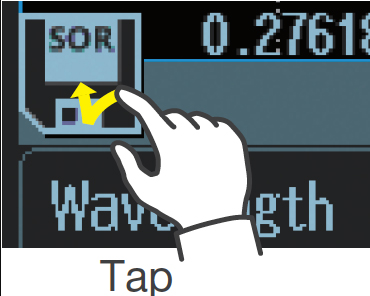

Simply pressing “Direct save” icon, measured data can be saved in SOR or PDF format according to users’ prior selection.
PDF reporting

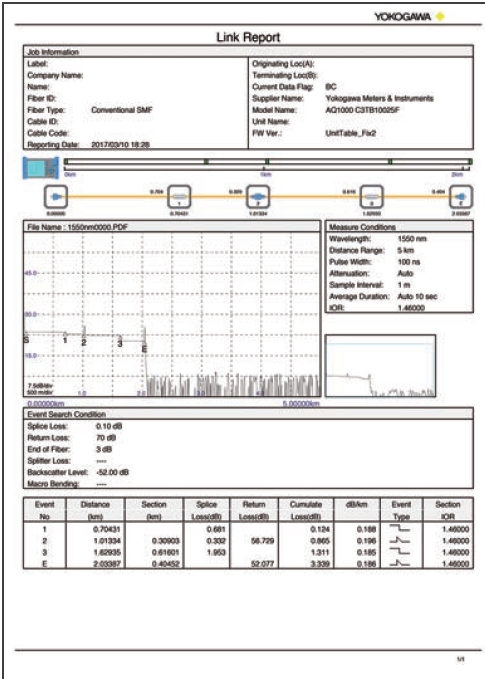

Built-in post-processing software for generating OTDR reports in PDF format. Flexible configuration of report template to meet users’ report requirements.
Data Transfer

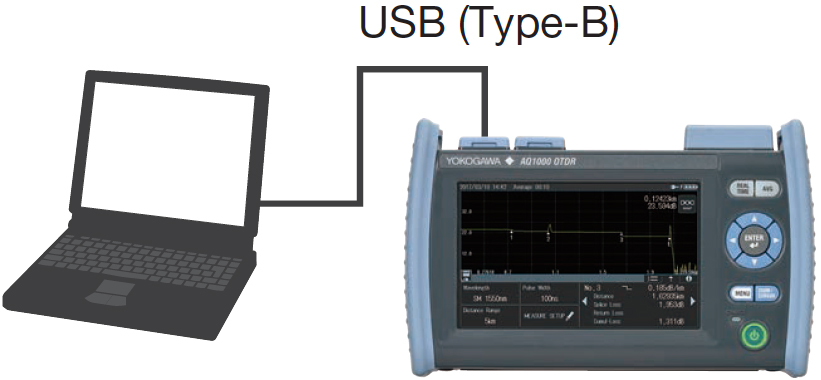

Data files or PDF report files that are stored in the AQ1000 can easily be transferred to a PC through a USB connection.
Wireless LAN (soon-to-be-released)

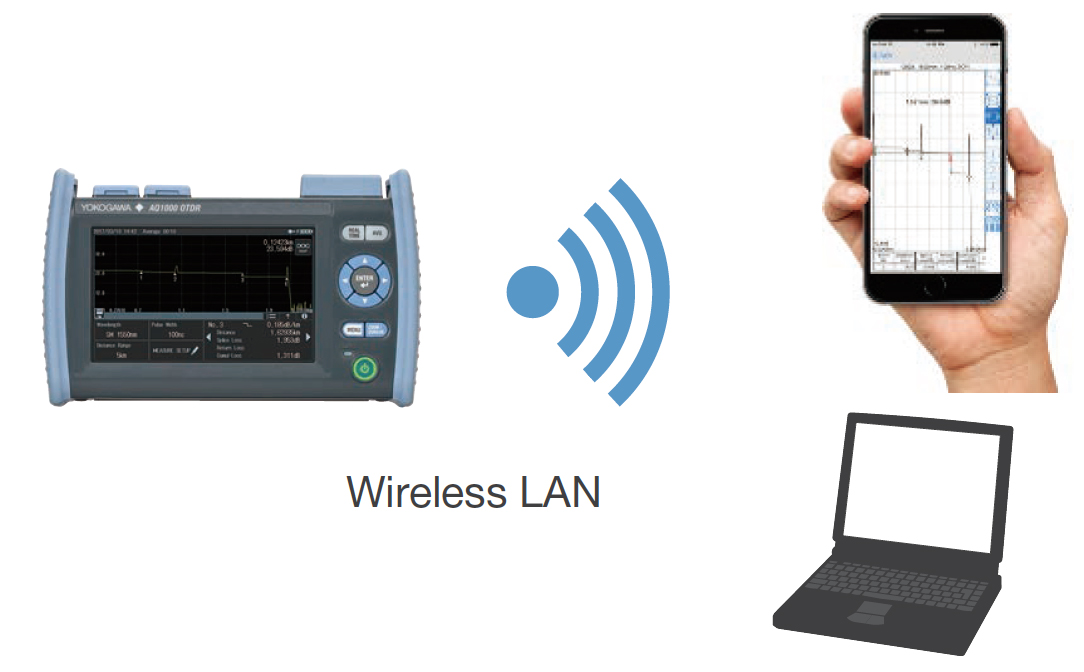

The AQ1000 is capable of data transfer and remote control in cooperation with wireless LAN capable devices.
Wireless data transfer
The AQ1000’s data files can be transferred to a smartphone or tablet using the OTDR data transporter, or to PC using the OTDR Remote Controller software.
Remote control
The AQ1000 can be controlled remotely by a smartphone or tablet using a web browser and by a PC using a web browser or the OTDR remote controller.

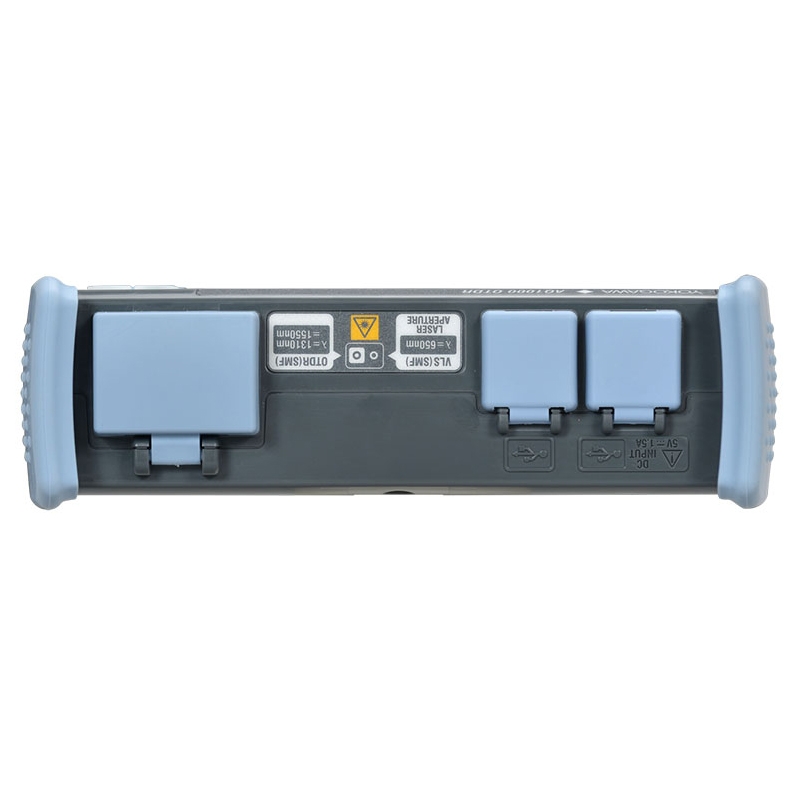

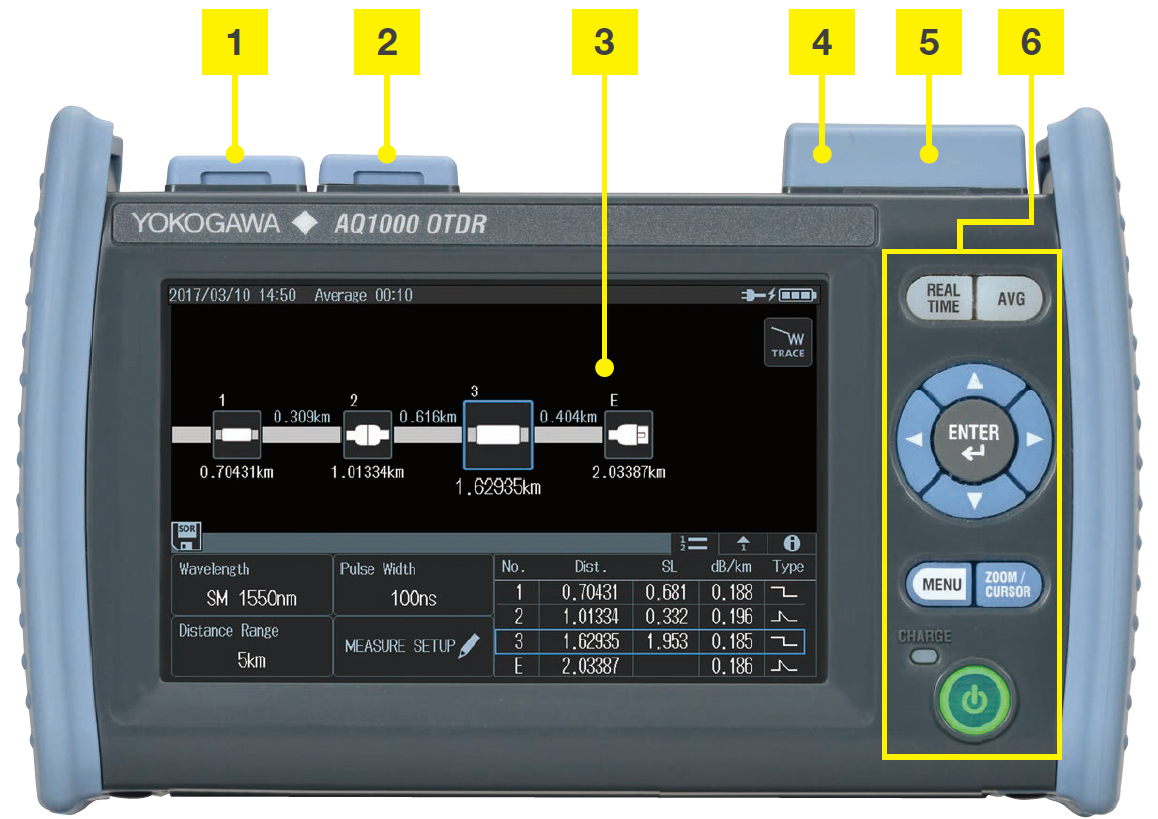

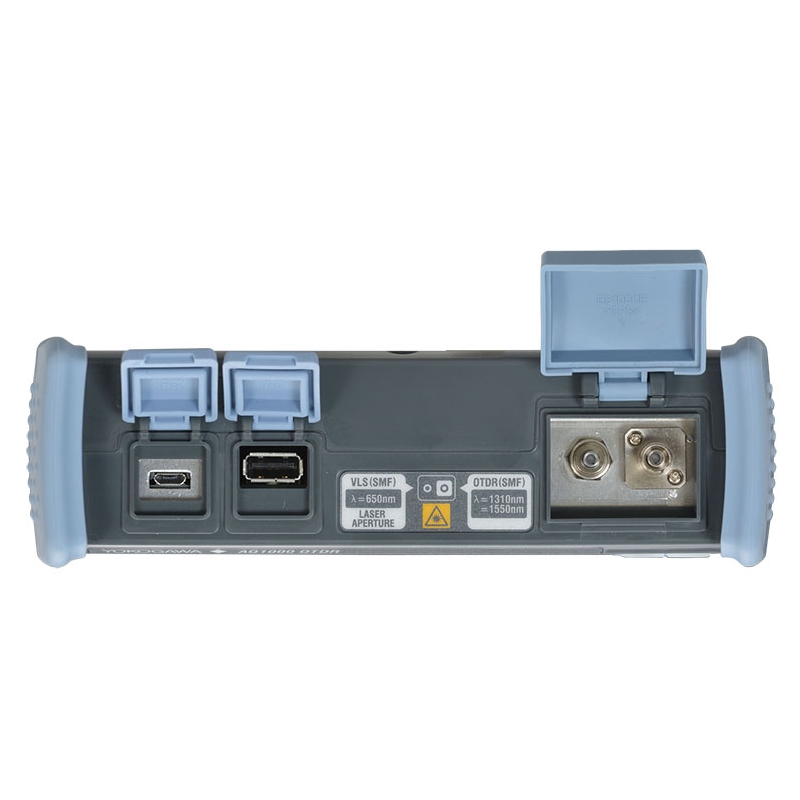

1. USB port (Type micro B)
